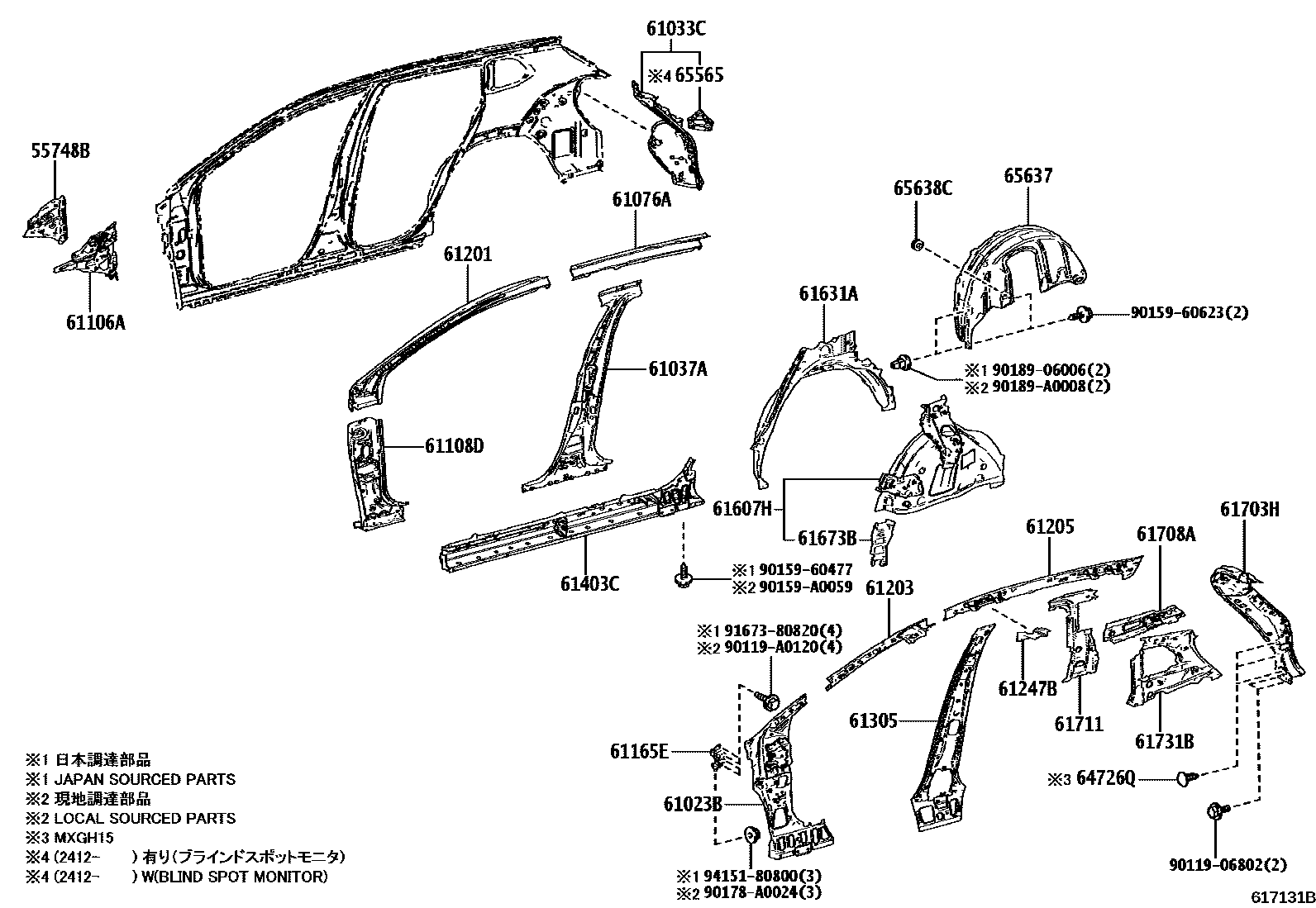

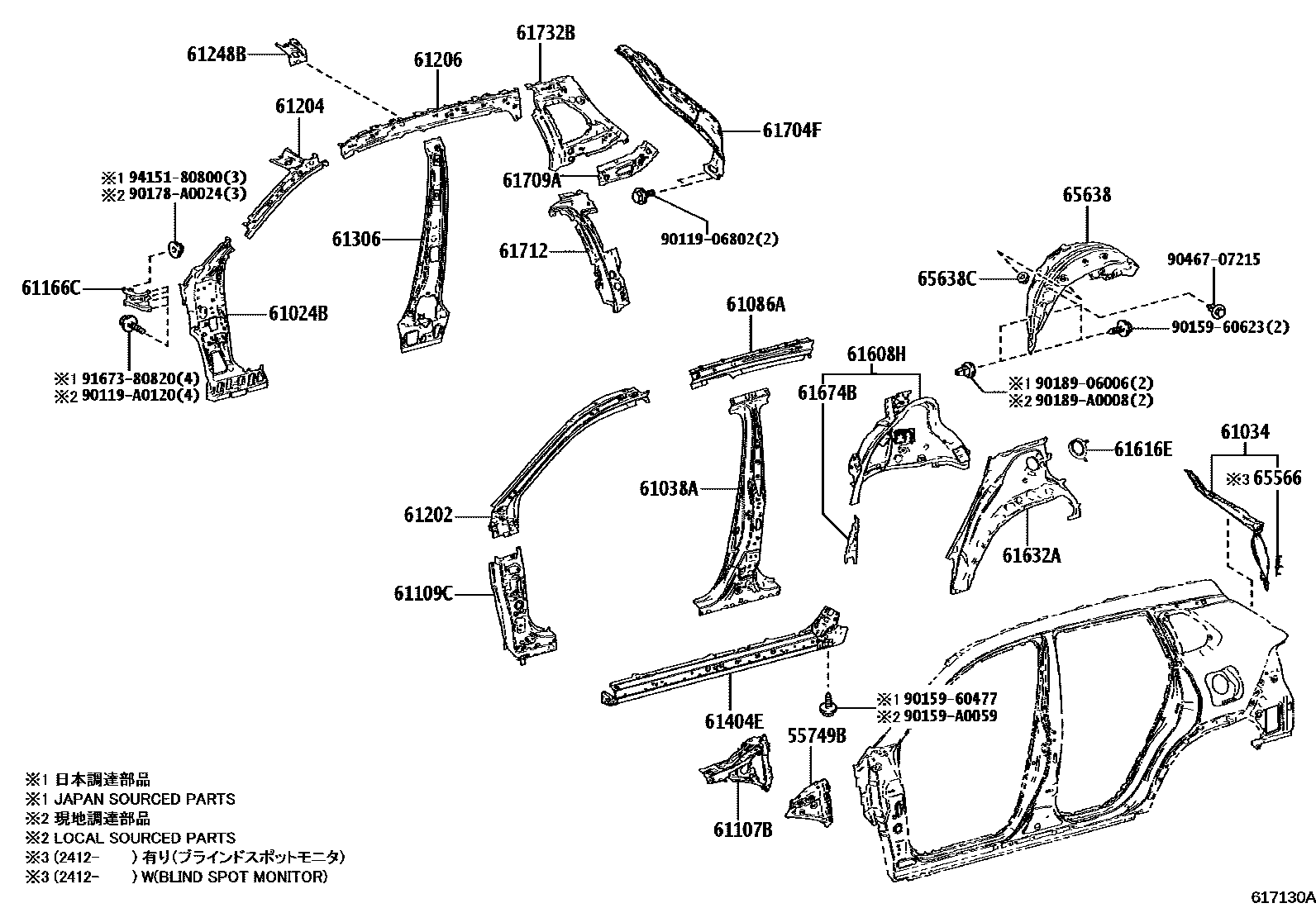

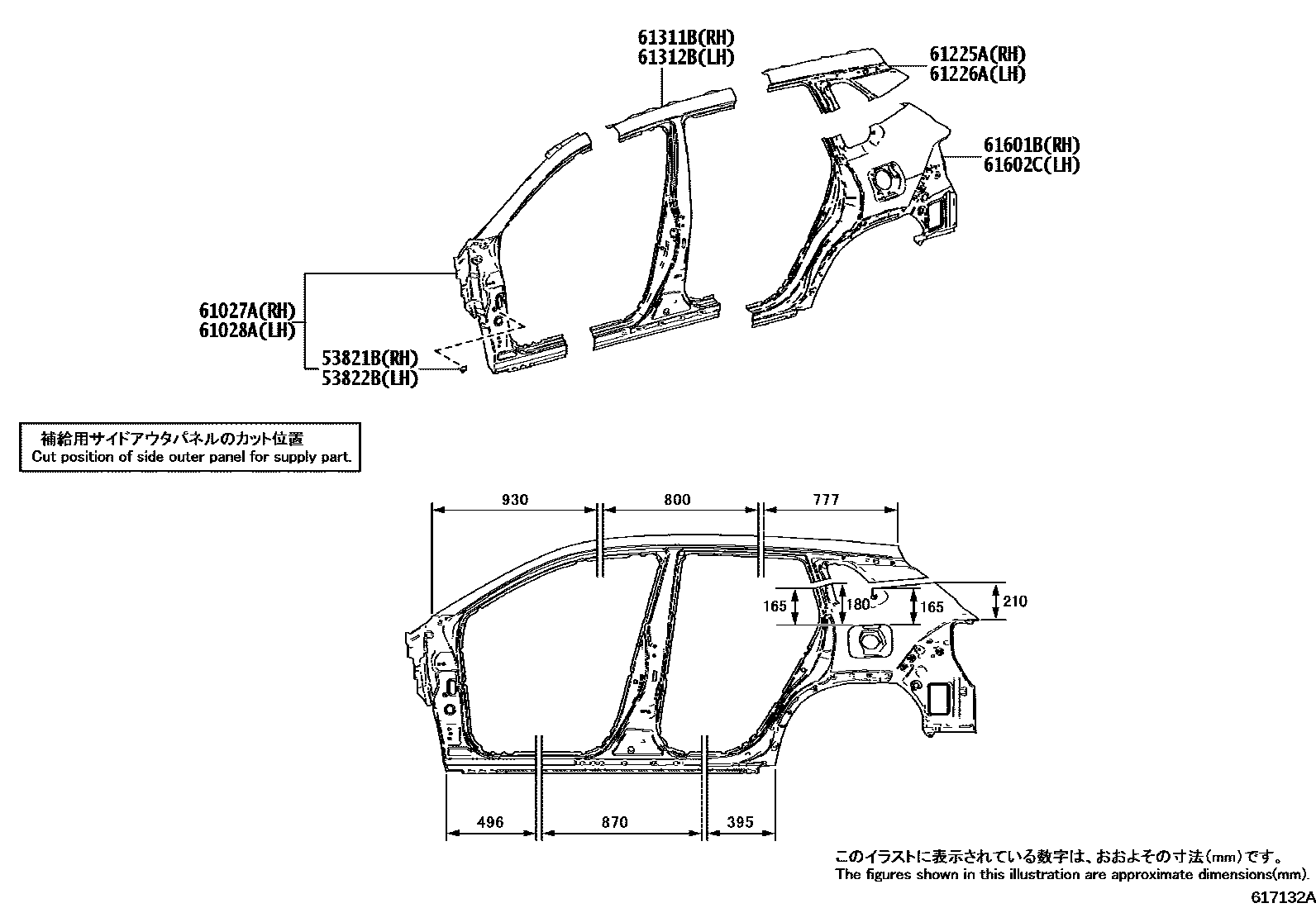

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-06180 |
| 53822B | Left front fender rear support | 53821-06180 |
| 55748B | From the upper inner part of the cowl to the right bracket of the column | 55748-0A010 |
| 55749B | From the upper inner part of the cowl to the left bracket of the column | 55749-0A010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-0A070 |
| 61024B | Left body inner front pillar sub-assembly | 61024-0A070 |
| 61027A | Right body outer front pillar sub-assembly | 61027-0A040 |
| 61028A | Left body outer front pillar sub-assembly | 61028-0A040 |
| 61033C | SOUS-ENS. RENFORT, LAT OUV HAYON, MD | 61033-0A060 · 61033-0A070 |
| 61034 | Rear door opening left reinforcement sub-assembly | 61034-0A060 · 61034-0A070 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-0A060 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-0A070 |
| 61076A | No. 4 right longitudinal beam sub-assembly on the outer side | 61076-0A010 |
| 61086A | No. 4 left longitudinal beam sub-assembly on the outer side | 61086-0A010 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-0A040 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-0A040 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-0A040 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-0A040 |
| 61165E | SUPPORT, TABLEAU BORD AU COTE AUVENT, MD | 61165-02020 · 61165-02021 |
| 61166C | SUPPORT, TABLEAU BORD AU COTE AUVENT, MG | 61166-02020 · 61166-02021 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-0A020 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-0A020 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-0A010 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-0A010 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-0A010 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-0A010 |
| 61225A | No. 1 longitudinal beam on the outer right side of the roof | 61225-0A040 |
| 61226A | No. 1 longitudinal beam on the outer left side of the roof | 61226-0A040 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-0A010 · 61247-0A020 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-0A010 · 61248-0A020 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-0A040 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-0A040 |
| 61311B | Right body outer center pillar | 61311-0A050 |
| 61312B | Left body outer center pillar | 61312-0A050 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-0A903 · 61403-0A907 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-0A903 · 61404-0A907 |
| 61601B | Right side enclosure sub-assembly | 61601-0A050 |
| 61602C | Left side enclosure sub-assembly | 61602-0A060 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-0A060 · 61607-0A070 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-0A060 · 61608-0A070 |
| 61616E | Left side enclosure outer panel reinforcement | 61635-06020 |
| 61631A | Right wheel cover outer panel | 61631-0A040 |
| 61632A | Left side wheel cover outer panel | 61632-0A040 |
| 61673B | Right wheel housing lining panel reinforcement | 61673-0A010 |
| 61674B | Left side wheel housing lining plate reinforcement | 61674-0A010 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-0A010 |
| 61704F | Left front side panel inner panel sub-assembly | 61704-0A010 |
| 61708A | Right seat belt anchor reinforcement sub-assembly | 61708-0A010 |
| 61709A | Left seat belt anchor reinforcement sub-assembly | 61709-0A010 |
| 61711 | Roof right side outer panel | 61711-0A010 |
| 61712 | Roof left outer panel | 61712-0A010 |
| 61731B | Roof right inner panel | 61731-0A030 |
| 61732B | Roof left inner panel | 61732-0A030 |
| 65565 | Right side panel rear end lining | 65565-06080 |
| 65566 | Left side panel rear end lining | 65565-06080 |
| 65637 | Right rear wheel house lining | 65637-0A040 |
| 65638 | Left rear wheel house lining | 65638-0A040 |
| 65638C | ATTACHE, REVETEMENT PASSAGE ROUE ARR | 90467-06121 |
