Toyota COROLLA 地板隔热垫 — Figure 5802

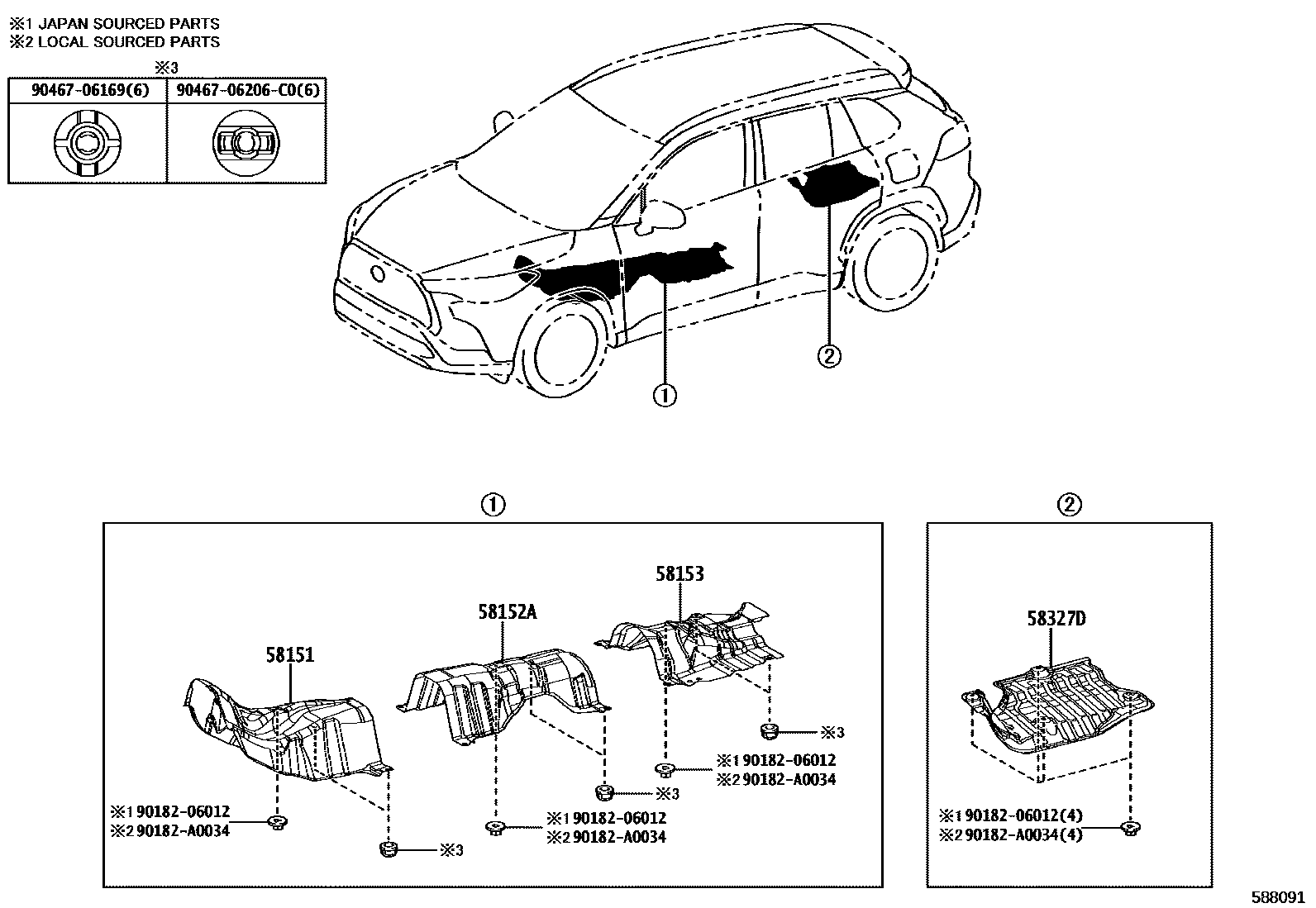

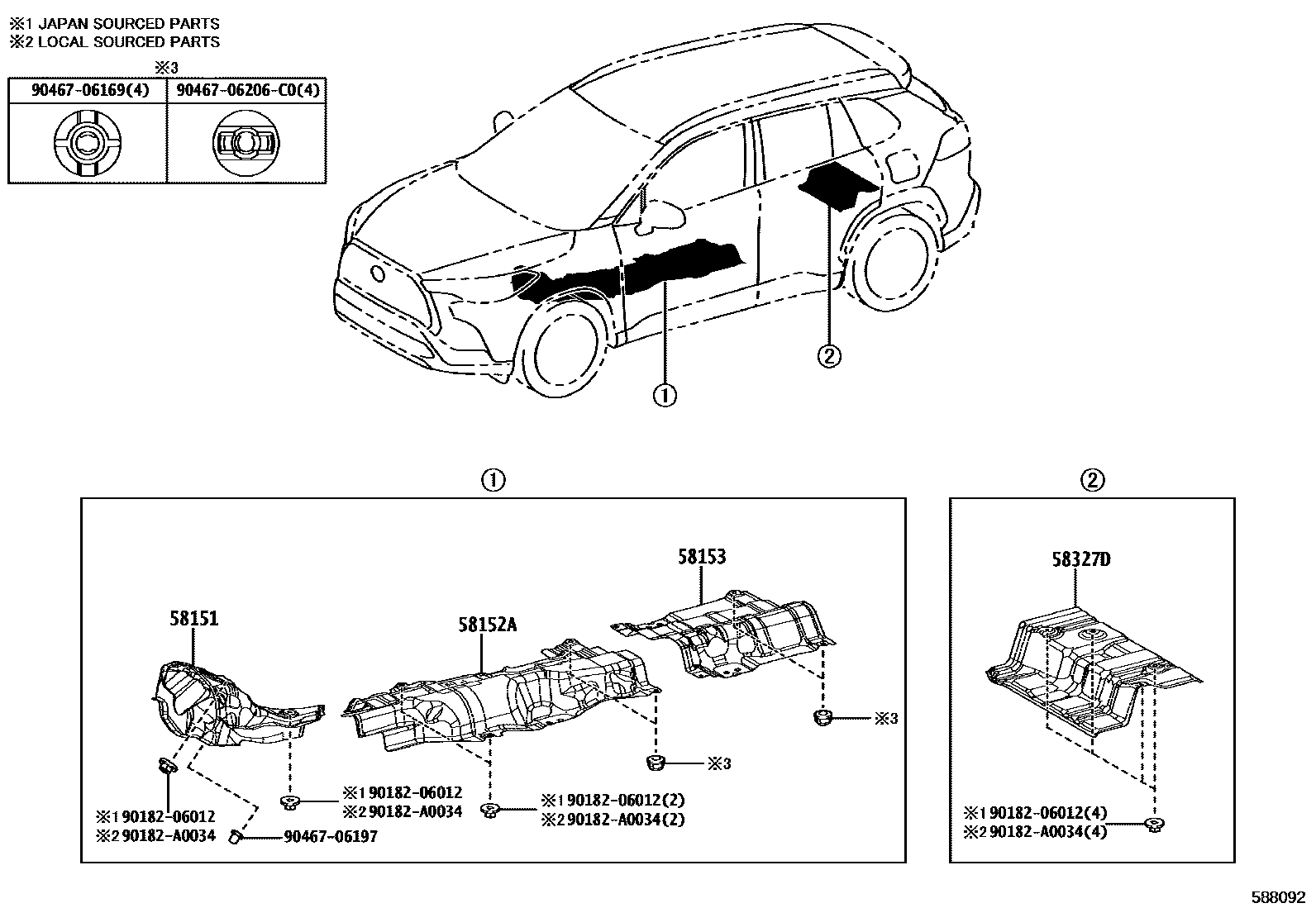

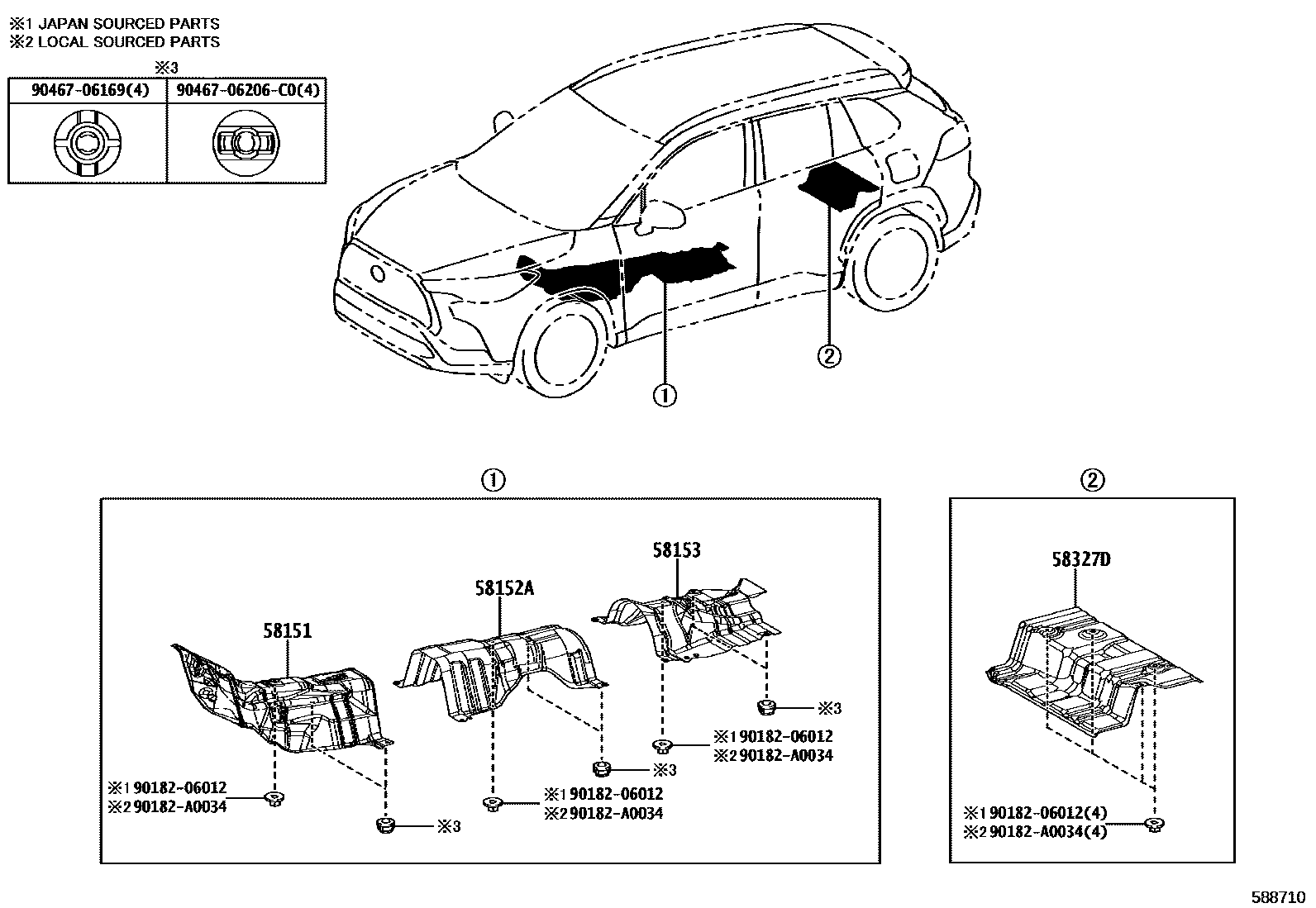

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-0A030 · 58151-0A040 · 58151-0A100 |
| 58152A | Front floor No. 1 lower heat insulation pad | 58152-0A010 · 58152-0A020 |
| 58153 | Front floor insulation mat No. 2 | 58153-0A030 · 58153-0A040 |
| 58327D | Heat insulation pad on main muffler | 58327-0A010 · 58327-0A020 |
