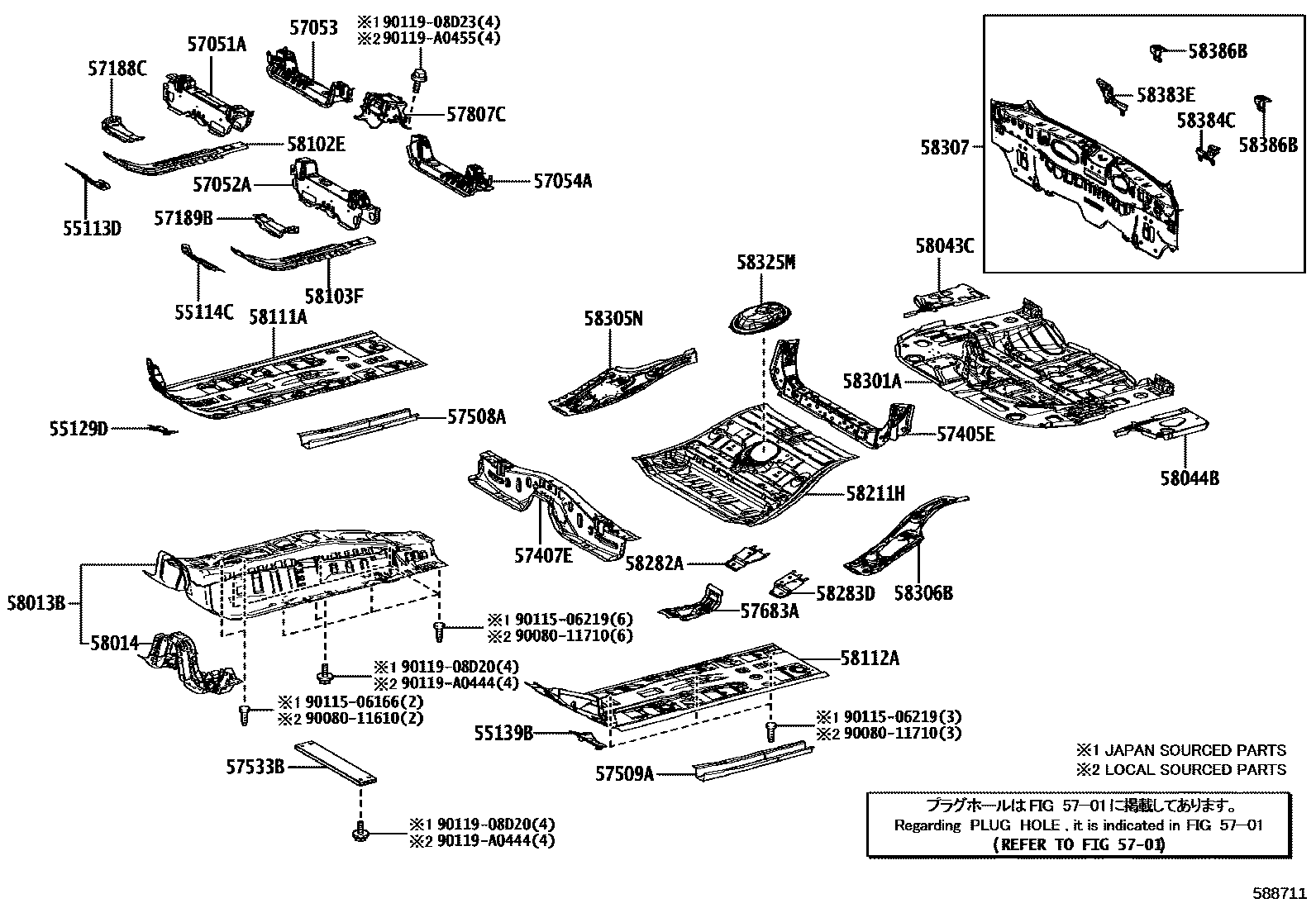

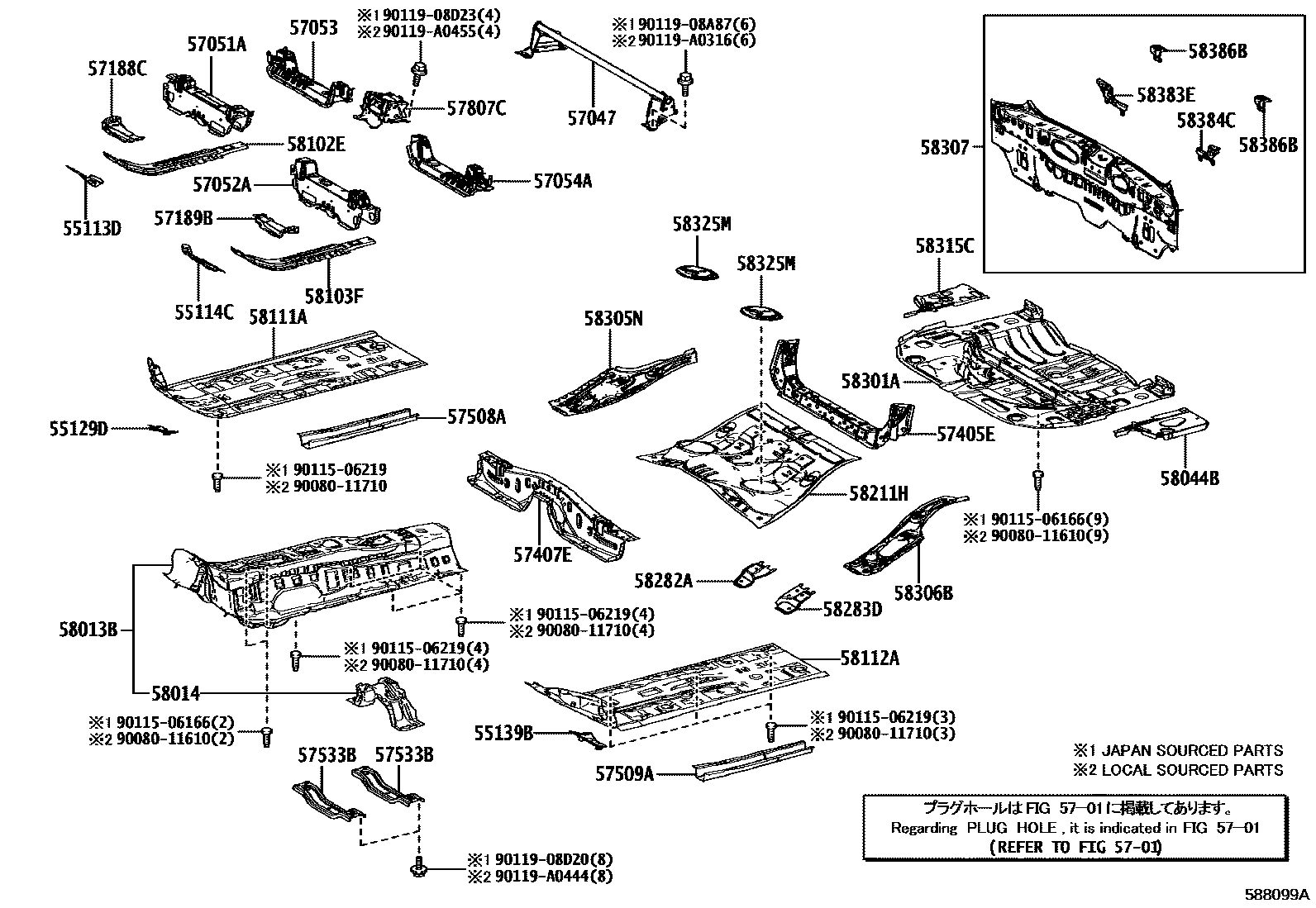

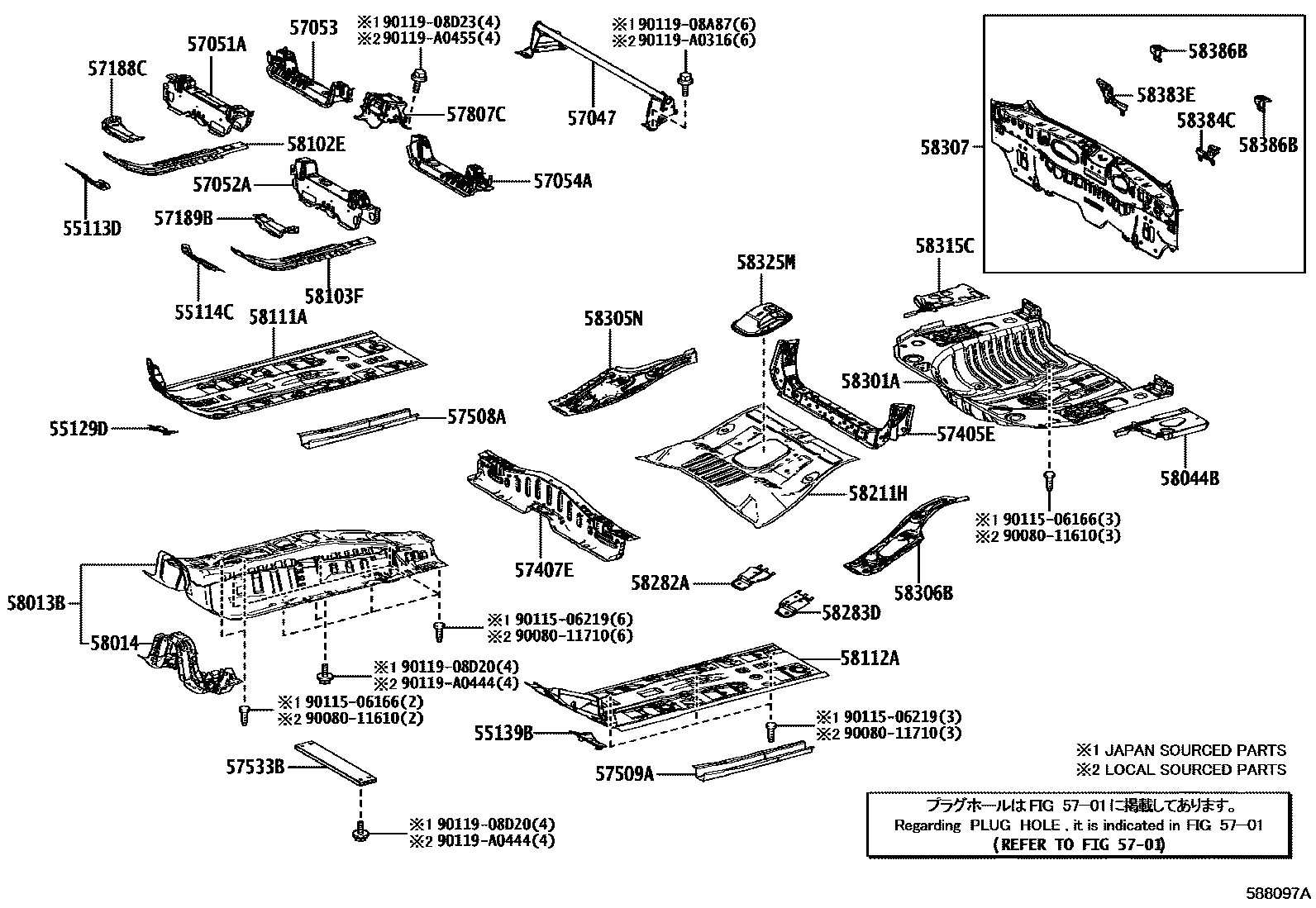

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55113D | PANNEAU, TABLEAU BORD, INFERIEUR MD | 55113-0A010 · 55113-0A020 |
| 55114C | PANNEAU, TABLEAU BORD, INFERIEUR MG | 55114-0A040 |
| 55129D | Right front panel hole cover | 55129-02080 |
| 55139B | Left front panel hole cover | 55139-02070 |
| 57047 | SS-ENS. PLAQUE DE JONCTION, TRAVERSE DE PLANCHER CENTRALE | 57047-0A010 · 57047-0A011 |
| 57051A | Front floor right cross member sub-assembly | 57051-0A030 |
| 57052A | Front floor left cross member sub-assembly | 57052-0A030 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-0A030 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-0A030 |
| 57188C | RENFORCEMENT, EXT. MEMBRE LATERAL AVANT, DR | 57188-0A010 |
| 57189B | RENFORCEMENT, EXT. MEMBRE LATERAL AVANT, GA | 57189-0A010 |
| 57405E | SOUS-ENS. DE TRAVERSE DE PLANCHER CENTRAL NO. 2 | 57405-0A010 |
| 57407E | Center floor beam sub-assembly | 57407-0A010 · 57407-0A011 · 57407-0A020 · 57407-0A021 · 57407-0A060 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-0A030 |
| 57509A | Front floor left reinforcement sub-assembly | 57508-0A030 |
| 57533B | Front floor center bracket | 57533-0A010 · 57533-0A030 |
| 57683A | No. 1 fuel tank mounting bracket | 57683-0A090 |
| 57807C | RENFORT S/A, LONG. LAT. PLANCHER AR., AVANT DROIT NO.2 | 57807-16010 · 57807-16020 |
| 58013B | Front floor center panel sub-assembly | 58013-0A040 · 58013-0A050 |
| 58014 | Front floor and rear lower panel sub-assembly | 58014-0A010 · 58014-0A011 · 58014-0A020 |
| 58043C | PAN SOUS-ASS, COT SOL, ARR RH | 58043-0A010 |
| 58044B | Rear floor left side panel sub-assembly | 58044-0A010 |
| 58102E | SS-ENS. RENFORT, PLANCHER AVANT, MD | 58102-0A020 |
| 58103F | SS-ENS. RENFORT, PLANCHER AVANT, MG | 58102-0A020 |
| 58111A | Front floor right bottom panel | 58111-0A020 · 58111-0A050 |
| 58112A | Front floor left panel | 58112-0A010 · 58112-0A030 |
| 58211H | central floor base | 58211-0A030 · 58211-0A040 · 58211-0A140 |
| 58282A | Right No. 3 seat belt anchor to floor base | 58282-02230 · 58282-0A030 |
| 58283D | Left No. 3 seat belt anchor to floor base | 58283-0A090 · 58283-0A100 |
| 58301A | Rear floor sub-assembly | 58301-0A900 · 58301-0A901 · 58301-0A902 |
| 58305N | SOUS-ENS D'EXTENSION, PLANCHER ARRIERE A CUSTODE, DR | 58305-0A010 · 58305-0A020 |
| 58306B | SOUS-ENS D'EXTENSION, PLANCHER ARRIERE A CUSTODE, GA | 58306-0A010 · 58306-0A050 |
| 58307 | Body lower back panel sub-assembly | 58307-0A050 |
| 58315C | Rear floor right side panel extension | 58315-0A020 · 58315-0A090 |
| 58325M | COUVERCLE, OUVERTURE DE SERVICE PLANCHER AR., NO.1 | 58325-0A030 · 58325-0A040 · 58325-0A140 |
| 58383E | Right body lower back panel reinforcement No. 2 | 58383-0A010 |
| 58384C | No. 2 reinforcement of left body lower back panel | 58384-0A010 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02100 |
