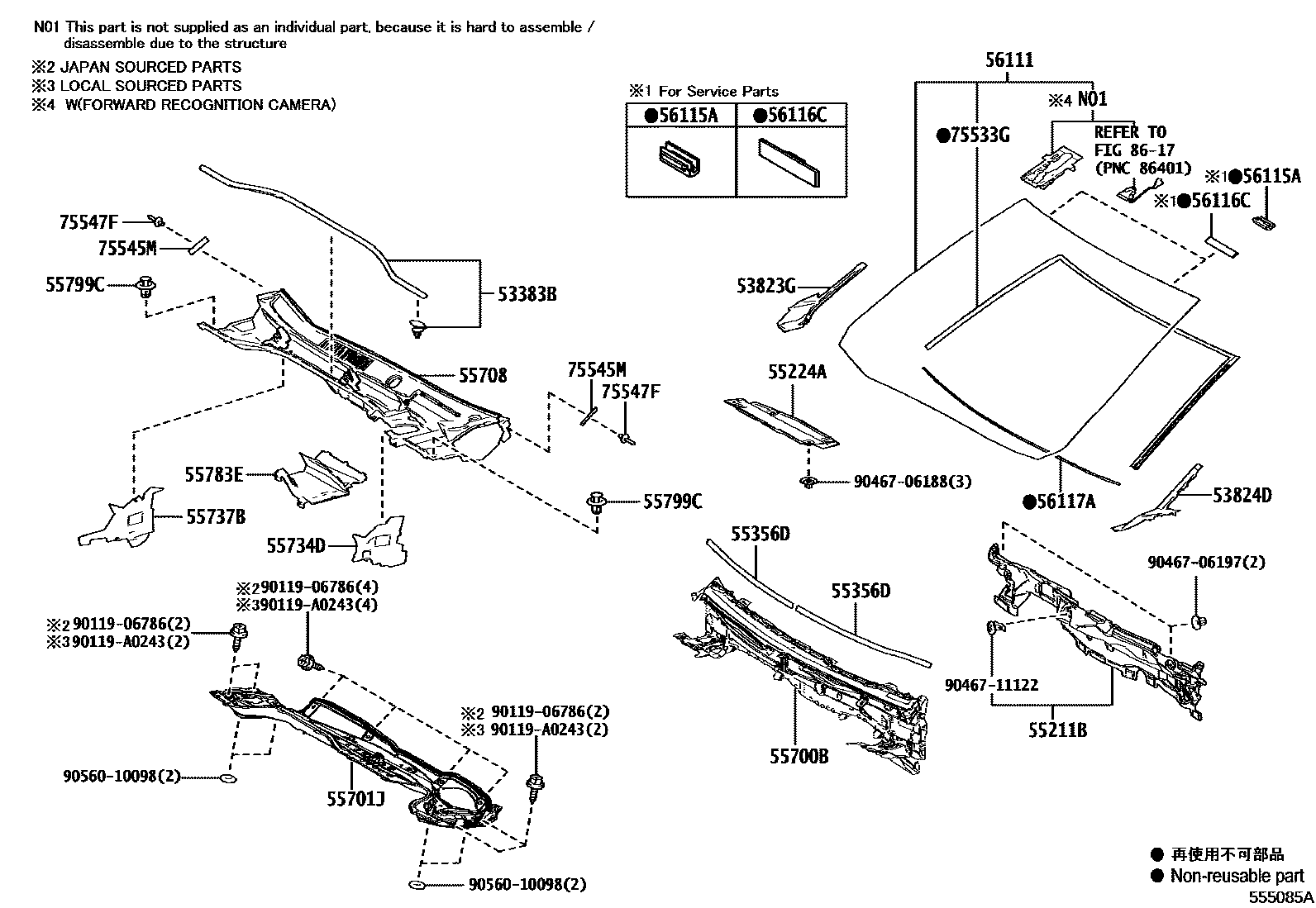

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-0A040 |
| 53823G | No. 2 right front side panel protector | 53823-0A040 |
| 53824D | No. 2 left front side panel protector | 53824-0A040 |
| 55211B | Front panel silencer | 55211-0A070 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-0A050 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-02510 |
| 55700B | ENS. AUVENT | 55700-0A040 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-0A060 |
| 55708 | SOUS-ENS. AERATEUR, VENTILATEUR DESSUS DE TABLIER | 55708-0A070 |
| 55734D | PLAQUE, PROTECTION EAU | 55734-0A050 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-0A050 |
| 55783E | AERATEUR, VENT DESSUS TABLIER, CENTRAL | 55783-0A050 |
| 55799C | Ventilation grille clips on front apron | 90467-09242 |
| 56111 | windshield | 56101-0A300 · 56101-0A310 · 56101-0A500 · 56101-0A510 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 75533G | Windshield outer protective strip | 75533-0A060 |
| 75545M | ATTACHE, MOULURE EXT PARE-BRISE | 75545-16040 |
| 75547F | ATTACHE, MOULURE EXT PARE-BRISE | 75547-51021 |
