Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

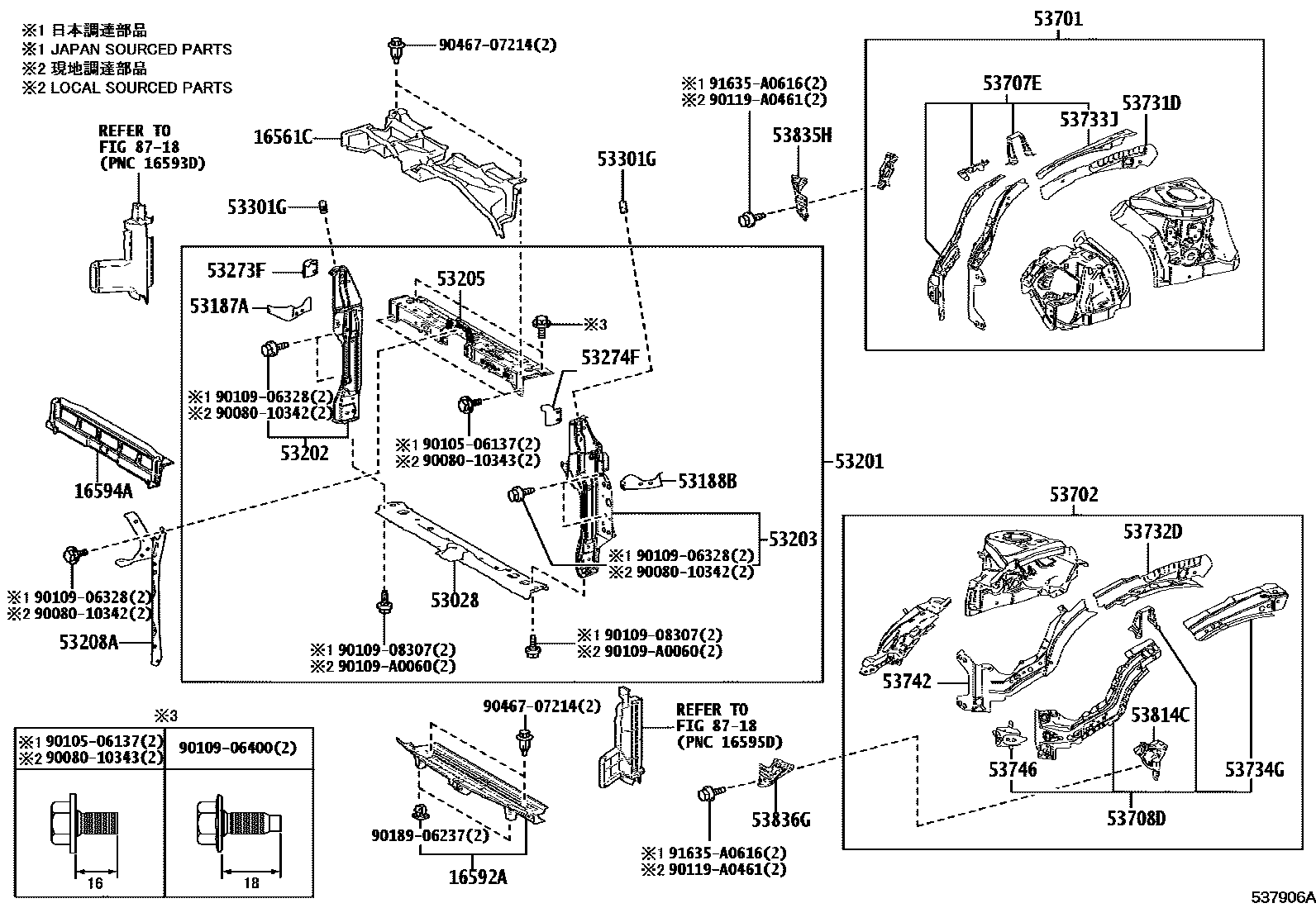

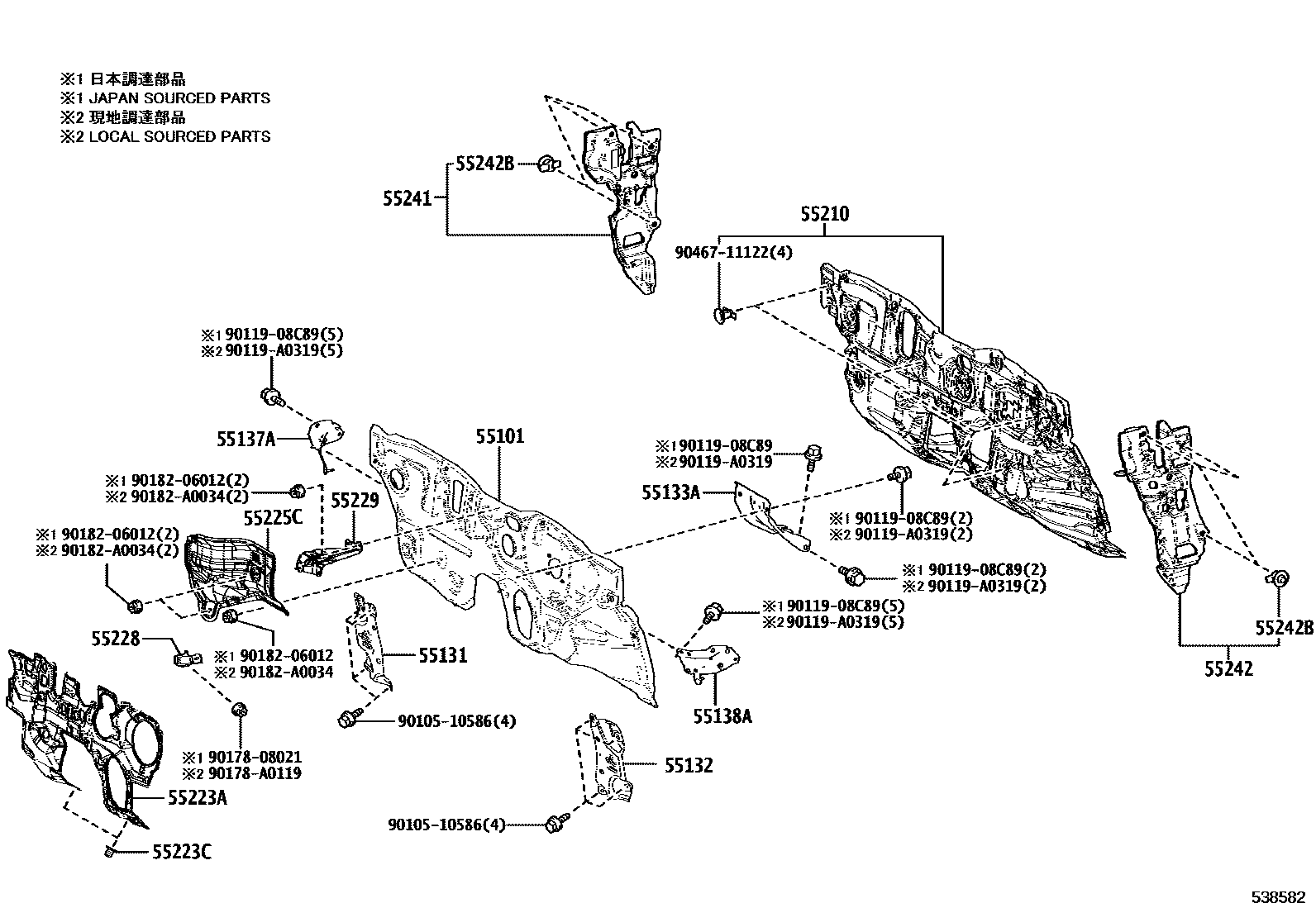

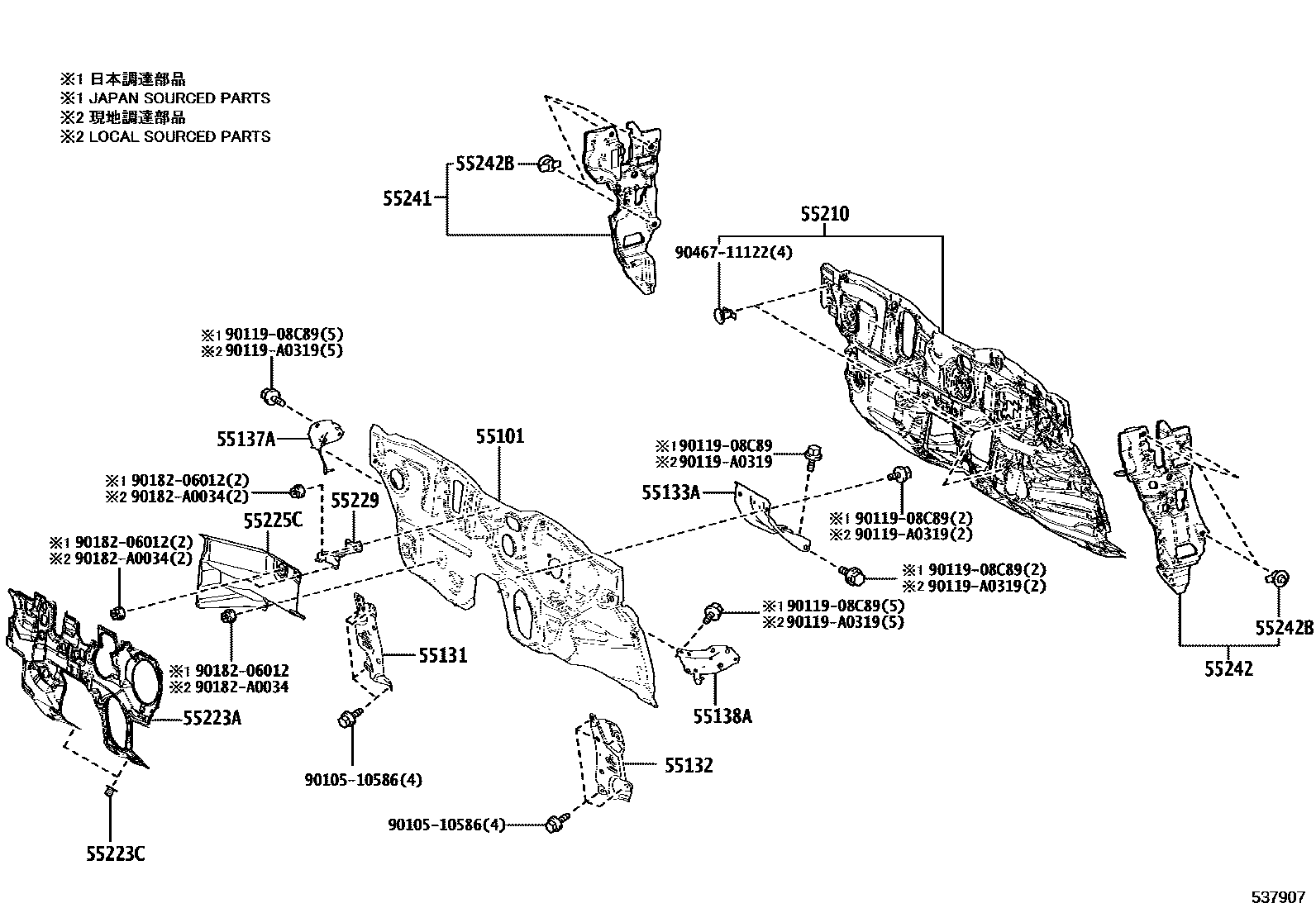

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 3 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16561C | JOINT, RADIATEUR AU SUPPORT, NO.1 | 16561-F2030 · 16561-F2120 |
| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-F2080 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-F2090 |
| 53028 | Radiator lower bracket sub-assembly | 53028-0A020 |
| 53187A | Radiator right side bracket stay | 53187-0A070 · 53187-0A080 |
| 53188B | Radiator left bracket stay | 53188-0A070 |
| 53201 | Radiator bracket sub-assembly | 53201-0A900 · 53201-0A905 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0A050 · 53202-0A120 |
| 53203 | Radiator left bracket sub-assembly | 53203-0A050 · 53203-0A120 |
| 53205 | Radiator upper bracket sub-assembly | 53205-0A060 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-0A020 |
| 53273F | SUPPORT, FIXATION PIECE DE RETENUE PARE-CHOCS AVANT, MD | 53273-0A070 |
| 53274F | SUPPORT, FIXATION PIECE DE RETENUE PARE-CHOCS AVANT, MG | 53274-0A070 |
| 53301G | engine cover cushion | 53384-0R030 · 90541-15037 |
| 53701 | Right front fender fender sub-assembly | 53701-0A080 |
| 53702 | Left front fender fender sub-assembly | 53702-0A070 |
| 53707E | Fender right fender sub-assembly | 53707-0A040 |
| 53708D | Fender left fender sub-assembly | 53708-0A040 |
| 53731D | Right front fender to cowl side upper beam | 53731-02110 |
| 53732D | Left front fender to cowl side upper beam | 53732-02110 |
| 53733J | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MD | 53733-02070 |
| 53734G | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MG | 53734-02070 |
| 53742 | Left front fender fender air deflector | 53742-02010 |
| 53746 | Left front fender rear reinforcement | 53746-02010 |
| 53814C | Left front fender extension | 53814-02180 |
| 53835H | ENTRETOISE, AILE AVANT A EXTENSION DROITE | 53835-0A070 |
| 53836G | ENTRETOISE, AILE AVANT A EXTENSION GAUCHE | 53836-0A070 |
| 55101 | Front apron sub-assembly | 55101-0A130 · 55101-0A140 |
| 55131 | Front apron reinforcement | 55131-0A030 · 55131-76010 |
| 55132 | No. 2 cowl panel reinforcement | 55132-0A030 · 55132-76010 |
| 55133A | Right reinforcement (front wall to floor) | 55133-0A010 · 55133-0A020 |
| 55137A | Right side bracket (front wall to frame) | 55137-02190 |
| 55138A | Left side bracket (front wall to frame) | 55138-02180 |
| 55210 | Front wall insulation pad assembly | 55210-0A100 · 55210-0A110 · 55210-0A120 · 55210-0A130 |
| 55223A | Front wall outer heat insulation pad | 55223-02391 · 55223-0A010 |
| 55223C | clip | 90467-06197 |
| 55225C | ISOLANT, THERMIQUE TABLEAU BORD | 55225-02010 · 55225-0A010 · 55225-76011 |
| 55228 | PLAQUE, ISOLANTE TABLEAU DE BORD, NO.5 | 55228-0A010 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-02010 · 55229-0A020 |
| 55241 | Front panel No. 1 right side silencer | 55241-02020 |
| 55242 | Front panel No. 1 left side silencer | 55242-02010 |
| 55242B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
