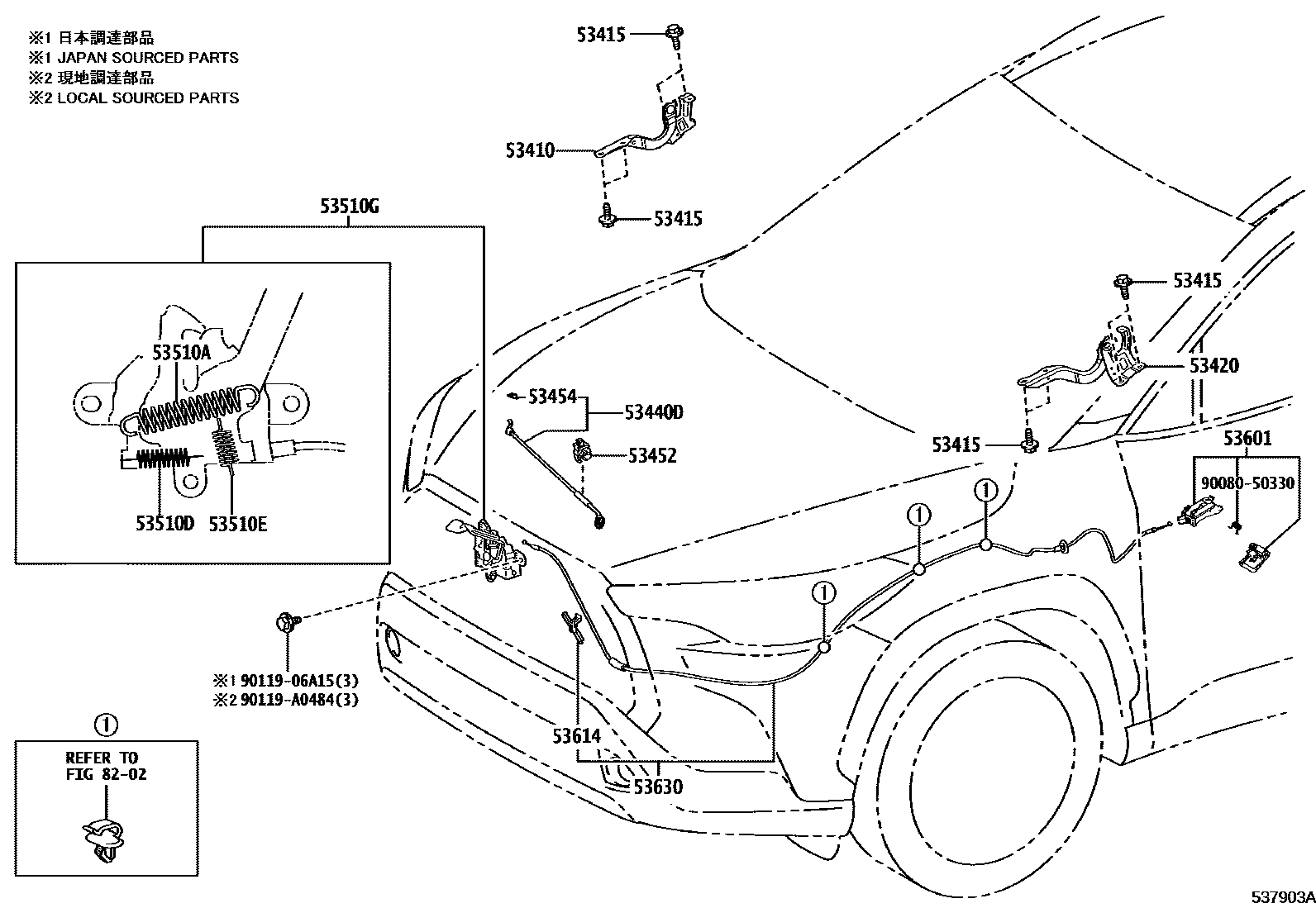

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0A120 |
| 53415 | Engine cover hinge bolts | 90105-A0068 · 91551-80820 |
| 53420 | Engine cover left hinge assembly | 53420-0A120 |
| 53440D | Engine cover support rod assembly | 53440-0A040 |
| 53452 | Engine cover stay rod fixing | 53452-15020 |
| 53454 | Engine cover support rod clip | 90480-15025 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 90506-18067 |
| 53510G | ENS. VERR, CAPOT, AV COMM FEU COURTOISIE | 53510-0A070 |
| 53614 | Engine hood lock control cable clip | 53614-16020 |
| 53630 | Engine hood lock control cable assembly | 53630-0A070 |
