Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 4 PNC and OE references.

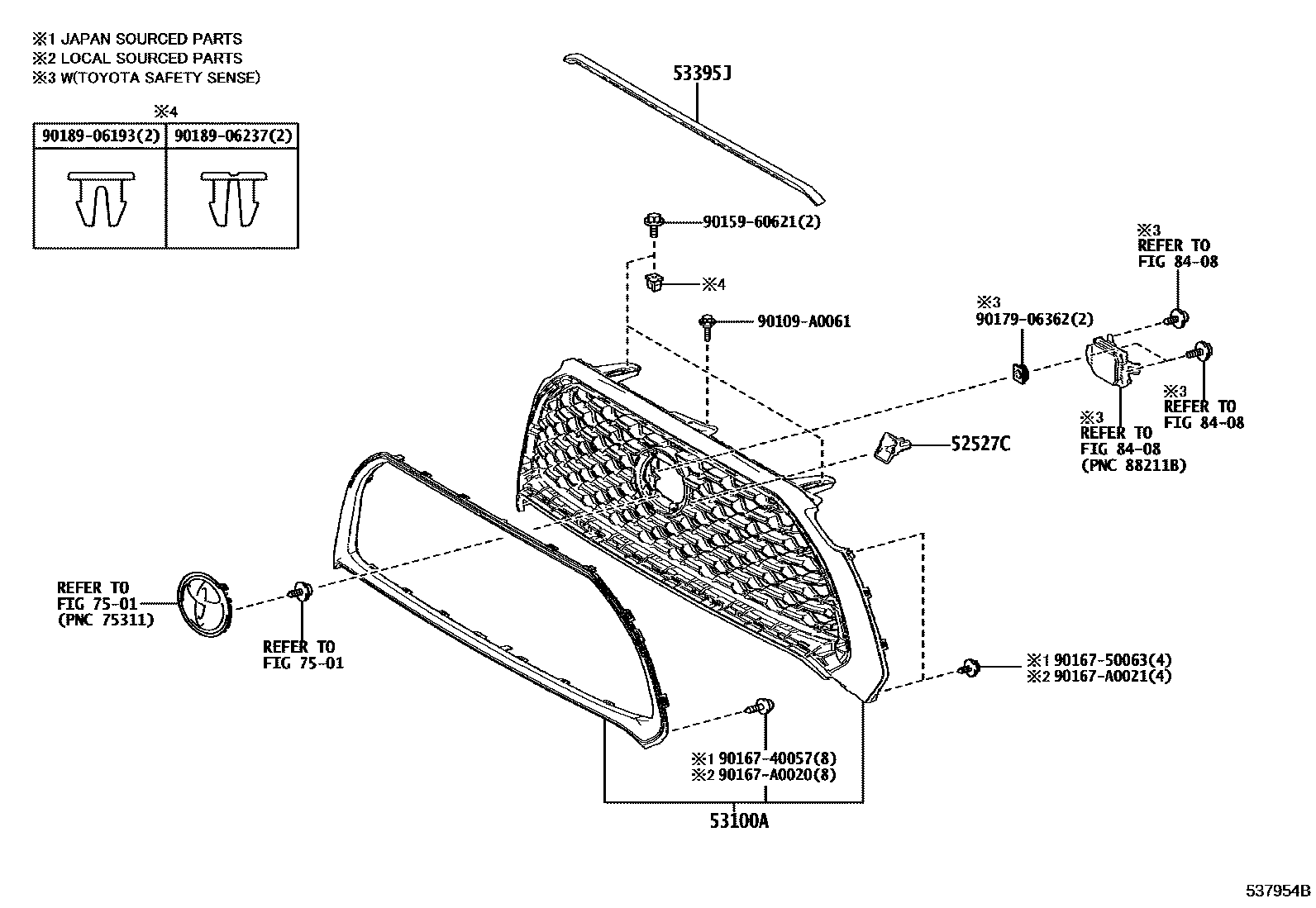

Toyota COROLLA radiator grille EPC diagram — 537954B
radiator grille — 537954B (202109 – 999999)

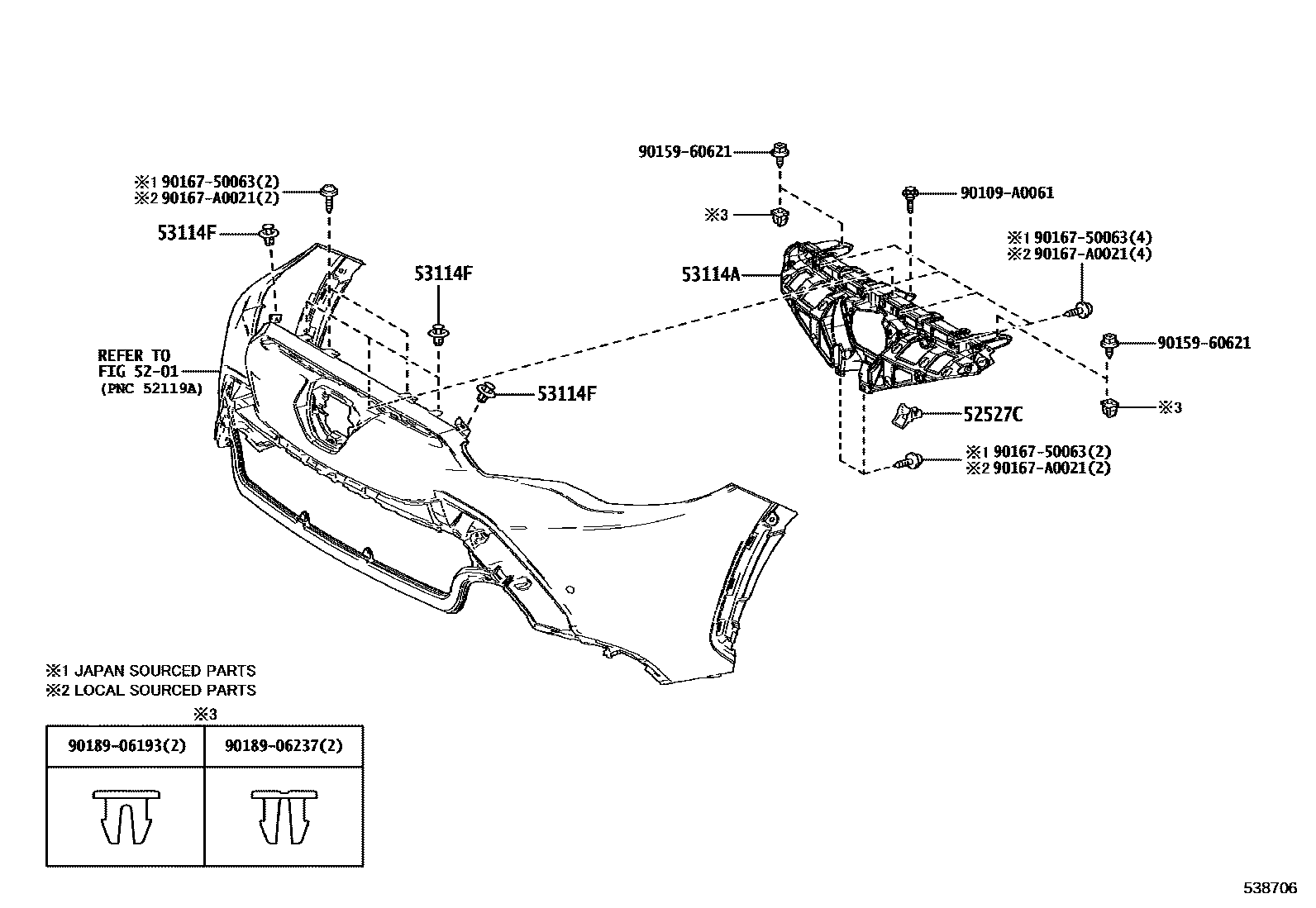

Toyota COROLLA radiator grille EPC diagram — 538706
radiator grille — 538706 (202211 – 999999)

PNC and OE references

PNCPart nameOE numbers
52527CFront bumper No. 2 lower fixing bracket52527-02110
53100AENS. GRILLE, RADIATEUR53100-0A130 · 53100-0A140
53114Ainner radiator grille53114-0A110
53395JJOINT ETANCH., CAPOT A PANNEAU EN BOUT AVANT53395-0A060
