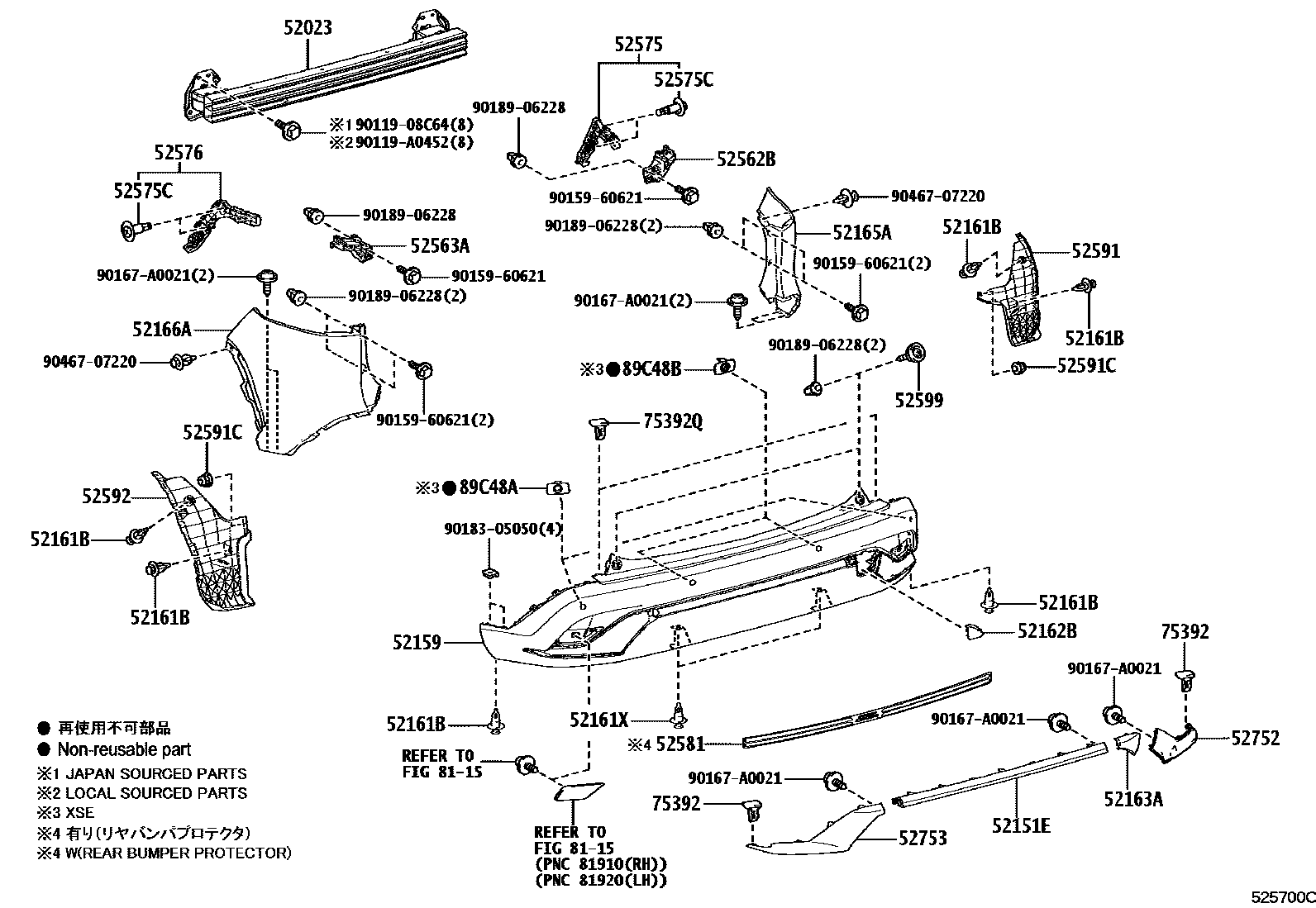

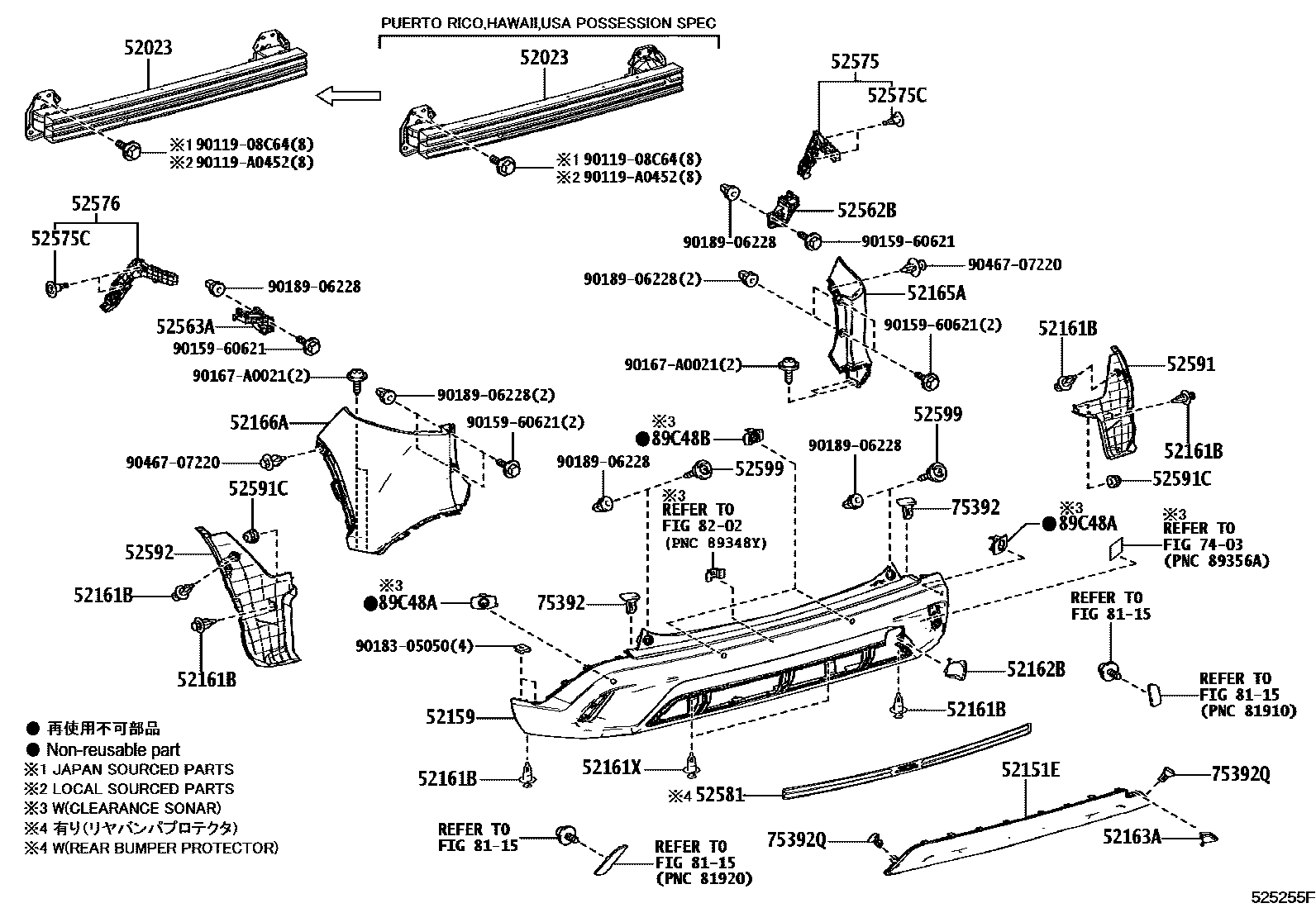

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0A010 · 52023-0A050 |
| 52151E | rear bumper | 52151-0A130 · 52151-0A905 |
| 52159 | rear bumper cover | 52159-0A200 · 52159-0A210 · 52159-0A260 · 52159-0A270 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52161X | PARTIE, PARE-CHOCS ARR | 52161-02020 |
| 52162B | Rear bumper No. 1 fender | 52162-0A060 · 52162-0A090 |
| 52163A | Rear bumper right side fender | 52163-0A140 · 52163-0A905 |
| 52165A | Rear bumper right upper cover | 52165-0A905 |
| 52166A | Rear bumper left upper cover | 52166-0A905 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0A060 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0A060 |
| 52575 | Rear bumper right side fixing bracket | 52575-0A060 |
| 52575C | ATTACHE, RETENUE LATERALE PARE-CHOCS ARR | 90467-09237 |
| 52576 | Rear bumper left side fixing bracket | 52576-0A060 |
| 52581 | Rear bumper right side protector | 52581-YY170 |
| 52591 | Rear bumper right seal | 52591-0A070 |
| 52592 | Rear bumper left seal | 52592-0A060 |
| 52599 | Rear bumper upper retainer | 52599-68030 |
| 52752 | Rear bumper right side protective strip | 52752-0A040 |
| 52753 | Rear bumper left protective strip | 52753-0A040 |
| 75392 | External protective strip fixings | 75392-0R050 |
| 75392Q | RETENUE MOULURE EXTERIEURE NO. 2 | 75392-0R050 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-16091 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-48311 |
