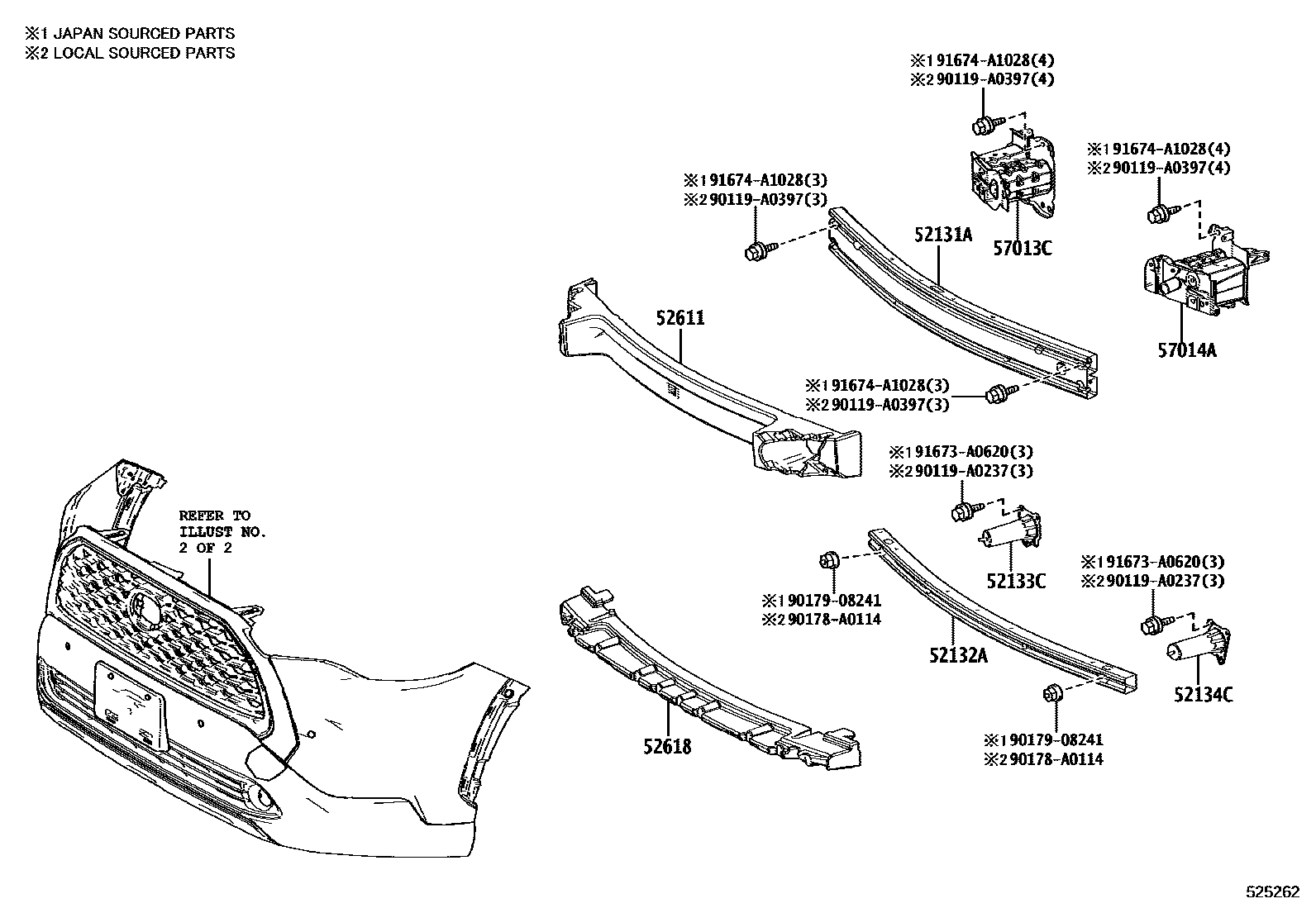

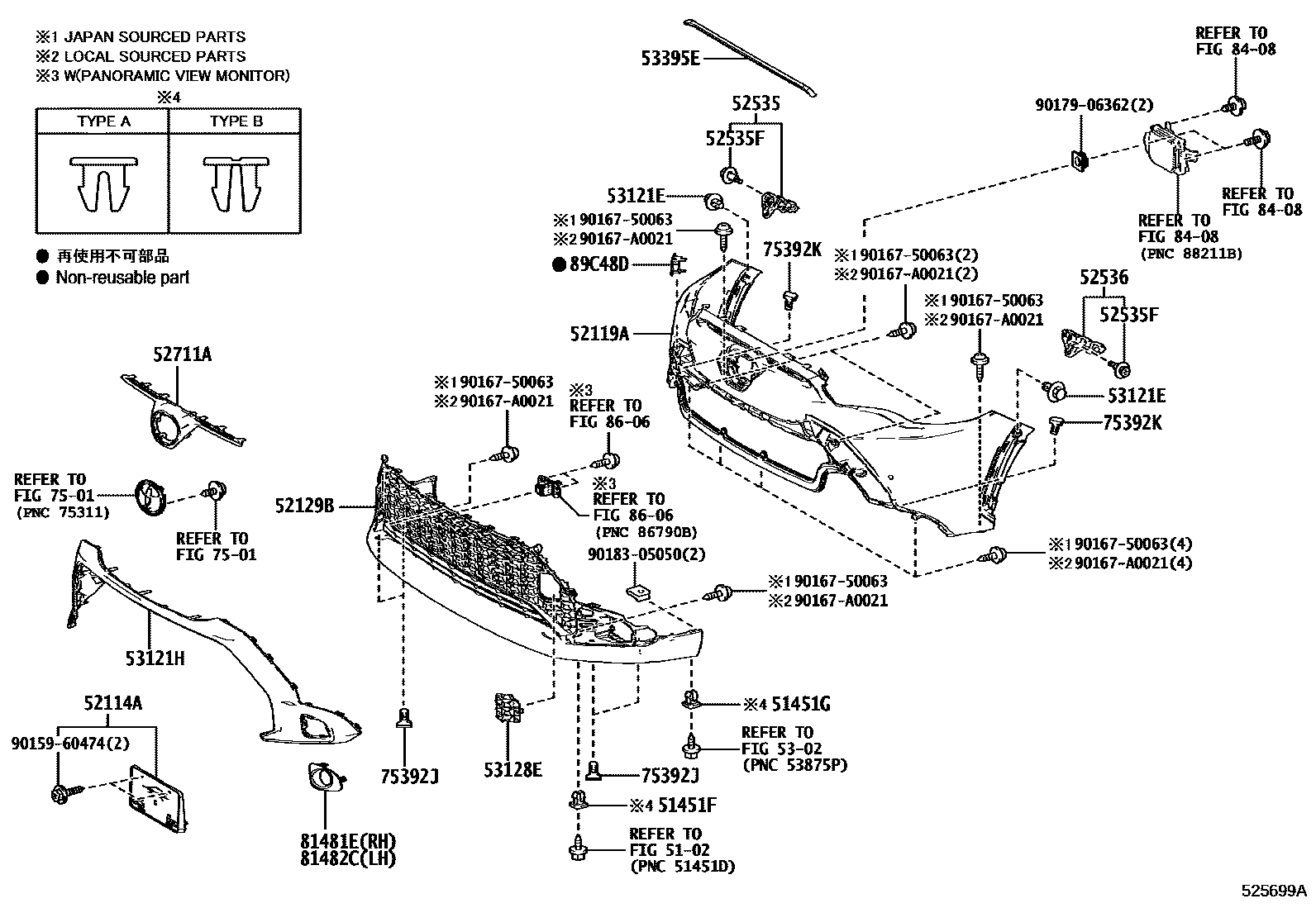

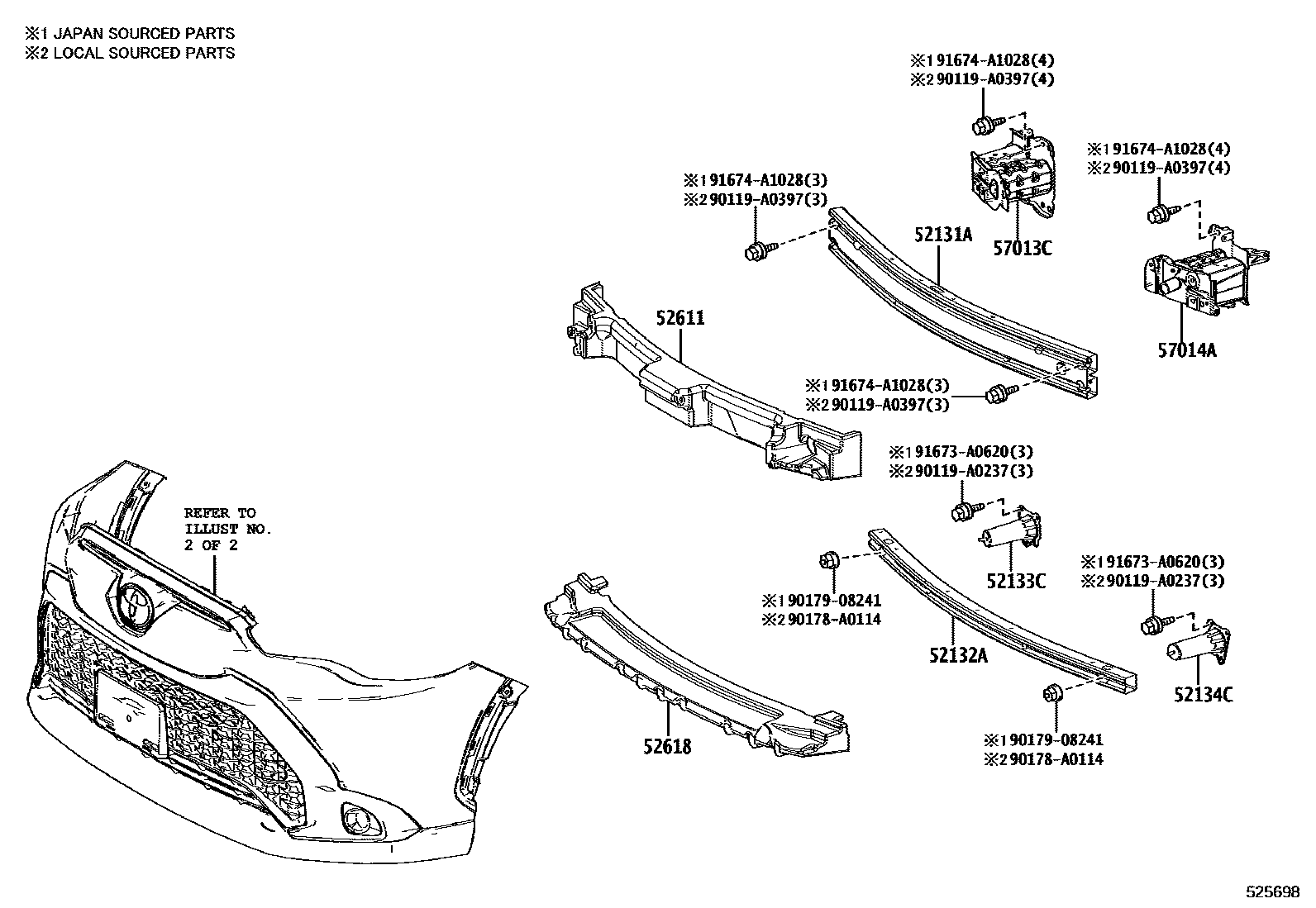

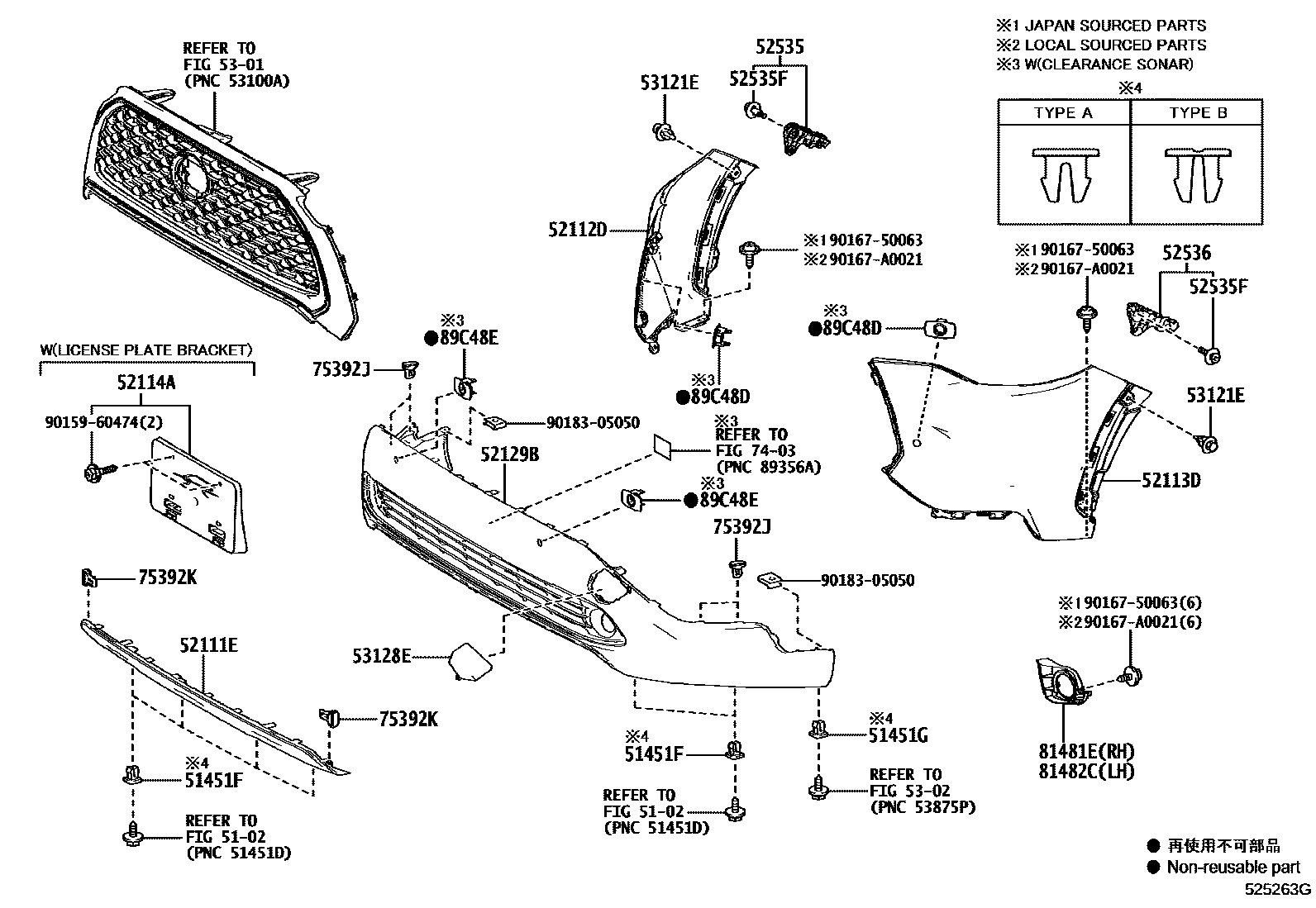

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | OEILLET, NO.1 | 90189-06193 · 90189-06237 |
| 51451G | OEILLET, NO.2 | 90189-06193 · 90189-06237 |
| 52111E | front bumper stay | 52111-0A905 |
| 52112D | Front bumper right extension | 52112-0A908 · 52112-0A909 |
| 52113D | Front bumper left extension | 52113-0A908 · 52113-0A909 |
| 52114A | Front bumper extension mounting bracket | 52114-0A010 · 52114-0A040 |
| 52119A | front bumper cover | 52119-0A903 · 52119-0A904 |
| 52129B | Front bumper lower cover | 52129-0A060 · 52129-0A070 · 52129-0A901 · 52129-0A902 |
| 52131A | Front bumper reinforcement | 52131-0A010 · 52131-0A030 |
| 52132A | No. 2 front bumper reinforcement | 52132-02050 |
| 52133C | Front bumper right reinforcement | 52133-0A010 |
| 52134C | Front bumper left reinforcement | 52134-0A010 |
| 52535 | Front bumper right side fixing bracket | 52535-0A060 |
| 52535F | ATTACHE, RETENUE LATERALE PARE-CHOCS AV | 90467-09237 |
| 52536 | Front bumper left fixed bracket | 52536-0A060 |
| 52611 | front bumper energy absorber | 52611-0A060 · 52611-0A090 |
| 52618 | Front bumper lower shock absorber | 52618-0A060 · 52618-0A070 |
| 52711A | front bumper decorative panel | 52711-0A020 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-07220 |
| 53121H | MOULURE, GRILLE DE RADIATEUR, NO.1 | 53121-0A220 |
| 53128E | GRILLE, RADIATEUR, COTE INFERIEUR MG | 53128-0A060 · 53128-0A090 |
| 53395E | Engine cover to front end plate seal | 53395-0A060 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-0A010 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-0A010 · 57014-0A030 |
| 75392J | External protective strip fixings | 75392-0R050 |
| 75392K | RETENUE MOULURE EXTERIEURE NO. 2 | 75392-0R050 |
| 81481E | Right fog light cover | 81481-0A100 · 81481-0A110 · 81481-0A130 · 81481-0A140 |
| 81482C | Left fog light cover | 81482-0A100 · 81482-0A110 · 81482-0A130 · 81482-0A140 |
| 89C48D | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE AVANT | 89348-48311 |
| 89C48E | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL AVANT | 89348-48311 |
