Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

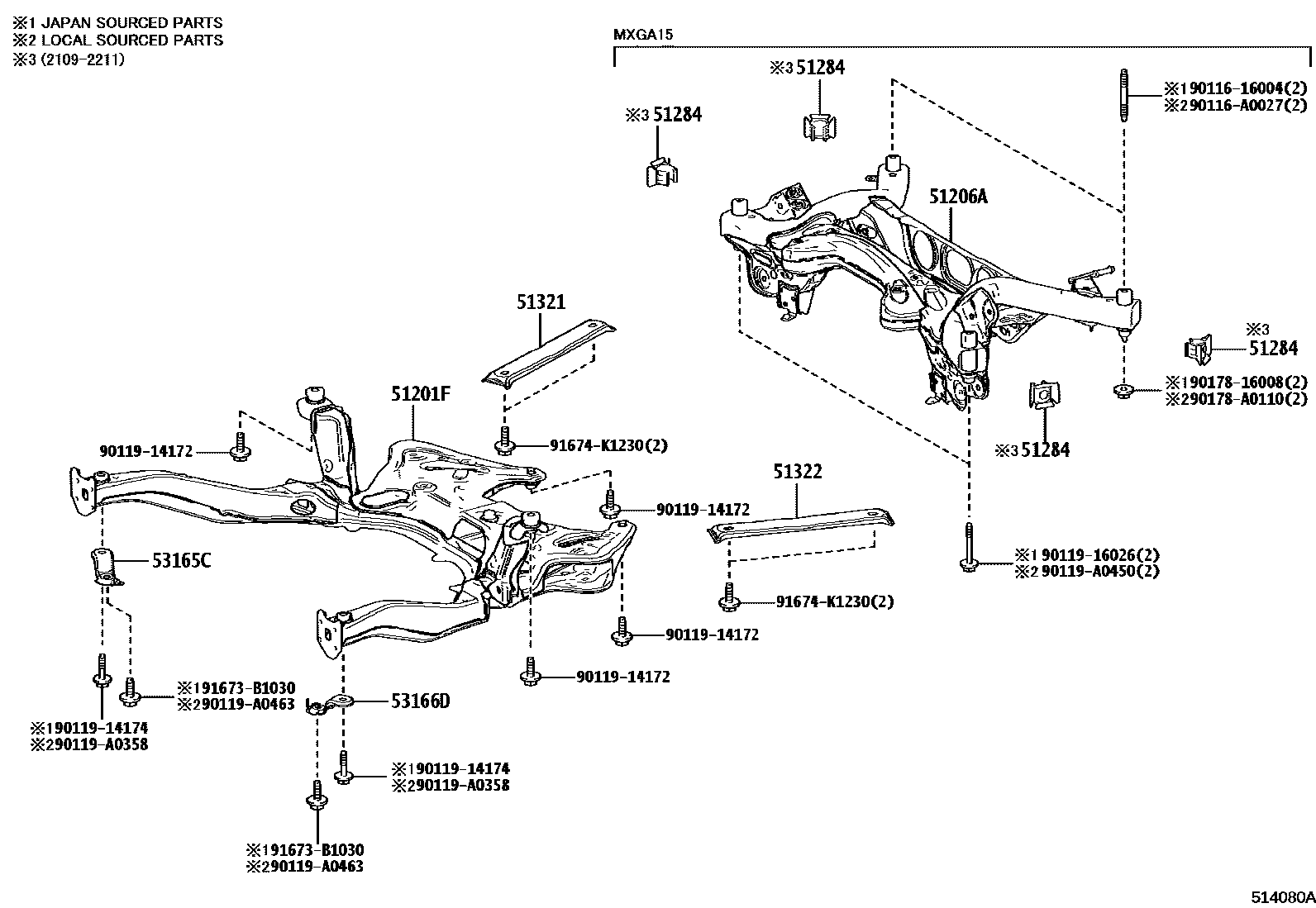

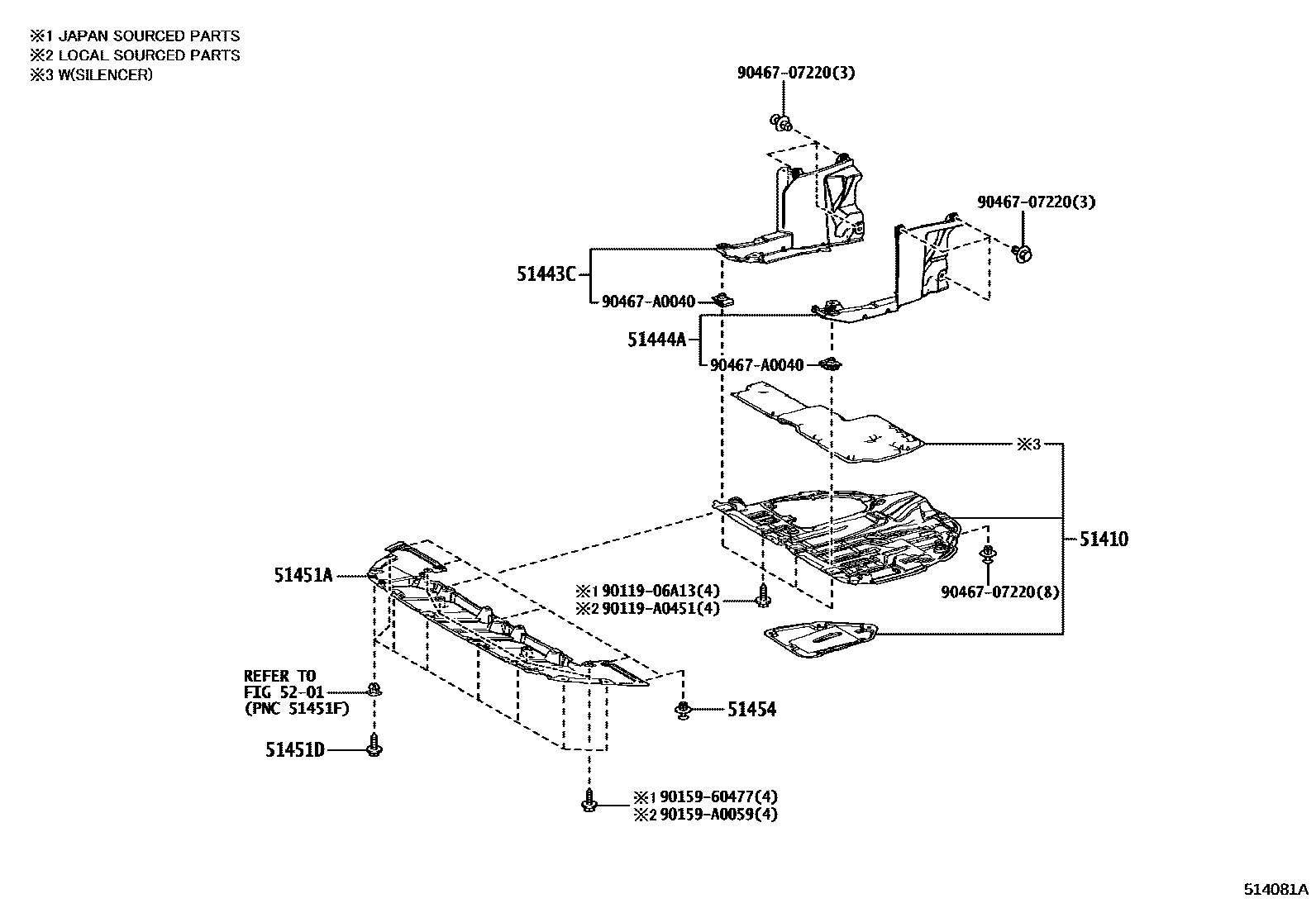

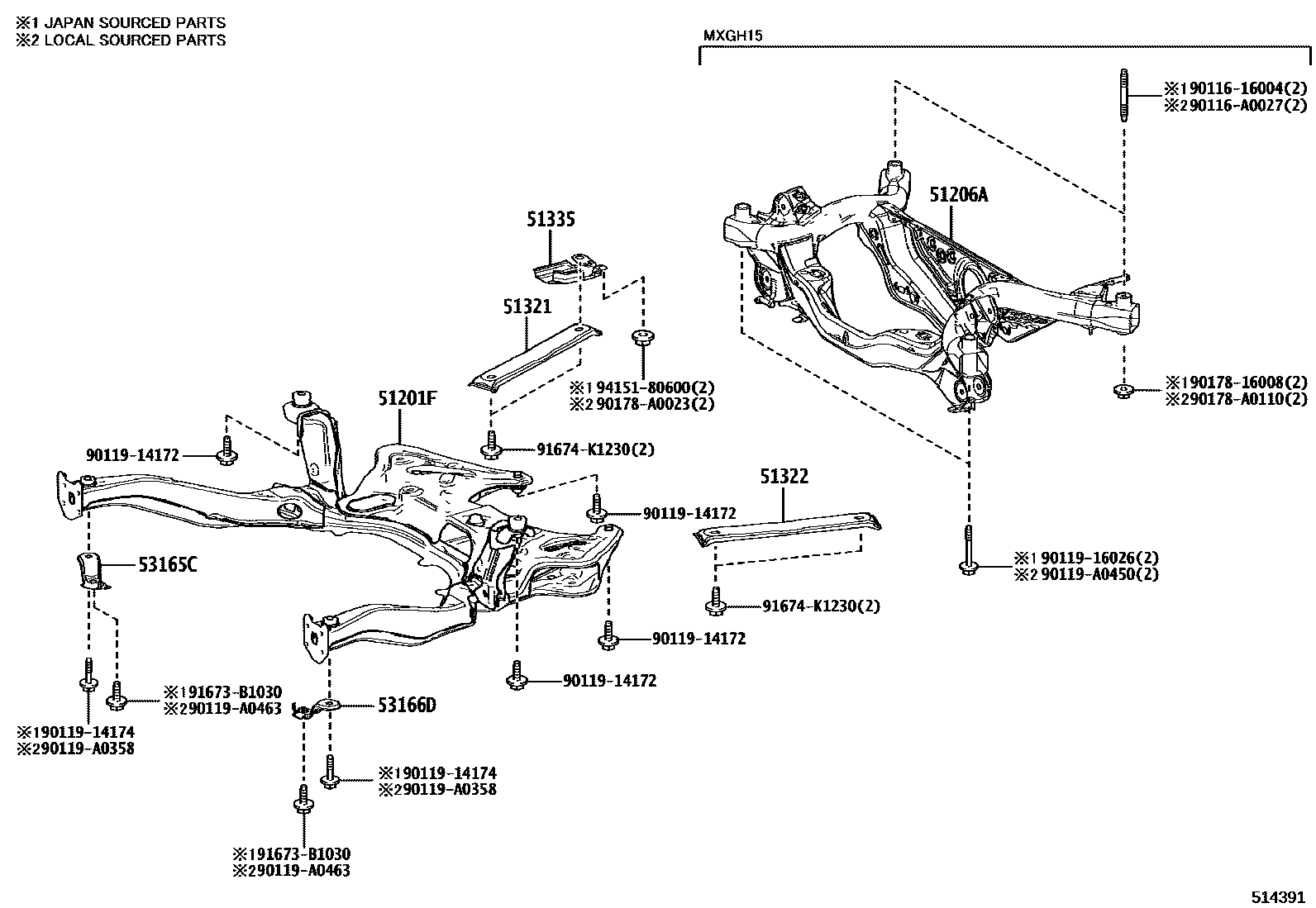

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201F | Front suspension cross member sub-assembly | 51201-0A040 |
| 51206A | Rear suspension cross member sub-assembly | 51206-0A010 · 51206-0A011 · 51206-0A020 |
| 51284 | Rear suspension cross member hole cover | 51284-02020 |
| 51321 | Right corner plate of No. 2 beam | 51321-0A030 |
| 51322 | No. 2 beam left corner plate | 51321-0A030 |
| 51335 | SUPPORT, COLLIER TUBE CADRE AVANT, MD | 51335-0A010 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-0A010 · 51410-0A140 · 51410-0A200 · 51410-0A210 |
| 51443C | Engine right rear bottom cover | 51443-0A010 |
| 51444A | Engine left rear bottom cover | 51444-0A010 |
| 51451A | Engine center cover | 51451-0A010 · 51451-0A020 |
| 51451D | VIS, NO.1 | 90159-60477 · 90159-A0059 |
| 51454 | engine rear cover | 90467-07220 |
| 53165C | SUPPORT, RADIATEUR, CENTRAL MD | 53165-0A020 |
| 53166D | SUPPORT, RADIATEUR, CENTRAL MG | 53166-0A020 |
