Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

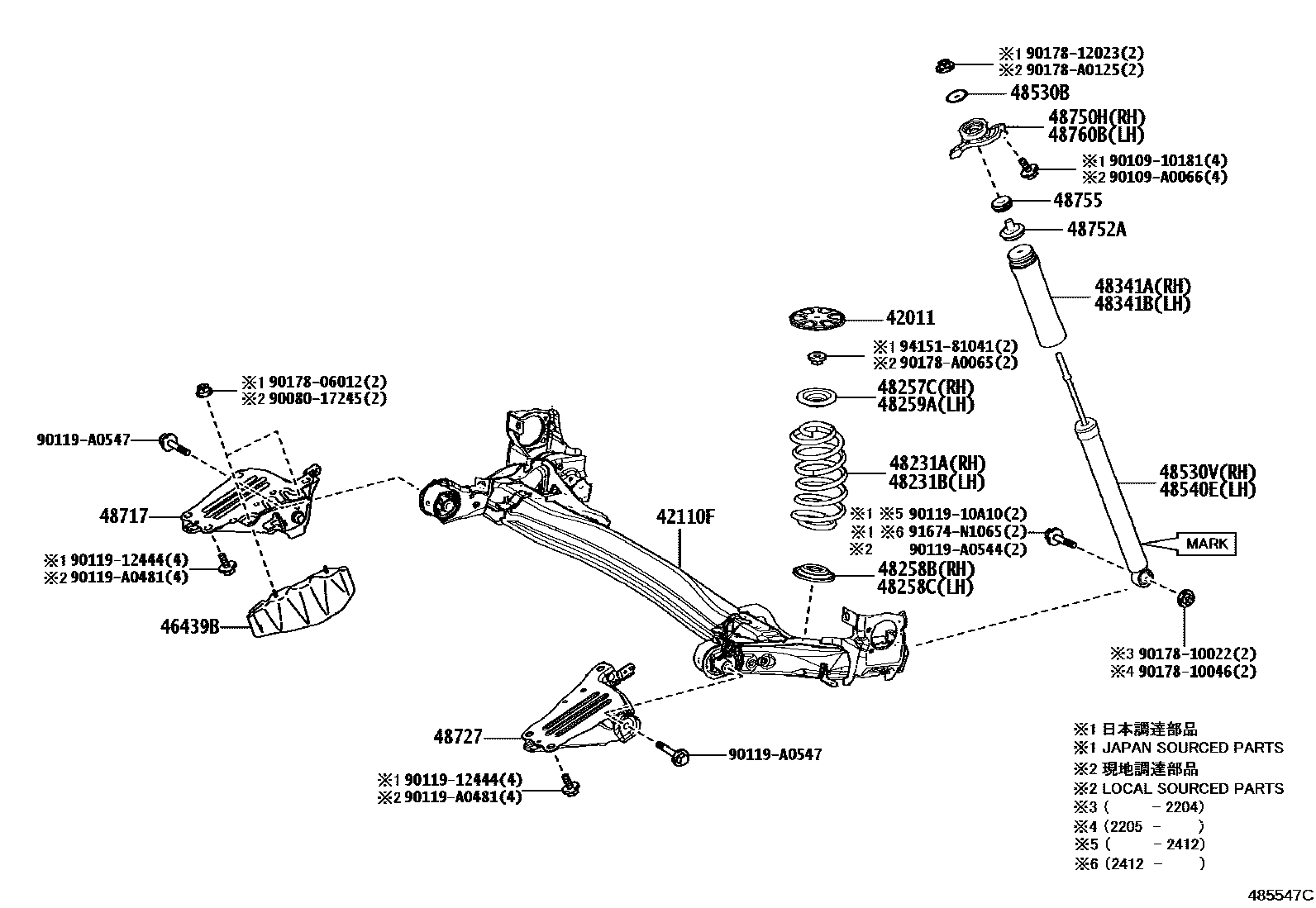

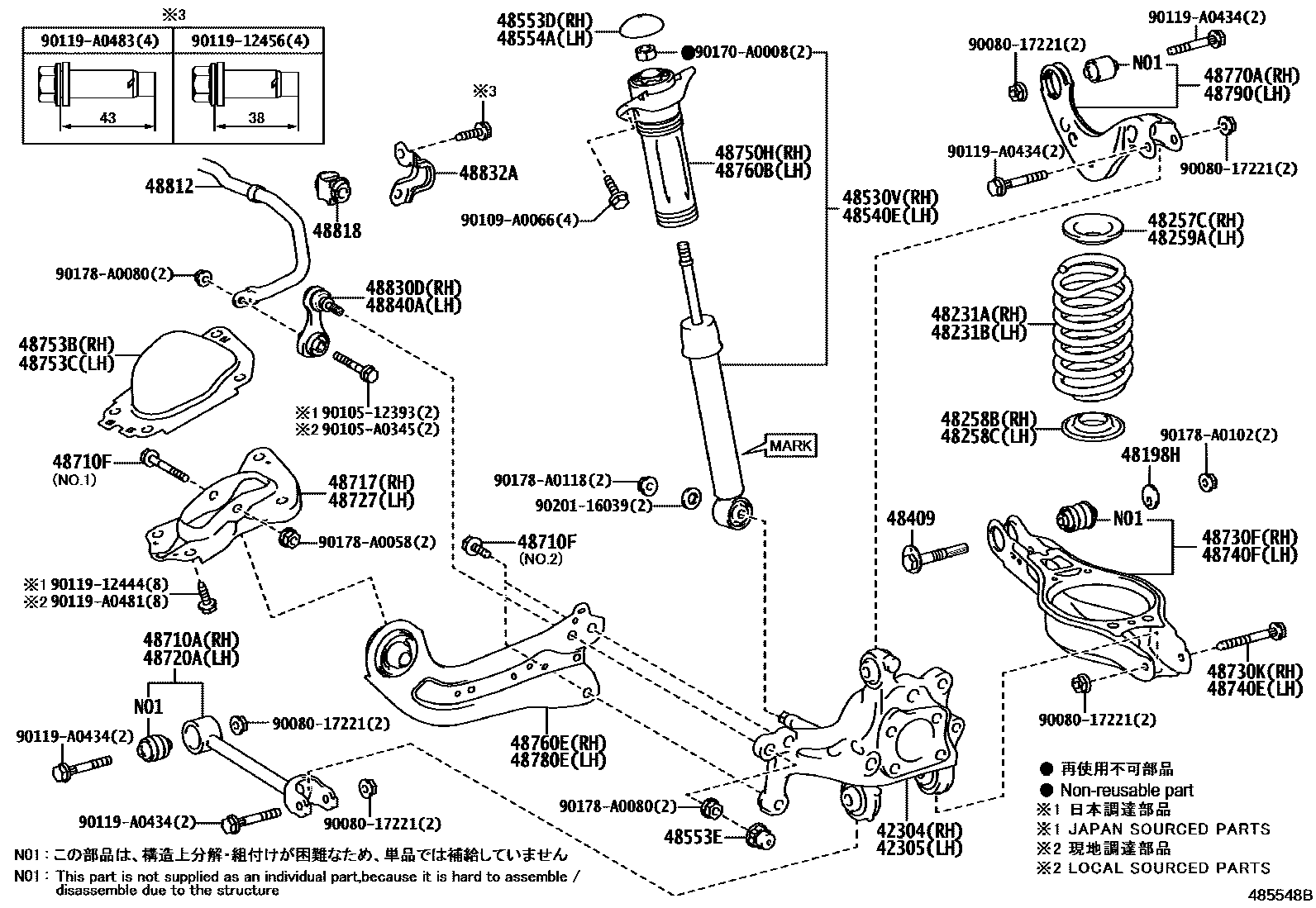

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42011 | SOUS-ENS. SIEGE, RESSORT ARRIERE | 42011-0A040 |
| 42110F | rear axle assembly | 42110-0A060 |
| 42304 | Rear axle right bracket sub-assembly | 42304-06320 |
| 42305 | Rear axle left bracket sub-assembly | 42305-06320 |
| 46439B | ISOLANT THERMIQUE DE CABLE DE FREIN DE STATIONNEMENT | 46439-0A050 |
| 48198H | No. 2 camber angle adjustment cam | 48198-47010 |
| 48231A | Right rear coil spring | 48231-0A100 · 48231-0A110 · 48231-0A270 · 48231-0A280 · 48231-0A290 |
| 48231B | Left rear coil spring | 48231-0A100 · 48231-0A110 · 48231-0A270 · 48231-0A280 · 48231-0A290 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-06030 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-06230 · 48258-0A040 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06230 · 48258-0A040 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-06030 |
| 48341A | No. 1 right rear spring buffer block | 48341-0A050 |
| 48341B | No. 1 left rear spring buffer block | 48341-0A050 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-06010 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48530V | KIT AMORTISSEUR, CHOC, ARRIERE MD | 48530-8Z168 · 48530-8Z169 · 48530-8Z229 · 48530-8Z230 · 48530-8Z231 · 48530-8Z232 |
| 48540E | KIT AMORTISSEUR, CHOC, ARRIERE MG | 48530-8Z168 · 48530-8Z169 · 48530-8Z229 · 48530-8Z230 · 48530-8Z231 · 48530-8Z232 |
| 48553D | Right rear shock absorber cover | 48553-06010 |
| 48553E | CAPUCHON | 48553-52030 |
| 48554A | Left rear shock absorber cover | 48553-06010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-06160 |
| 48710F | Bolt (for rear trailing arm) | 90105-A0346 · 90105-A0365 |
| 48717 | Right rear suspension arm bracket | 48717-0A040 · 48717-0A050 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-06160 |
| 48727 | Left rear suspension arm bracket | 48727-0A040 · 48727-0A050 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-02060 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-A0433 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-A0433 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-02060 |
| 48750H | Right rear suspension support assembly | 48750-02110 · 48750-0A060 |
| 48752A | Rear suspension mount block | 48752-0A040 · 48752-0A070 |
| 48753B | Right rear suspension support cover No. 1 | 48753-0A090 |
| 48753C | Left rear suspension support cover No. 1 | 48753-0A100 |
| 48755 | rear suspension mount | 48755-0A040 · 48755-0A070 |
| 48760B | Left rear suspension support assembly | 48750-02110 · 48760-0A070 |
| 48760E | Right rear trailing arm assembly | 48760-02020 |
| 48770A | Right rear upper control arm assembly | 48770-06010 |
| 48780E | Left rear trailing arm assembly | 48780-02070 |
| 48790 | Left rear upper control arm assembly | 48790-06010 |
| 48812 | rear stabilizer bar | 48812-0A040 · 48812-0A090 |
| 48818 | Rear stabilizer bar bushing | 48818-0A010 · 48818-0A020 |
| 48830D | Right rear stabilizer bar link assembly | 48830-0A010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-0A010 · 48832-0A020 |
| 48840A | Left rear stabilizer bar link assembly | 48830-0A010 |
