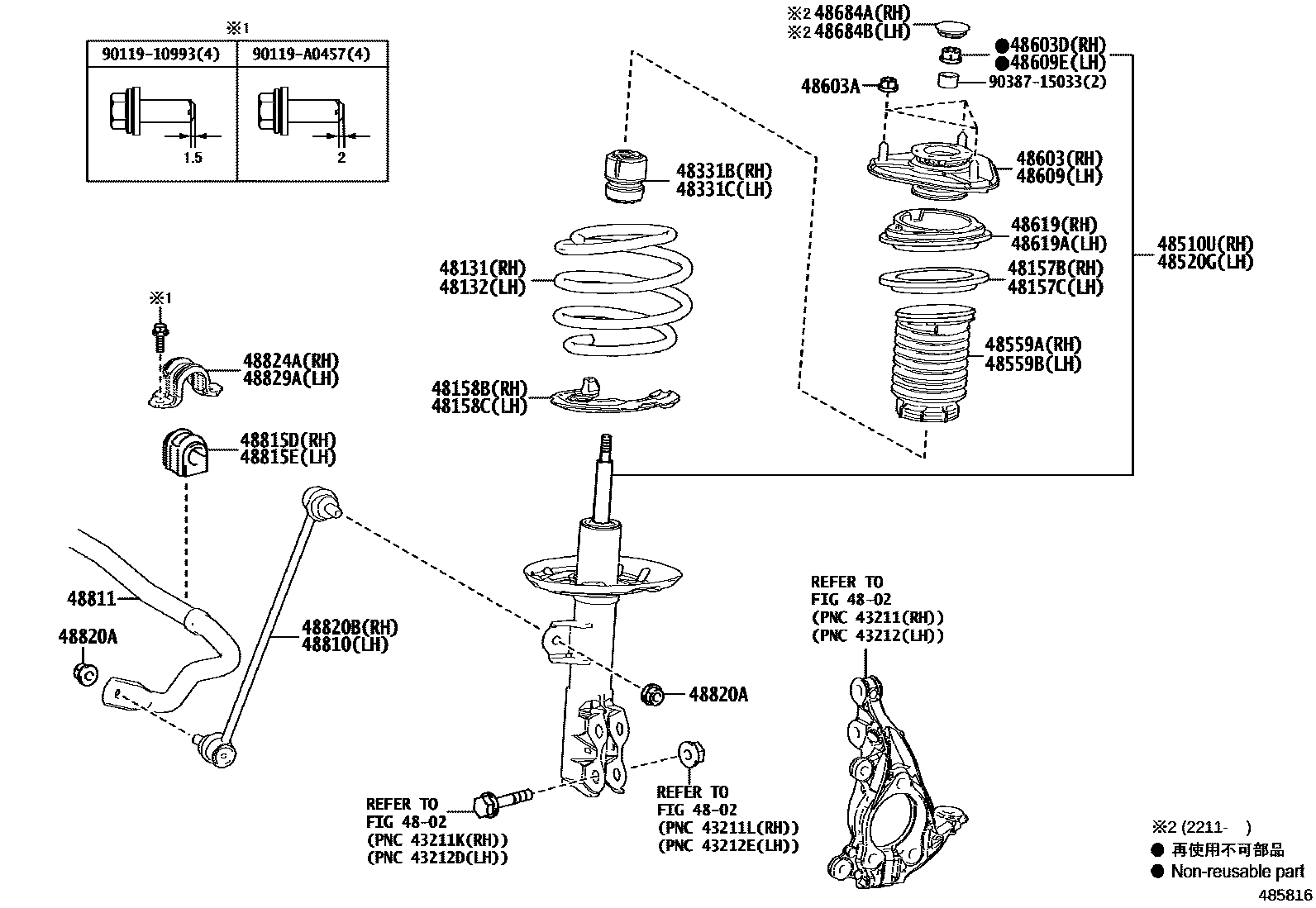

Toyota COROLLA Front Spring & Shock Absorber — Figure 4803
Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0A130 · 48131-0A140 · 48131-0A280 · 48131-0A290 |
| 48132 | Left front coil spring | 48131-0A130 · 48131-0A140 · 48131-0A280 · 48131-0A290 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02340 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02340 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02130 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02130 |
| 48331B | Right front spring buffer block | 48331-02150 |
| 48331C | Left front spring buffer block | 48331-02150 |
| 48510U | KIT AMORTISSEUR, CHOC, AVANT MD | 48510-8Z509 · 48510-8Z510 · 48510-8Z609 · 48510-8Z610 · 48510-8Z611 · 48510-8Z612 |
| 48520G | KIT AMORTISSEUR, CHOC, AVANT MG | 48520-8Z350 · 48520-8Z351 · 48520-8Z430 · 48520-8Z431 · 48520-8Z432 · 48520-8Z433 |
| 48559A | Right front shock absorber No. 1 dust cover | 48559-02050 |
| 48559B | Left front shock absorber No. 1 dust cover | 48559-02050 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02320 |
| 48603A | Nut (for front suspension mount) | 90178-A0077 |
| 48603D | Nut (for front mount to right front shock absorber) | 90177-A0019 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02320 |
| 48609E | Nut (for front mount to left front shock absorber) | 90177-A0019 |
| 48619 | Bearing installed on the right sliding column | 48619-02010 |
| 48619A | Bearing installed on the left sliding column | 48619-02010 |
| 48684A | Right front suspension support dust cover | 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-52010 |
| 48810 | Left front stabilizer bar link assembly | 48820-0A010 |
| 48811 | front stabilizer bar | 48811-0A080 |
| 48815D | Right front stabilizer bar bushing | 48815-0A080 |
| 48815E | Left front stabilizer bar bushing | 48815-0A080 |
| 48820A | Nut (for front stabilizer bar link) | 90178-A0080 |
| 48820B | Right front stabilizer bar link assembly | 48820-0A010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-02100 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-02100 |
