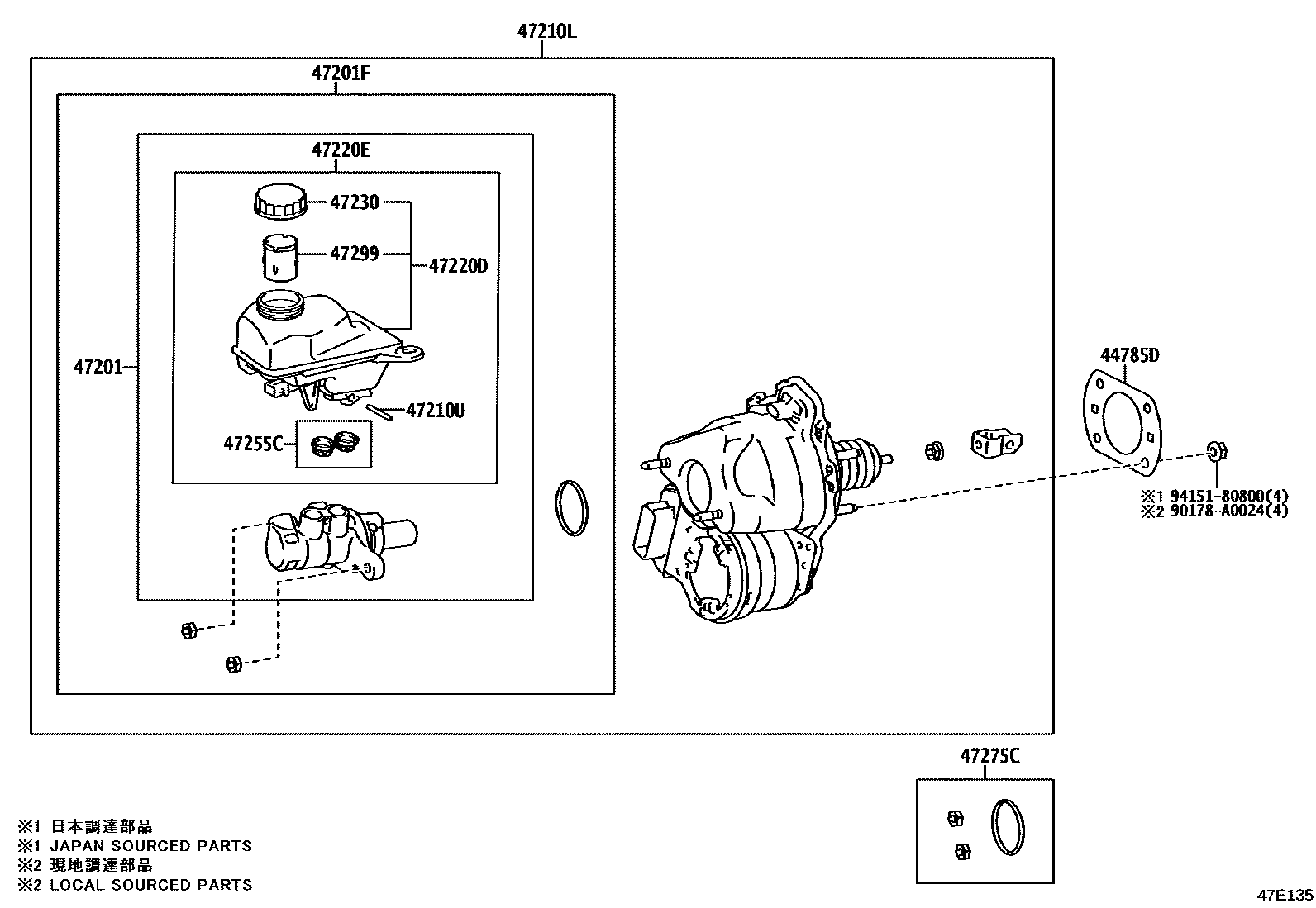

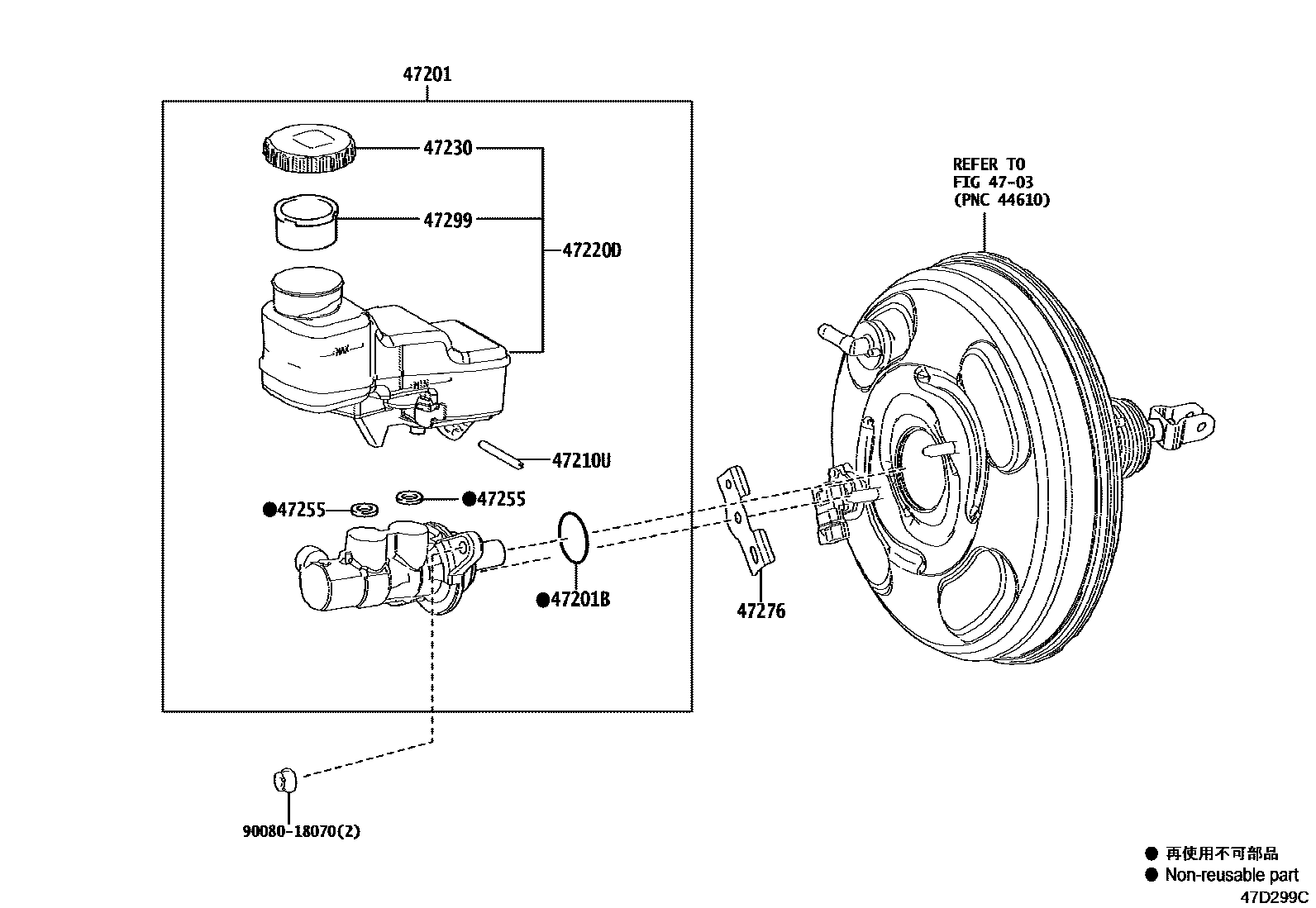

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785D | brake master cylinder gasket | 44785-0A010 |
| 47201 | Brake master cylinder sub-assembly | 47201-0A120 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201F | SOUS-ENS. CYLINDRE, MAITRE FREIN, JEU | 47201-09A90 |
| 47210L | Brake booster assembly with master cylinder | 47210-0A011 |
| 47210U | Direct sales (for brake master cylinder) | 90029-15803 · 90069-35007 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-02310 |
| 47220E | ENS. RESERVOIR, MAITRE CYLINDRE, JEU | 47220-09320 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-02310 · 47230-82090 · 47230-F4010 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47255C | JEU OEILLET, RESERVOIR | 47255-09040 |
| 47275C | JEU REVISION, MAITRE CYLINDRE | 47275-09010 |
| 47276 | brake master cylinder bracket | 47276-12050 |
| 47299 | Brake master cylinder reservoir filter | 47299-02160 · 47299-20060 |
