Toyota COROLLA 前桥壳和差速器 — Figure 4301

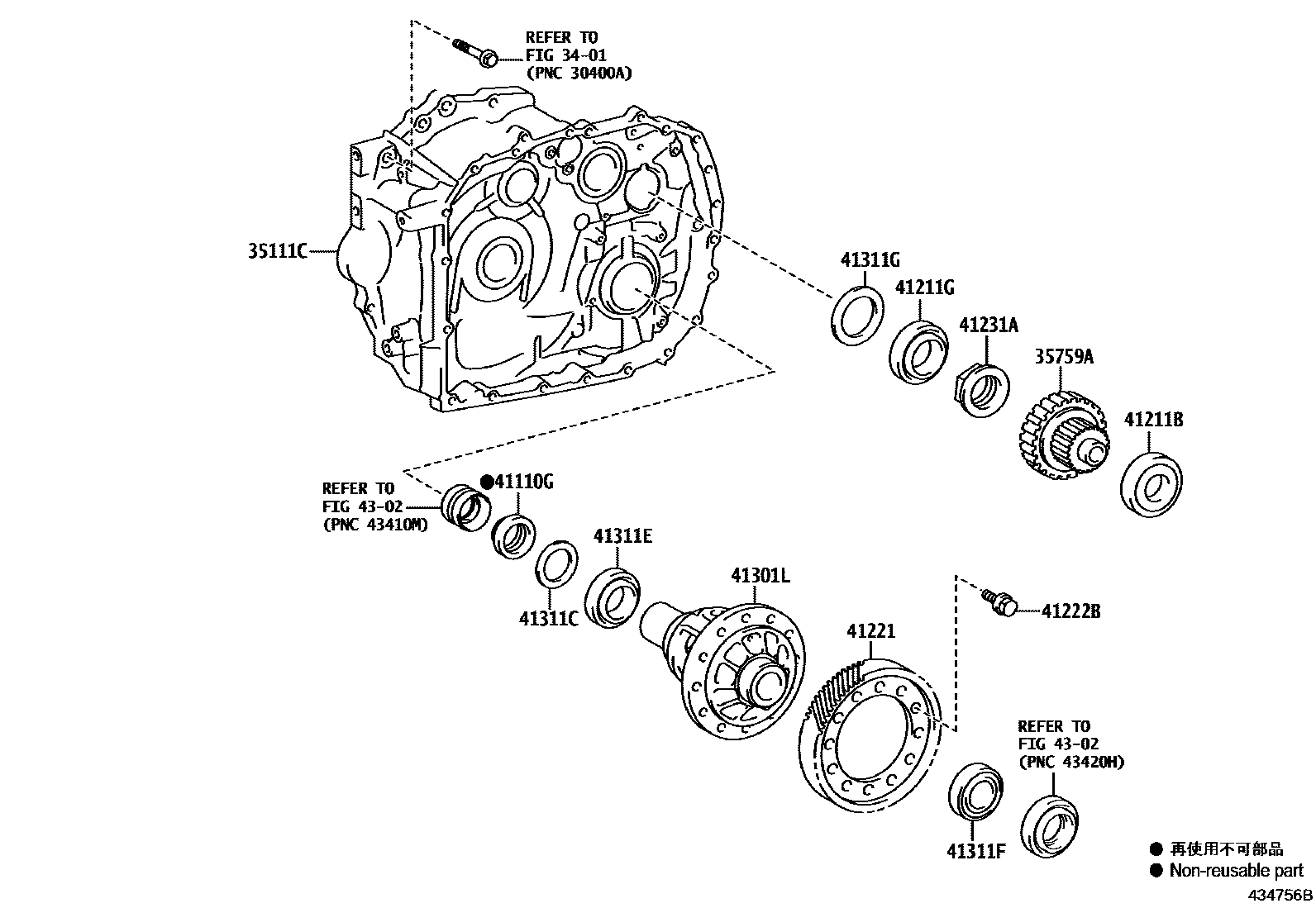

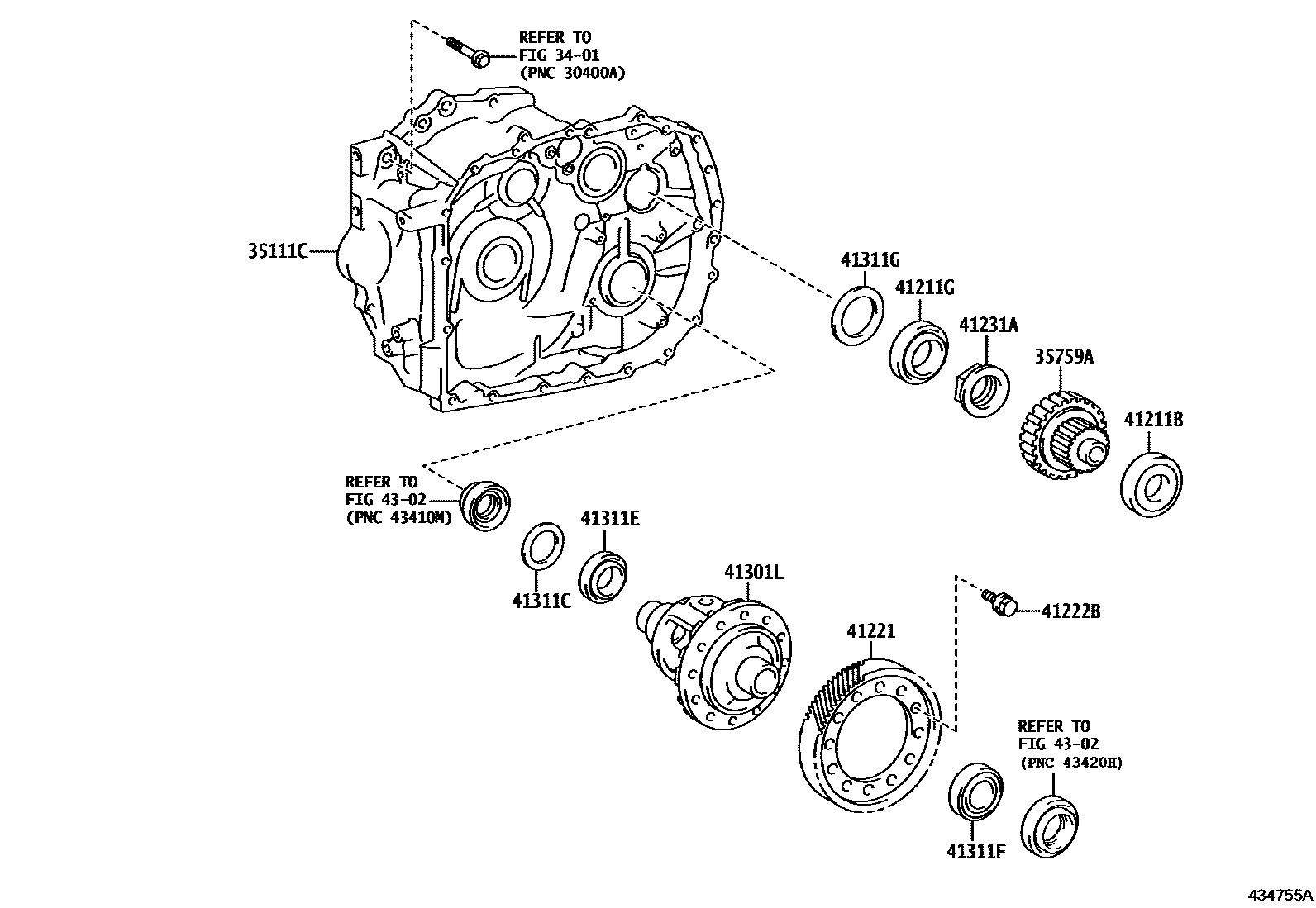

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35111C | Transmission axle housing | 35111-12231 · 35111-12300 · 35111-16050 · 35111-16070 |
| 35759A | PIGNON, MENANT DEMULTIPLICATEUR | 35705-76010 |
| 41110G | Oil seal (for differential side) | 90311-55004 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29013 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90366-25026 |
| 41221 | Front differential ring gear | 41221-76020 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12303 |
| 41231A | Drive pinion lock nut | 90179-32006 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-12420 · 41301-42290 |
| 41311C | Rear gasket (for front differential case) | 90564-66038 · 90564-66039 · 90564-66067 · 90564-66068 · 90564-66069 · 90564-66070 · 90564-66071 · 90564-66072 · 90564-66073 · 90564-66074 · 90564-66075 · 90564-66076 · 90564-66077 · 90564-66078 · 90564-66079 · 90564-66080 · 90564-66081 · 90564-66082 · 90564-66083 · 90564-66084 · 90564-75036 · 90564-75037 · 90564-75038 · 90564-75039 · 90564-75040 · 90564-75041 · 90564-75042 · 90564-75043 · 90564-75044 · 90564-75045 · 90564-75046 · 90564-75047 · 90564-75052 · 90564-75053 · 90564-75054 · 90564-75055 · 90564-75056 · 90564-75057 · 90564-75058 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-50172 · 90366-57045 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-51007 |
| 41311G | Front flat washer (for front differential case) | 90564-44070 · 90564-44071 · 90564-44072 · 90564-44073 · 90564-44074 · 90564-44075 · 90564-44076 · 90564-44077 · 90564-44078 · 90564-44079 · 90564-44080 · 90564-44081 · 90564-44082 · 90564-44083 · 90564-44084 · 90564-44085 · 90564-44086 · 90564-44087 · 90564-44088 · 90564-44089 · 90564-44090 · 90564-44091 · 90564-44092 |
