Toyota COROLLA 车轮和车轮盖 — Figure 4103

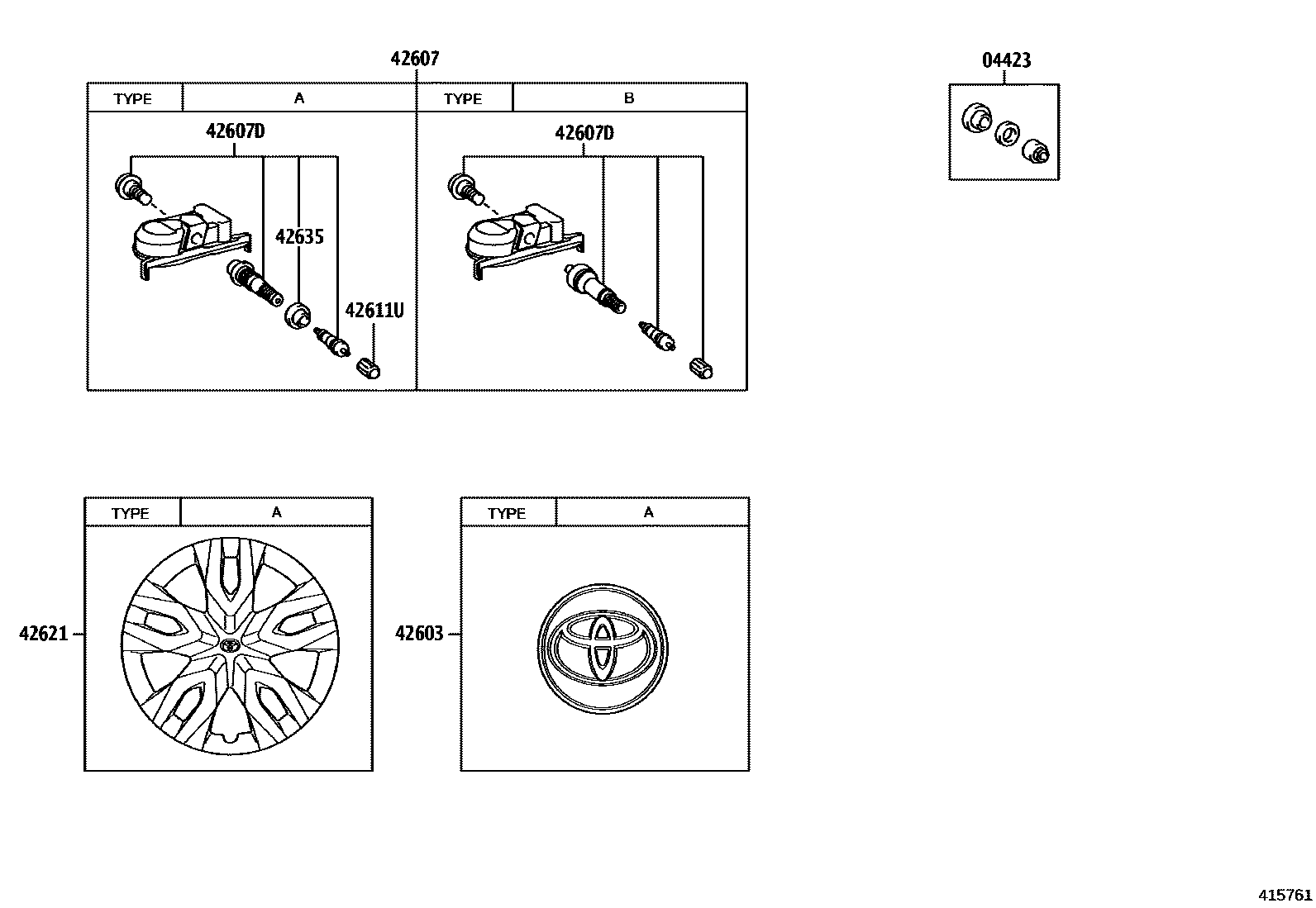

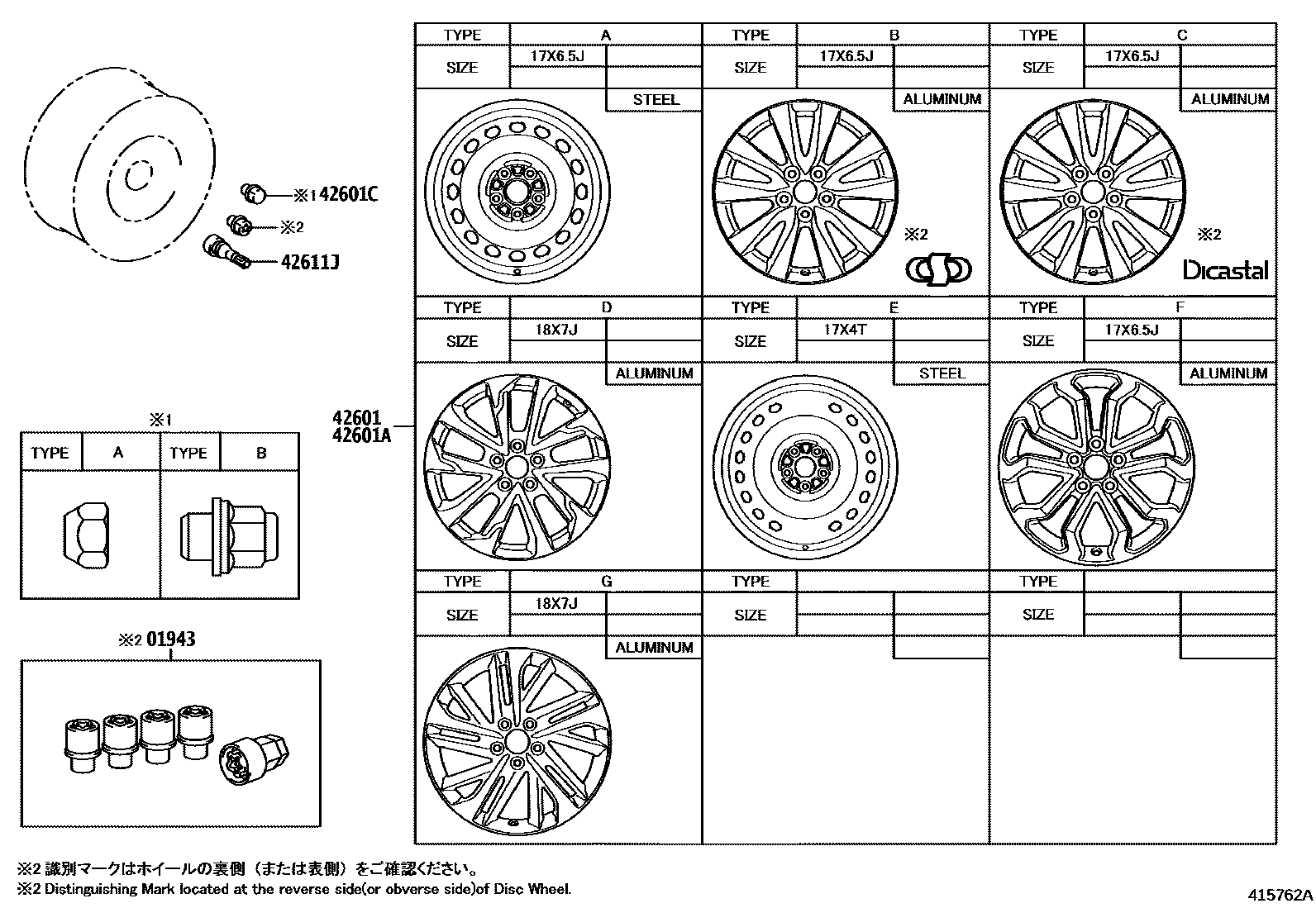

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 01943 | ECROU, VERROUILLAGE ROUE AVEC CLE A DOUILLES | 09143-YY070 |
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0E010 |
| 42601 | spoke wheel | 42611-0A210 · 42611-0A220 · 42611-0A230 · 42611-0A310 · 42611-0A410 · 42611-0A420 · 42611-0A440 |
| 42601A | Spoke wheel (for spare tire) | 4261B-0R010 |
| 42601C | Hub nut (for axle) | 90084-94001 · 90942-01007 · 90942-A1004 · 90942-A1009 · 90942-A1010 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-08010 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02050 · 42607-02100 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-A5005 · 90942-A5007 |
| 42611J | Valve (for tubeless spare tire) | 90080-45006 |
| 42611U | tire valve cover | 90942-A5002 |
| 42621 | wheel cover | 42602-0A040 |
| 42635 | Tire valve seals | 42635-35010 |
