Toyota COROLLA HV或FCV传动桥总成 — Figure 3901

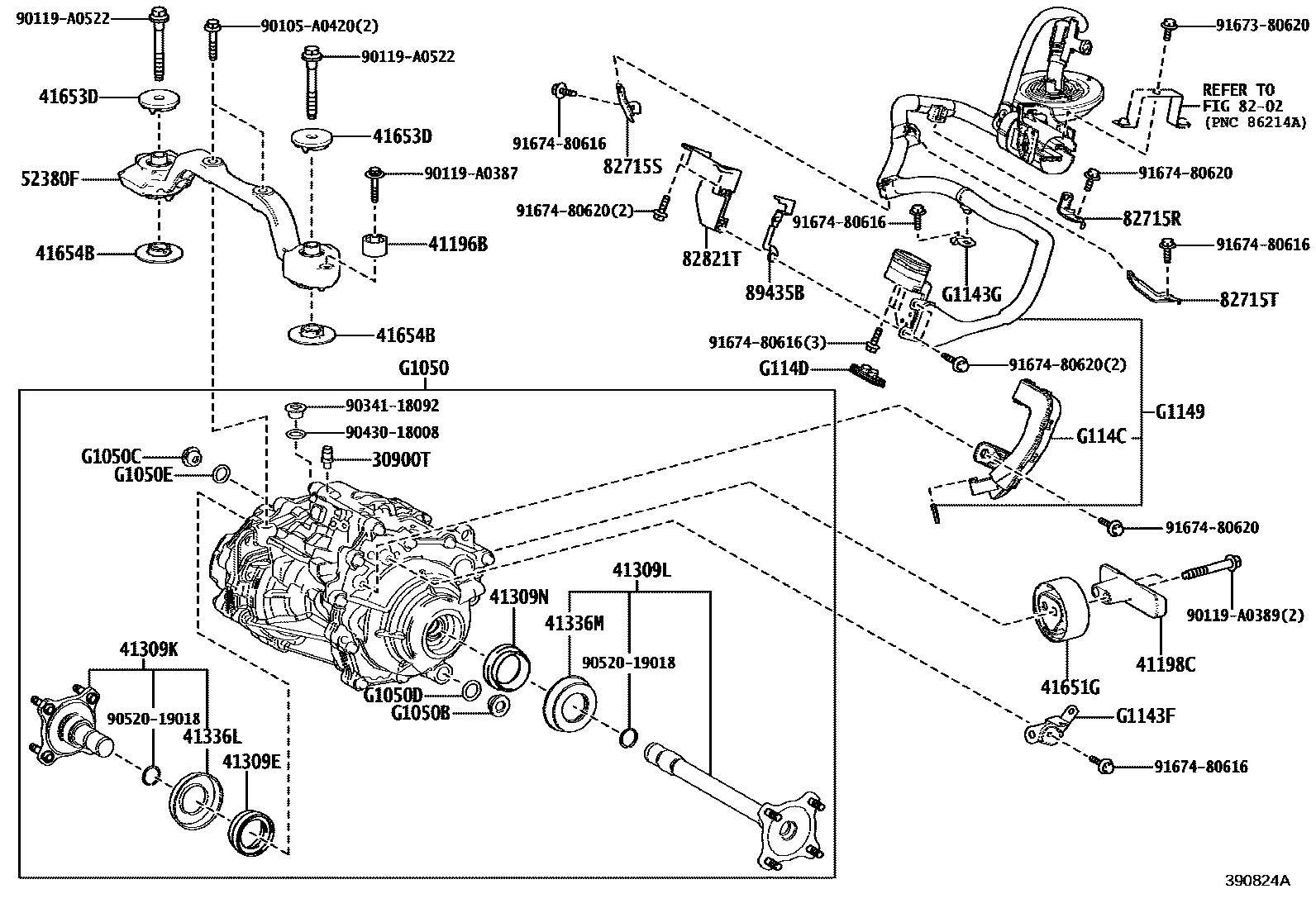

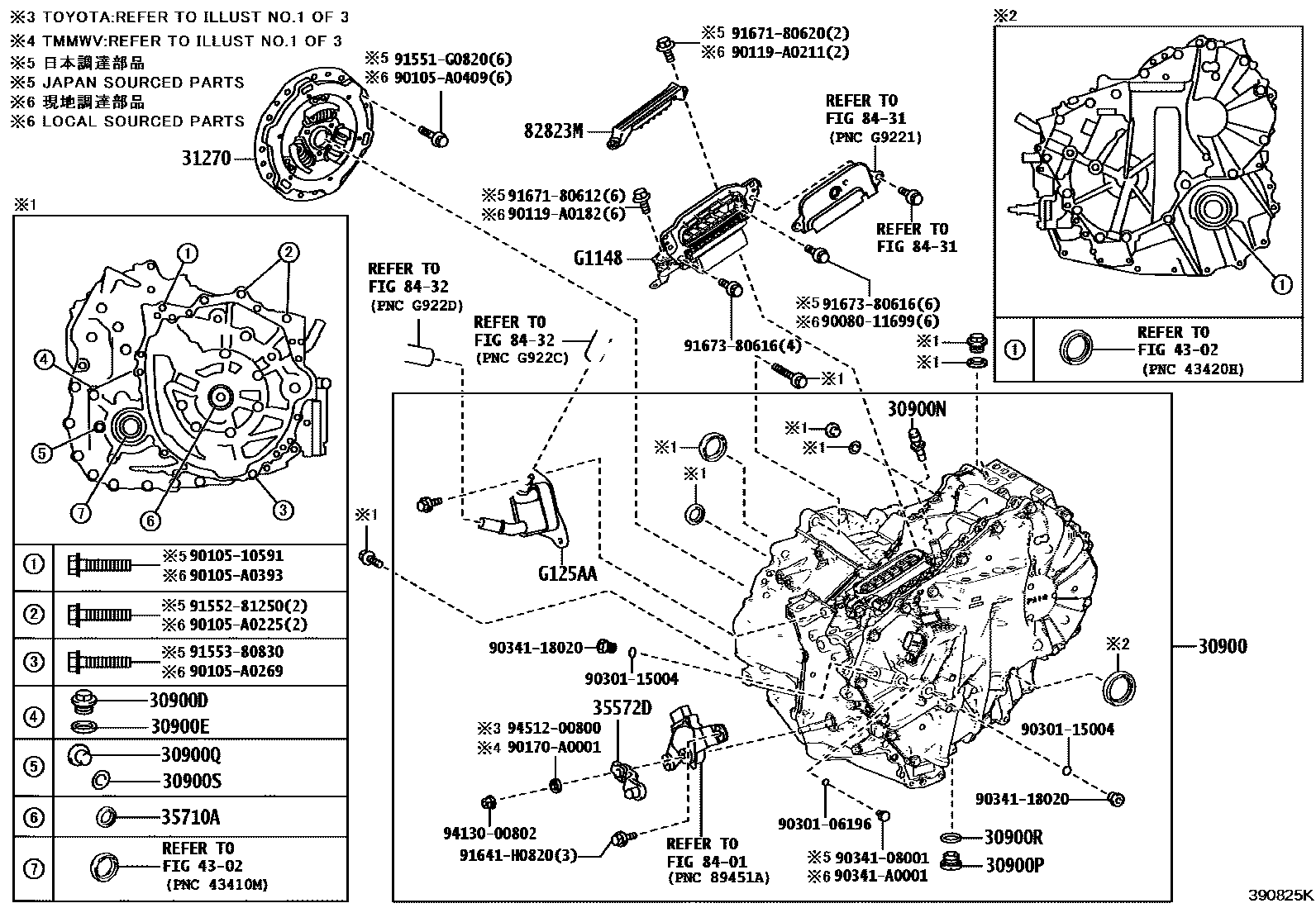

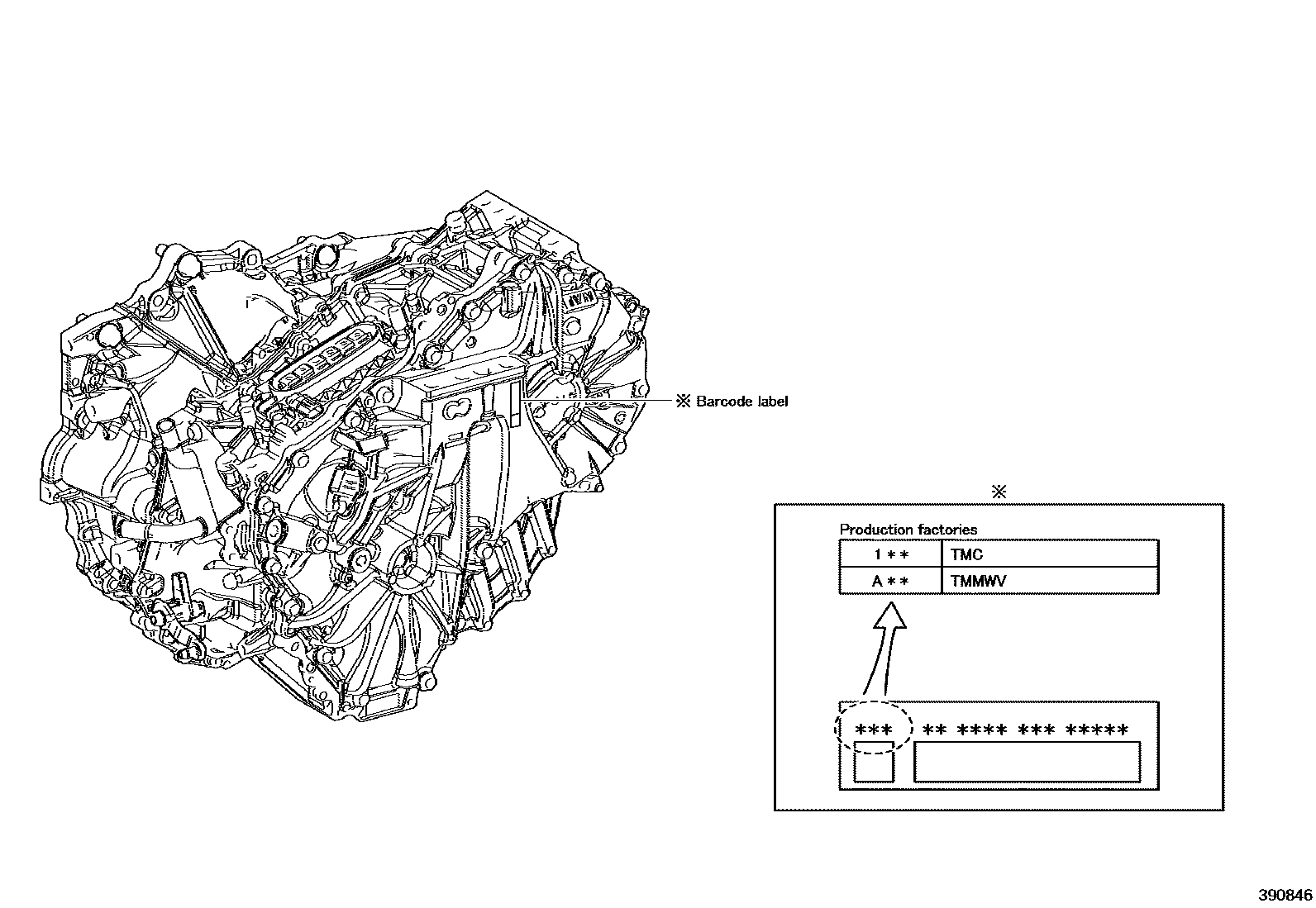

Toyota COROLLA EPC diagram 3901, HV或FCV传动桥总成, with 3 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-0A020 · 30900-16010 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | BOUCHON, VIDANGE(HEV) | 90341-18016 |
| 30900Q | BOUCHON, REMPLISSAGE(HEV) | 90341-18090 |
| 30900R | JOINT ETANCHEITE, BOUCHON VIDANGE(HEV) | 90430-18008 |
| 30900S | JOINT ETANCHEITE, BOUCHON REMPLISSAGE(HEV) | 90430-18008 |
| 30900T | BOUCHON, RENIFLARD(POUR MOTEUR TRACTION ARRIERE) | 90930-03247 |
| 31270 | Transmission input damper assembly | 31270-0A020 · 31270-63010 |
| 35572D | transmission control lever | 35572-63020 |
| 35710A | T-type oil seal (for input shaft) | 90311-27012 |
| 41196B | REGISTRE, DYNAMIQUE DIFFERENTIELLE | 41196-0A020 |
| 41198C | AMORTISSEUR, MASSE DE DIFFERENTIEL | 41198-16010 |
| 41309E | JOINT, HUILE TYPE T(PR ARBRE TRANSMIS COTE DIFFER MD) | 90311-38103 |
| 41309K | Differential side gear shaft sub-assembly | 41309-28080 |
| 41309L | Differential side gear shaft sub-assembly | 41309-28071 |
| 41309N | JOINT, HUILE TYPE T(PR ARBRE TRANSMIS COTE DIFFER MG) | 90311-37008 |
| 41336L | dust cover | 41336-47020 |
| 41336M | dust cover | 41336-28070 |
| 41651G | Differential fixed cushion | 41651-16020 |
| 41653D | Differential fixed part upper stop | 41653-16010 |
| 41654B | Differential fixed part lower block | 41654-16010 |
| 52380F | Front differential bracket assembly | 52380-0A031 |
| 82715R | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.1 | G1143-47070 |
| 82715S | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.2 | G1143-47110 |
| 82715T | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.3 | G1143-47120 |
| 82821T | Connector cover | 82821-47510 |
| 82823M | Terminal cover | 82823-28110 |
| 89435B | PLATINE DE FIXATION DE COUVERCLE DE CONNECTEUR | 89435-12010 |
| G1050 | Rear traction motor assembly with transmission axle | G1050-28040 · G1050-28041 |
| G1050B | BOUCHON, VIDANGE(POUR MOTEUR TRACTION ARRIERE) | 90341-18092 |
| G1050C | BOUCHON, REMPLISSAGE(POUR MOTEUR TRACTION ARRIERE) | 90341-18092 |
| G1050D | JOINT ETANCH, BOUCHON VIDANGE(POUR MOTEUR TRAC ARR) | 90430-18008 |
| G1050E | JOINT ETANCH, BOUCHON REMPLISSAGE(POUR MOTEUR TRAC ARR) | 90430-18008 |
| G1143F | SUPPORT, CABLE MOTEUR, NO.2 | G1143-47090 |
| G1143G | SUPP, CABLE MOTEUR, NO.3 | G1143-47100 |
| G1148 | Motor cable | G1148-63010 · G1148-63011 |
| G1149 | CABLE(POUR MOTEUR TRACTION ARRIERE) | G1149-47020 |
| G114C | Motor cable protection device | G114C-47020 |
| G114D | Motor cable terminal cover | G114D-30010 |
| G125AA | RADIATEUR, REFROIDISSEMENT MOTEUR | G125A-63010 |
