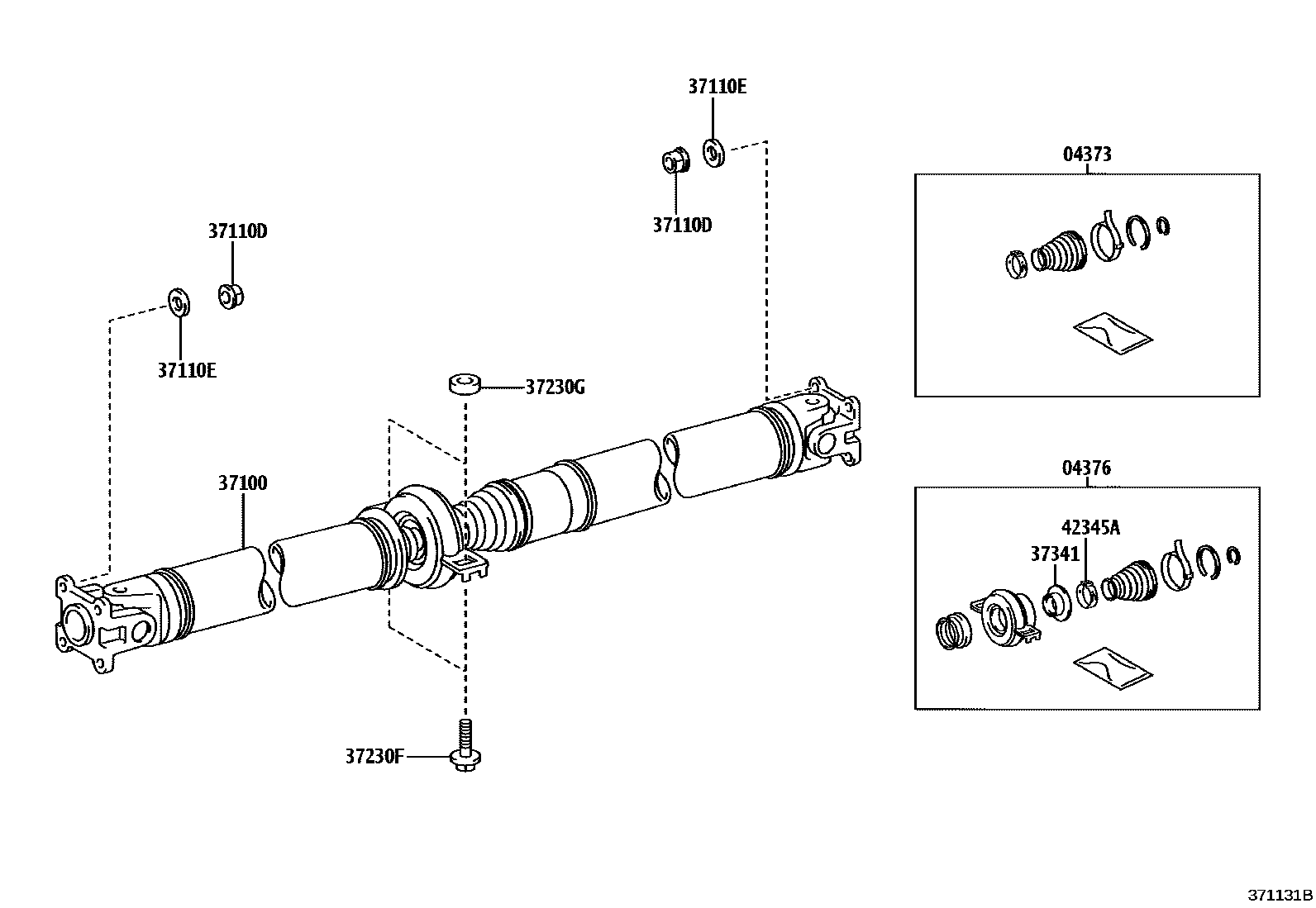

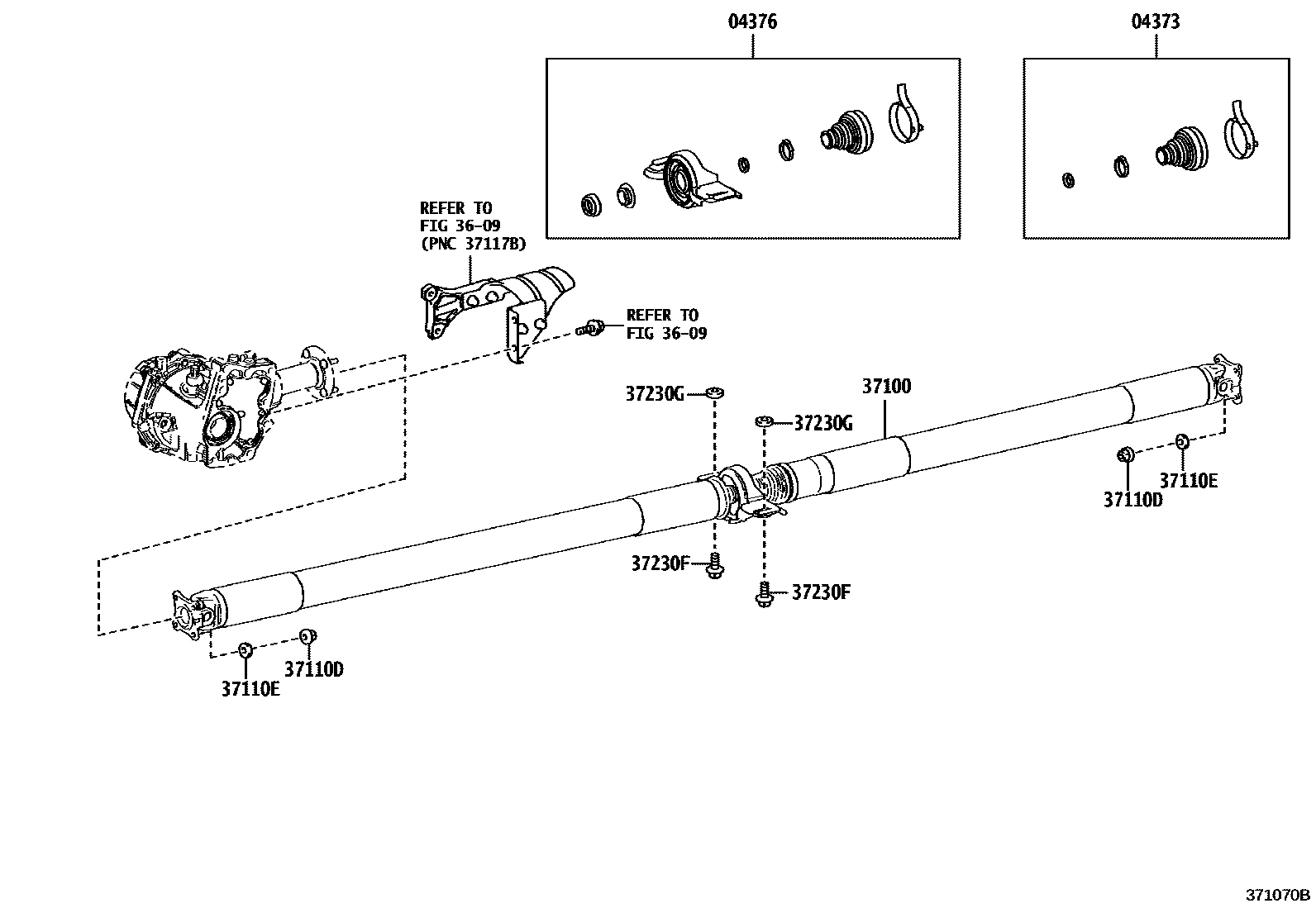

Toyota COROLLA Propeller Shaft & Universal Joint — Figure 3701
Toyota COROLLA EPC diagram 3701, Propeller Shaft & Universal Joint, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04373 | Universal joint dust boot assembly | 04373-52010 |
| 04376 | KIT DE ROULEMENT, SUPPORT CENTRAL | 04376-52010 |
| 37100 | Drive shaft assembly with central bearing | 37100-16070 |
| 37110D | Nut (for drive shaft) | 90179-08197 |
| 37110E | Washer (for drive shaft) | 90201-08097 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-A0246 |
| 37230G | No. 2 washer (for intermediate support bearing) | 90201-10081 · 90201-10083 · 90201-10084 · 90201-10085 · 90201-10123 |
| 37341 | No. 1 drive shaft dust cover | 37341-52010 |
| 42345A | COLLIER, SOUFFLET ARBRE TRANSMISSION ARRIERE | 42345-52220 |
