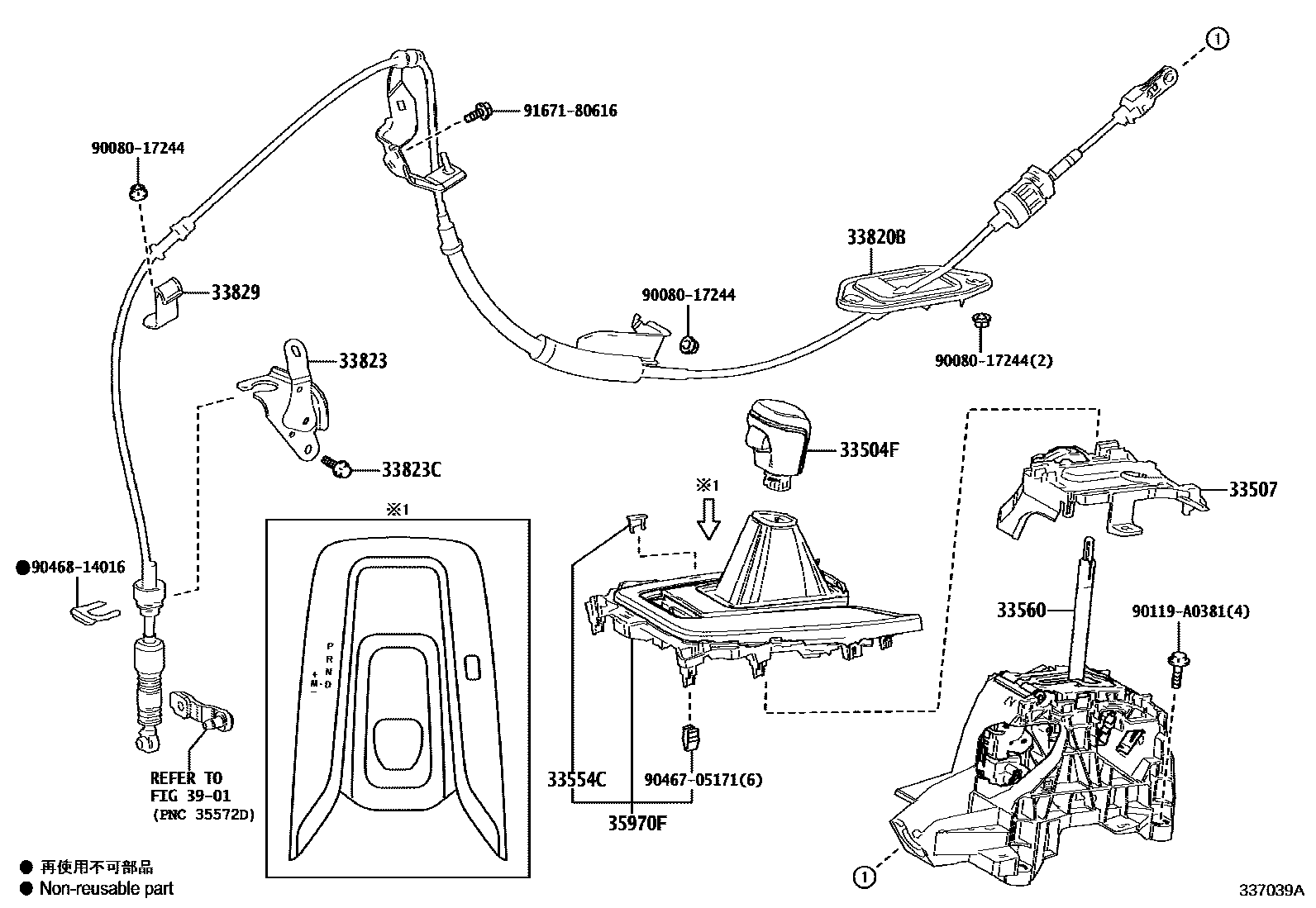

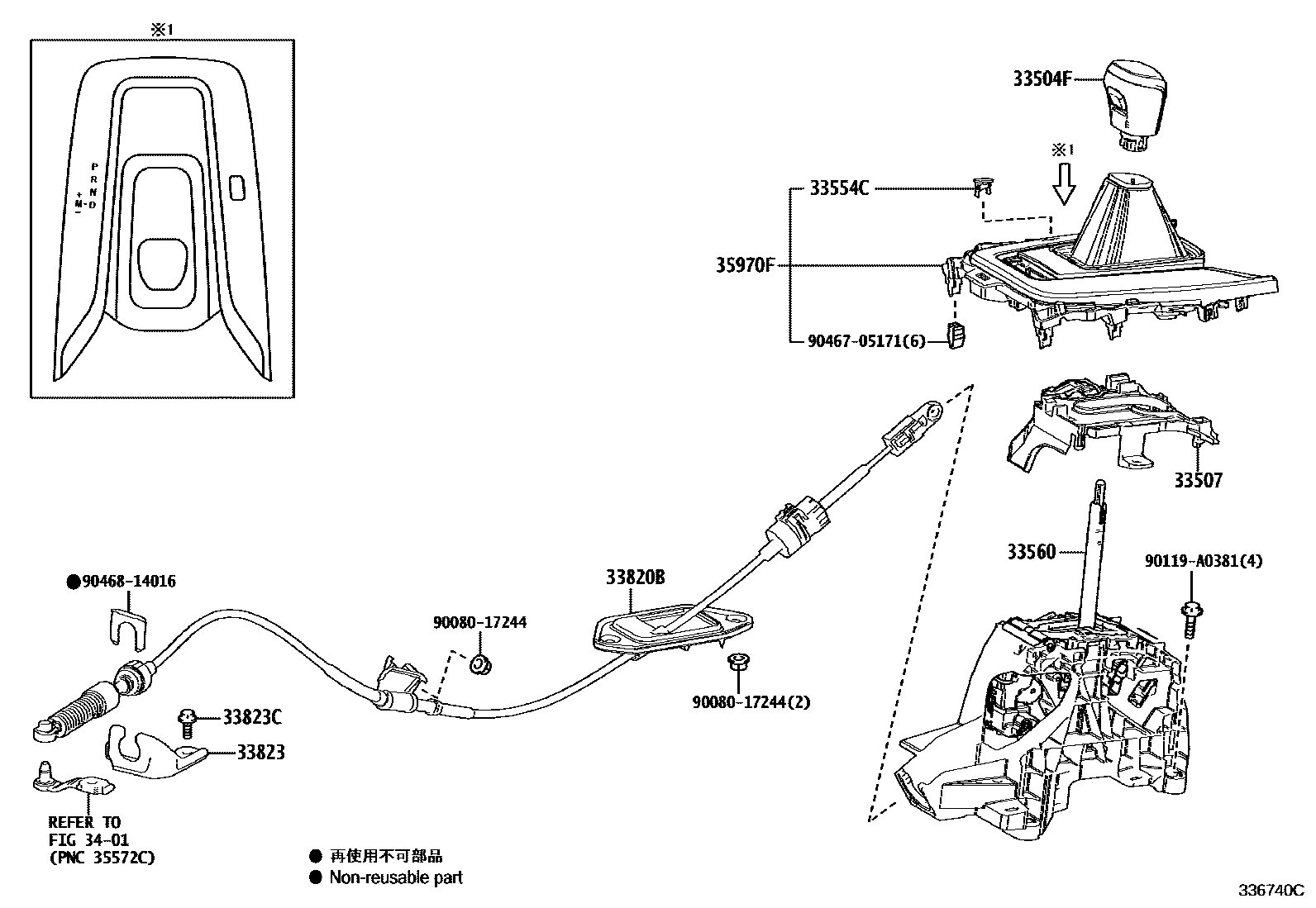

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33507 | Shift lever housing bracket sub-assembly | 33507-02010 |
| 33554C | Shift lock release button cover | 33554-02090 |
| 33560 | Shift lock control unit assembly | 33560-0R060 · 33560-0R070 |
| 33820B | Transmission control cable assembly | 33820-0A070 · 33820-0A100 · 33820-0A150 |
| 33823 | No. 1 transmission control cable bracket | 33823-02270 · 33823-0A040 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-A0127 |
| 33829 | Transmission control cable bracket | 33829-0A010 |
