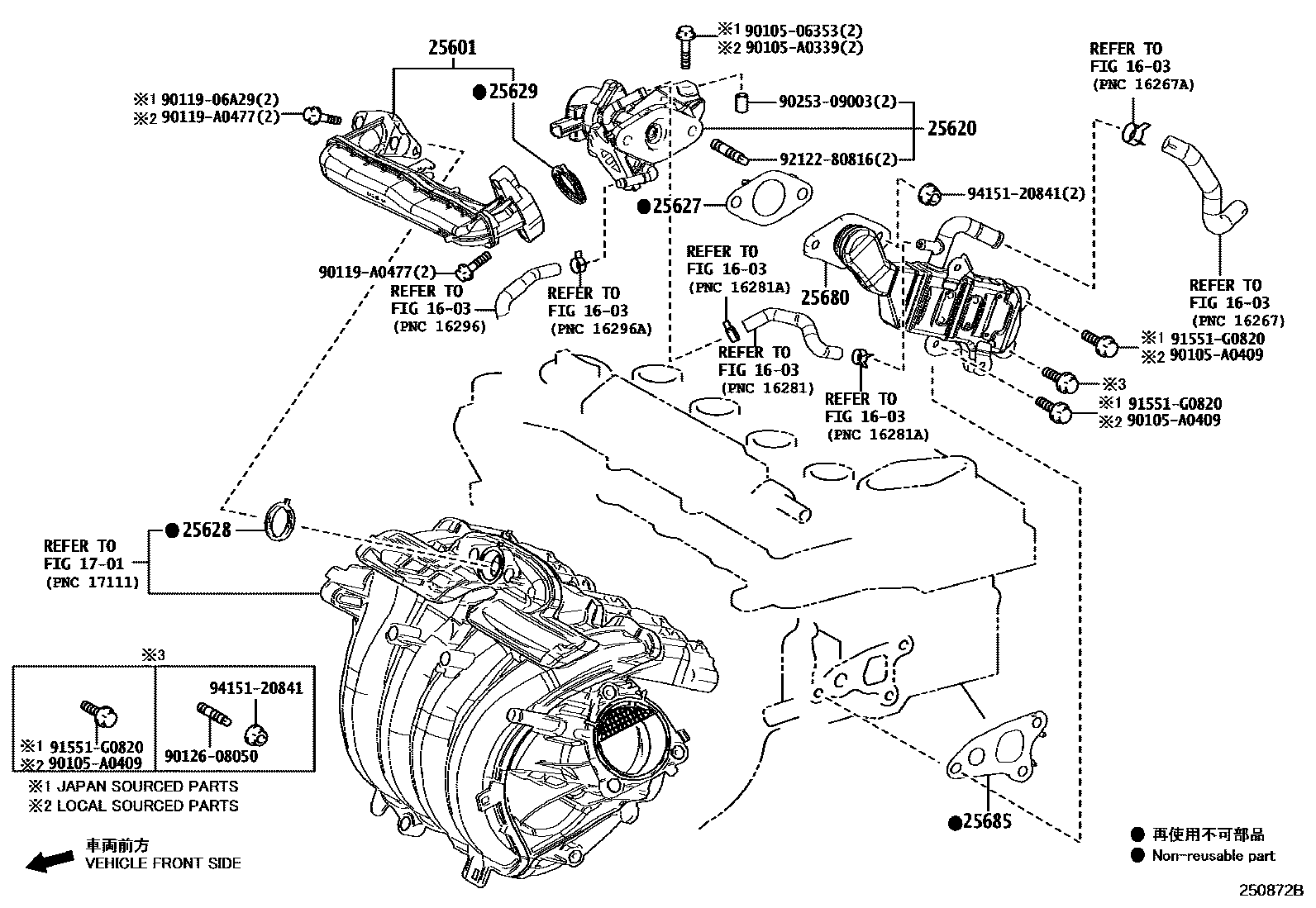

Toyota COROLLA 废气再循环系统 — Figure 2501
Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-24030 · 25601-F2011 |
| 25620 | EGR valve assembly | 25620-24050 · 25620-F2010 |
| 25627 | EGR valve gasket | 25627-24010 · 25627-F2010 |
| 25628 | EGR air intake gasket | 25628-25010 |
| 25629 | EGR valve adapter gasket | 25629-25010 |
| 25680 | EGR cooler assembly | 25680-24010 · 25680-24030 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-25011 |
