Toyota COROLLA 真空泵 — Figure 1905

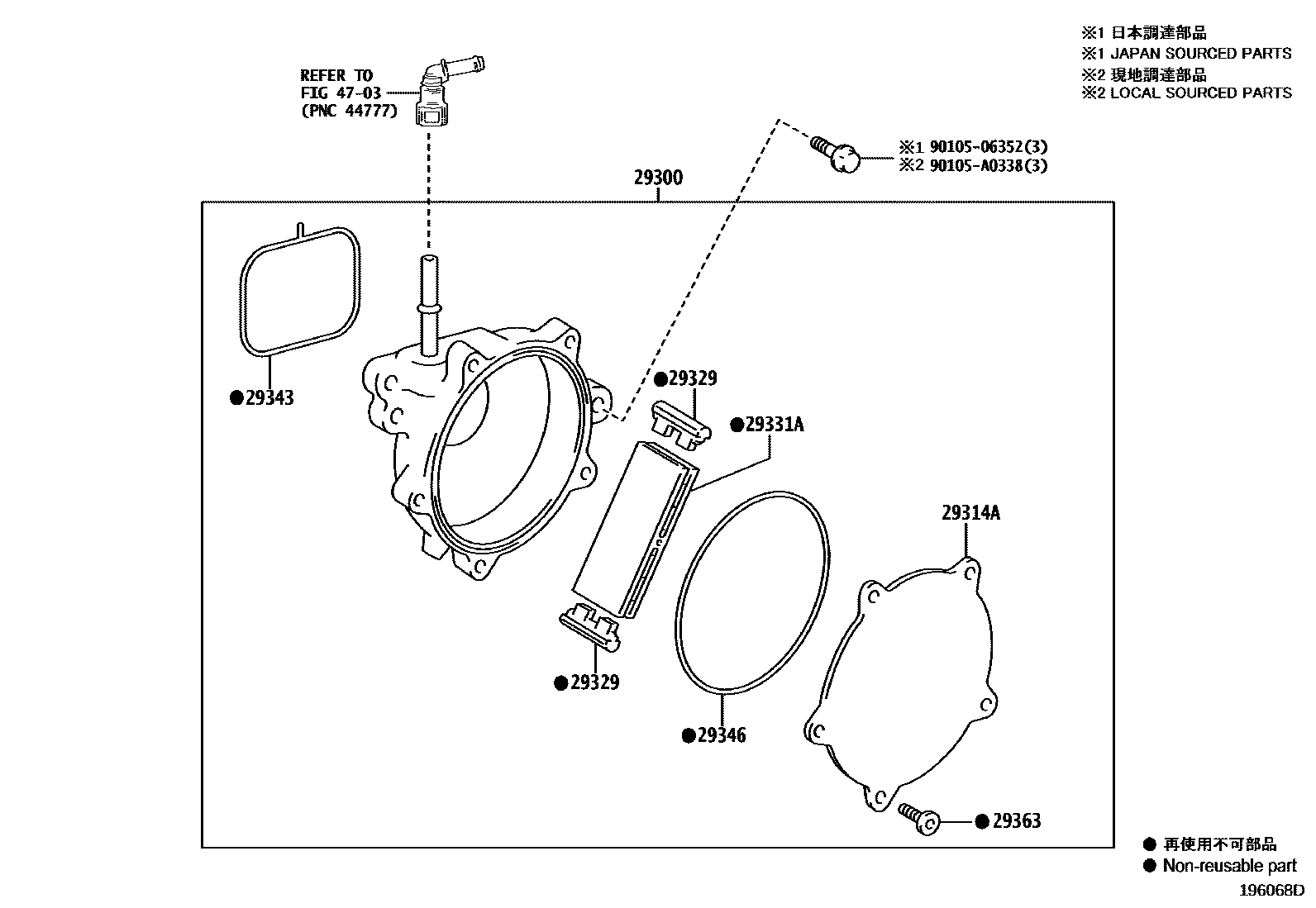

Toyota COROLLA EPC diagram 1905, 真空泵, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-24011 · 29300-F2010 · 29300-F2031 |
| 29314A | end cap | 29314-25010 · 29314-F0010 |
| 29329 | Vane vacuum pump cover | 29329-24011 · 29329-F2010 |
| 29331A | vacuum pump blades | 29331-24010 · 29331-F2010 |
| 29343 | JOINT TORIQUE, POMPE A VIDE, NO.1 | 29343-25010 · 29343-F0010 · 29343-F2030 |
| 29346 | JOINT, TORIQUE CACHE POMPE A VIDE | 29346-25010 · 29346-F0010 |
| 29363 | VIS, CREUSE POUR POMPE A VIDE | 29363-25010 · 29363-F0010 |
