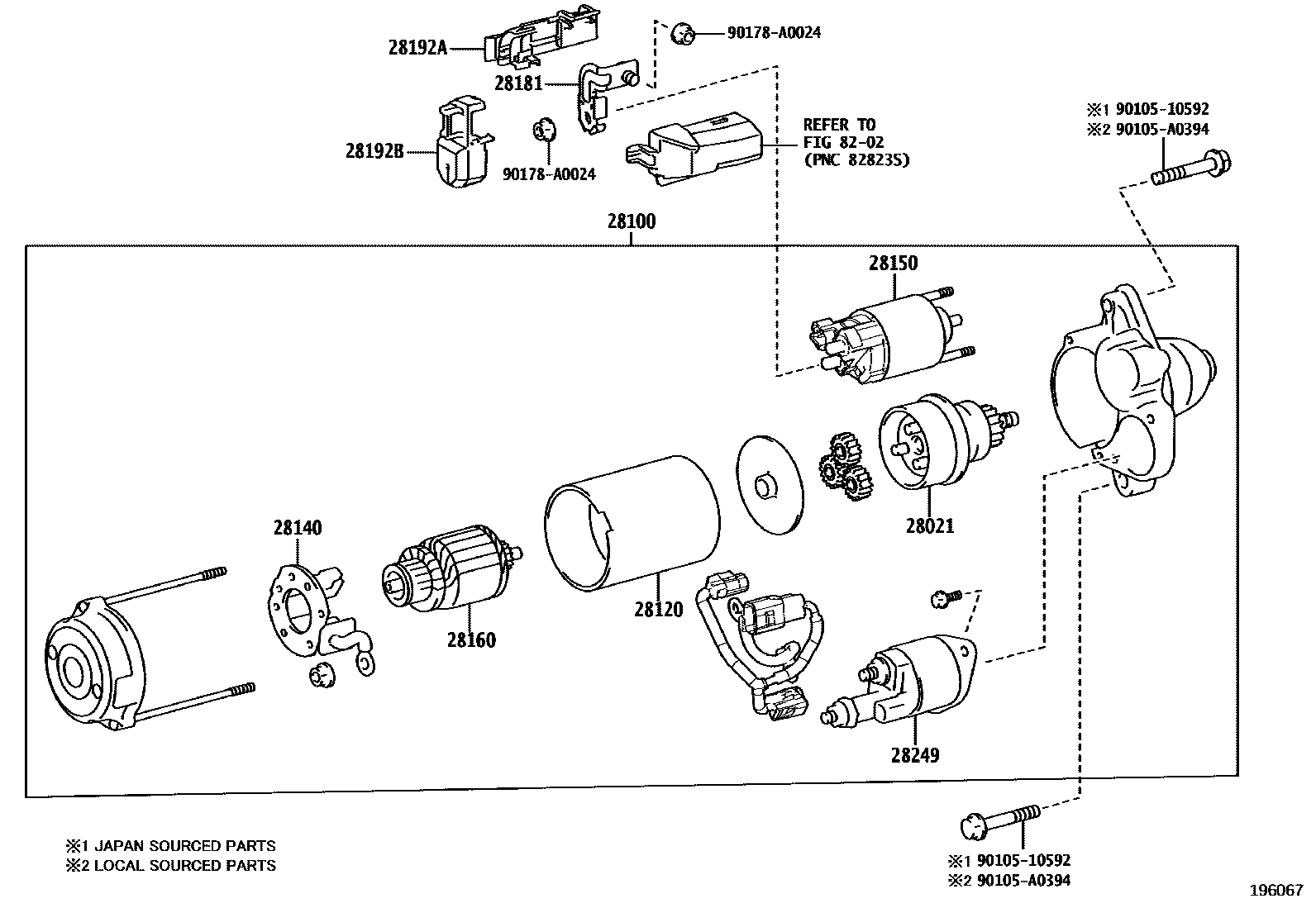

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-25070 |
| 28100 | Starter assembly | 28100-F2110 |
| 28120 | Starter yoke assembly | 28120-25070 |
| 28140 | Starter brush holder assembly | 28140-21100 |
| 28150 | Starter electromagnetic switch assembly | 28150-47250 |
| 28160 | Starter armature assembly | 28160-36110 |
| 28181 | starter terminal | 28181-24030 |
| 28192A | CACHE, DEMARREUR, NO.1 | 28192-F2100 |
| 28192B | CACHE, DEMARREUR, NO.2 | 28192-F2110 |
| 28249 | RELAIS, REDUCTION DU COURANT D'APPEL DU DEMARREUR | 28249-37100 |
