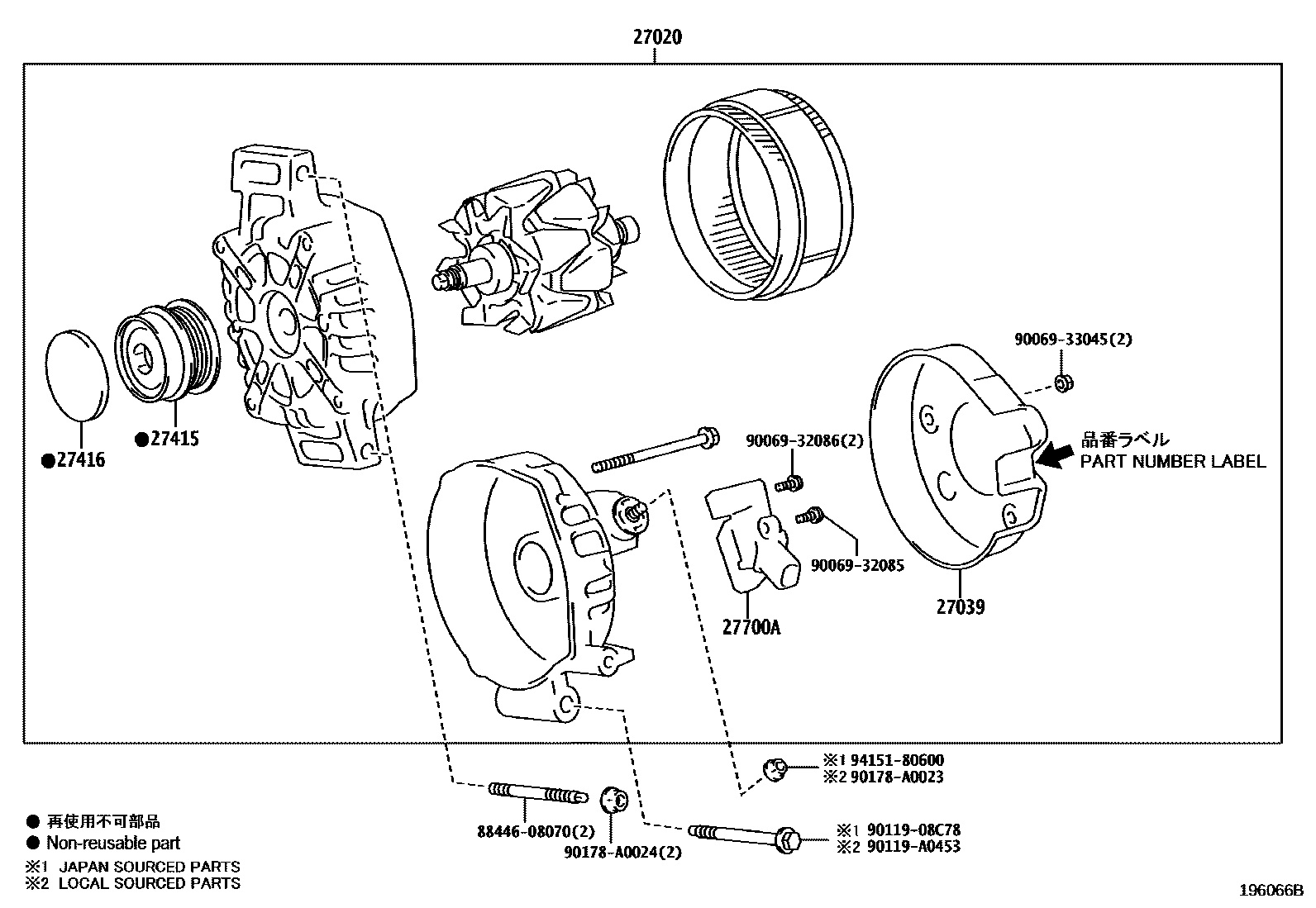

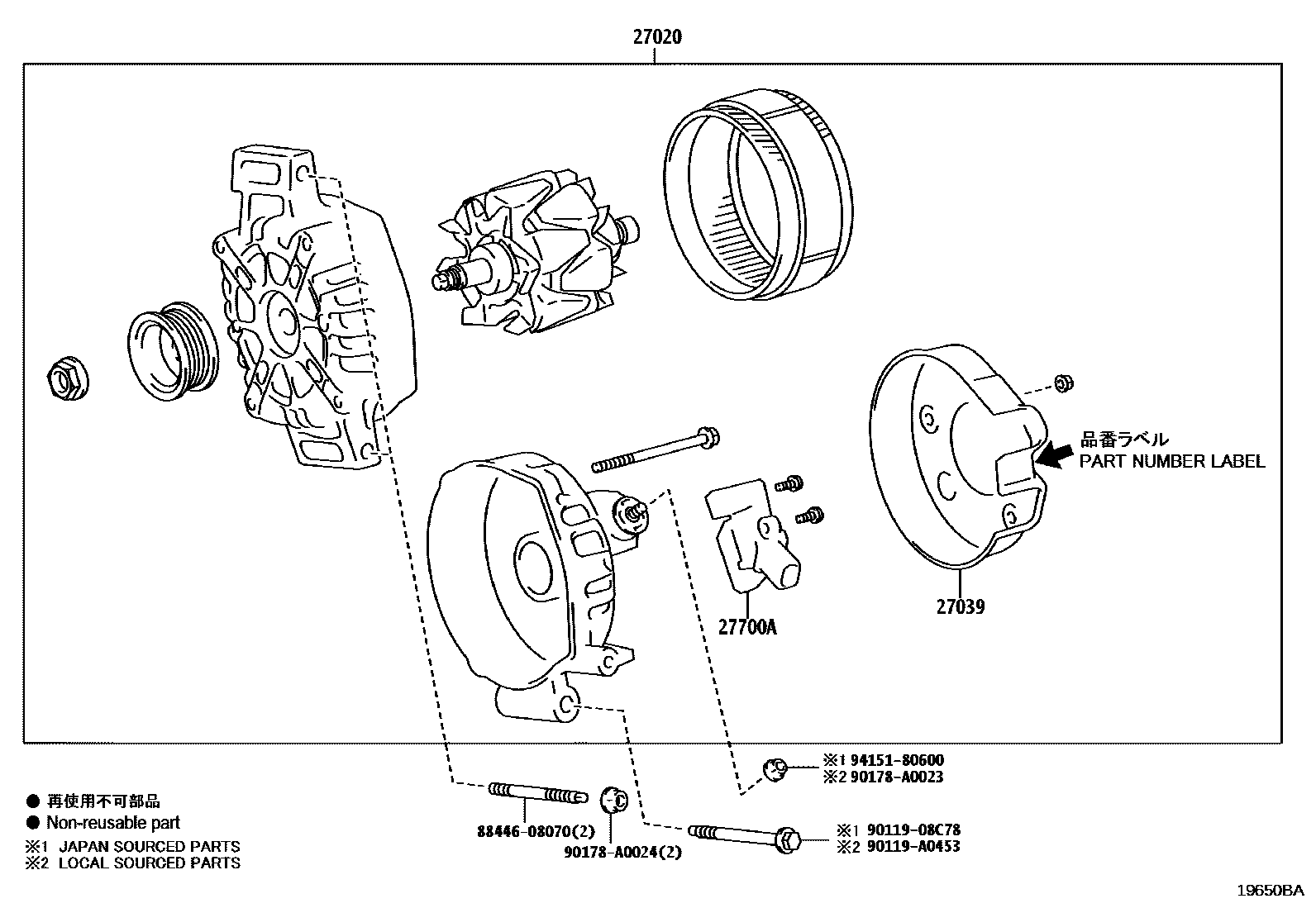

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-F2010 · 27060-F2230 · 27060-F2260 |
| 27039 | Alternator Rear End Cover | 27039-F2010 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-F0040 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27700A | Generator voltage regulator assembly | 27700-F2010 |
