Toyota COROLLA 点火线圈和火花塞 — Figure 1901

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 1 images and 2 PNC and OE references.

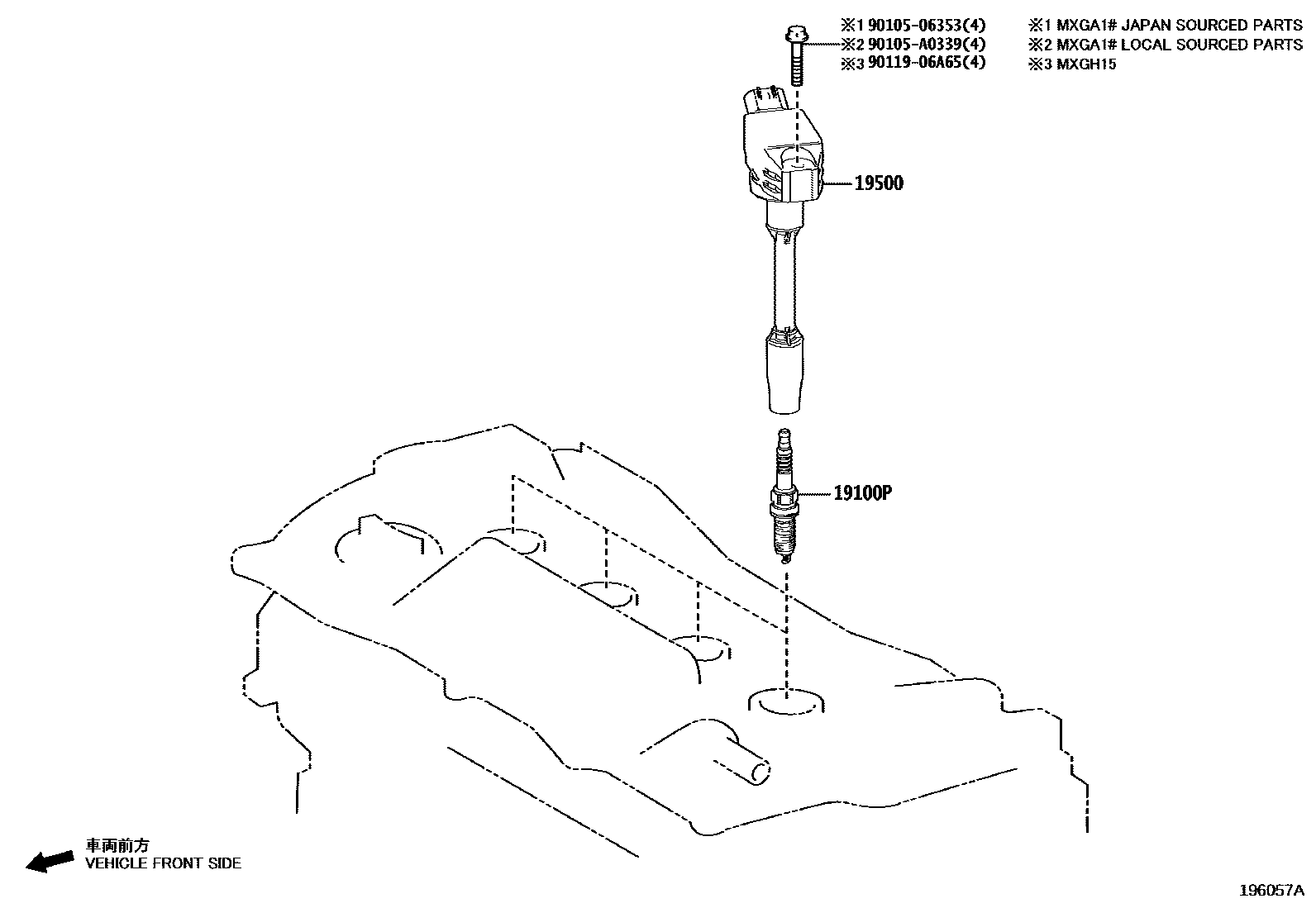

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 196057A
点火线圈和火花塞 — 196057A (202109 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01289 · 90919-01297 · 90919-A1001 · 90919-A1005
19500Ignition coil assembly90919-02276 · 90919-02277 · 90919-A2009 · 90919-A2010
