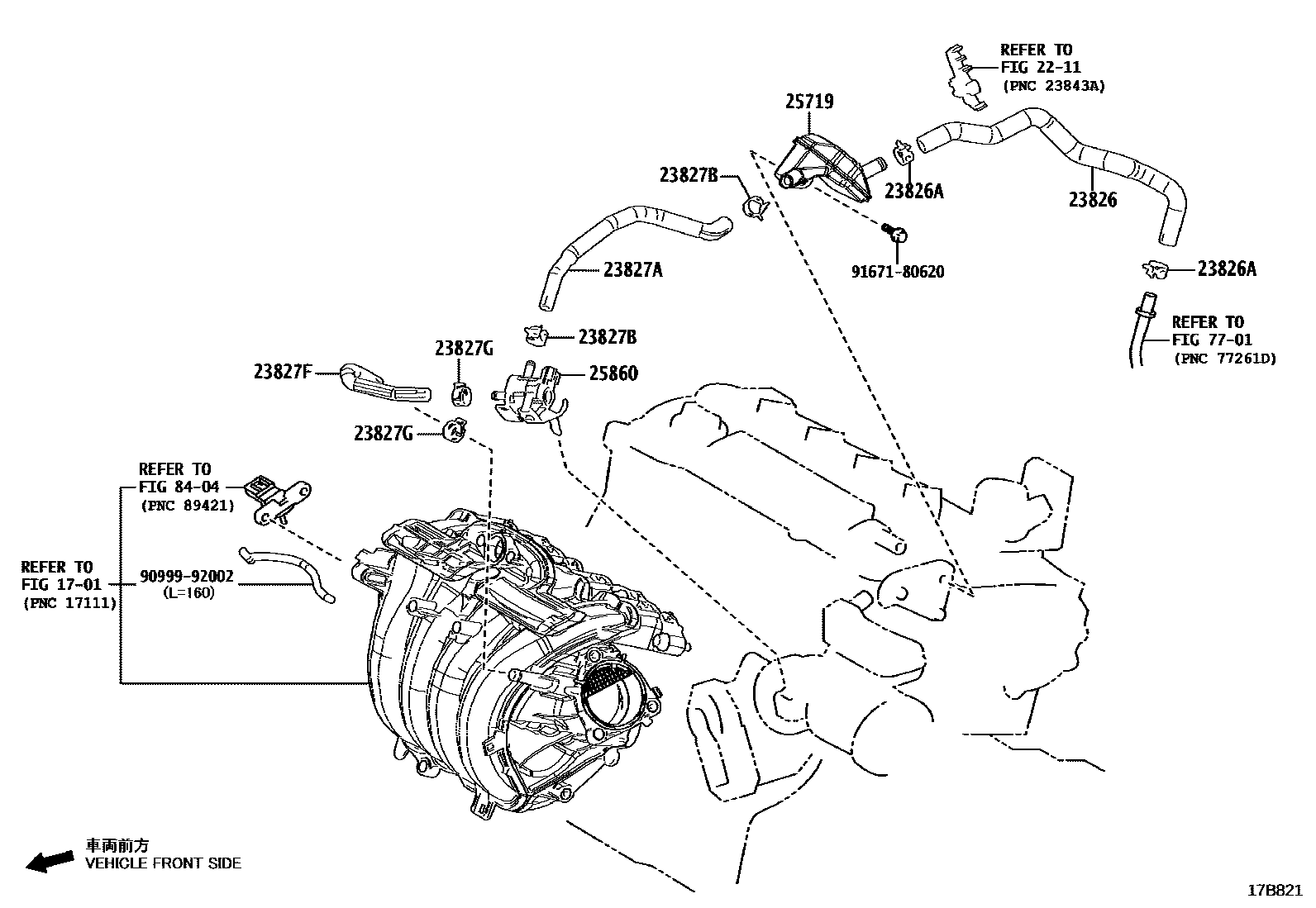

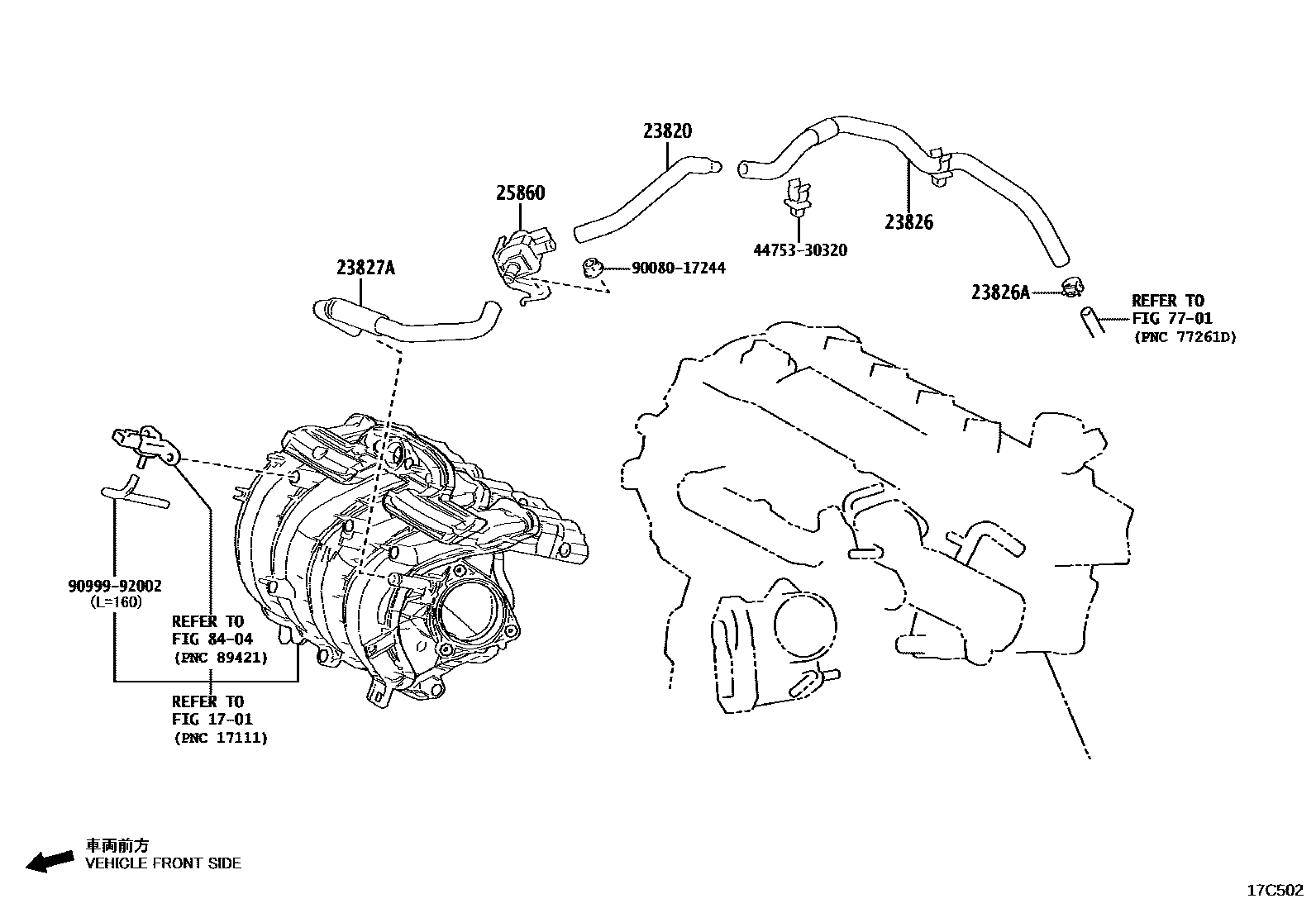

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23820 | Fuel vapor supply hose assembly | 23820-F2110 |
| 23826 | No. 1 fuel vapor supply hose | 23826-F2010 · 23826-F2300 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-A0032 |
| 23827A | No. 2 fuel vapor supply hose | 23826-24100 · 23826-F2030 · 23826-F2310 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-A0013 · 90466-A0016 · 90466-A0032 |
| 23827F | TUYAU, ALIMENTATION VAPEUR CARBURANT, NO.3 | 23826-24110 · 23826-F2040 |
| 23827G | AGR. FIX. (DE COND. FLEX. VAP.ESSENCE NO.3) | 90466-A0013 · 90466-A0016 · 90466-A0032 |
| 25719 | Vacuum pressure tank | 25719-24020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-24040 · 25860-24050 · 25860-24090 |
