Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

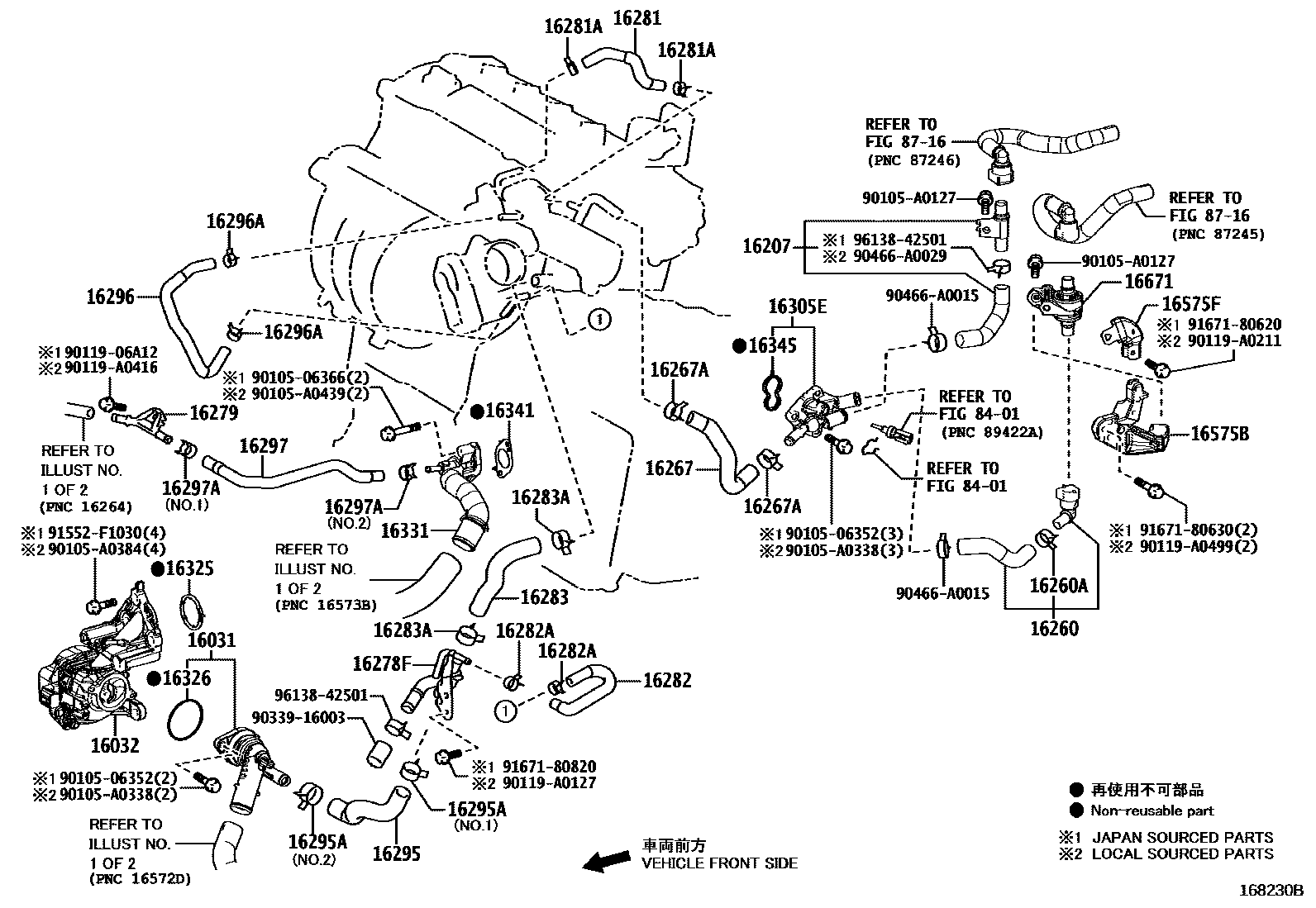

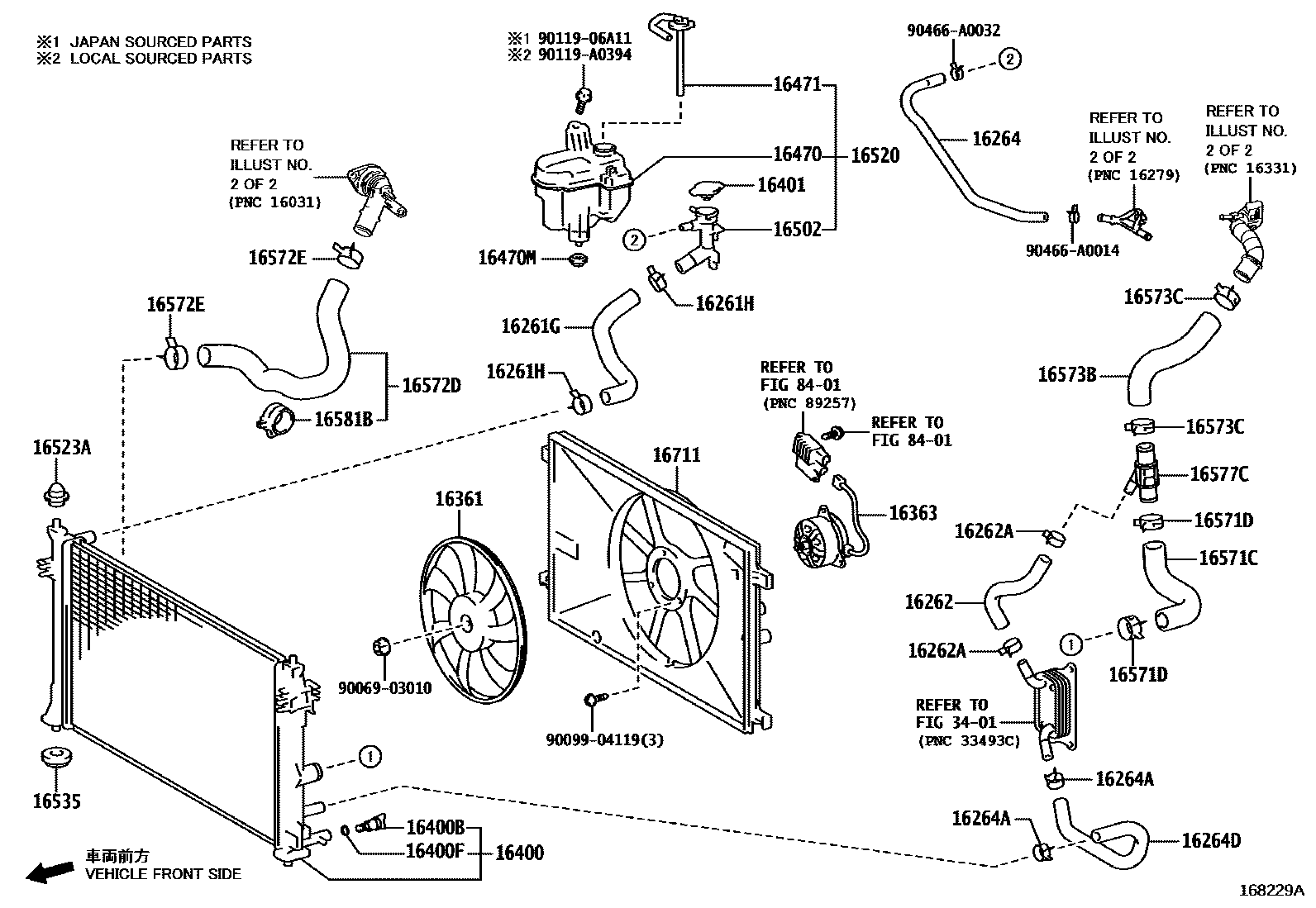

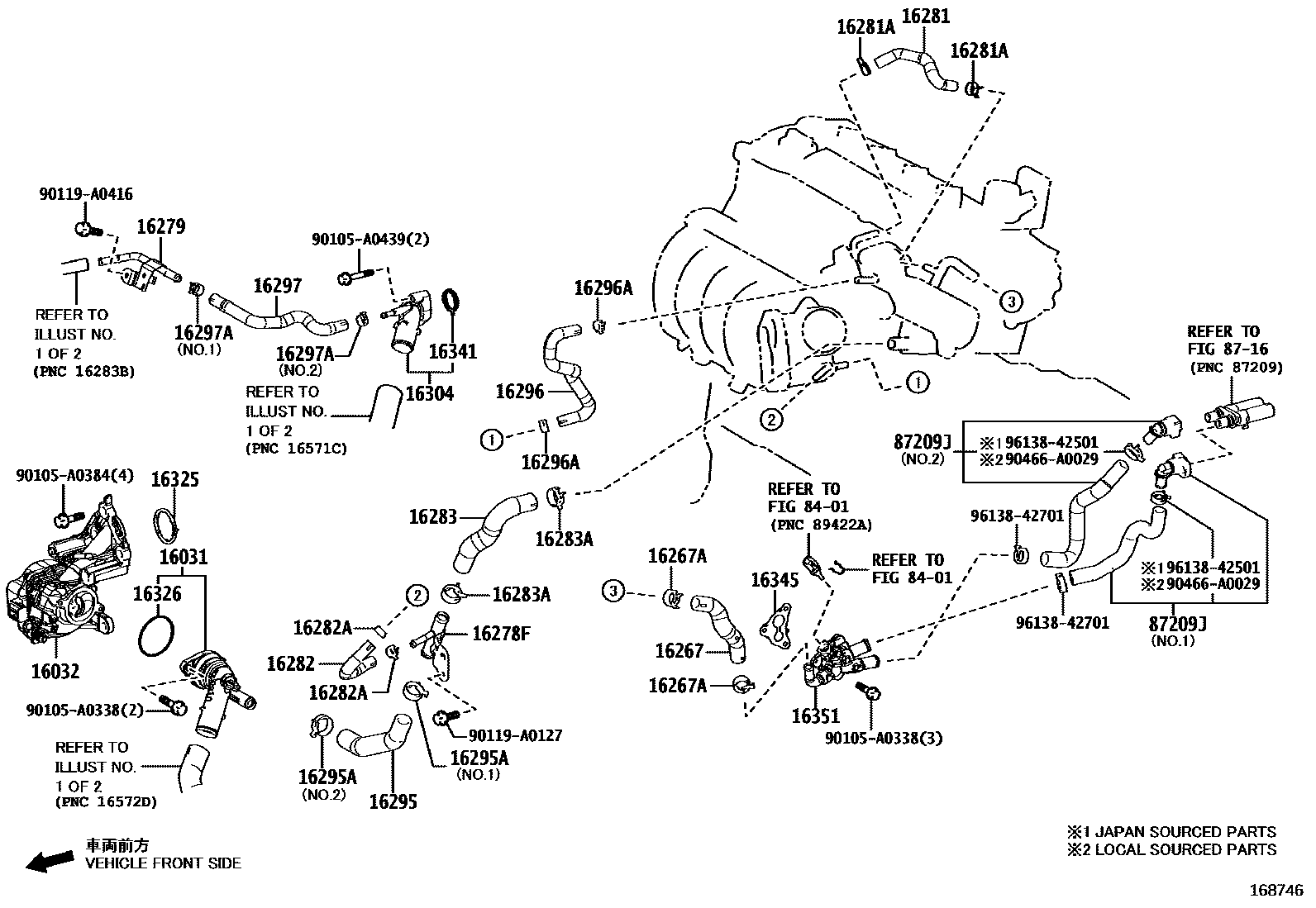

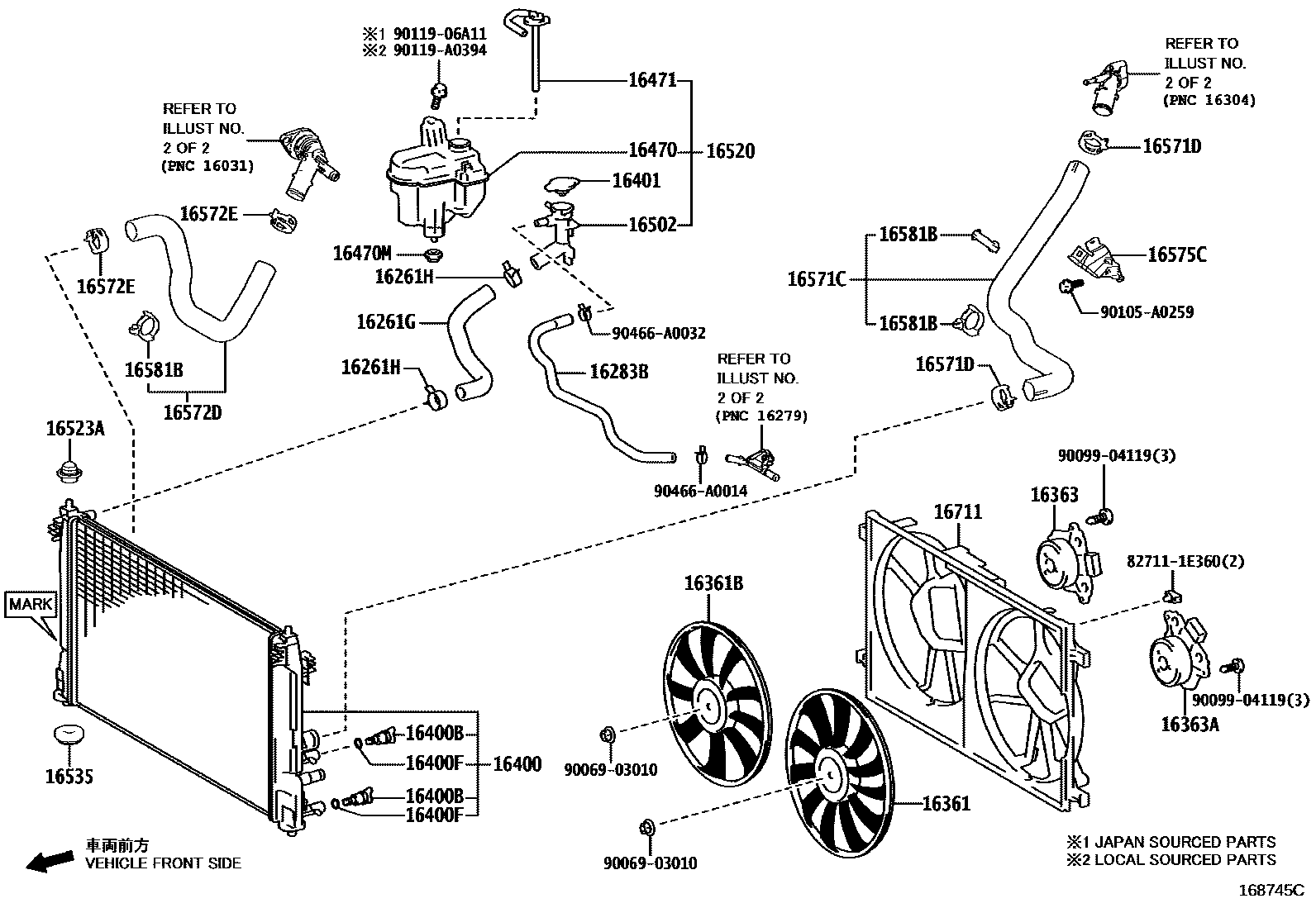

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-24040 |
| 16032 | SOUS-ENS. LOGEMENT, ENTREE EAU AV POMPE EAU | 16032-24020 · 16032-F2090 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-F2040 |
| 16260 | Water bypass hose assembly | 16260-F2210 |
| 16260A | Clamp (for water bypass hose assembly) | 90466-A0029 · 96138-42501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-F2220 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-28001 |
| 16262 | water inlet hose | 16262-F2060 |
| 16262A | Clamp (for water inlet hose) | 90466-A0029 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-F2170 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0029 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-F2180 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-24040 · 16267-25020 · 16267-F2150 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96138-42101 |
| 16278F | HOSE, WATER BY-PASS, NO.2 | 16278-24010 · 16278-24021 · 16278-F2020 |
| 16279 | No. 3 water bypass pipe | 16279-24010 · 16279-24020 · 16279-F2020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-24030 · 16281-F2100 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96138-41501 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-24020 · 16282-24030 · 16282-F2040 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96138-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-24010 · 16283-24020 · 16283-F2020 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96138-42501 |
| 16283B | HOSE, WATER BY-PASS | 16281-F2190 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-24010 · 16295-24020 · 16295-F2020 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96138-42501 · 96138-42701 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-24020 · 16296-24040 · 16296-F2080 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-24010 · 16297-24020 · 16297-F2020 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90467-15022 · 96138-41501 |
| 16304 | Water outlet sub-assembly | 16304-24010 |
| 16305E | Water bypass outlet sub-assembly | 16305-24010 · 16305-F2040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-25010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-47020 |
| 16331 | Water outlet | 16331-24030 · 16331-F2010 · 16331-F2050 |
| 16341 | GASKET, WATER OUTLET | 16341-24010 · 16341-24020 · 16341-F2010 |
| 16345 | Outlet pipe gasket | 16345-24010 · 16345-24020 |
| 16351 | water bypass outlet | 16351-24020 |
| 16361 | Fan | 16361-F2180 · 16361-F2310 |
| 16361B | Fan No. 2 | 16361-F2320 |
| 16363 | cooling fan motor | 16363-24120 · 16363-24130 |
| 16363A | Cooling fan motor No. 2 | 16363-24140 |
| 16400 | Radiator assembly | 16400-0T600 · 16400-F2080 · 16400-F2081 · 16400-F2180 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 · 16417-0Q040 · 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-36030 |
| 16470 | Radiator reservoir assembly | 16470-F2010 |
| 16470M | gasket | 90480-18010 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-F2020 |
| 16502 | Water injection port sub-assembly | 16502-F2010 |
| 16520 | Water injection port assembly | 16520-F2010 |
| 16523A | Radiator bracket cushion | 16523-0T090 |
| 16535 | Radiator lower support | 90480-40021 |
| 16571C | Radiator hose No. 1 | 16571-F2110 · 16571-F2190 |
| 16571D | No. 1 radiator hose clip | 90466-A0037 |
| 16572D | Radiator hose No. 2 | 16572-F2010 · 16572-F2170 |
| 16572E | No. 2 radiator hose clip | 90466-A0037 |
| 16573B | Radiator hose No. 3 | 16573-F2070 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-A0037 |
| 16575B | No. 2 water hose clamp bracket | 16575-F2020 |
| 16575C | No. 1 water hose clamp bracket | 16575-F2340 |
| 16575F | SUPPORT, COLLIER FLEXIBLE EAU, NO.3 | 16575-F2100 |
| 16577C | radiator pipe | 16577-F2090 |
| 16581B | Hose clamp (for radiator hose) | 16581-28070 · 16581-F0020 · 90469-38003 |
| 16671 | water valve | 16671-24010 · 16671-F2010 |
| 16711 | fan cover | 16711-F2140 · 16711-F2250 |
| 87209J | SOUS-ENS DE FLEXIBLE, EAU | 87209-0A050 · 87209-0A060 |
