Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

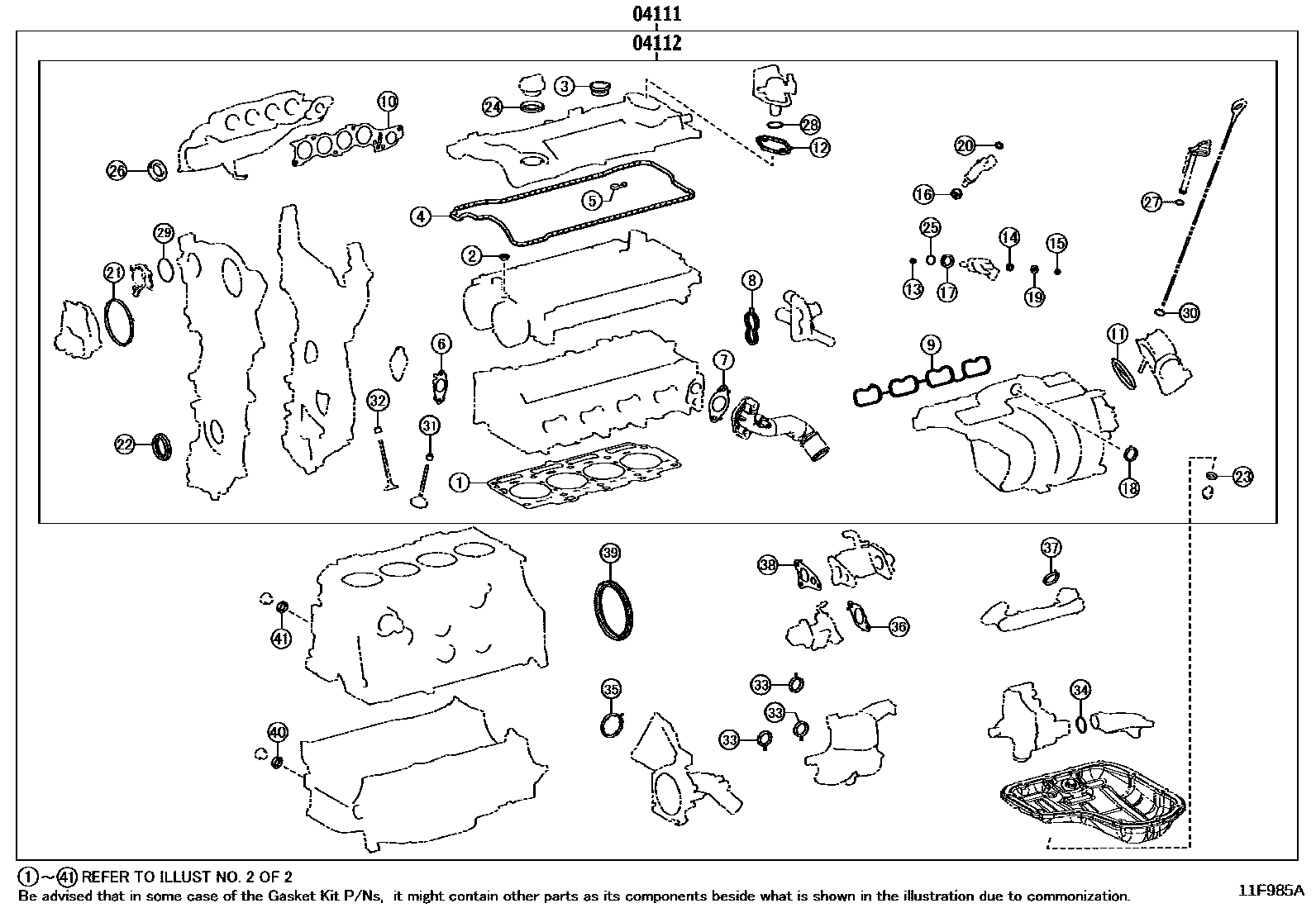

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11F985A
Engine Overhaul Gasket Kit — 11F985A (202109 – 999999)

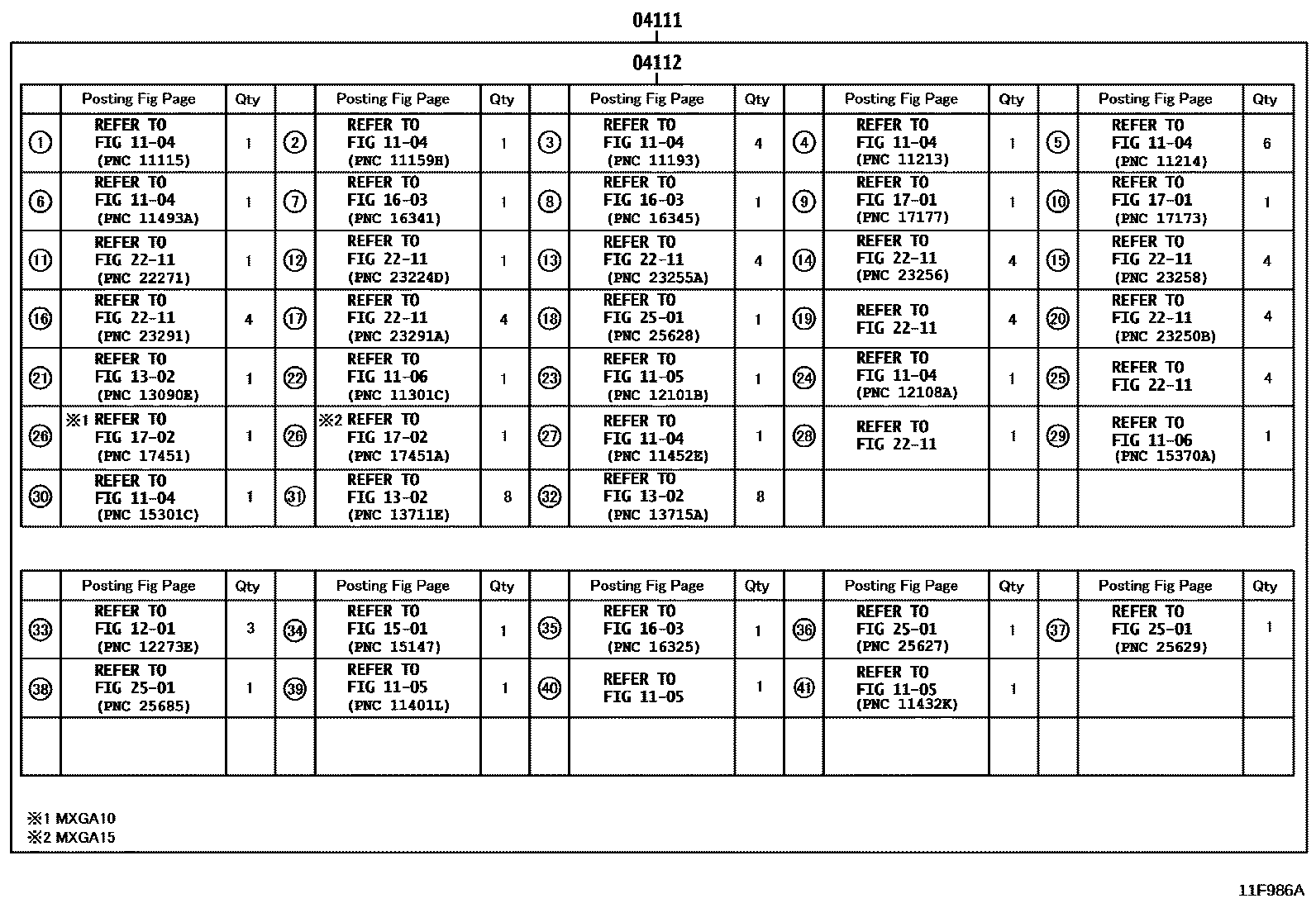

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11F986A
Engine Overhaul Gasket Kit — 11F986A (202109 – 999999)

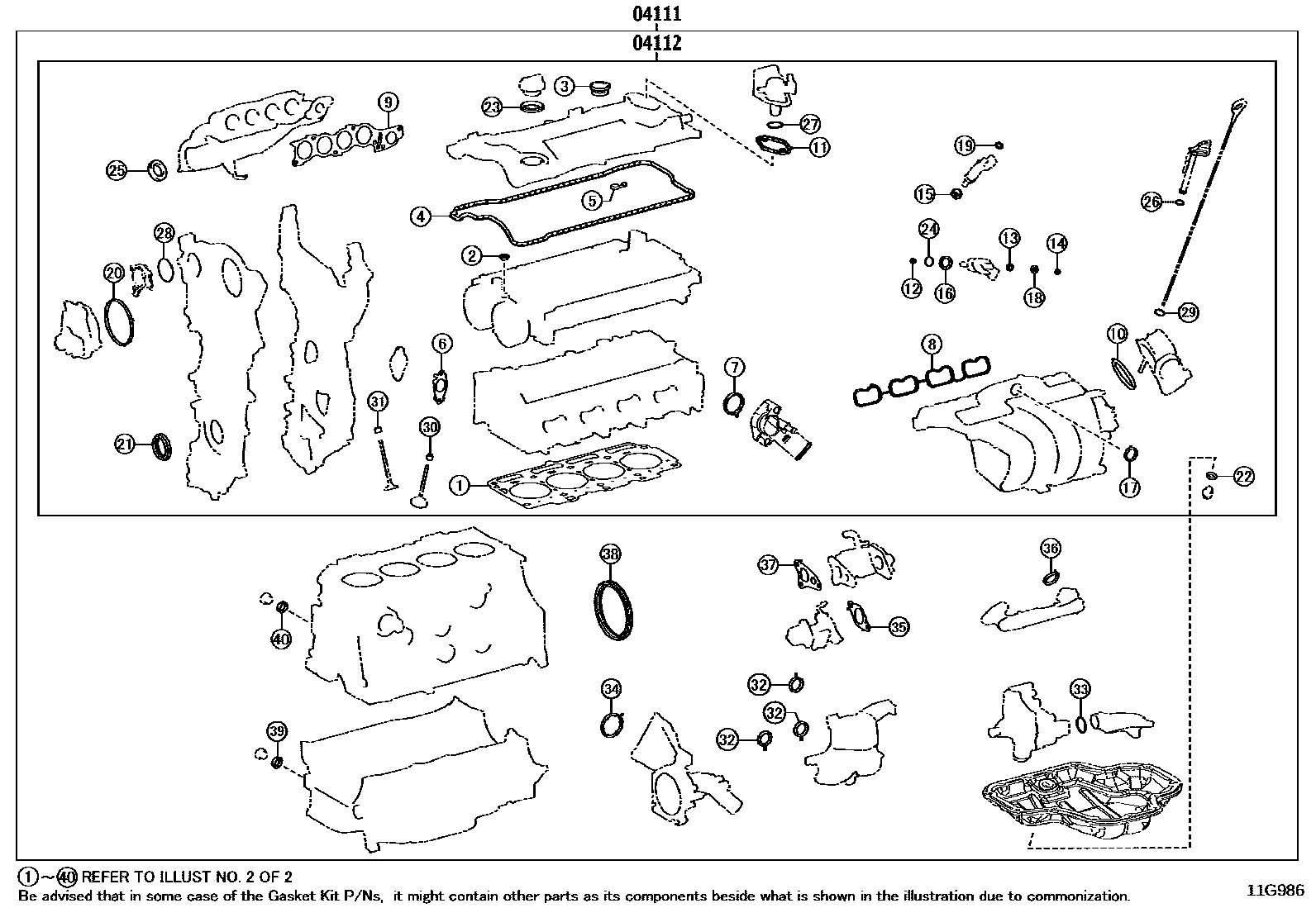

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G986
Engine Overhaul Gasket Kit — 11G986 (202305 – 999999)

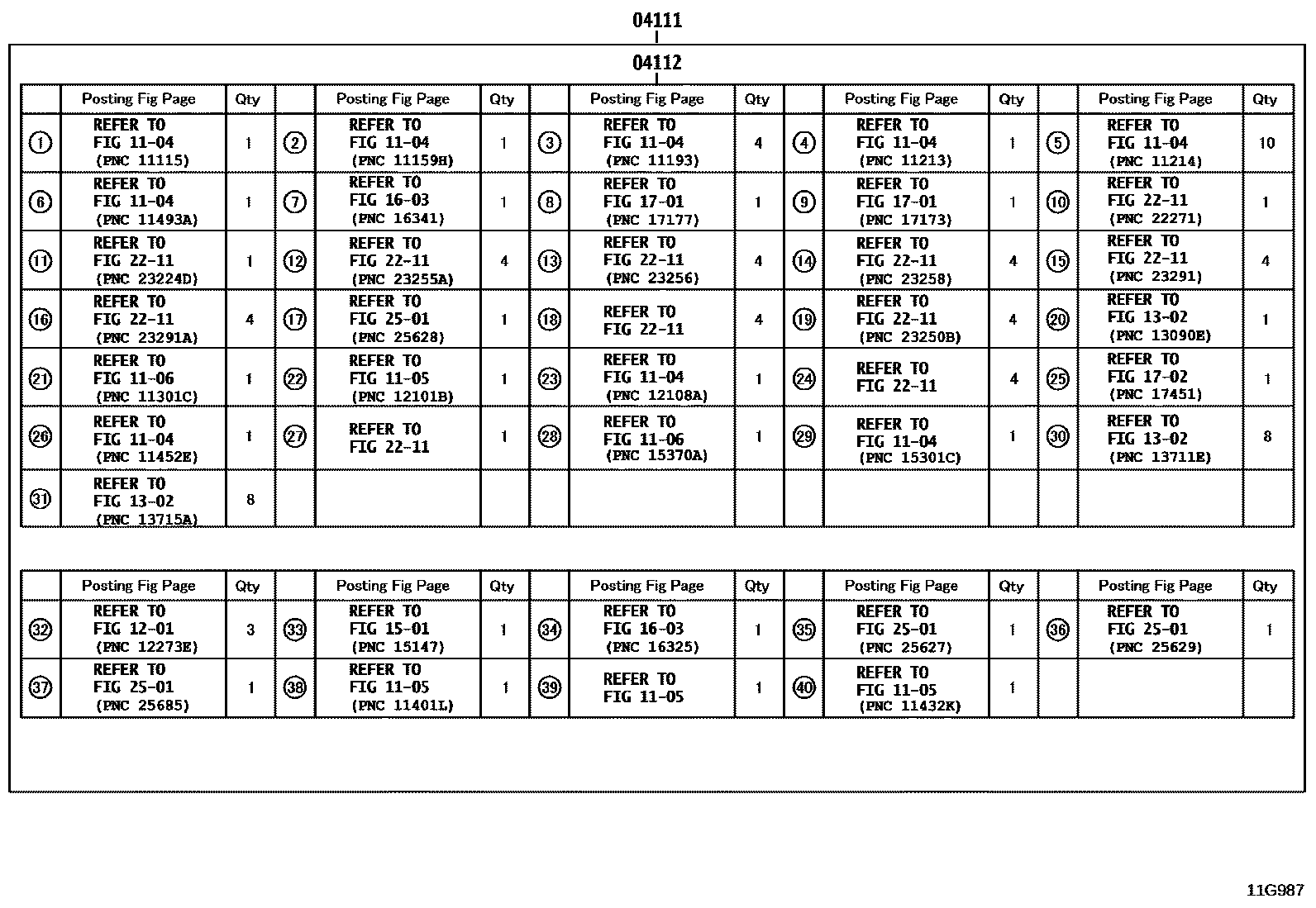

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G987
Engine Overhaul Gasket Kit — 11G987 (202305 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-F2020 · 04111-F2021 · 04111-F2220 · 04111-F2221 · 04111-F2230
04112Engine valve grinding pad assembly04112-F2020 · 04112-F2021 · 04112-F2200 · 04112-F2210 · 04112-F2221
