Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

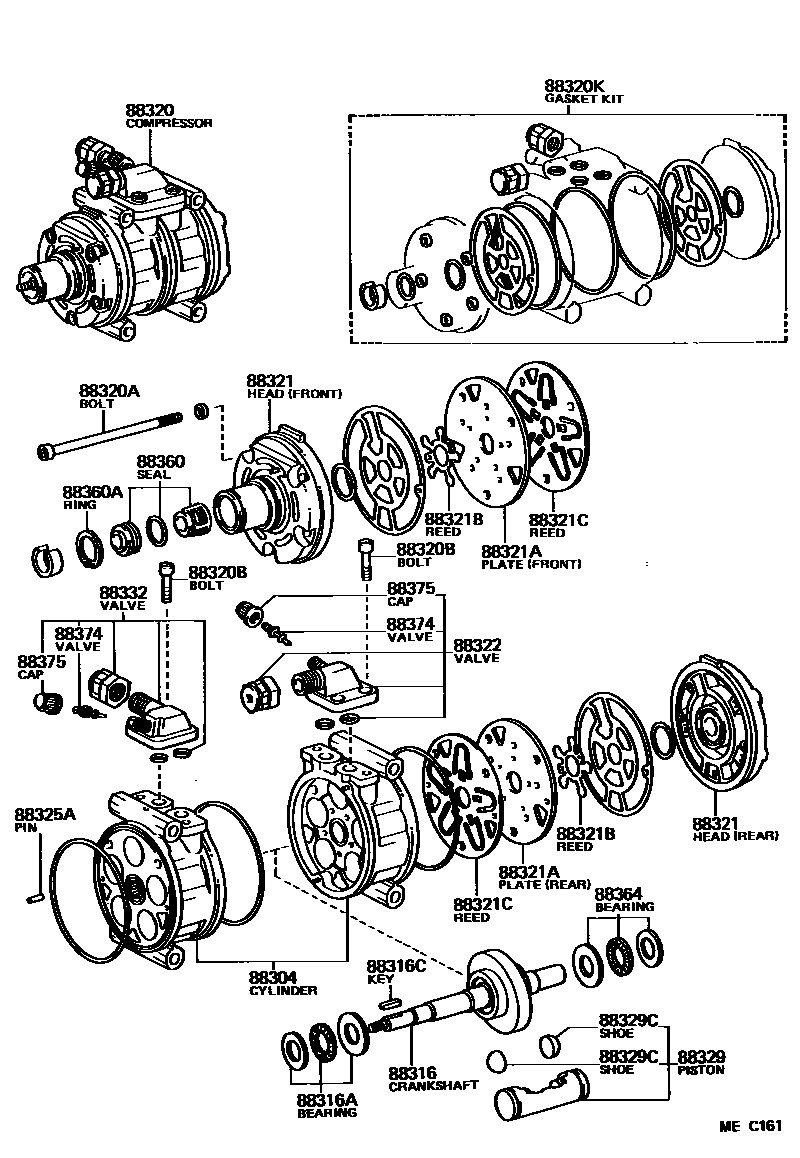

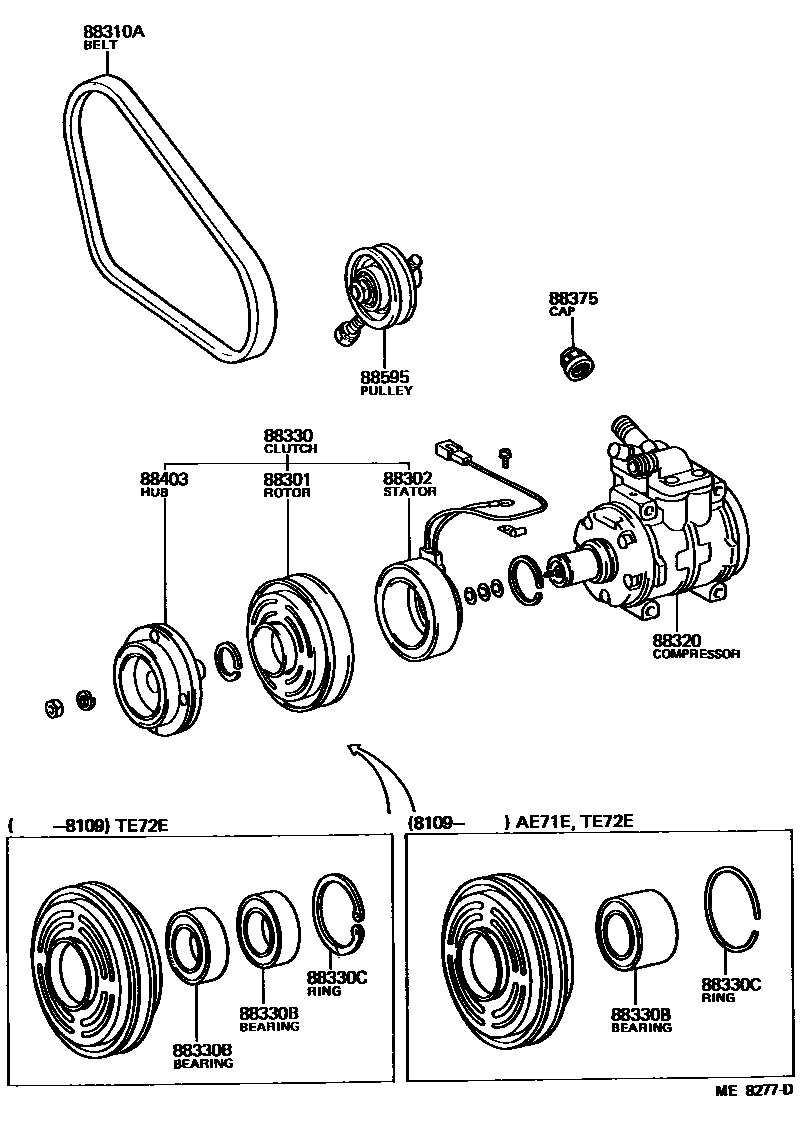

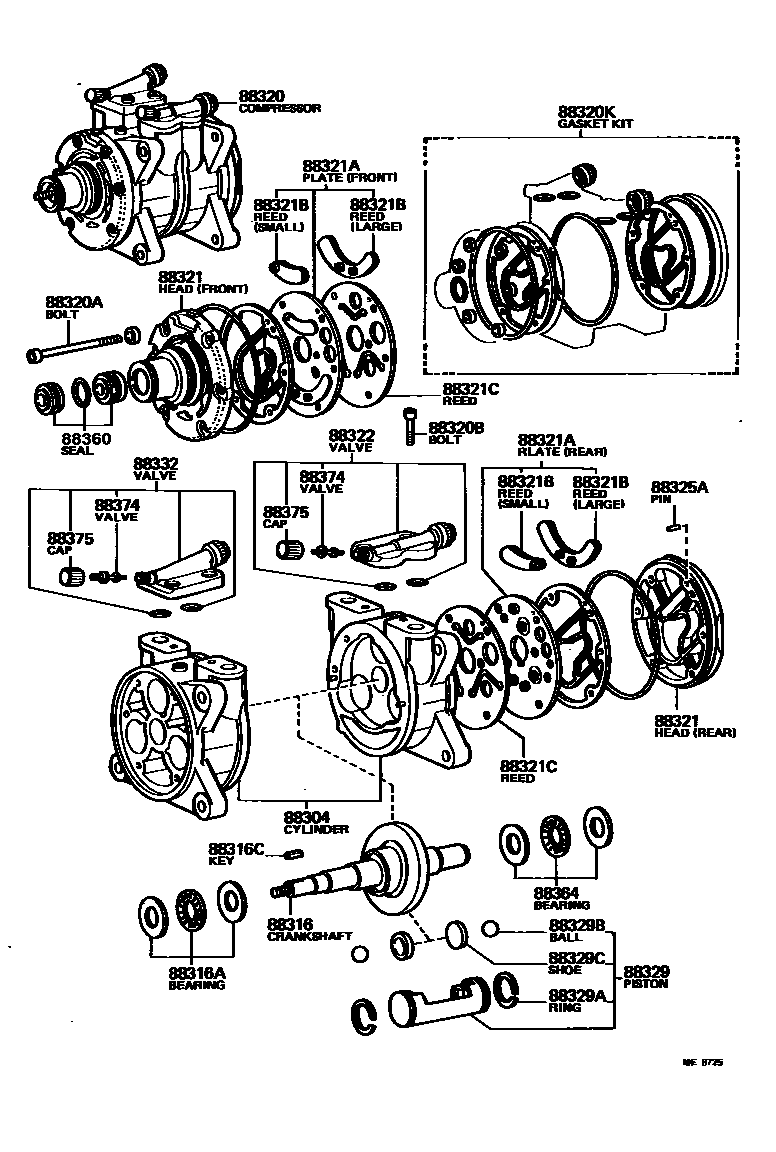

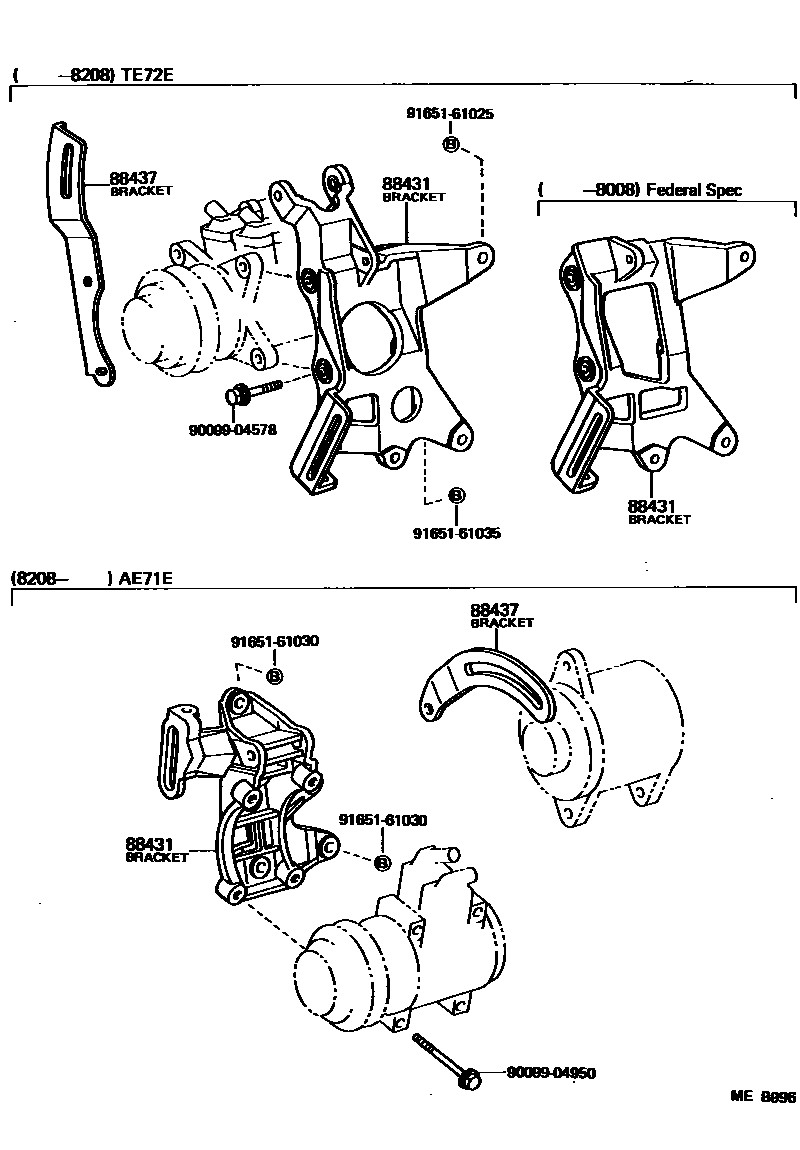

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-12050 · 88412-12070 · 88412-12080 · 88412-12090 · 88412-14030 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-14040 · 88411-14050 · 88411-16010 · 88411-30360 |
| 88304 | Cooler compressor cylinder sub-assembly | 88304-12020 · 88304-14040 |
| 88316 | Cooler compressor crankshaft | 88316-12061 · 88316-14020 |
| 88316A | Compressor crankshaft front bearing | 88366-14010 · 90099-10123 |
| 88316C | Compressor crankshaft key | 90099-13011 · 90099-13019 |
| 88320 | Cooler Compressor Assembly | 88320-12210 · 88320-12220 · 88320-12240 |
| 88320A | Through bolt | 90099-04923 · 90099-04968 · 90099-04970 |
| 88320B | Service valve bolts | 90099-04905 · 90099-04924 |
| 88320K | Cooler compressor overhaul gasket assembly | 04881-14040 · 04881-16010 |
| 88321 | Cooler compressor cylinder head | 88321-12031 · 88321-14010 · 88322-12010 · 88322-14010 |
| 88321A | Valve sub-assembly | 88305-12040 · 88306-12010 · 88341-14010 · 88342-14010 |
| 88321B | Valve reed sub-assembly | 88307-12030 · 88307-12040 · 88344-14010 |
| 88321C | suction valve reed | 88343-12010 · 88343-14010 |
| 88322 | Cooler compressor suction service valve | 88371-12190 · 88371-22140 |
| 88325A | cylinder pin | 90099-08058 |
| 88329 | Cooler compressor piston sub-assembly | 88301-12040 · 88301-14020 |
| 88329A | Compressor piston snap ring | 88317-12010 |
| 88329B | piston ball | 90099-12010 |
| 88329C | piston shoe | 88313-12060 · 88313-14010 |
| 88330 | Magnetic Clutch Assembly | 88410-12100 · 88410-12110 · 88410-12130 · 88410-16010 |
| 88330B | Electromagnetic clutch bearing | 90099-10127 · 90099-10133 · 90099-10135 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-07113 · 90099-07114 |
| 88332 | Cooler compressor discharge service valve | 88372-12120 · 88372-12160 |
| 88360 | Cooler compressor shaft seal assembly | 88360-12070 · 88360-12071 · 88360-14020 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88364 | Compressor crankshaft rear bearing | 88366-14010 · 90099-10123 |
| 88374 | Cooler compressor service valve | 88374-12020 |
| 88375 | Cooler compressor repair valve cover | 88375-30270 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14040 · 88403-22030 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12200 · 88431-12250 · 88431-12260 · 88431-12261 · 88431-12280 |
| 88437 | Compressor No. 7 mounting bracket | 88437-12230 · 88688-12040 · 88688-12180 |
| 88595 | Cooler compressor idler pulley | 88440-12070 · 88440-12080 |
