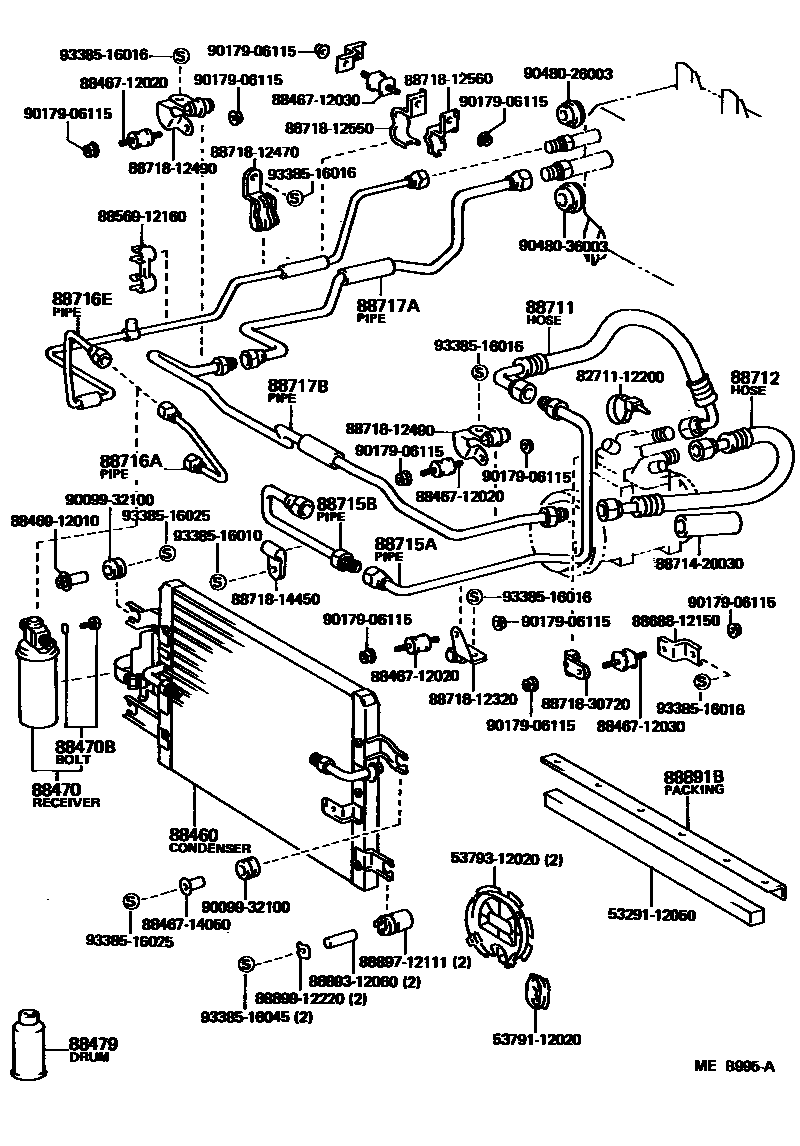

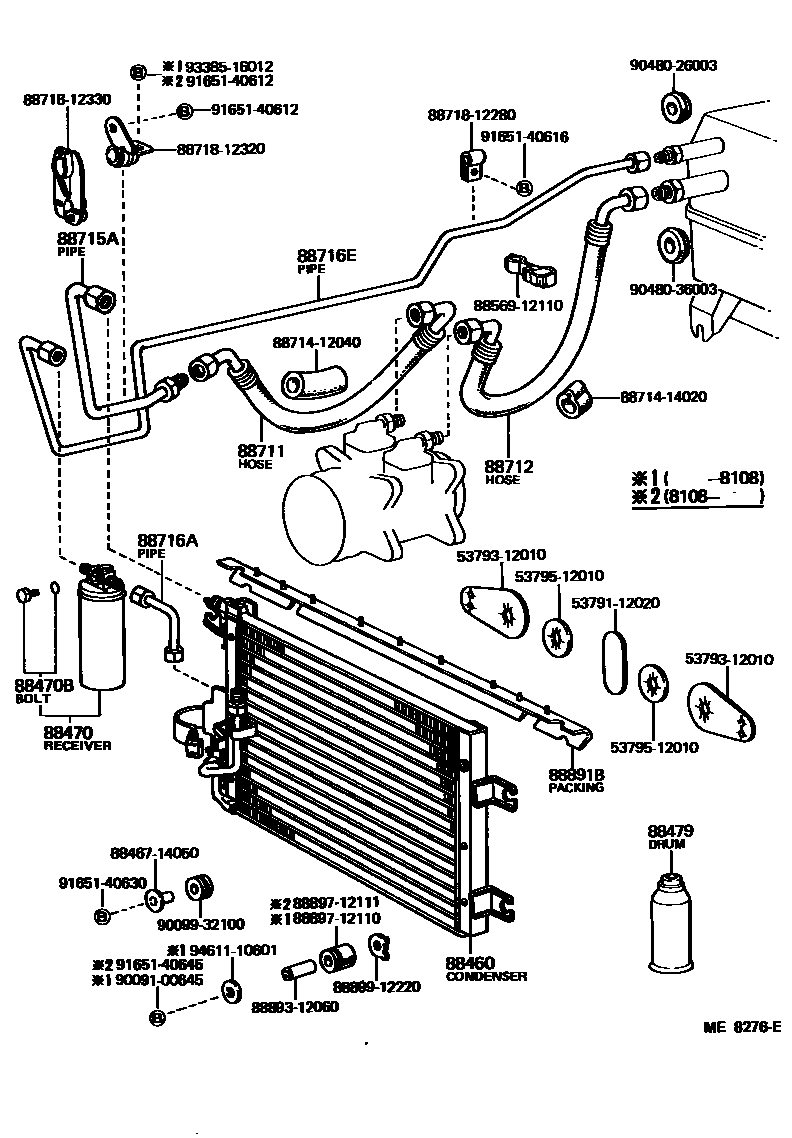

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88460-12141 · 88460-12190 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12050 |
| 88470B | fuse bolt | 90099-04579 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12130 · 88711-12250 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12280 · 88712-12400 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-12140 · 88715-12230 |
| 88715B | Cooler refrigerant discharge pipe B | 88715-12220 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-12420 · 88716-12500 · 88716-12630 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-12410 · 88716-12650 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12160 |
| 88717B | Cooler refrigerant suction pipe B | 88717-12170 |
| 88891B | Seal B (for cooler) | 53381-12110 |
