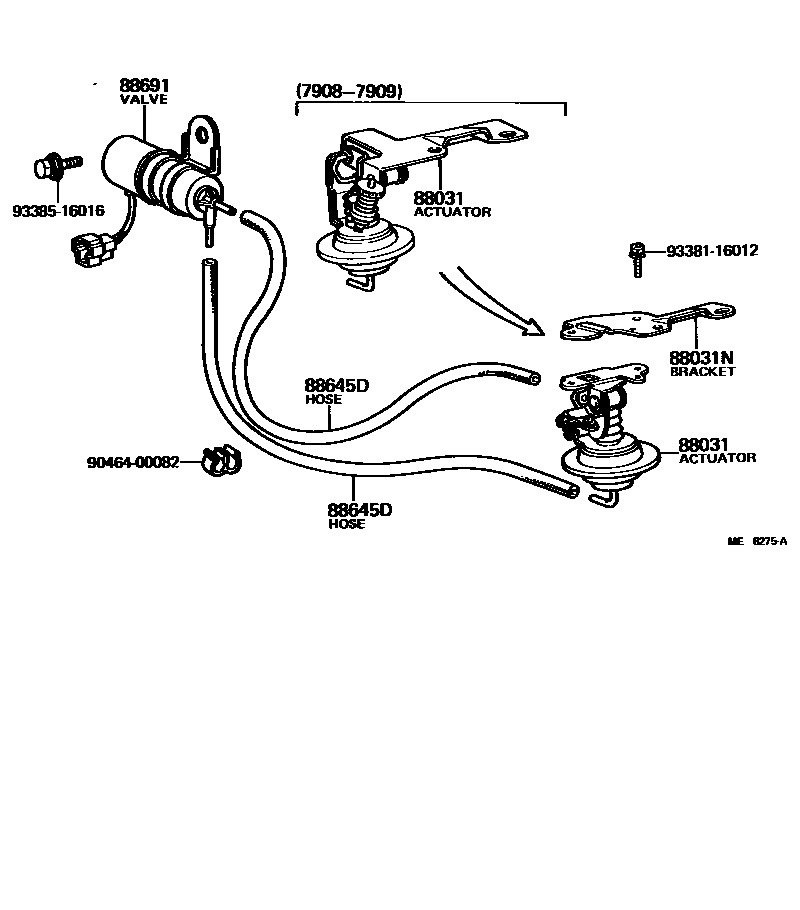

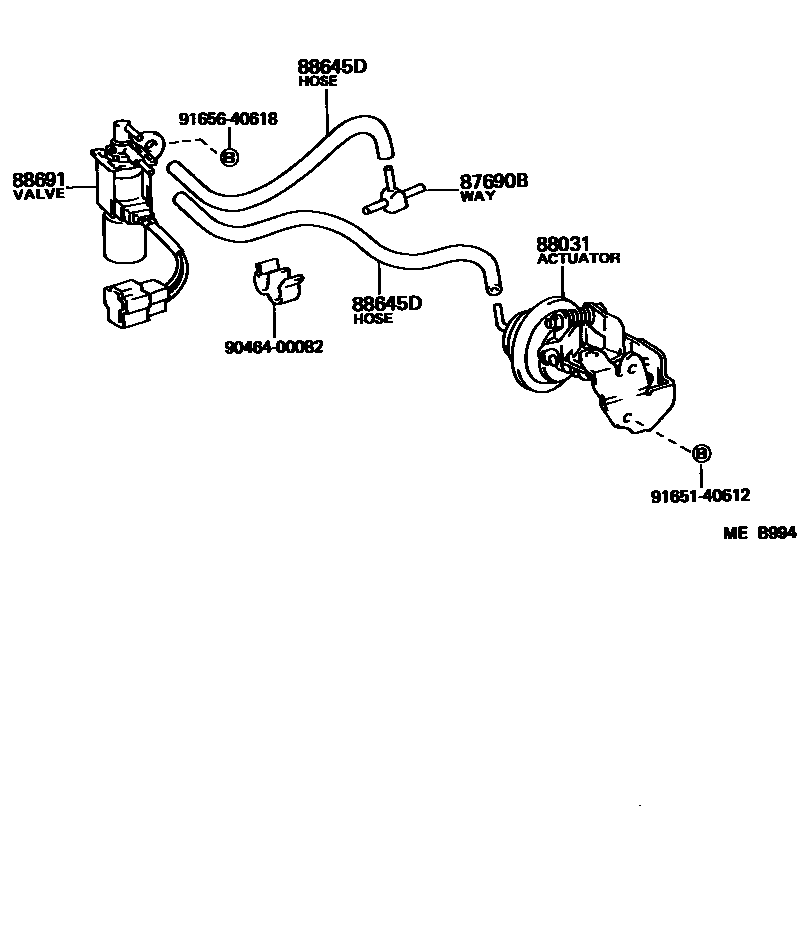

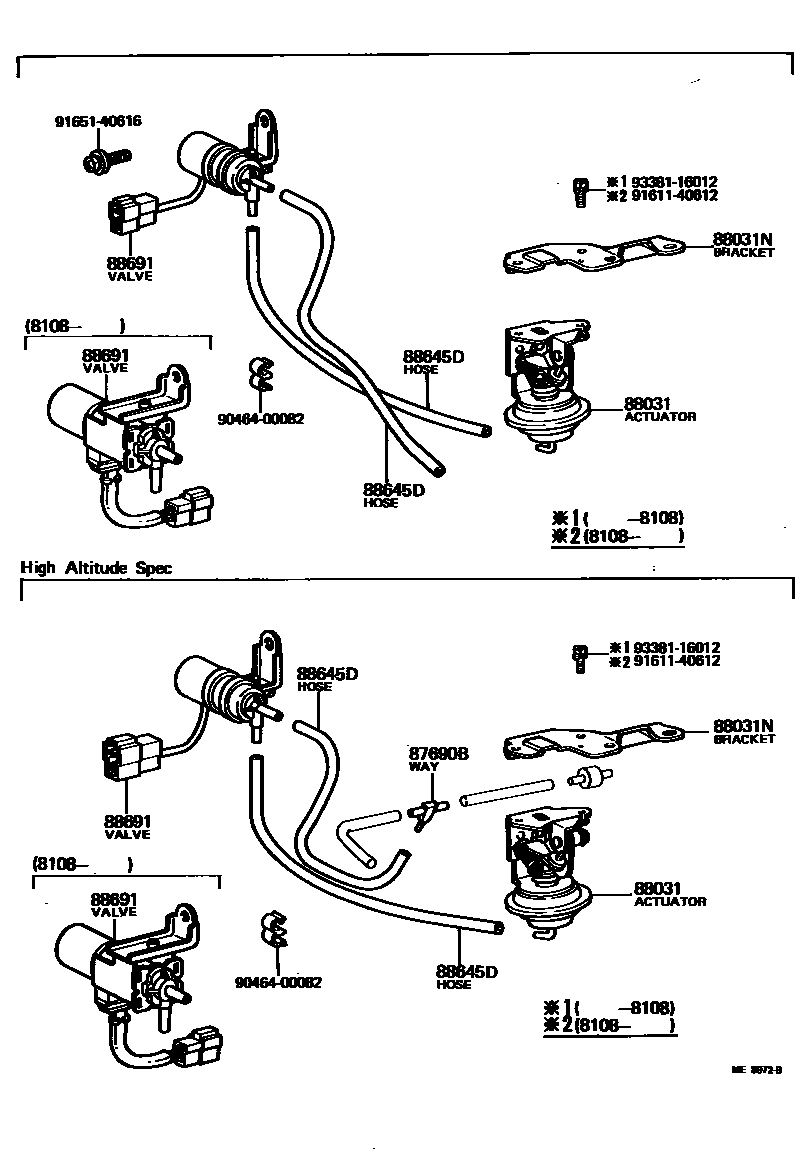

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87690B | tee pipe | 90413-04005 |
| 88031 | Idle speed lift actuator assembly | 88031-12060 · 88031-12100 · 88031-16020 |
| 88031N | Idle speed lift actuator bracket | 21893-28080 · 21893-28081 |
| 88645D | Hoses (for idle lift) | 95411-10030 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12140 · 88690-12141 · 88690-12170 · 88690-12220 · 88691-30430 |
