Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

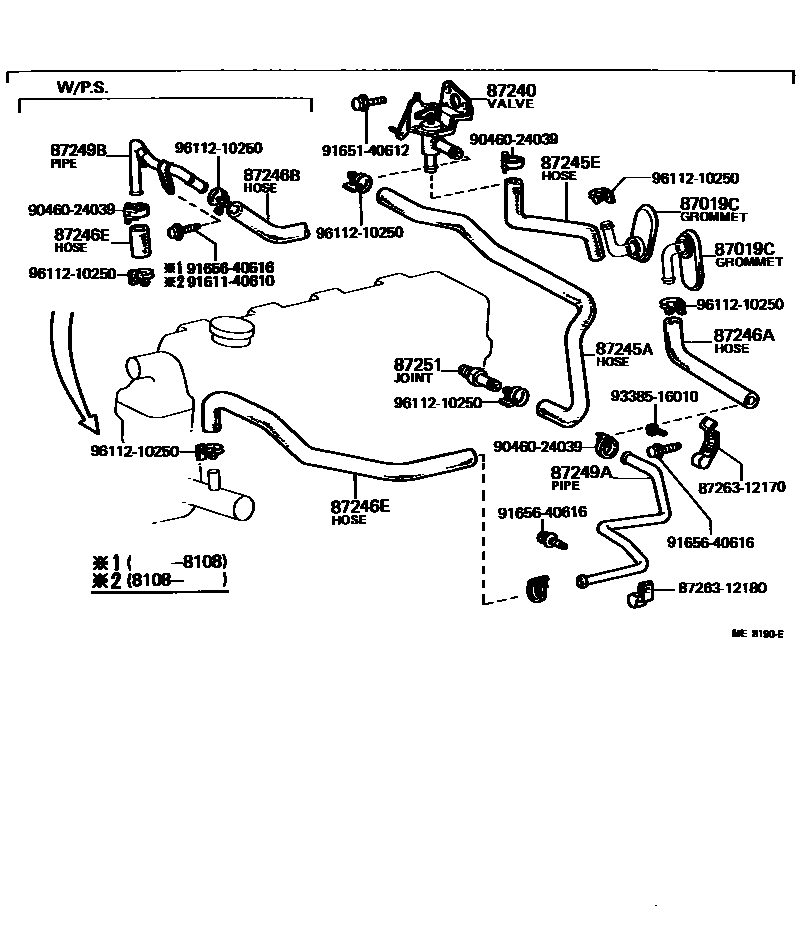

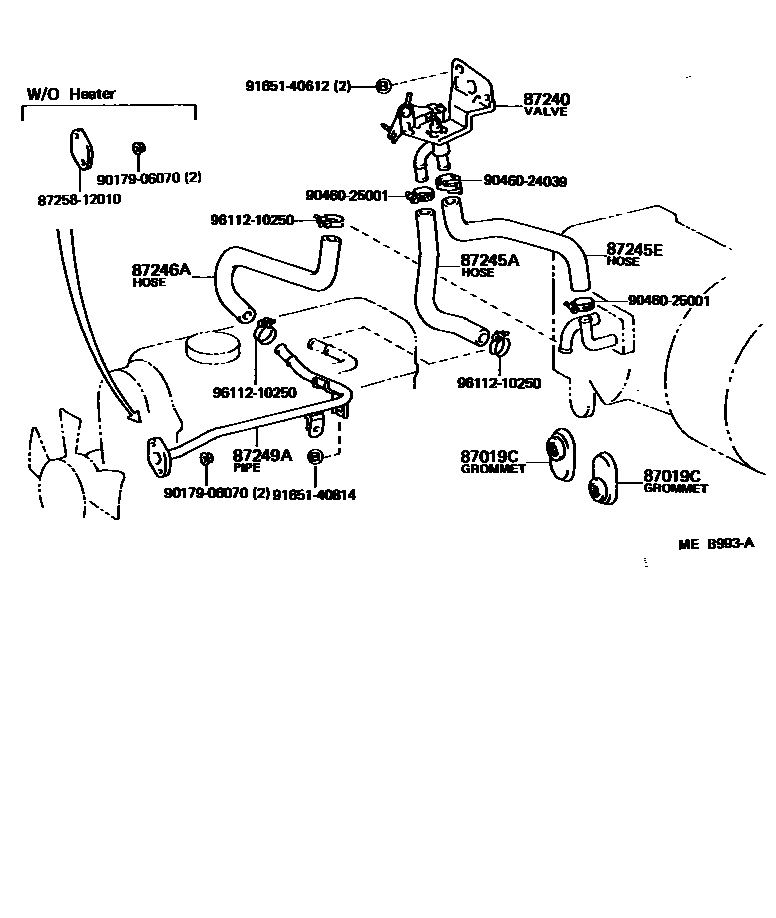

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-01015 |
| 87240 | Heater water valve assembly | 87240-12150 · 87240-12180 |
| 87245A | Heater water inlet hose A | 87245-12500 · 87245-12630 |
| 87245E | Heater water inlet hose E | 87245-12490 · 87245-12640 |
| 87246A | Heater outlet hose A | 87245-12520 · 87245-12620 |
| 87246B | Heater outlet hose B | 87245-12550 · 99552-30360 |
| 87246E | Heater outlet hose E | 87245-12530 · 87245-14700 |
| 87249A | Heater outlet pipe A | 87208-12020 · 87248-12200 |
| 87249B | Heater outlet pipe B | 87208-14060 |
| 87251 | Water hose penetration joint | 87251-14010 |
