Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

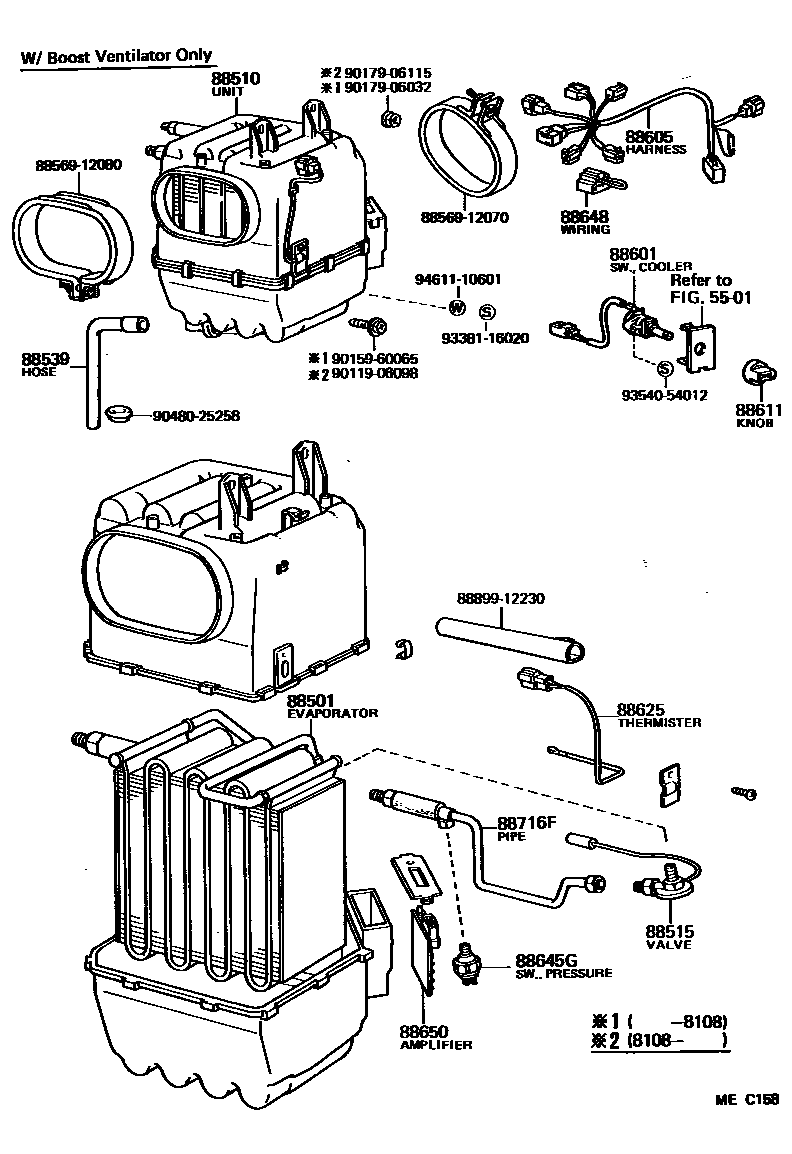

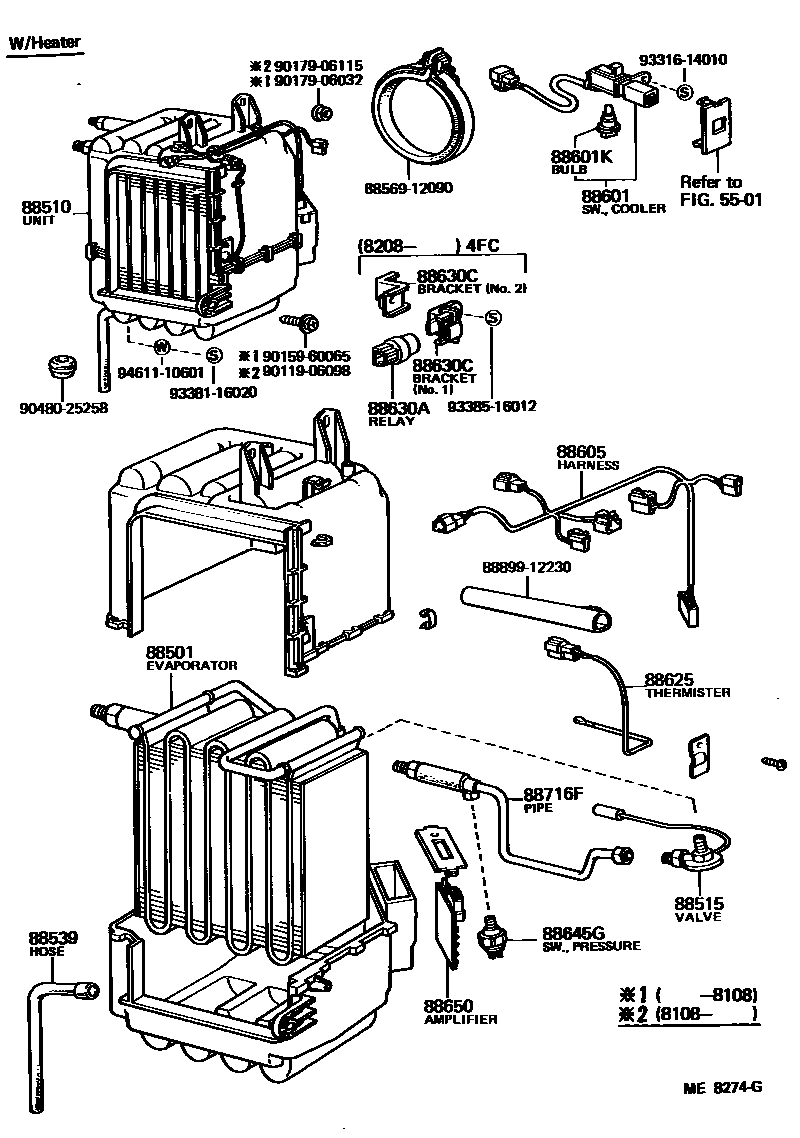

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12160 · 88501-12260 |
| 88510 | Cooler device assembly | 88510-12180 · 88510-12181 · 88510-12182 · 88510-12280 · 88510-12370 |
| 88515 | Cooler expansion valve | 88515-20040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12050 |
| 88601 | Cooler control switch sub-assembly | 84660-12020 · 88610-12030 · 88610-12031 |
| 88601K | Light bulb (for cooler switch) | 88607-14020 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-12250 · 88605-12251 · 88605-12252 · 88605-12370 |
| 88611 | Cooler control switch button | 88611-12030 · 88611-12031 |
| 88625 | Cooler No. 1 Thermistor | 88625-12050 · 88625-12060 · 88625-12070 |
| 88630A | Cooler relay assembly | 90987-03001 |
| 88630C | Cooler relay bracket | 85999-12050 · 88688-12160 |
| 88645G | pressure switch | 88645-12020 · 88645-22010 · 88645-30250 |
| 88648 | No. 1 cooler wiring harness | 88648-12220 |
| 88650 | Cooler stabilized amplifier assembly | 88650-14070 · 88650-16020 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-12490 |
