Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

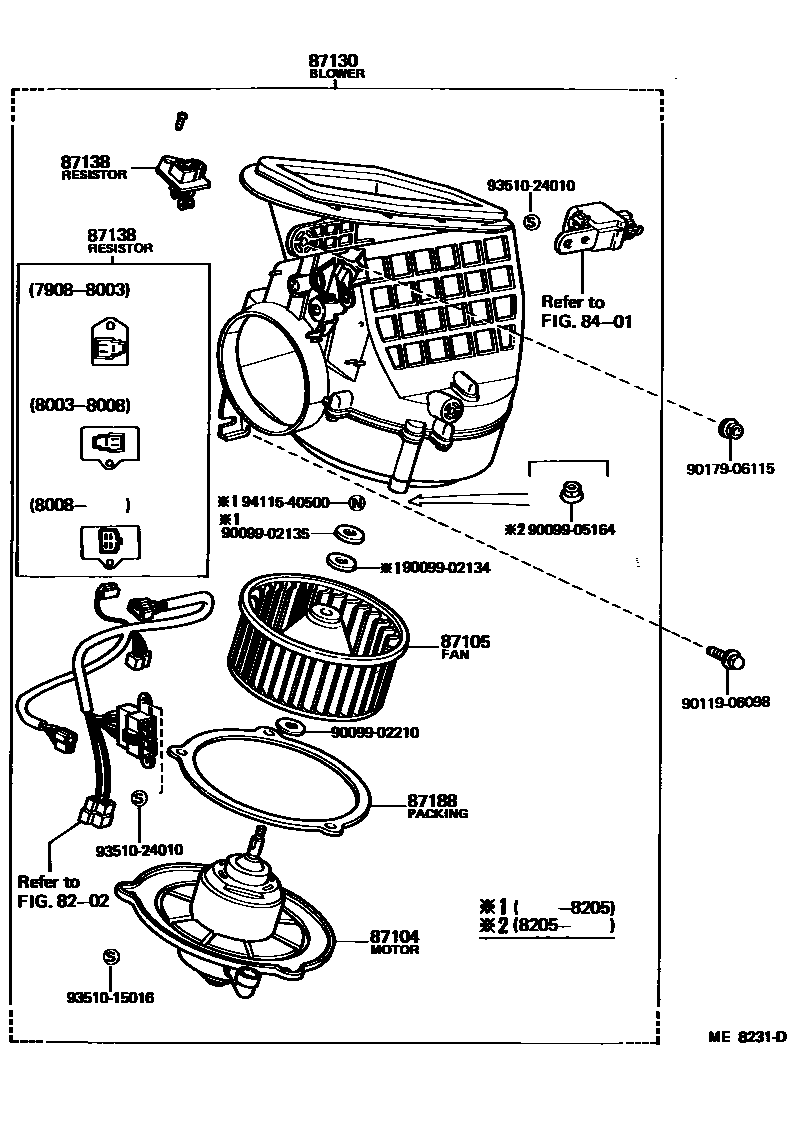

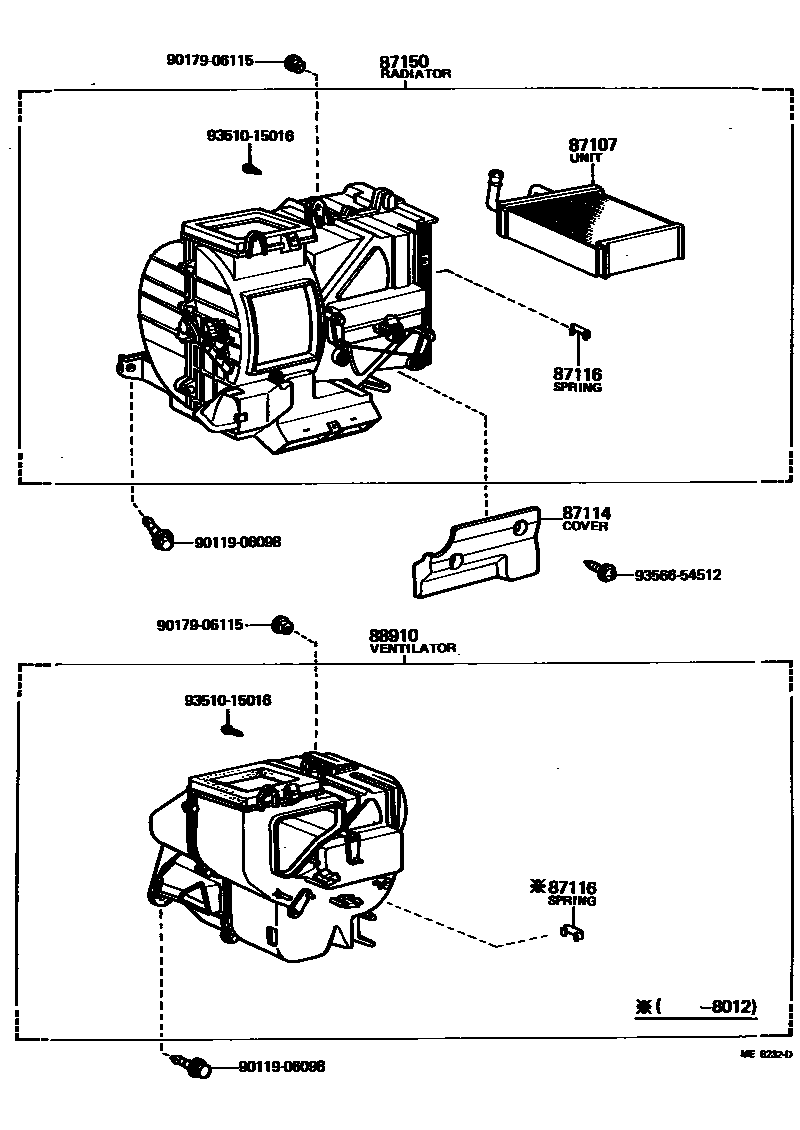

Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87104 | Heater blower motor sub-assembly | 87104-12120 |
| 87105 | Heater blower fan sub-assembly | 87105-12060 |
| 87107 | Heater radiator device sub-assembly | 87107-12241 · 87107-12251 · 87107-12280 · 87107-12290 |
| 87114 | heater cover | 87114-12060 |
| 87116 | Heater shell fastening spring | 87116-14010 |
| 87130 | Front heater blower assembly | 87130-12030 · 87130-12031 · 87130-12090 |
| 87138 | Heater Blower Resistor | 87138-12090 · 87138-12091 · 87138-12100 |
| 87150 | Heater radiator assembly | 87150-12061 · 87150-12071 · 87150-12150 · 87150-12160 |
| 87188 | Heater blower motor seal | 87127-12020 |
| 88910 | Auxiliary ventilation device assembly | 88910-12021 |
