Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

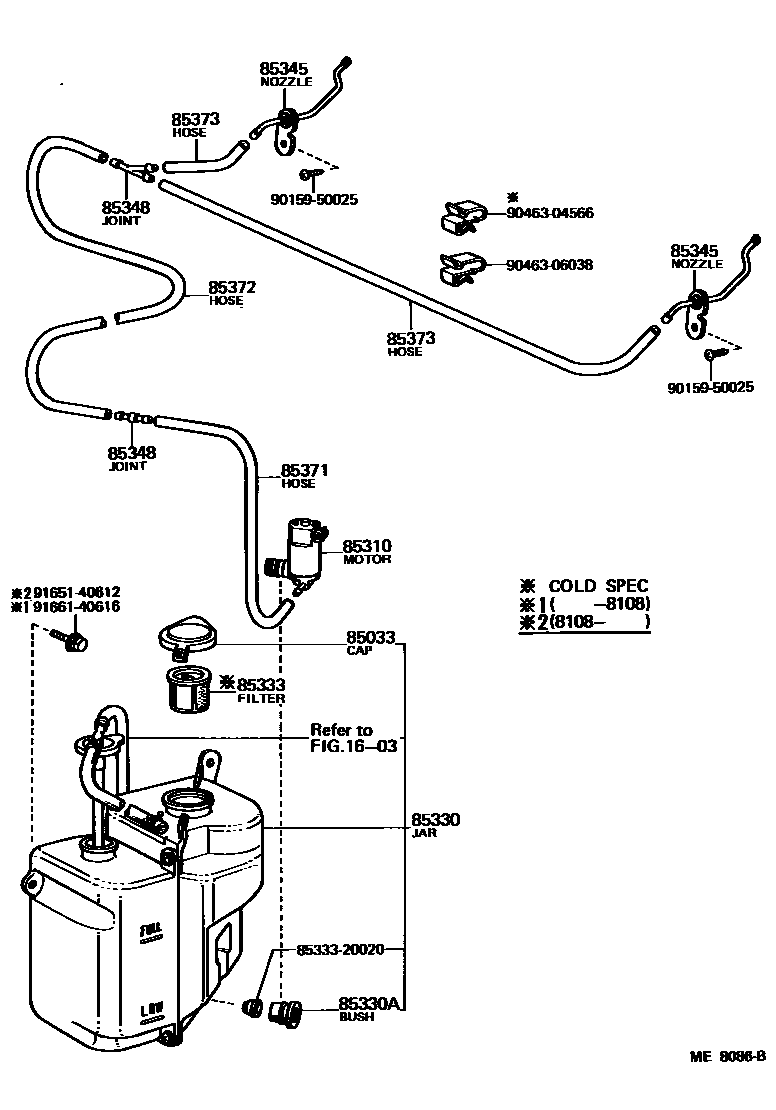

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033 | Windshield washer cover assembly | 85332-16010 · 85332-20060 |
| 85310 | Windshield washer motor and pump assembly | 85310-10140 · 85310-12120 · 85310-14030 · 85310-1B010 · 85310-20130 |
| 85330 | Windshield washer fluid tank assembly | 85330-12090 · 85330-12091 · 85330-12120 · 85330-12121 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 · 90099-32103 |
| 85333 | Windshield washer fluid tank filter | 85333-20010 · 85333-20020 |
| 85345 | windshield washer nozzle | 85341-12110 · 85341-12120 · 85341-12130 · 85341-12140 · 85341-12160 · 85341-12170 |
| 85348 | Windshield washer hose connector No. 1 | 85348-89101 · 85349-20010 · 85355-14010 · 85355-87201 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33332 · 90445-09003 · 90446-06341 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33344 · 90446-06006 · 90446-06014 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33332 · 90445-09001 |
