Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

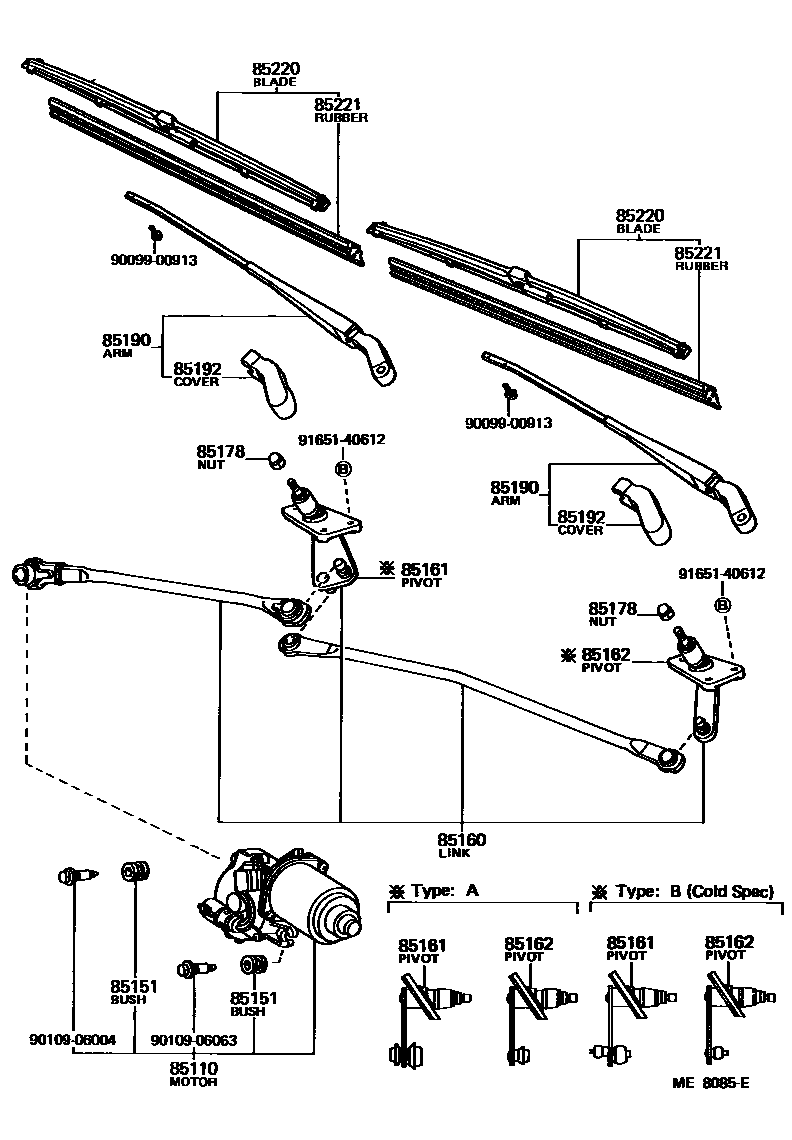

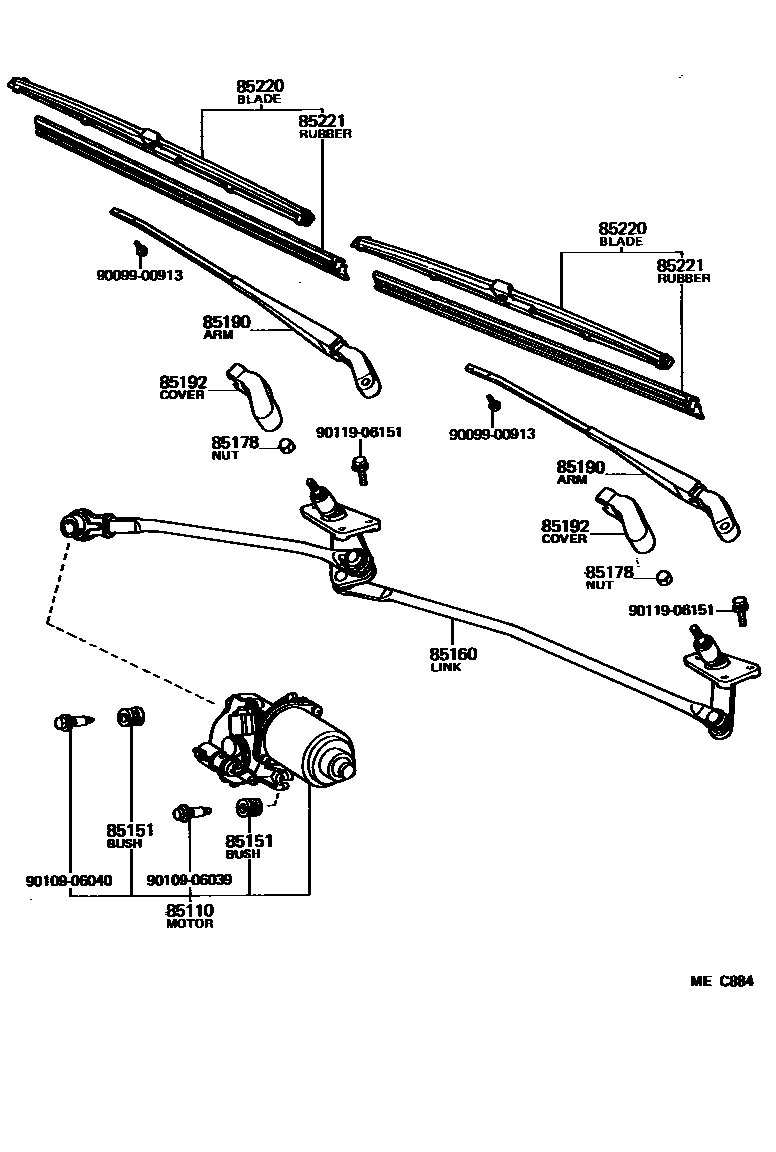

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-12240 · 85110-12250 |
| 85151 | Windshield wiper motor gear housing bushing | 85151-22070 |
| 85160 | Windshield wiper connecting rod assembly | 85160-12261 · 85160-12281 · 85160-12310 · 85160-12330 |
| 85161 | No. 1 windshield wiper linkage pivot | 85161-12261 · 85161-12271 · 85161-12281 · 85161-12291 |
| 85162 | No. 2 windshield wiper linkage pivot | 85162-12262 · 85162-12271 · 85162-12281 · 85162-12291 |
| 85178 | Nut (for securing front wiper arm) | 90176-08016 · 90179-08026 |
| 85190 | Windshield wiper arm assembly | 85190-12450 · 85190-12480 · 85190-12510 · 85190-12530 · 85190-12531 · 85210-12020 · 85210-12040 · 85210-12060 · 85210-12061 |
| 85192 | windshield wiper arm cover | 85192-12040 · 85192-12050 |
| 85220 | Windshield wiper blade assembly | 85220-12330 · 85220-14320 · 85220-14370 |
| 85221 | Windshield wiper blade | 85221-12120 · 85221-20080 |
