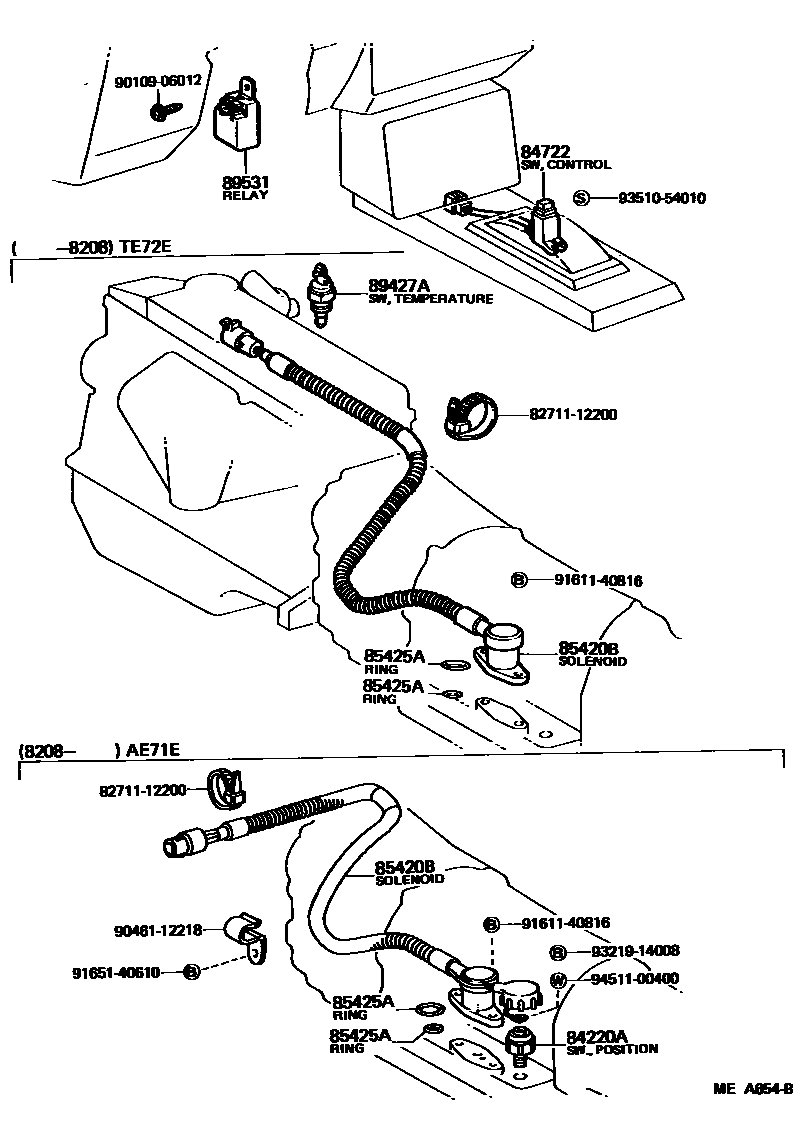

Toyota COROLLA 超速档和电子控制变速器 — Figure 8410
Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84220A | Transmission position indicator light switch assembly | 84220-30050 |
| 84722 | transmission control switch | 84722-14060 |
| 85420B | Transmission solenoid valve assembly | 85420-12010 · 85420-20050 |
| 85425A | O-ring (for overspeed solenoid valve) | 90301-11001 · 90301-23001 |
| 89427A | temperature switch | 89427-14020 |
| 89531 | transmission control relay | 89531-12010 |
