Toyota COROLLA 开关和继电器和ECU — Figure 8401

Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 6 images and 64 PNC and OE references.

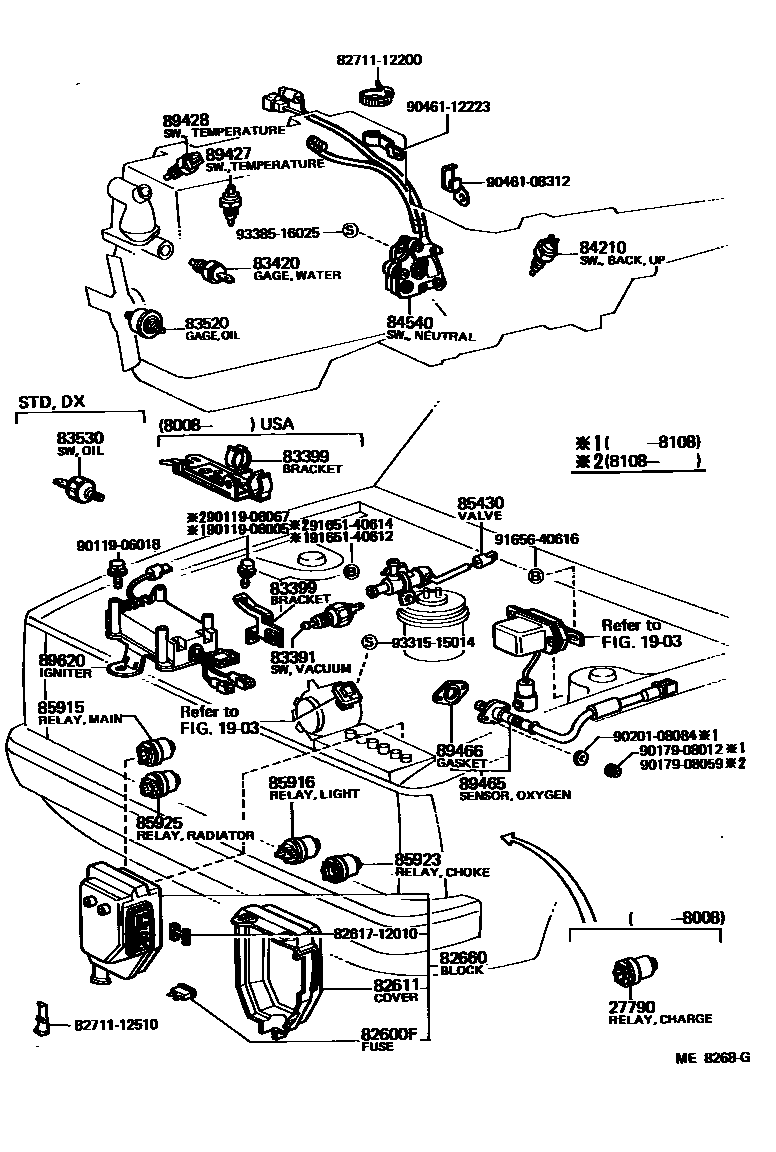

Toyota COROLLA 开关和继电器和ECU EPC diagram — ME8268G
开关和继电器和ECU — ME8268G (197908 – 198208)

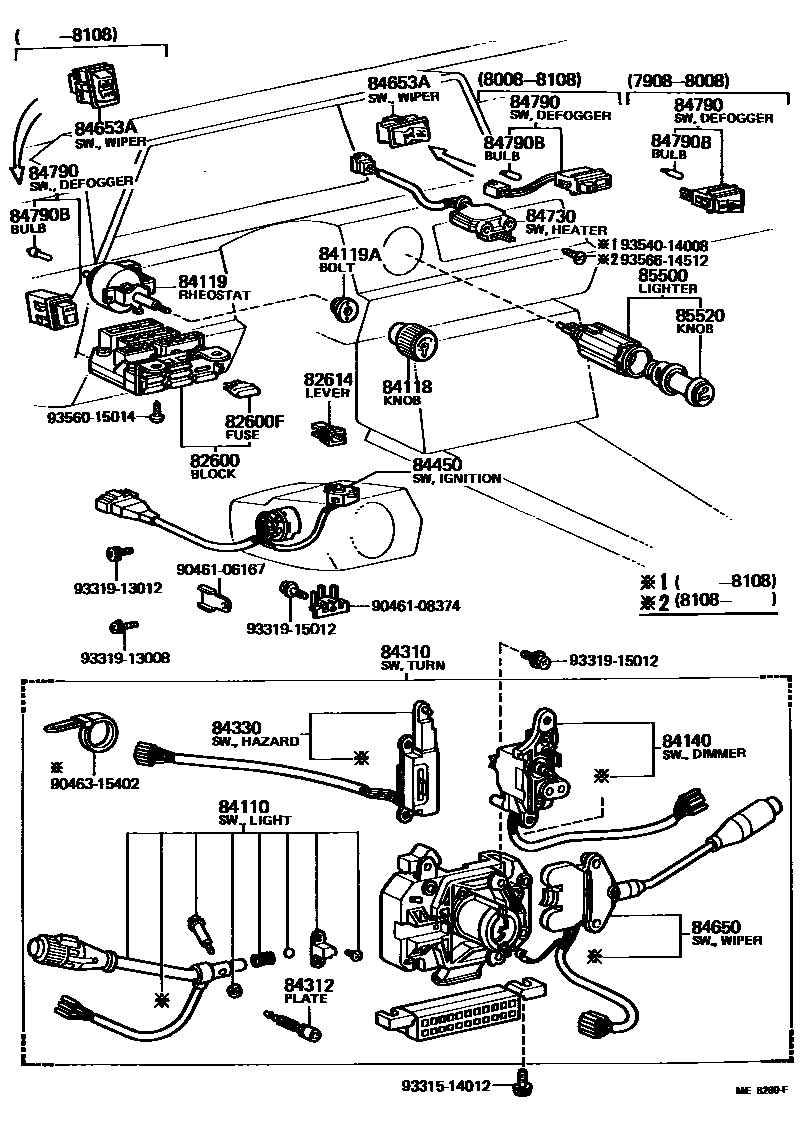

Toyota COROLLA 开关和继电器和ECU EPC diagram — ME8269F
开关和继电器和ECU — ME8269F (197908 – 999999)

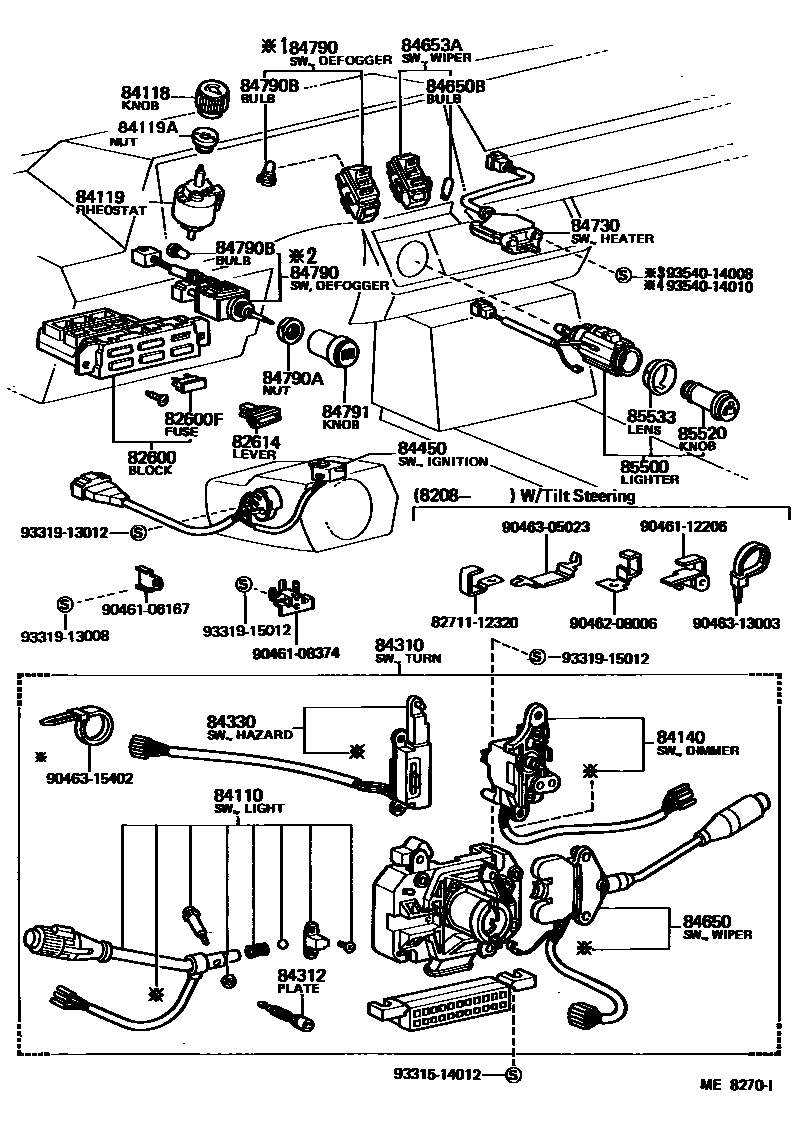

Toyota COROLLA 开关和继电器和ECU EPC diagram — ME8270I
开关和继电器和ECU — ME8270I (197908 – 999999)

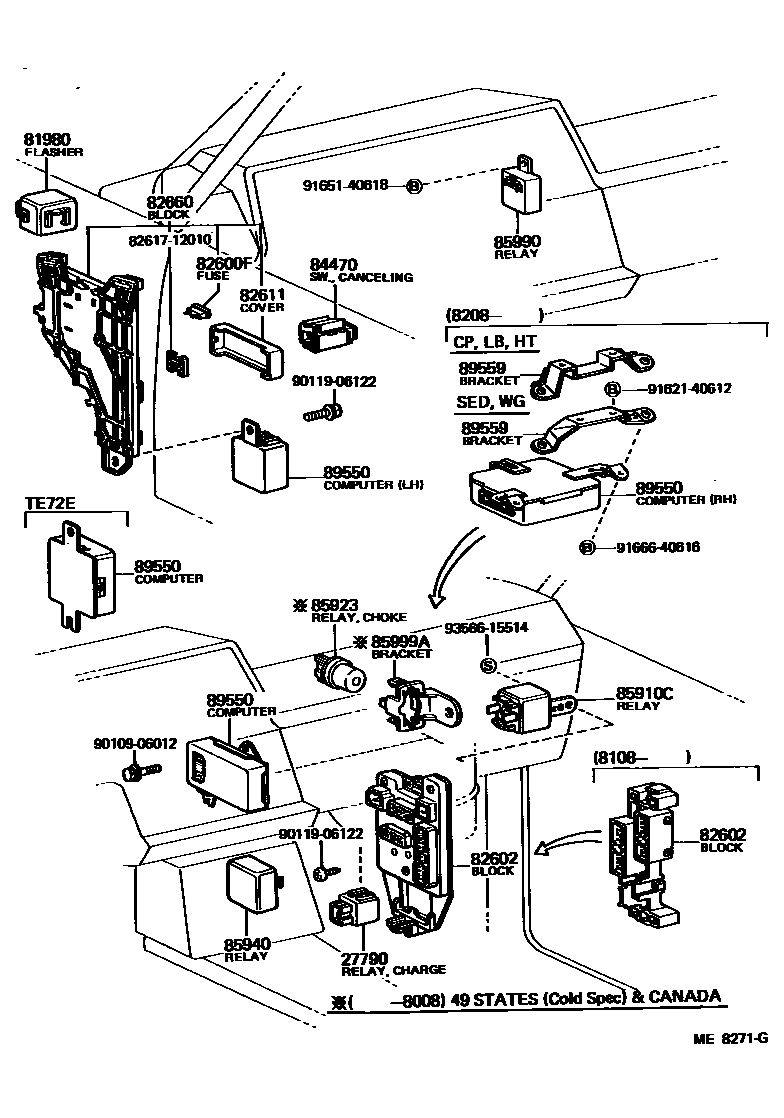

Toyota COROLLA 开关和继电器和ECU EPC diagram — ME8271G
开关和继电器和ECU — ME8271G (197908 – 999999)

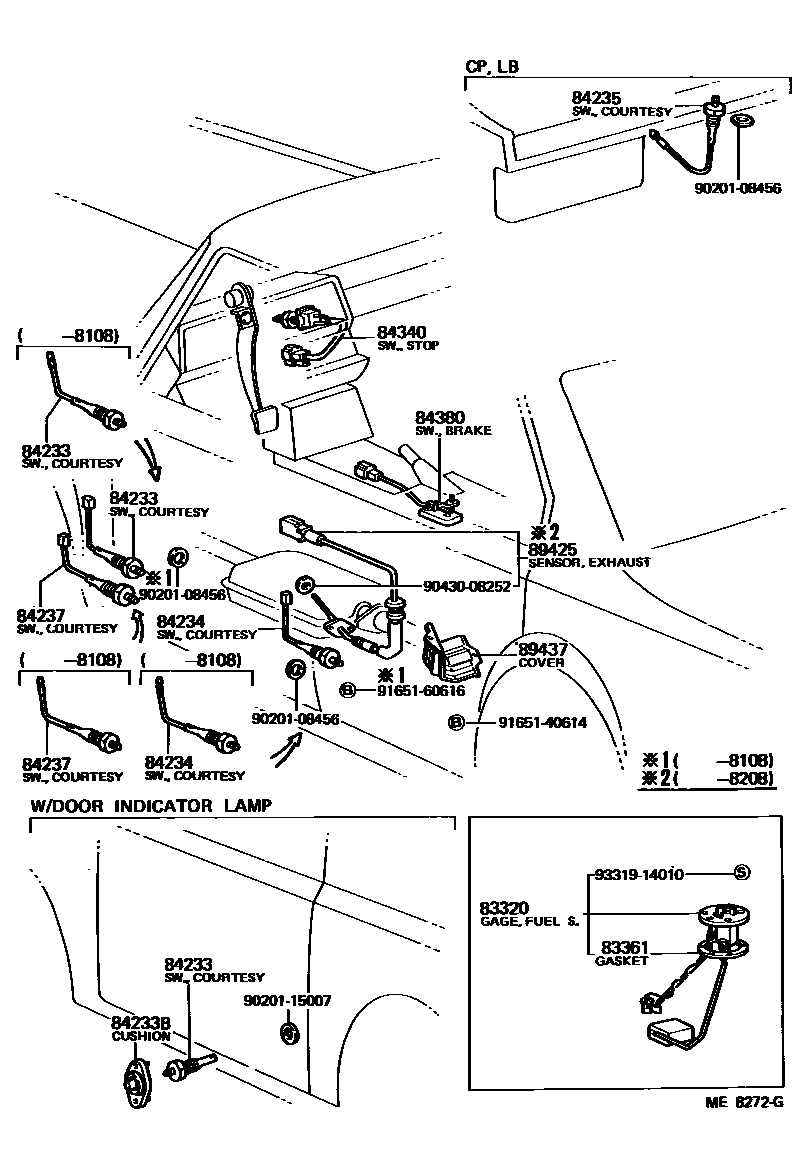

Toyota COROLLA 开关和继电器和ECU EPC diagram — ME8272G
开关和继电器和ECU — ME8272G (197908 – 999999)

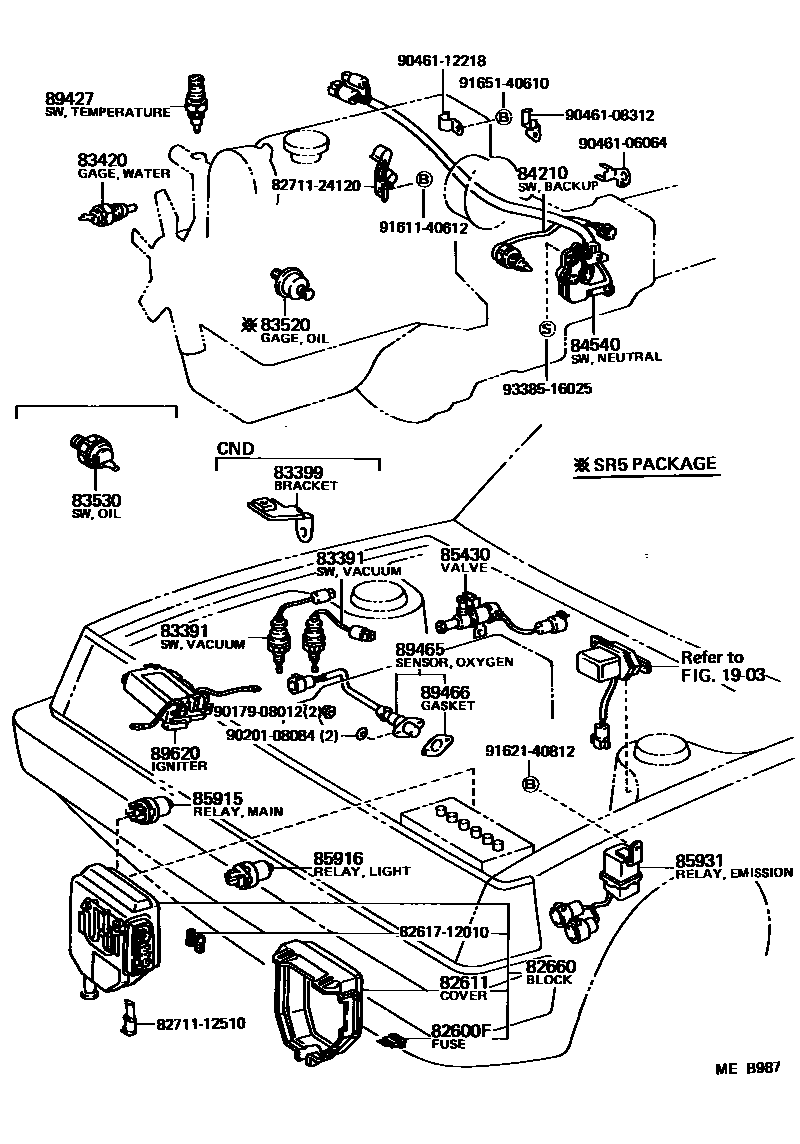

Toyota COROLLA 开关和继电器和ECU EPC diagram — MEB987
开关和继电器和ECU — MEB987 (198208 – 999999)

PNC and OE references

PNCPart nameOE numbers
27790Charging indicator light relay assembly27790-13010 · 27790-28020 · 27790-35010 · 90987-02001
81980Turn signal flasher relay assembly81980-22060 · 81980-22070
82600Fuse box assembly82600-12100 · 82600-12110 · 82600-12120 · 82600-12140
82600FSpare fuse90982-09001 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005
82602Relay box sub-assembly82602-12040 · 82602-12050
82611fuse box cover82611-12090 · 82611-12091 · 82661-12010 · 82661-12011 · 82661-12012
82614fuse rod82616-12010
82660Engine room relay box assembly82660-12010 · 82660-12011 · 82660-12012 · 82660-12050 · 82660-12051
83320Fuel gauge sensor assembly83320-19197 · 83320-19406 · 83320-19407 · 83320-19416 · 83320-19417 · 83320-19475 · 83320-19476
83361fuel gauge sensor gasket77169-14020 · 83361-20030
83391Vacuum switch83391-14010 · 83391-16040 · 83391-16060
83399Vacuum switch bracket83399-12060 · 83399-12070 · 83399-22011
83420Water temperature sensor assembly83420-16010 · 83420-20020
83520Oil pressure gauge sensor assembly83520-14021
83530Oil pressure switch assembly (for engine)83530-10020 · 83530-12040
84110No. 1 light control switch assembly84112-19166 · 84112-19167 · 84112-19168 · 84112-19175 · 84112-19176 · 84112-19177 · 84112-19425 · 84112-19435
84118Light control rheostat button84118-12030
84119Light control rheostat84119-12040
84119ARheostat control retaining bolt or nut90984-01007
84140Headlight dimmer switch assembly84140-12040 · 84140-12190 · 84140-19045 · 84140-19046 · 84140-19055 · 84140-19115 · 84140-19215
84210Reversing light switch assembly84210-10051
84233Door control light switch assembly (for front door)84230-12030 · 84230-20020 · 84230-22051
84233BDoor light switch cushion (for front doors)84234-20020 · 84234-20030 · 84234-95500
84234Door control light switch assembly (for rear door)84230-12040 · 84230-12050 · 84230-20020 · 84230-22051
84235Door control light switch assembly (for back door)84231-20040
84237Door control light switch assembly (for steering wheel unlock warning)84230-20020 · 84230-22051
84310Turn signal switch assembly84310-12331 · 84310-12332 · 84310-12333 · 84310-12380 · 84310-12381 · 84310-12382 · 84310-12480
84312Speaker contact piece84312-12020 · 84312-12030 · 84312-20011 · 84312-20020
84330Hazard warning signal switch assembly84332-12080 · 84332-19045 · 84332-19085 · 84332-19185 · 84332-39105
84340brake light switch assembly84340-22060 · 84340-36030
84380Brake warning test switch assembly84550-12020
84450Ignition or starter switch assembly84450-12070 · 84450-12110
84470Warning release switch assembly84470-14030 · 84470-20010
84540Neutral start switch assembly84540-12120 · 84540-12121 · 84540-14100 · 84540-14110
84650Windshield wiper switch assembly84652-12220 · 84652-12221 · 84652-12260 · 84652-12261 · 84652-19206 · 84652-19207 · 84652-19315 · 84652-19316 · 84652-19317 · 84652-19505 · 84652-19565 · 84652-19865 · 84652-19875
84650BWindshield wiper switch light bulb90981-11018
84653ARear wiper switch84653-12040 · 84653-12060 · 84653-12070 · 84653-12080
84730Heater blower switch assembly84732-12060 · 84732-12061 · 84732-12062
84790Rear window defogger switch assembly84790-12070 · 84790-12100 · 84790-12110 · 84790-14081 · 84790-20050
84790ARear window defogger switch fixing bolt or nut90179-13003
84790BBulb (for rear window defogger switch)90981-11018 · 90981-11024
84791Rear window defogger switch button84791-12030
85430External ventilation control valve85430-12030 · 85430-12040
85500Cigarette lighter assembly85500-12161 · 85500-30340
85520Cigarette lighter button and cigarette lighter core assembly85520-30151
85533Cigarette lighter indicator lamp shade85533-30010
85910CRelay assembly (for heater blower motor)85913-12010
85915main relay90987-02001 · 90987-02004
85916Light control relay90987-01001 · 90987-01003
85923Choke control relay90987-02001 · 90987-03001
85925Radiator fan relay90987-03001
85931Emission control relay85931-16010
85940Windshield wiper relay assembly85940-12020
85990Seat belt warning relay or ECU assembly85991-20010
85999ANo. 2 relay bracket85999-12050
89425Exhaust gas temperature sensor89425-19145 · 89425-19165
89427Temperature detection switch89427-14020 · 89427-16020
89428No. 2 temperature detection switch89428-30030 · 89428-30031
89437sensor cover89437-12040
89465oxygen sensor89465-19055 · 89465-29075
89466Oxygen sensor pad89466-30010
89550Emission control ECU assembly89550-12450 · 89550-12460 · 89550-12480 · 89550-12500 · 89551-12050 · 89551-12051 · 89551-12060 · 89551-12061 · 89551-12070 · 89551-12071 · 89551-12080 · 89551-12081
89559Emission control ECU bracket89568-12060 · 89569-12050
89620Ignition assembly89620-12190 · 89620-12200
