Toyota COROLLA indicator light — Figure 8302

Toyota COROLLA EPC diagram 8302, indicator light, with 1 images and 10 PNC and OE references.

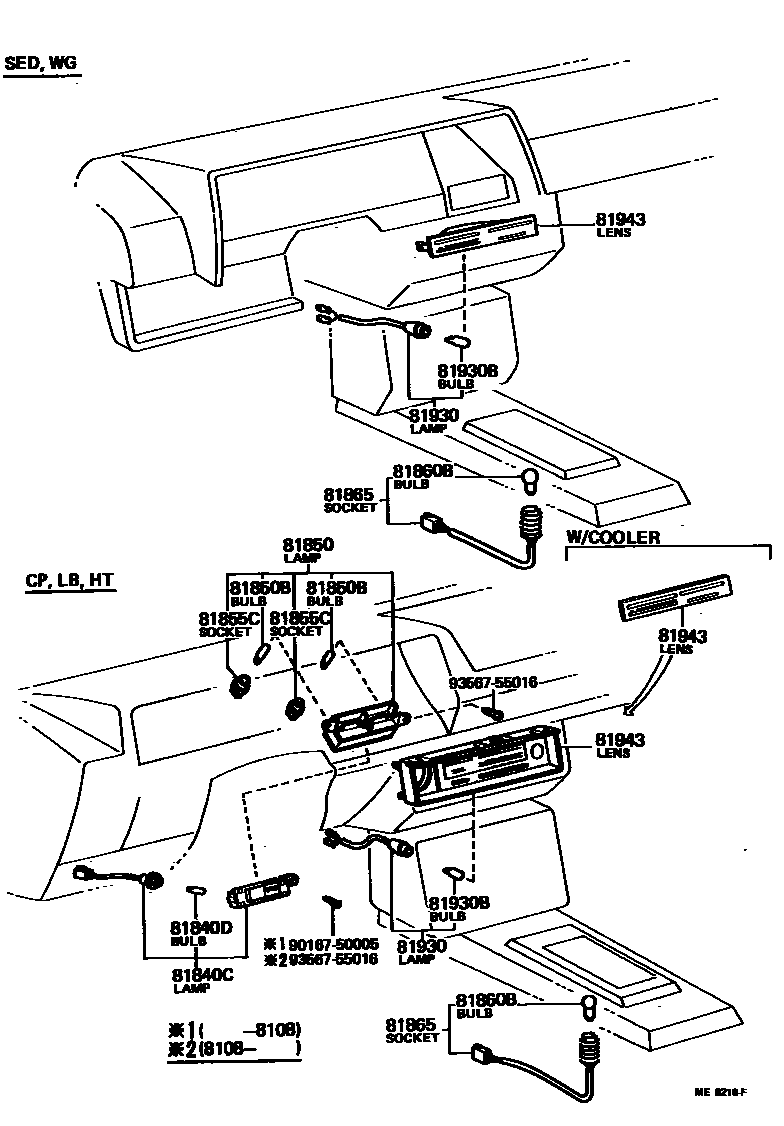

Toyota COROLLA indicator light EPC diagram — ME8210F
indicator light — ME8210F (197908 – 999999)

PNC and OE references

PNCPart nameOE numbers
81840CDoor indicator light assembly81840-12010 · 81840-12011
81840Ddoor indicator light bulb90981-11018
81850Indicator light assembly81850-12090 · 81850-12091 · 81850-12160 · 81850-12170
81850Bpilot light bulb90981-11018 · 99132-12034
81855CIndicator lamp holder and wiring harness83101-10010 · 83101-22010
81860BTransmission indicator light bulb99132-11017
81865Transmission indicator light holder and wiring harness35906-12030
81930No. 1 heater control indicator light assembly81850-12040 · 81850-12041 · 81850-12042
81930BHeater control indicator light bulb90981-11018
81943Heater control indicator light cover81940-12060 · 81940-12070 · 81940-12072 · 81940-12073 · 81940-12080 · 81940-12082 · 81940-12083 · 81942-12060 · 81943-12070 · 81943-12072 · 81943-12073 · 81943-12090 · 81943-12092 · 81943-12093
