Toyota COROLLA 线束和卡夹 — Figure 8202

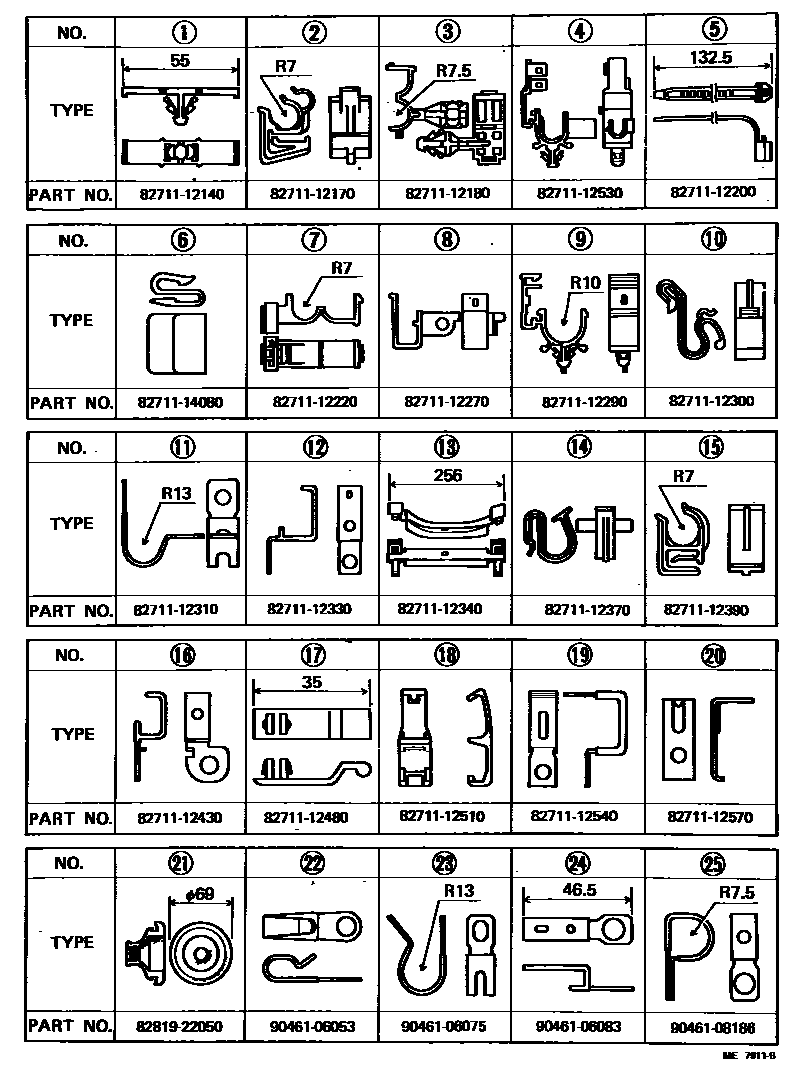

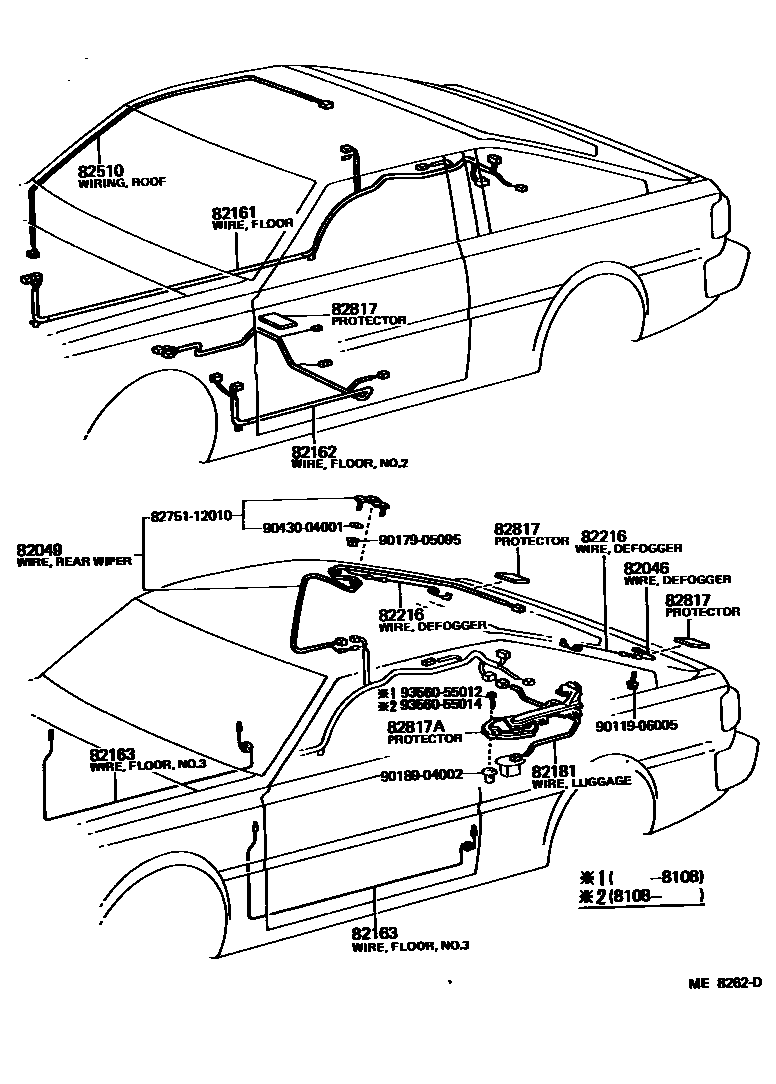

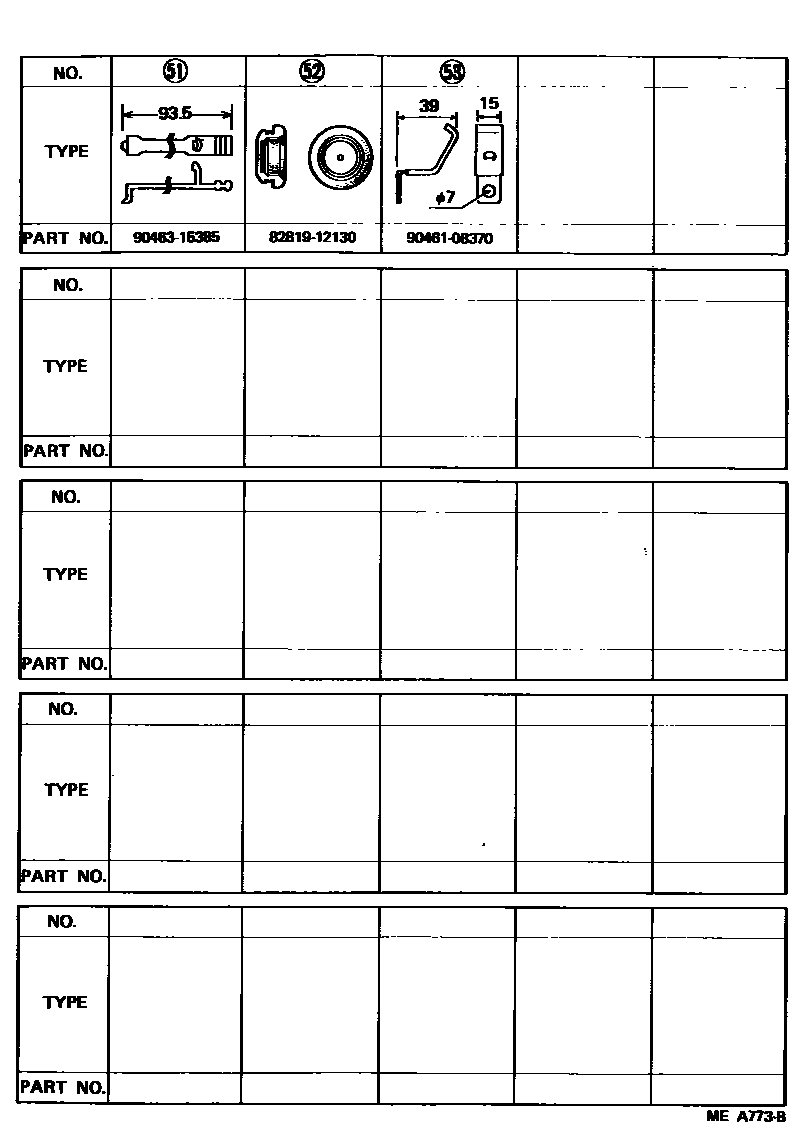

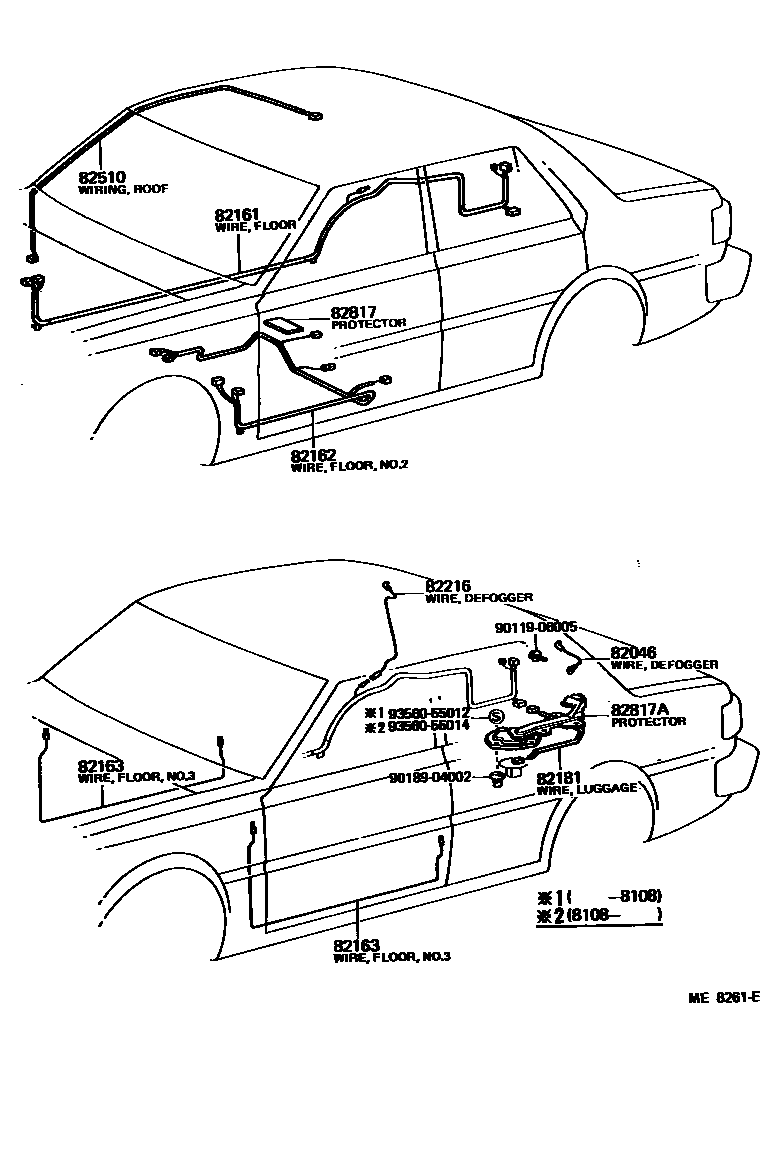

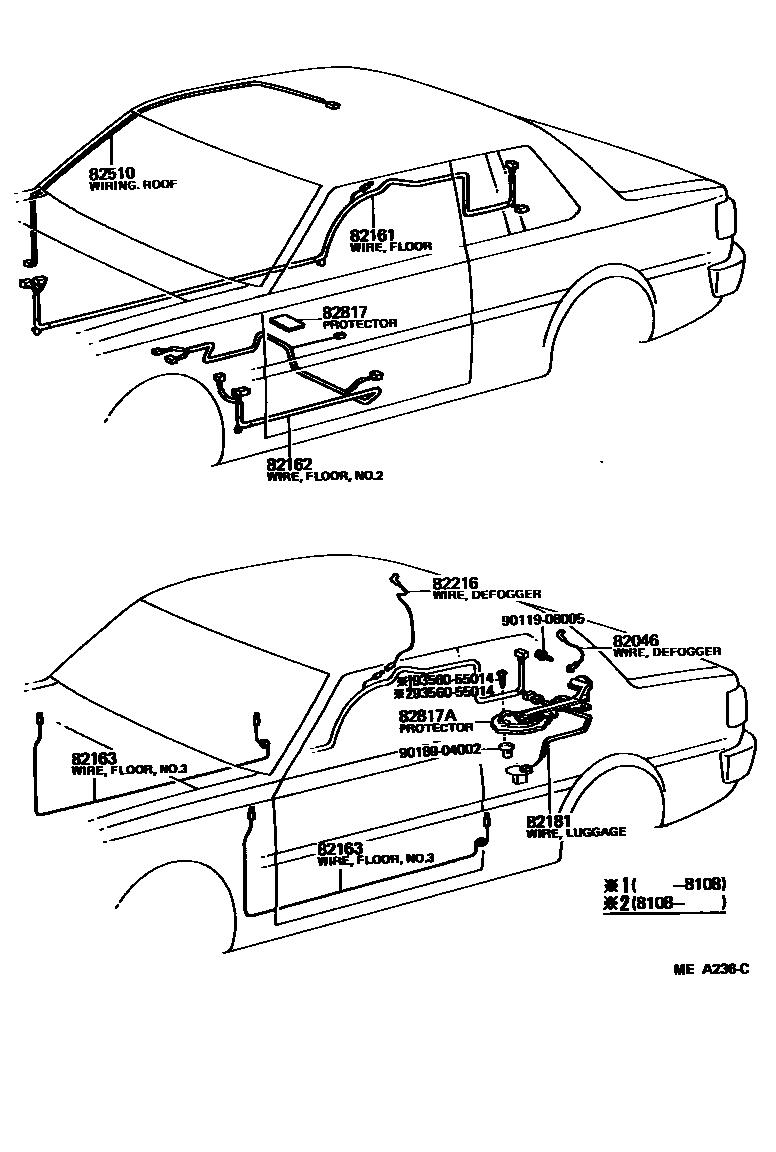

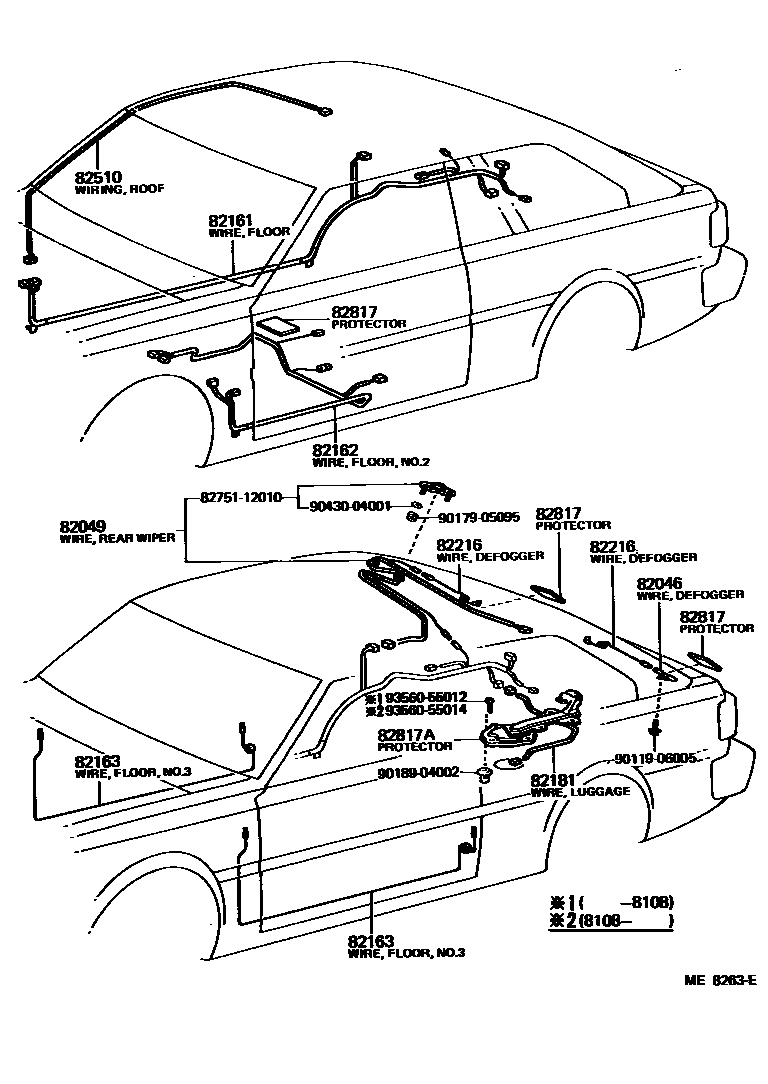

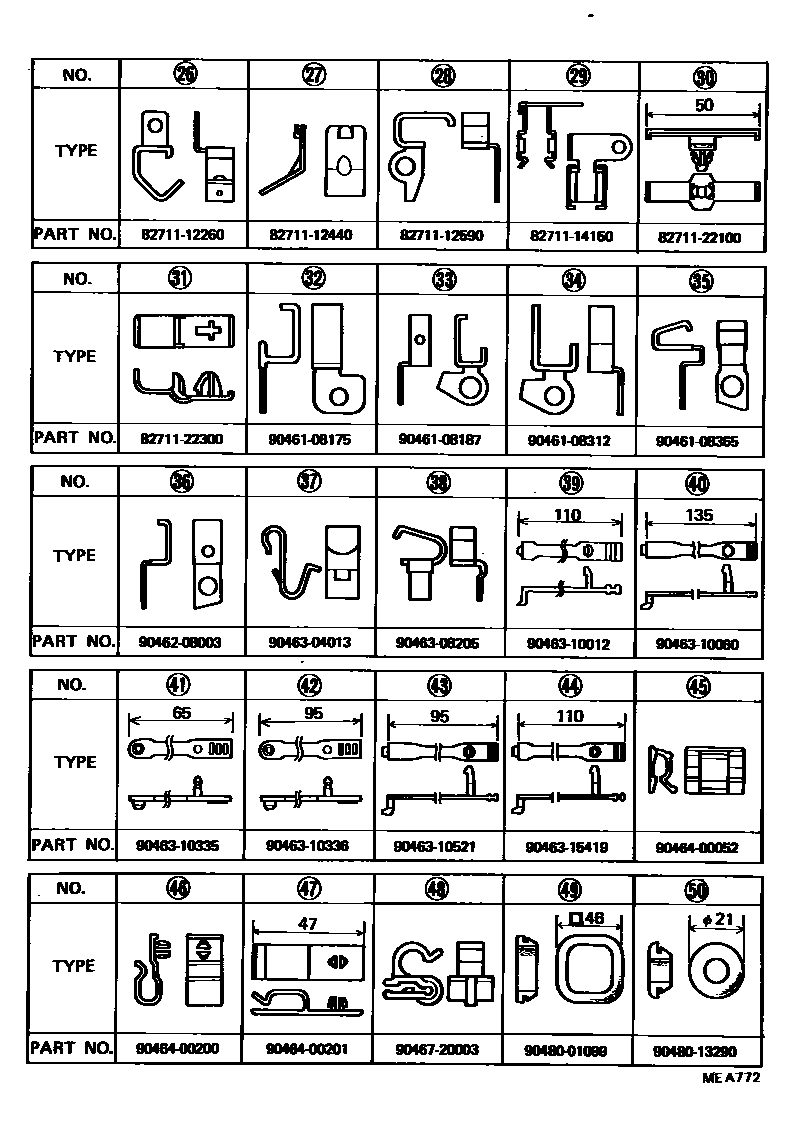

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 10 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07062 · 90980-07118 · 90980-07119 · 90980-07177 · 90980-07219 |
| 82046 | Rear window defogger ground wire sub-assembly | 82046-12110 · 82046-12140 · 82046-13010 |
| 82049 | Rear wiper wiring harness sub-assembly | 82049-12030 · 82049-12040 · 82049-12060 · 82049-12070 · 82049-12080 · 82049-12090 |

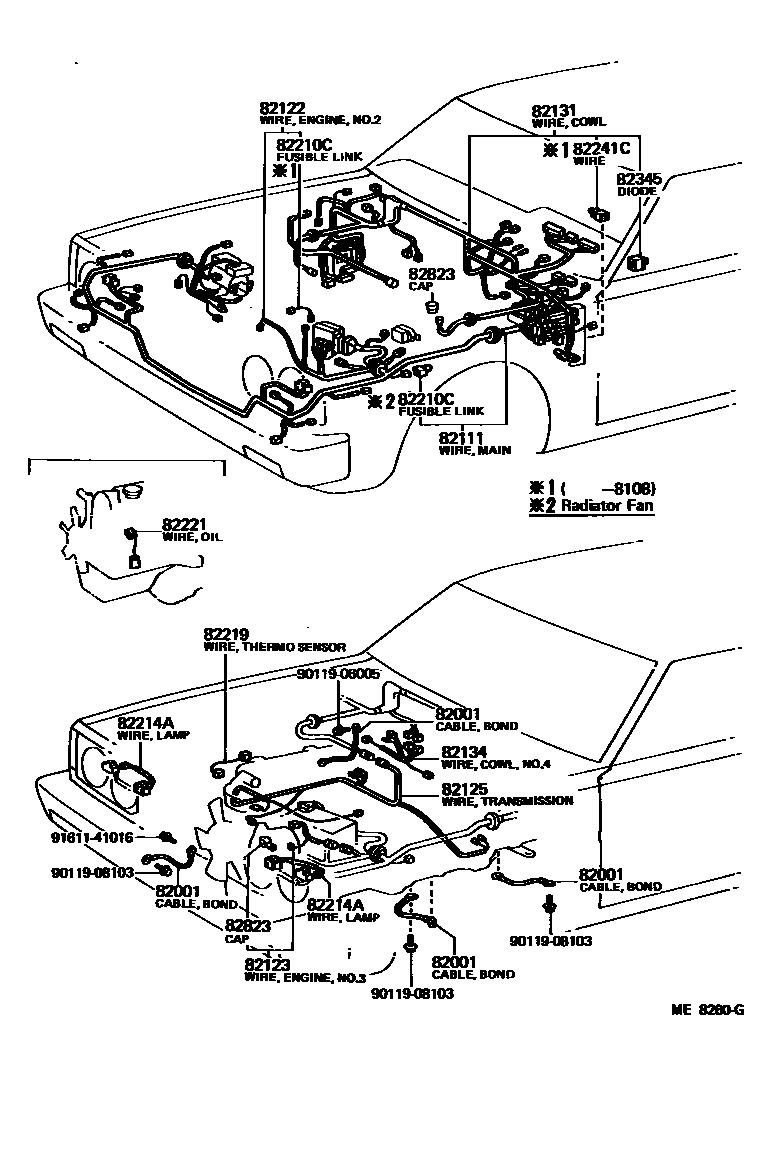

| 82111 | Engine room main wiring harness | 82111-12110 · 82111-12120 · 82111-12170 · 82111-12171 · 82111-12180 · 82270-12490 · 82270-12491 · 82270-12492 |
| 82122 | Engine No. 2 wiring harness | 82122-12060 · 82122-12070 · 82122-12110 · 82122-12120 · 82223-12430 · 82223-12431 · 82223-12432 · 82223-12440 · 82223-12441 · 82223-12460 |
| 82123 | Engine No. 3 wiring harness | 82123-12030 · 82123-12040 · 82261-12270 · 82261-12281 · 82261-12321 |
| 82125 | Transmission wiring harness | 82125-12080 · 82125-12090 · 82125-12100 · 82125-12110 · 82125-12190 · 82125-12200 · 82125-12210 · 82125-12220 · 82310-12300 · 82310-12301 · 82310-12310 · 82310-12311 · 82310-12370 · 82310-12371 |
| 82131 | Front panel wiring harness | 82131-12220 · 82131-12230 · 82131-12240 · 82131-12250 · 82131-12300 · 82131-12301 · 82131-12310 · 82131-12311 · 82131-12320 · 82131-12330 · 82230-12690 · 82230-12700 · 82230-1A020 · 82230-1A022 · 82230-1A030 · 82230-1A032 |
| 82134 | Front No. 4 wiring harness | 82134-12030 · 82213-12020 · 82213-12021 |

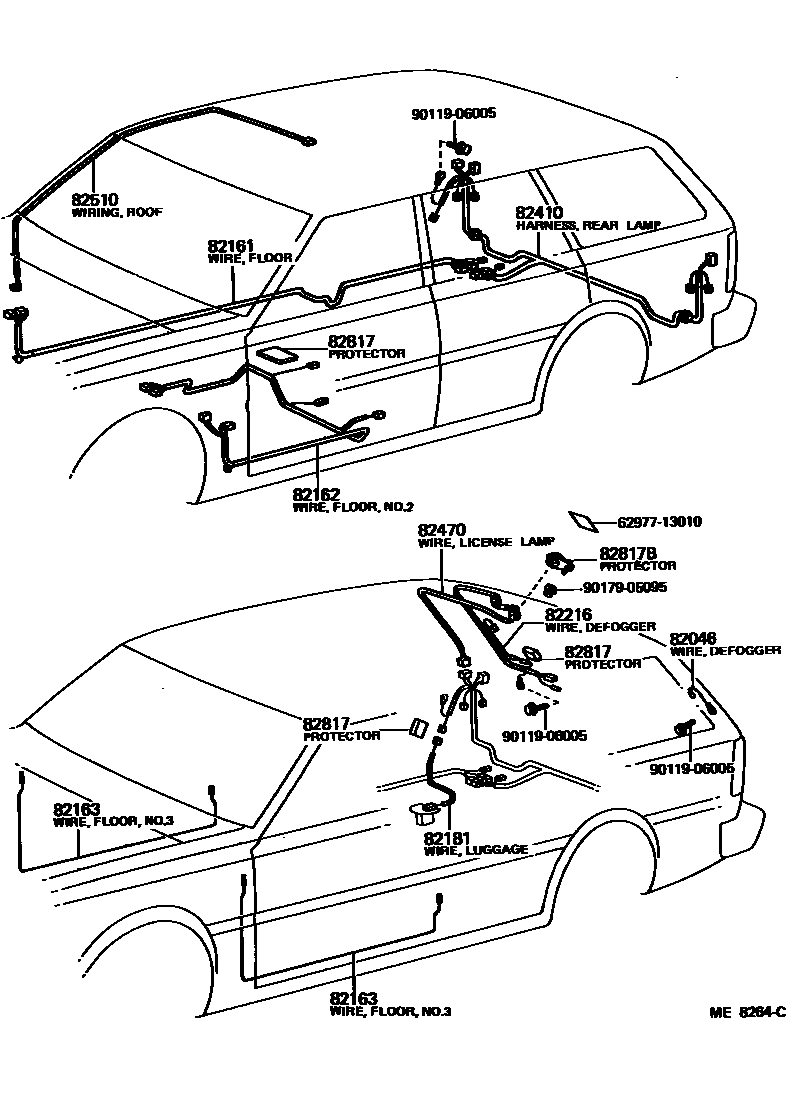

| 82161 | floor wiring harness | 82161-12010 · 82161-12030 · 82420-12400 · 82420-12410 · 82420-12430 · 82420-12530 · 82420-12540 · 82420-13140 · 82420-13142 · 82420-13150 · 82420-13190 |
| 82162 | Floor wiring harness No. 2 | 82162-12050 · 82162-12060 · 82215-12150 · 82215-12151 · 82215-12200 |
| 82163 | Floor wiring harness No. 3 | 82163-12010 · 82163-12030 · 82350-12030 · 82350-12050 |
| 82181 | Luggage No. 1 wiring harness | 82181-12010 · 82412-12080 · 82412-13040 |
| 82210C | fuse | 90982-08052 · 90982-08121 · 90982-08149 |
| 82214A | Car light wiring harness | 82214-12150 |
| 82216 | Rear window defogger wiring harness | 82216-12050 · 82216-12060 · 82216-13010 |
| 82219 | Temperature sensor harness | 82219-12070 |
| 82221 | Oil pressure switch wiring harness | 82221-16030 |
| 82241C | Relay harness | 82241-12090 |
| 82345 | diode | 82345-12010 |
| 82410 | Wire harness assembly (to rear light) | 82410-13110 · 82410-13120 |
| 82470 | License plate light feeder assembly | 82470-13070 · 82470-13071 · 82470-13080 · 82470-13081 · 82470-13090 · 82470-13091 |
| 82510 | Roof harness assembly | 82510-12180 · 82510-12200 · 82510-12220 · 82510-13020 |
| 82817 | No. 1 wire harness protection device | 82817-12140 · 82817-12400 · 82817-20200 |
| 82817A | No. 2 wire harness protection device | 82817-12410 |
| 82817B | No. 3 wire harness protection device | 82817-13030 |
| 82823 | No. 1 terminal cover | 82823-12020 · 82823-30010 |

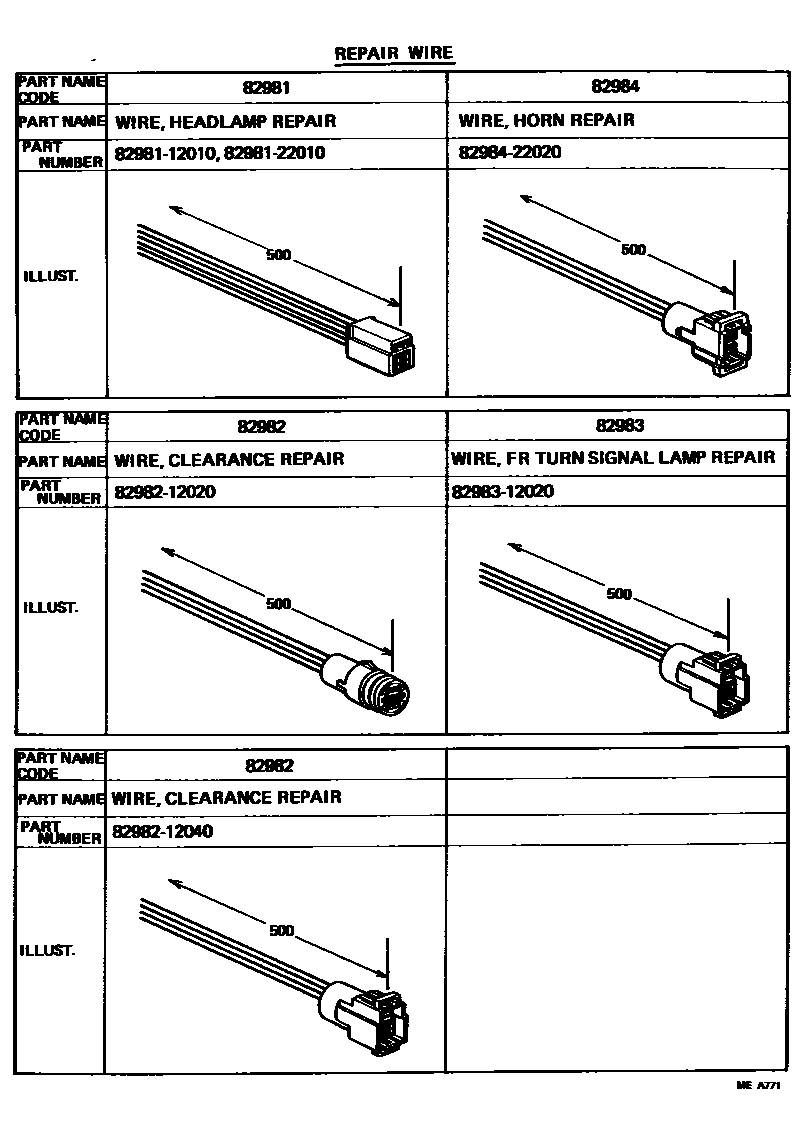

| 82981 | Headlight repair line | 82981-12010 · 82981-22010 |
| 82982 | Width light repair line | 82982-12020 · 82982-12040 |
| 82983 | Front turn signal lamp repair line | 82983-12020 |
| 82984 | Speaker repair line | 82984-22020 |
