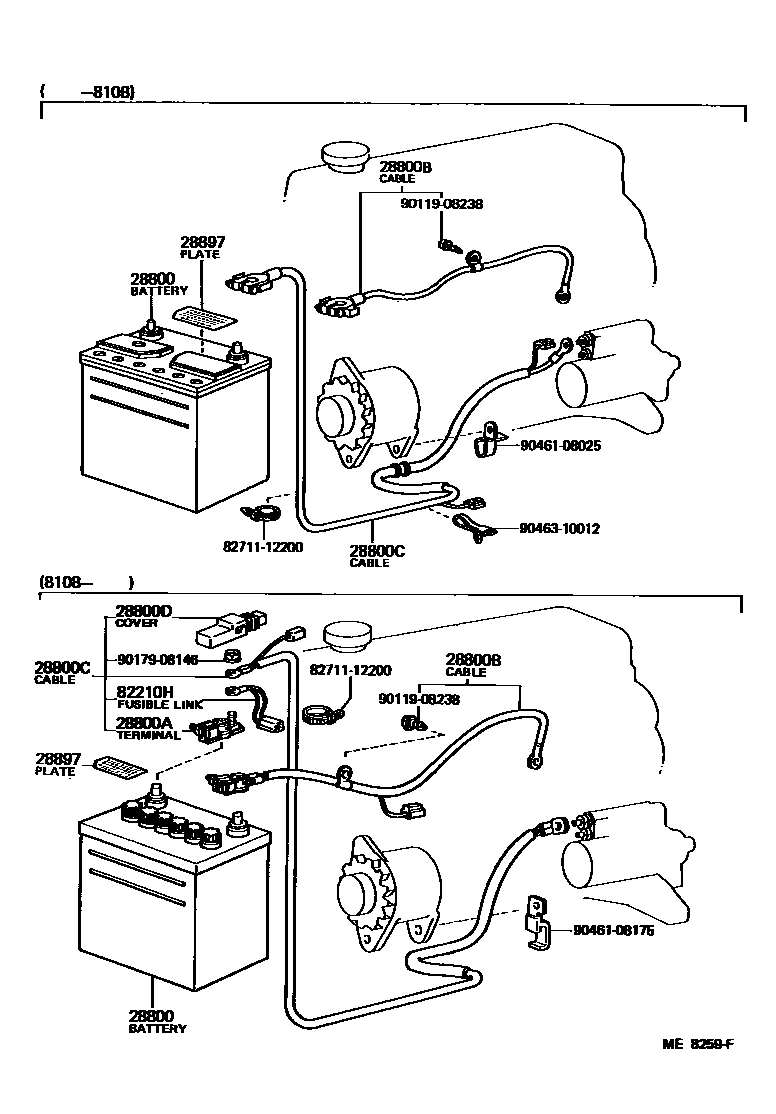

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-26010 · 28800-27010 · 28800-30131 · 28800-31031 · 28800-41040 · 28800-43070 · 28800-43090 · 28800-64010 |
| 28800A | battery positive terminal | 90982-05023 |
| 28800B | Cable between battery and ground | 82046-12170 · 82046-12171 · 82113-12040 · 82113-12080 |
| 28800C | Cable between battery and starter (for battery to main switch) | 82021-12250 · 82112-12120 · 82112-12150 |
| 28800D | Connector cover (for battery terminals) | 82821-12150 |
| 28897 | Battery warning nameplate | 28897-26010 · 28897-38010 · 28897-45010 |
| 82210H | fuse | 90982-08021 |
