Toyota COROLLA 后侧标示灯 — Figure 8114

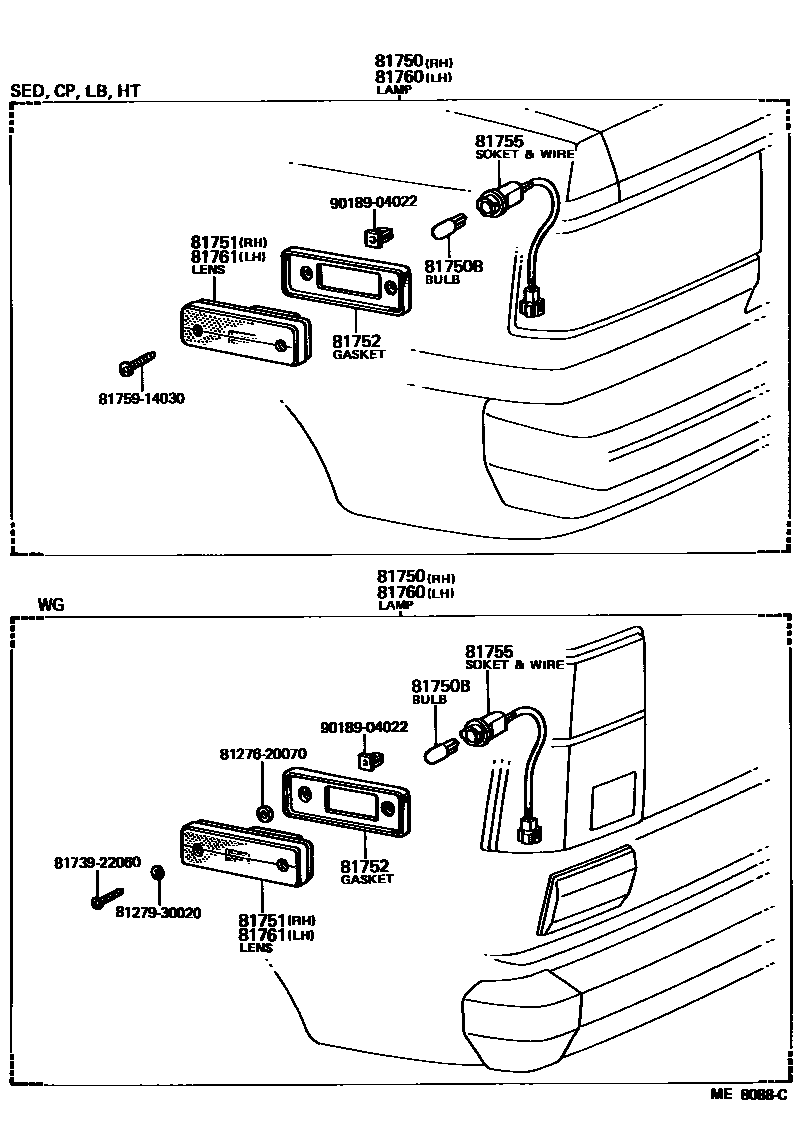

Toyota COROLLA EPC diagram 8114, 后侧标示灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81750 | Right rear width indicator light assembly | 81750-19155 · 81750-29135 · 81750-29145 |
| 81750B | Rear width light bulb | 90981-11020 |
| 81751 | Right rear width indicator lamp cover | 81751-14030 |
| 81752 | Rear width light lampshade gasket | 81752-14030 · 81754-91255 |
| 81755 | Rear width light lamp holder and wiring harness sub-assembly | 81755-14030 · 81755-20060 |
| 81760 | Left rear width indicator light assembly | 81750-19155 · 81750-29135 · 81750-29145 |
| 81761 | Left rear width indicator lamp cover | 81751-14030 |
