Toyota COROLLA 后牌照灯 — Figure 8113

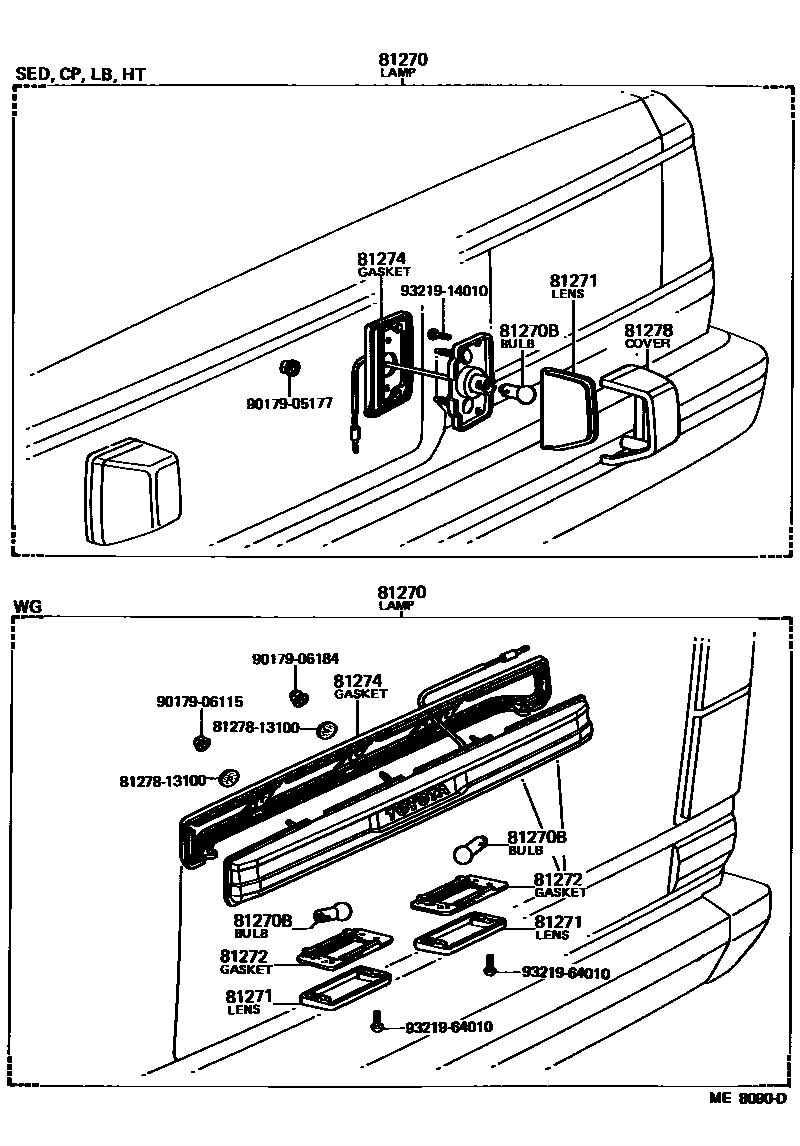

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-19605 · 81270-19615 · 81270-19705 · 81270-19715 · 81270-19805 · 81270-29335 · 81270-29475 · 81690-19095 · 81690-19145 · 81690-29095 · 81690-29105 |
| 81270B | Bulb (for license plate light) | 99132-11075 |
| 81271 | license plate lamp shade | 81271-13100 · 81271-20110 · 81691-20030 |
| 81272 | License plate lamp shade gasket | 81272-13100 |
| 81274 | License plate light body gasket | 81274-13100 · 81274-13130 · 81274-13140 · 81274-20110 · 81694-20030 |
| 81278 | license plate light cover | 81276-12210 · 81276-20110 · 81696-12060 · 81696-20030 |
