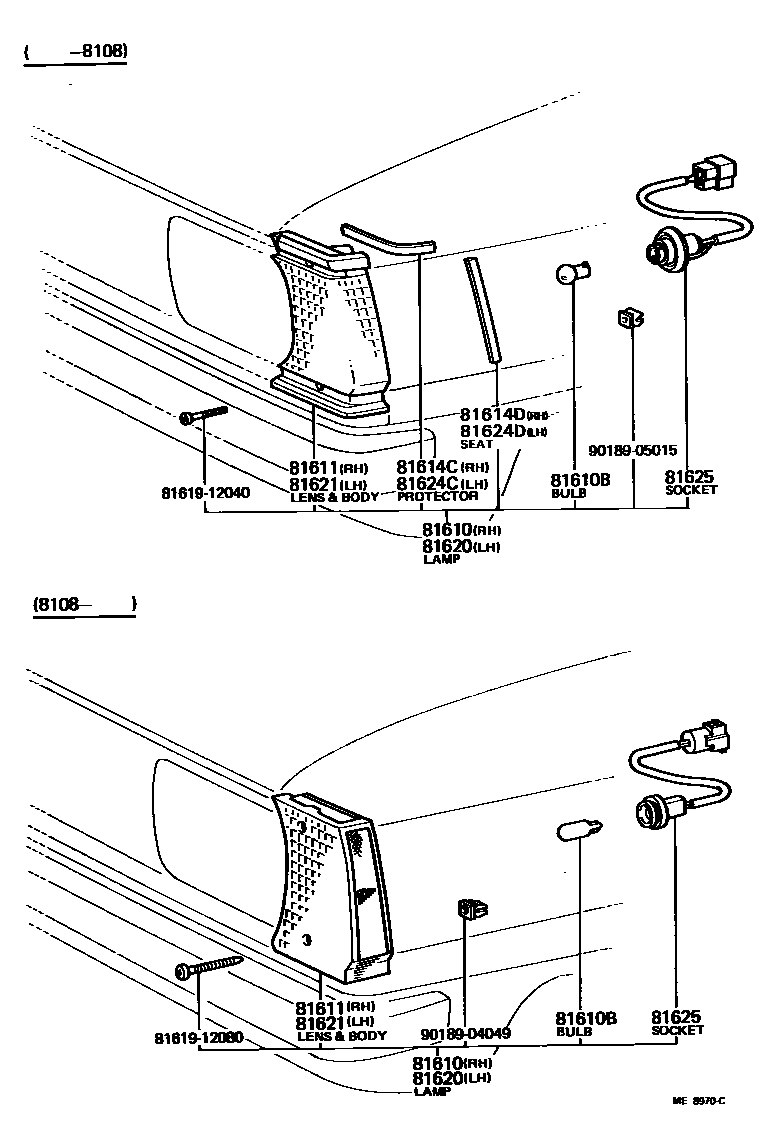

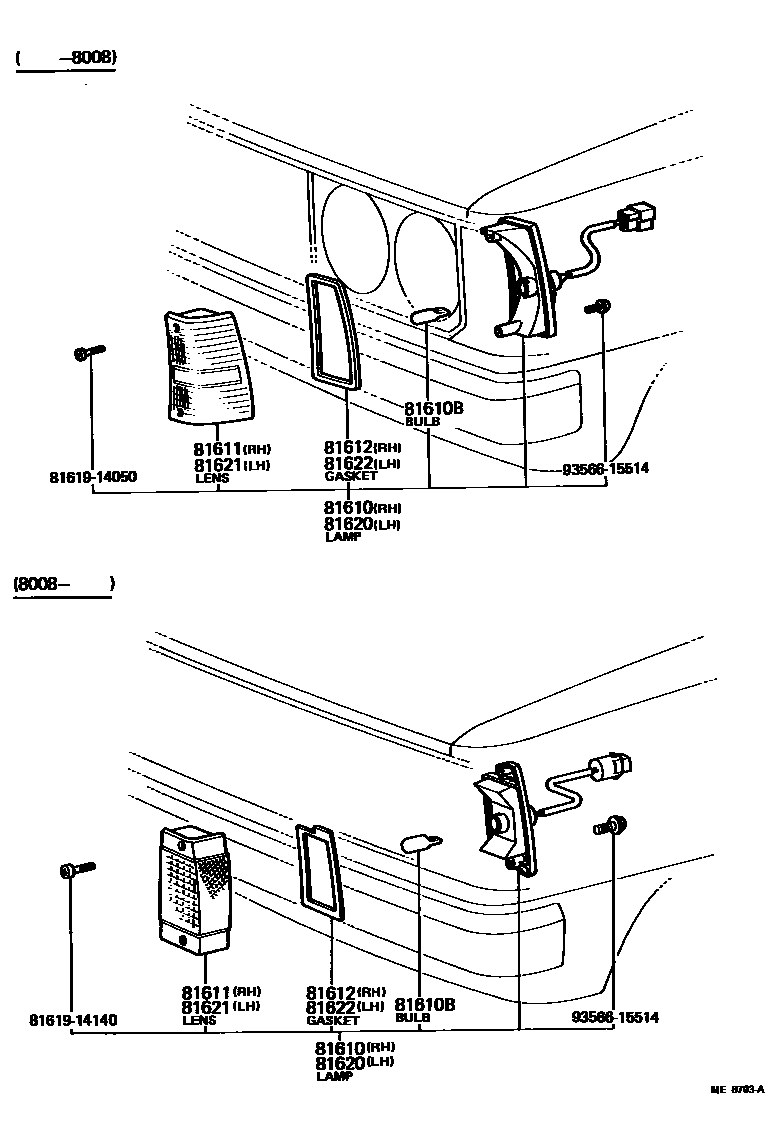

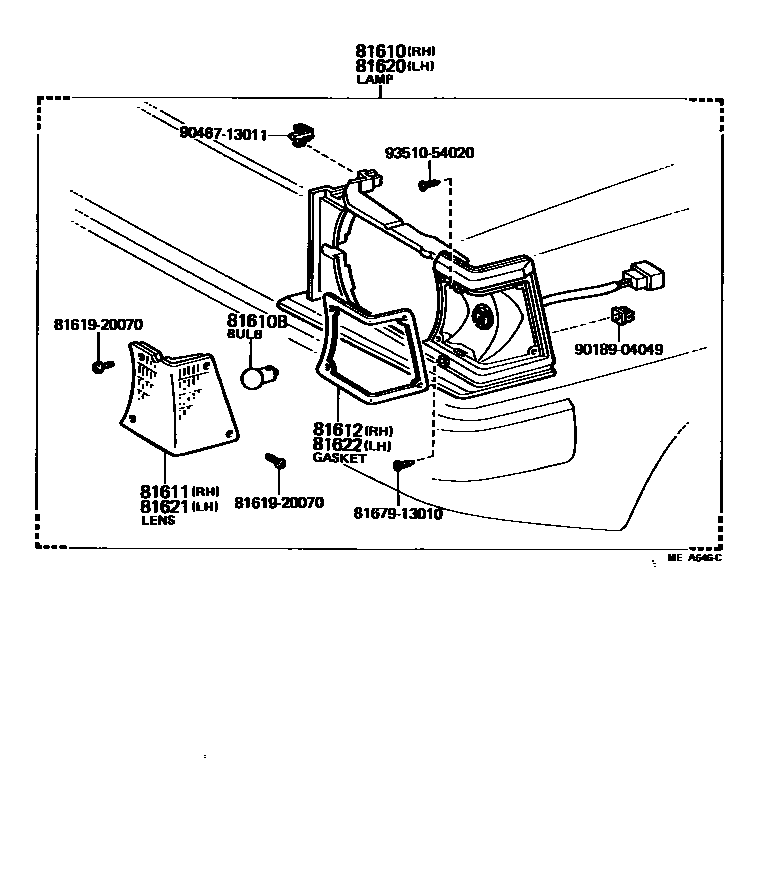

Toyota COROLLA 前示宽灯 — Figure 8104
Toyota COROLLA EPC diagram 8104, 前示宽灯, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-19225 · 81610-19226 · 81610-19227 · 81610-19235 · 81610-19236 · 81610-19237 · 81610-19245 · 81610-19246 |
| 81610B | Bulbs (for parking lights and side lights) | 90981-11020 · 99132-11075 |
| 81611 | Right parking light and width indicator light cover | 81611-12070 · 81611-12071 · 81611-12072 · 81611-12080 · 81611-12081 · 81611-12090 |
| 81612 | Right parking light and width indicator light housing gasket | 81612-12030 · 81612-12070 · 81612-12140 |
| 81614C | Right side width indicator light protective cover | 81614-12041 |
| 81614D | Right side width indicator lamp housing | 81612-12040 |
| 81620 | Left parking light and width indicator light assembly | 81620-19225 · 81620-19226 · 81620-19227 · 81620-19235 · 81620-19236 · 81620-19237 · 81620-19245 · 81620-19246 |
| 81621 | Left parking light and width indicator light cover | 81621-12070 · 81621-12071 · 81621-12072 · 81621-12080 · 81621-12081 · 81621-12090 |
| 81622 | Left parking light and width indicator light housing gasket | 81612-12030 · 81612-12070 · 81612-12140 |
| 81624C | Left side width indicator light protective cover | 81624-12041 |
| 81624D | Left side width indicator light housing holder | 81612-12040 |
| 81625 | Parking light and width indicator lamp holder and wiring harness | 81615-12080 · 81615-12081 · 81615-12082 |
