Toyota COROLLA 前转向灯 — Figure 8103

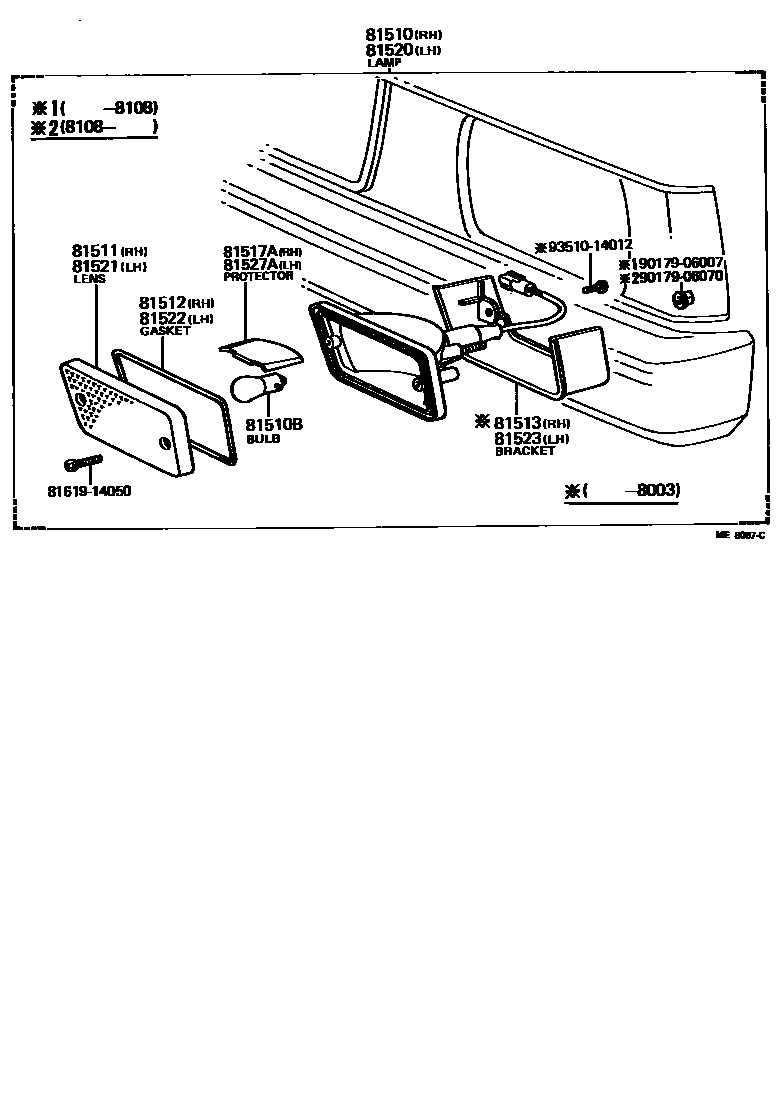

Toyota COROLLA EPC diagram 8103, 前转向灯, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-19545 · 81510-19645 · 81510-19646 · 81510-19795 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11270 |
| 81511 | Right front turn signal lamp cover | 81511-14170 |
| 81512 | Right front turn signal lamp housing gasket | 81512-14150 |
| 81513 | Right front turn signal lamp bracket | 81516-14170 |
| 81517A | Right front turn signal light protective cover | 81517-14170 |
| 81520 | Left front turn signal lamp assembly | 81520-19545 · 81520-19645 · 81520-19646 · 81520-19795 |
| 81521 | Left front turn signal lamp cover | 81521-14170 |
| 81522 | Left front turn signal lamp housing gasket | 81512-14150 |
| 81523 | Left front turn signal light bracket | 81526-14170 |
| 81527A | Left front turn signal light protective cover | 81517-14170 |
