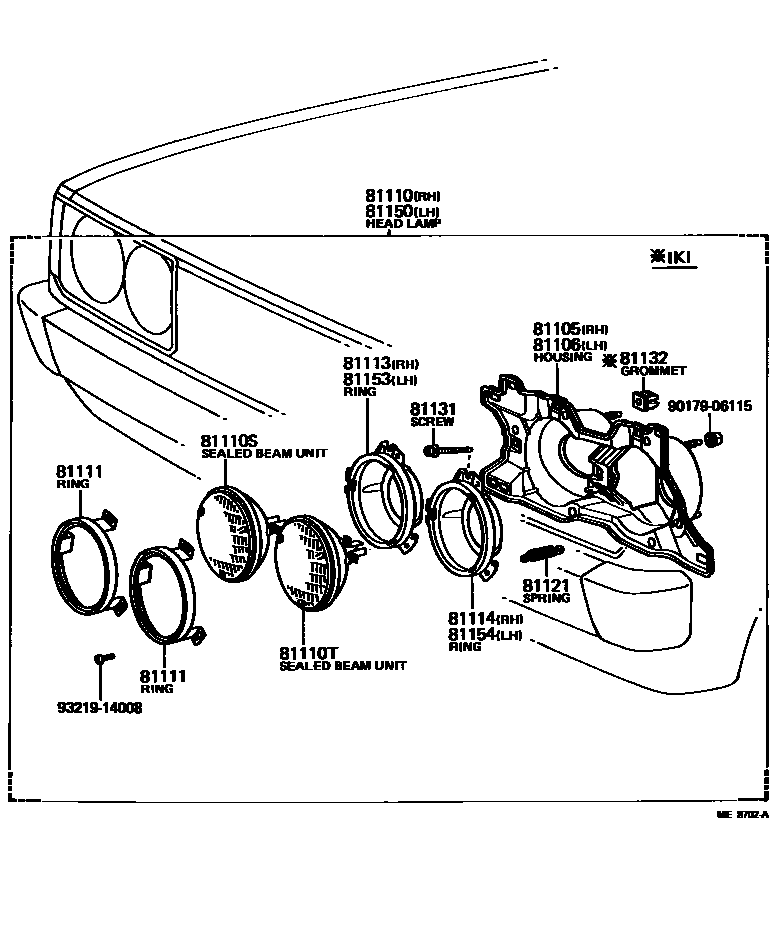

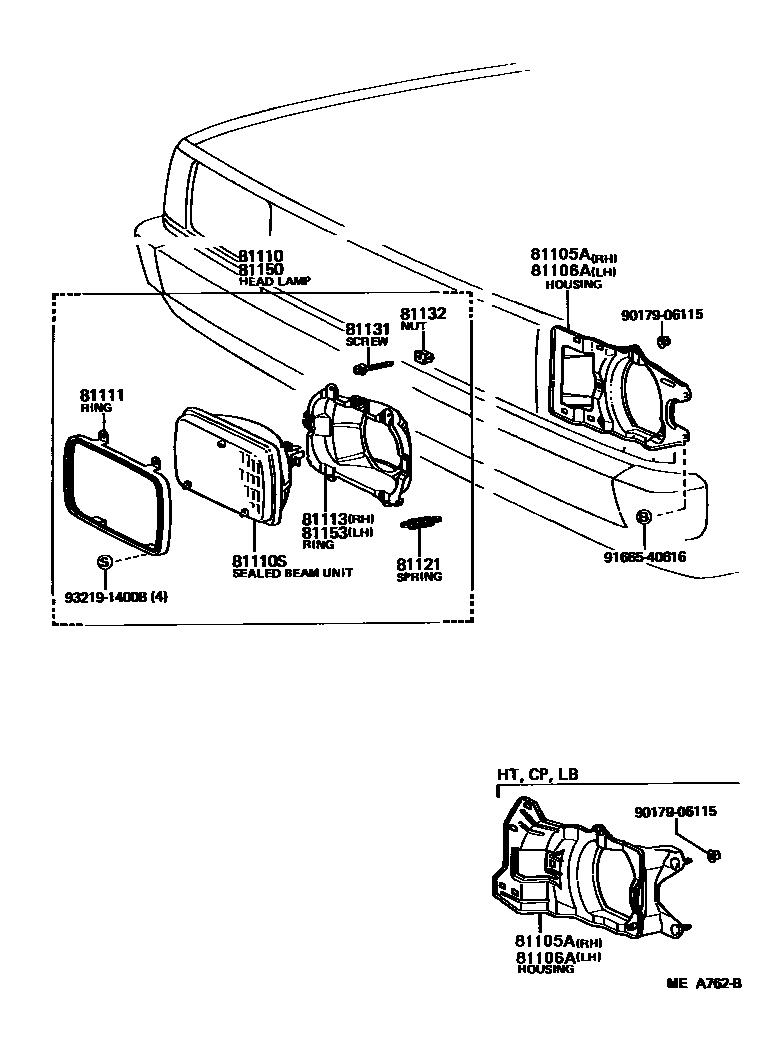

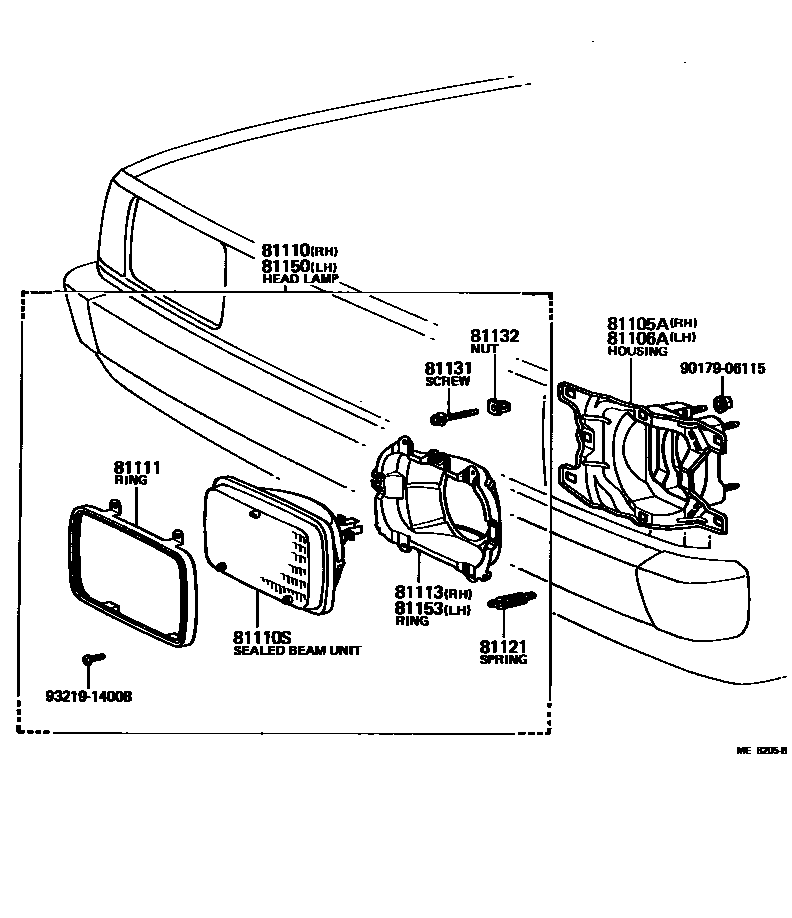

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 81105-12550 · 81105-12560 |
| 81105A | Right headlight bracket sub-assembly | 53037-12040 · 53037-12041 · 53037-12060 · 53037-12061 |
| 81106 | Left headlight housing sub-assembly | 81106-12480 · 81106-12490 |
| 81106A | Left headlight bracket sub-assembly | 53037-12040 · 53038-12040 · 53038-12041 · 53038-12050 |
| 81110 | Right headlight assembly | 81110-80029 · 81110-80030 · 81110-80031 · 81110-80032 · 81110-80156 · 81110-80157 · 81110-80164 · 81110-80187 · 81110-80305 |
| 81110S | No. 1 enclosed lamp assembly | 90981-02011 · 90981-02041 · 90981-04003 · 90981-04004 · 90981-04016 · 90981-04020 |
| 81110T | No. 2 enclosed lamp assembly | 90981-02013 · 90981-02044 |
| 81111 | Closed headlight retaining ring | 81111-14261 · 81111-16010 · 81111-16020 · 81111-20280 |
| 81113 | Right No. 1 closed lamp seat | 81113-12571 · 81113-12581 · 81113-14260 · 81113-20100 · 81153-16010 · 81153-16020 |
| 81114 | Right No. 2 closed lamp seat | 81114-14260 · 81154-20100 |
| 81121 | headlight spring | 81121-12570 · 81121-12581 · 81121-16010 · 81121-16020 · 81121-20100 · 90506-18018 |
| 81131 | Headlight adjustment screw | 81131-10031 · 81131-16010 · 81131-20043 · 81131-20053 |
| 81132 | Headlight self-locking nut | 81132-20380 · 90189-05013 · 90189-05015 |
| 81150 | Left headlight assembly | 81150-80029 · 81150-80030 · 81150-80031 · 81150-80032 · 81150-80153 · 81150-80154 · 81150-80161 · 81150-80184 · 81150-80302 |
| 81153 | No. 1 closed lamp seat on the left | 81113-16010 · 81113-16020 · 81153-12501 · 81153-12511 · 81153-14260 · 81153-20100 |
| 81154 | No. 2 closed lamp seat on the left | 81114-20100 · 81154-14260 |
