Toyota COROLLA 木纹面板和防护条 — Figure 7505

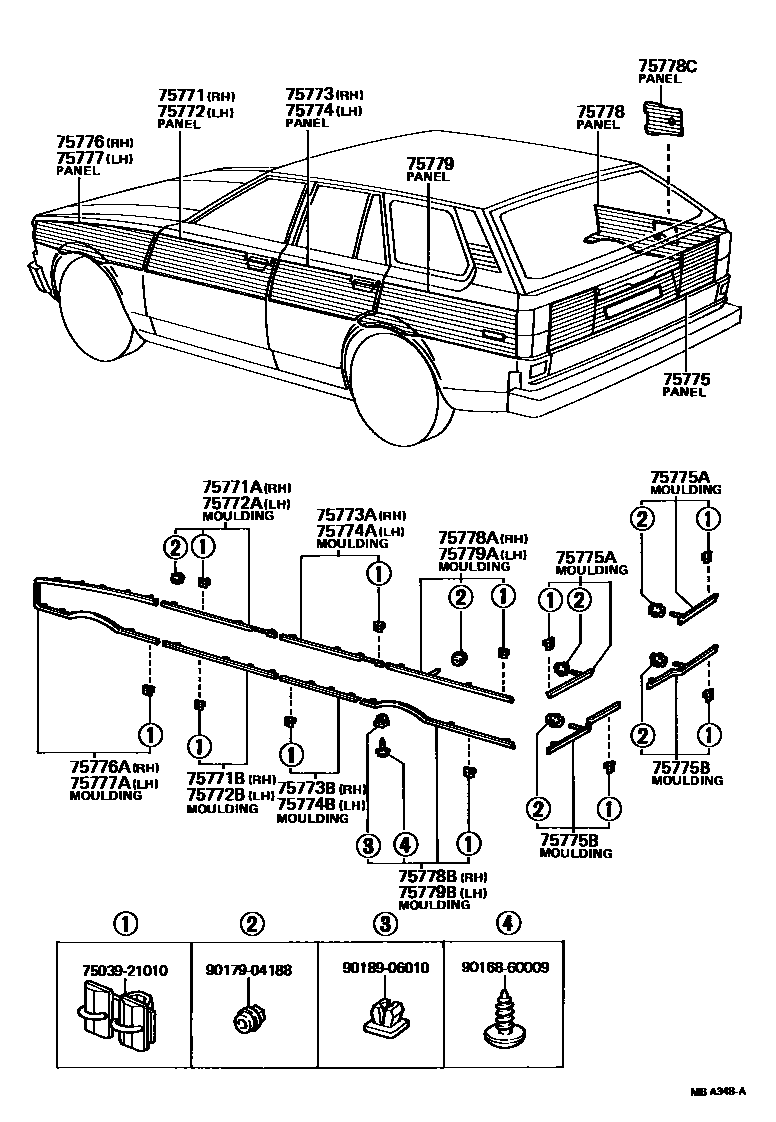

Toyota COROLLA EPC diagram 7505, 木纹面板和防护条, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75771 | Right front door outer trim panel | 75985-13030 |
| 75771A | No. 1 right front door outer trim panel protective strip | 75071-19035 |
| 75771B | No. 2 right front door outer trim panel protective strip | 75073-13030 |
| 75772 | Left front door outer trim panel | 75986-13030 |
| 75772A | No. 1 left front door outer trim panel protective strip | 75072-19035 |
| 75772B | No. 2 left front door outer trim panel protective strip | 75073-13030 |
| 75773 | Right rear door outer trim panel | 75987-13020 |
| 75773A | No. 1 right rear door outer trim panel protective strip | 75075-13020 |
| 75773B | No. 2 right rear door outer trim panel protective strip | 75077-13030 |
| 75774 | Left rear door outer trim panel | 75988-13020 |
| 75774A | No. 1 left rear door outer trim panel protective strip | 75076-13020 |
| 75774B | No. 2 left rear door outer trim panel protective strip | 75078-13020 |
| 75775 | Rear door outer trim panel | 75995-13020 |
| 75775A | No. 1 rear door outer trim panel protective strip | 75801-19075 · 75802-19025 |
| 75775B | No. 2 rear door outer trim panel protective strip | 75803-19025 · 75804-19065 |
| 75776 | Right front fender outer trim panel | 75981-13020 |
| 75776A | No. 1 right front fender outer trim protective strip | 75601-13020 |
| 75777 | Left front fender outer trim panel | 75982-13020 |
| 75777A | No. 1 left front fender outer trim protective strip | 75602-13020 |
| 75778 | Right side enclosure outer decorative panel | 75991-13030 |
| 75778A | No. 1 right side enclosure outer decorative panel protective strip | 75605-19035 |
| 75778B | No. 2 right side enclosure outer decorative panel protective strip | 75065-19035 |
| 75778C | fuel filler cover | 75993-13010 |
| 75779 | Decorative panel on the outside of the left side enclosure | 75992-13030 |
| 75779A | No. 1 left side enclosure outer decorative panel protective strip | 75605-19035 |
| 75779B | No. 2 left side enclosure outer decorative panel protective strip | 75066-19035 |
