Toyota COROLLA 前防护条 — Figure 7502

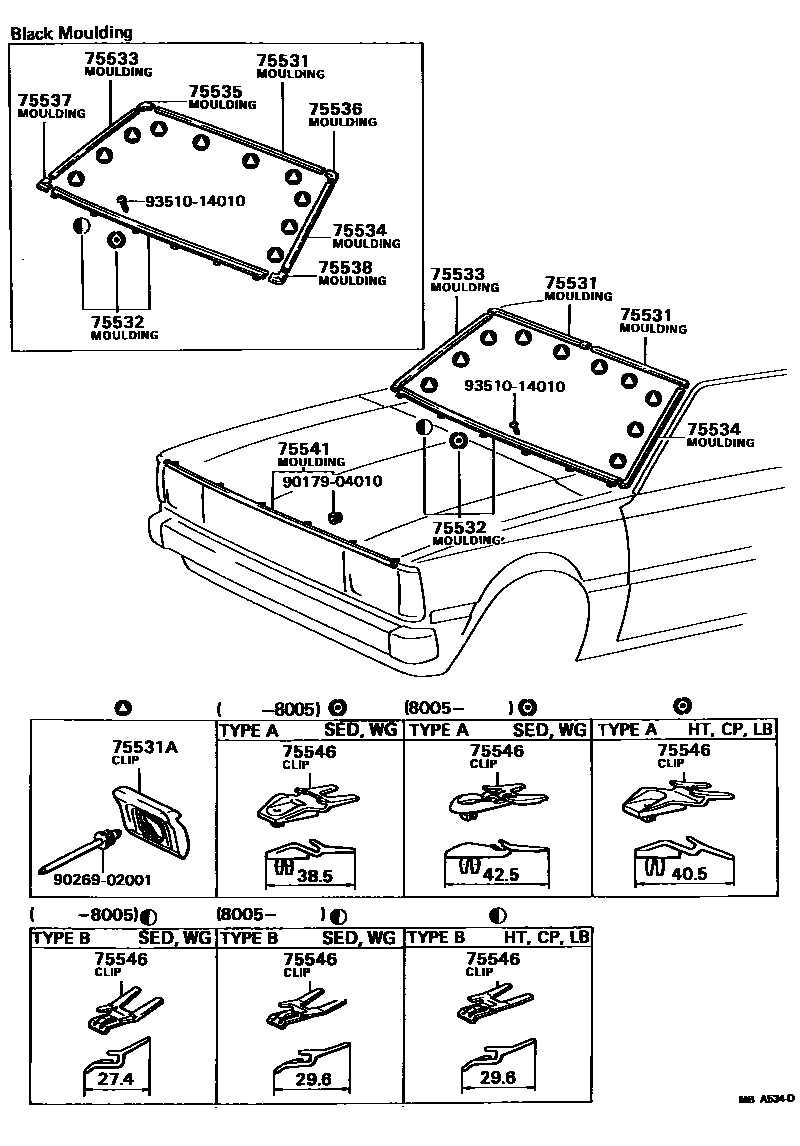

Toyota COROLLA EPC diagram 7502, 前防护条, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-12180 · 75531-12200 · 75531-12220 · 75532-12110 · 75532-12120 |
| 75531A | No. 1 windshield protection strip fixing clip | 75545-12030 · 75545-12031 |
| 75532 | Lower windshield protection strip | 75504-12010 · 75504-12011 · 75504-12020 · 75504-12030 |
| 75533 | Windshield right outer protective strip | 75533-12190 · 75533-12191 · 75533-12210 · 75533-12230 |
| 75534 | Windshield left outer protective strip | 75534-12120 · 75534-12121 · 75534-12140 · 75534-12160 |
| 75535 | Windshield upper right corner protective strip | 75541-12110 |
| 75536 | Windshield upper left corner protective strip | 75542-12080 |
| 75537 | Windshield lower right corner protective strip | 75543-12060 |
| 75538 | Windshield lower left corner protective strip | 75544-12040 |
| 75541 | Engine cover front protective strip | 75770-19125 · 75770-19135 · 75770-19225 |
| 75546 | Windshield outer protective strip clip | 75546-12010 · 75546-12011 · 75546-12050 · 75547-12010 · 75547-12011 · 75547-12020 |
