Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

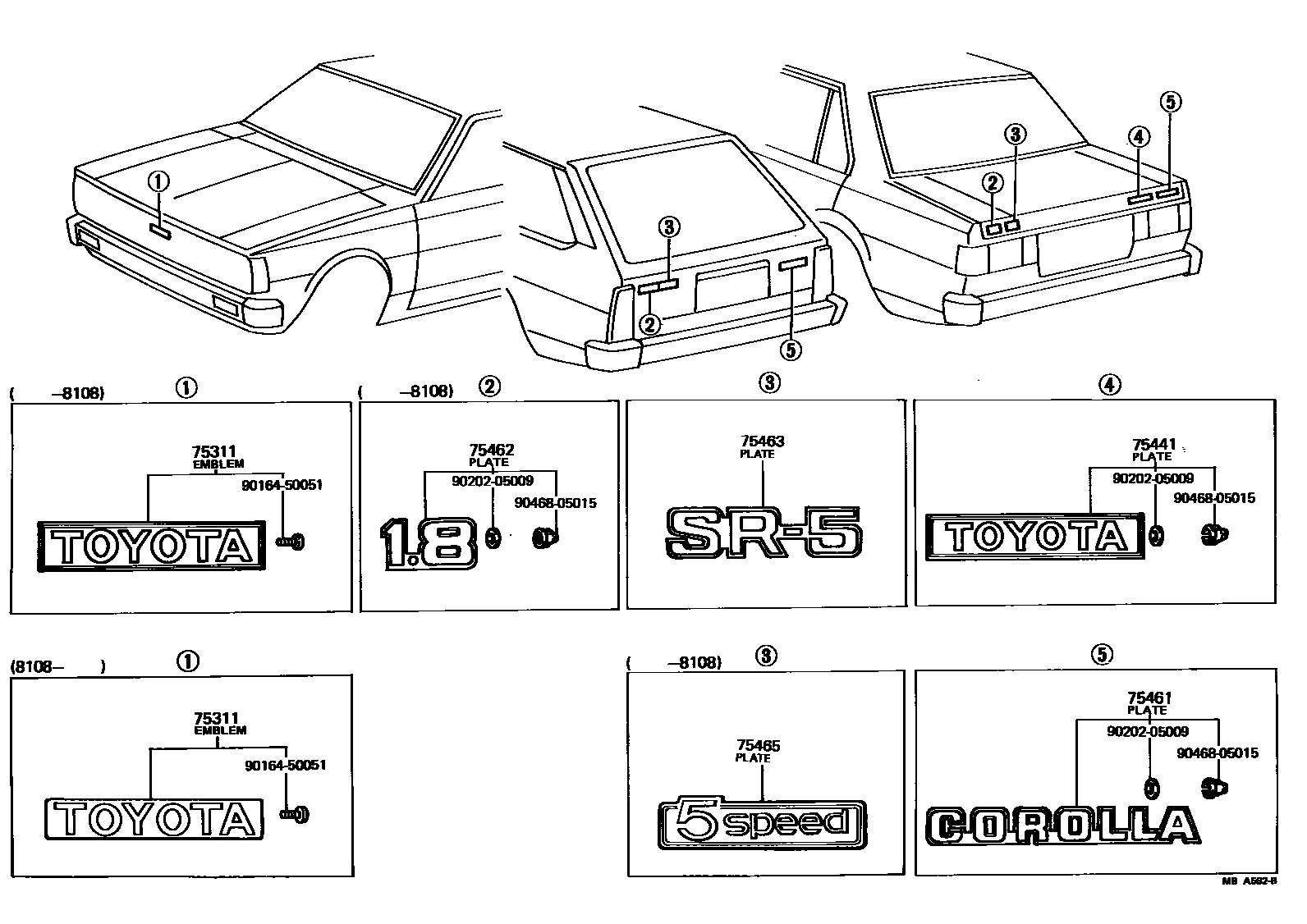

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-19845 · 75311-19855 · 75311-19865 · 75311-80001 · 75311-80005 |
| 75441 | Rear No. 1 nameplate (factory mark) | 75441-12240 |
| 75461 | Rear No. 2 nameplate (model mark) | 75442-12710 |
| 75462 | Rear No. 3 nameplate (displacement) | 75444-12080 |
| 75463 | Rear No. 4 nameplate (grade mark) | 75443-12270 |
| 75465 | No. 5 nameplate (organization) | 75441-30040 |
