Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

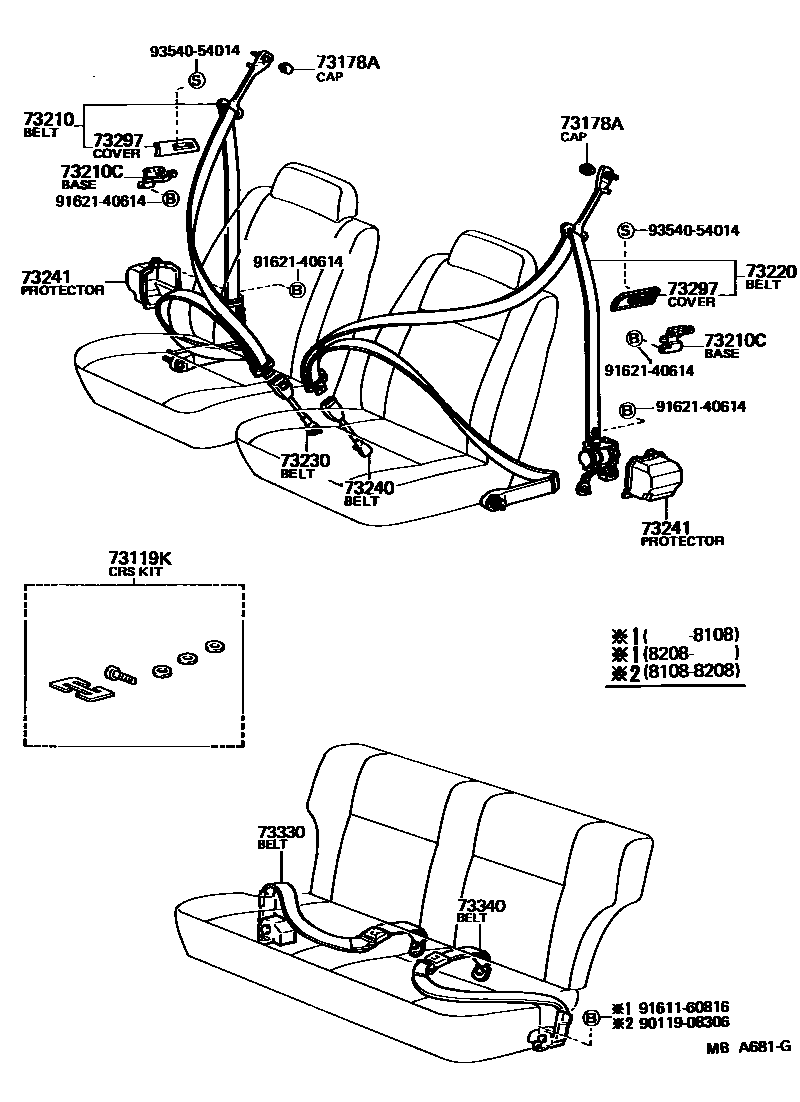

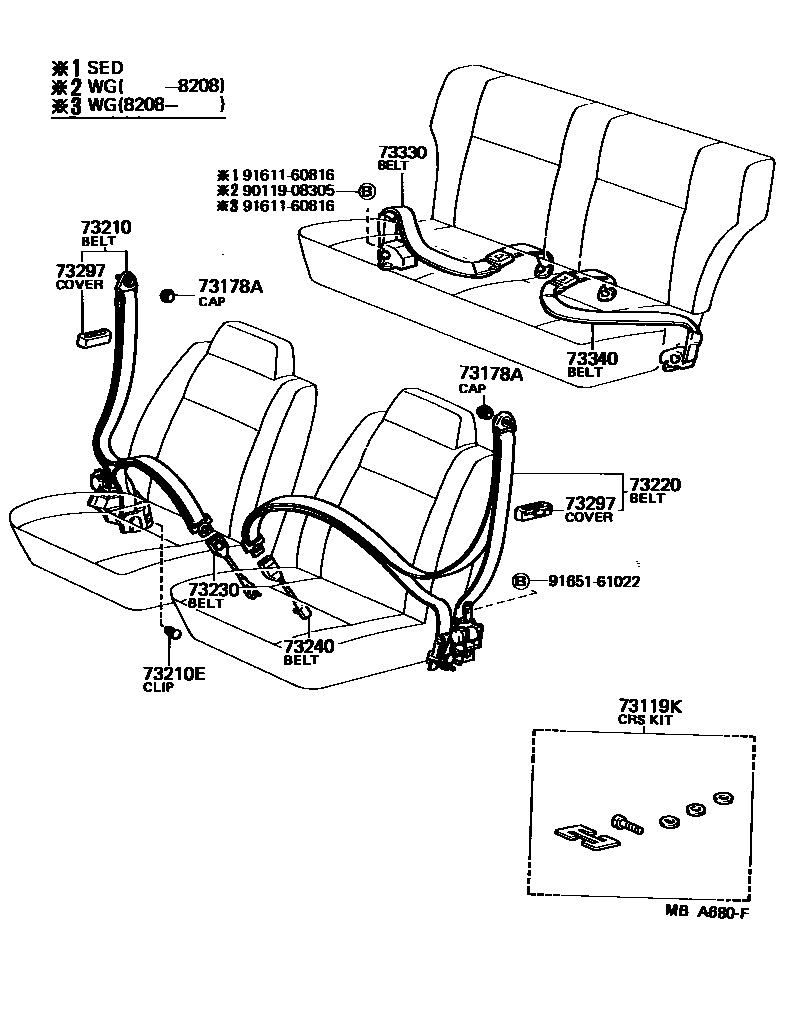

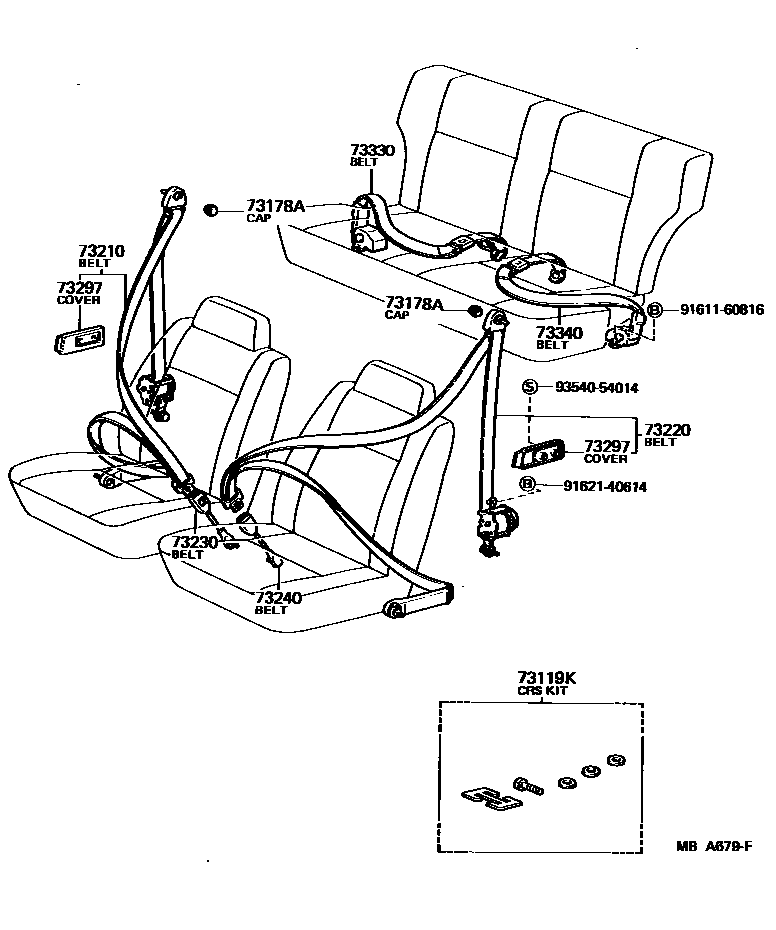

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73119K | child restraint seat assembly | 04731-22010 |
| 73210C | Seat belt hole cover base on side panel | 62535-12070 · 62535-12080 · 62536-12040 · 62536-12050 |
| 73241 | Seat belt retractor guard or housing | 73241-12020 · 73242-12010 |
