Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

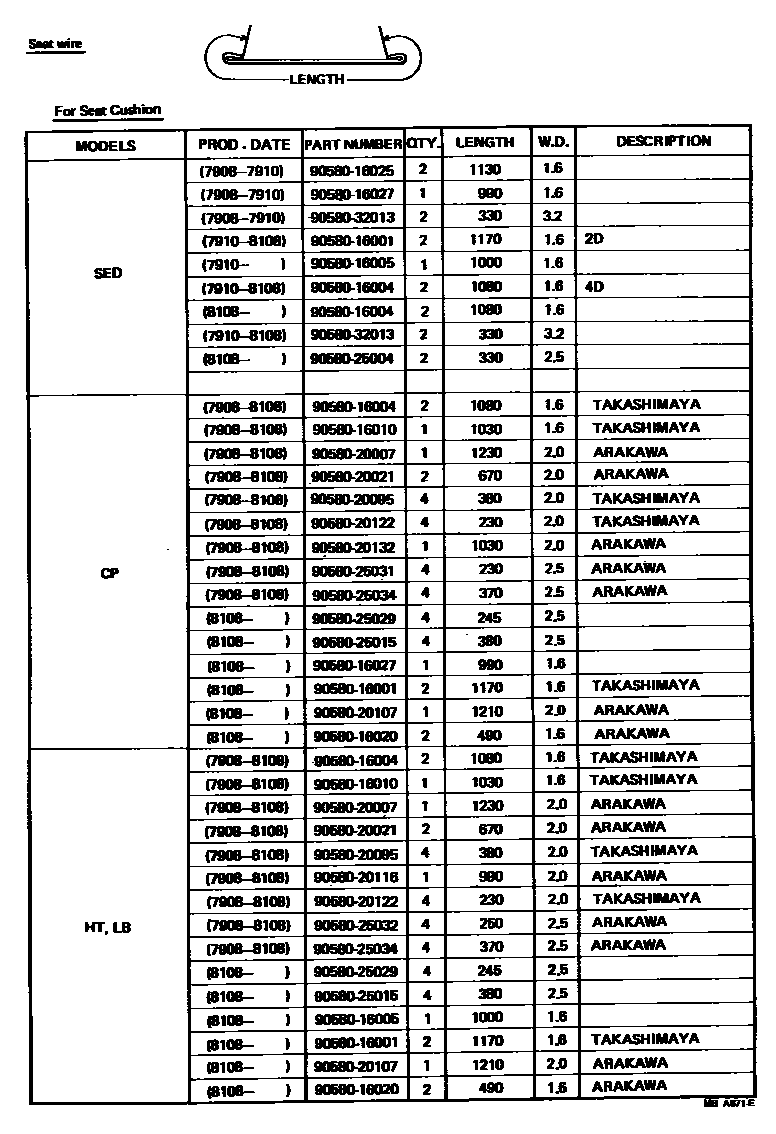

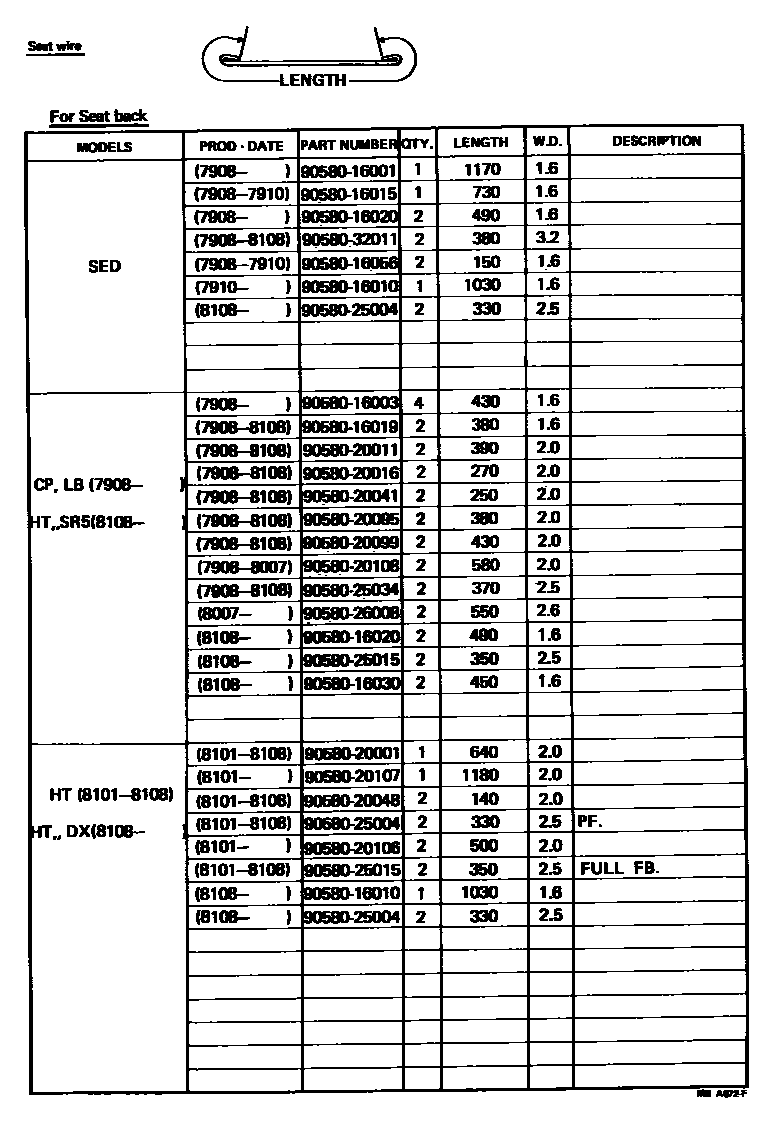

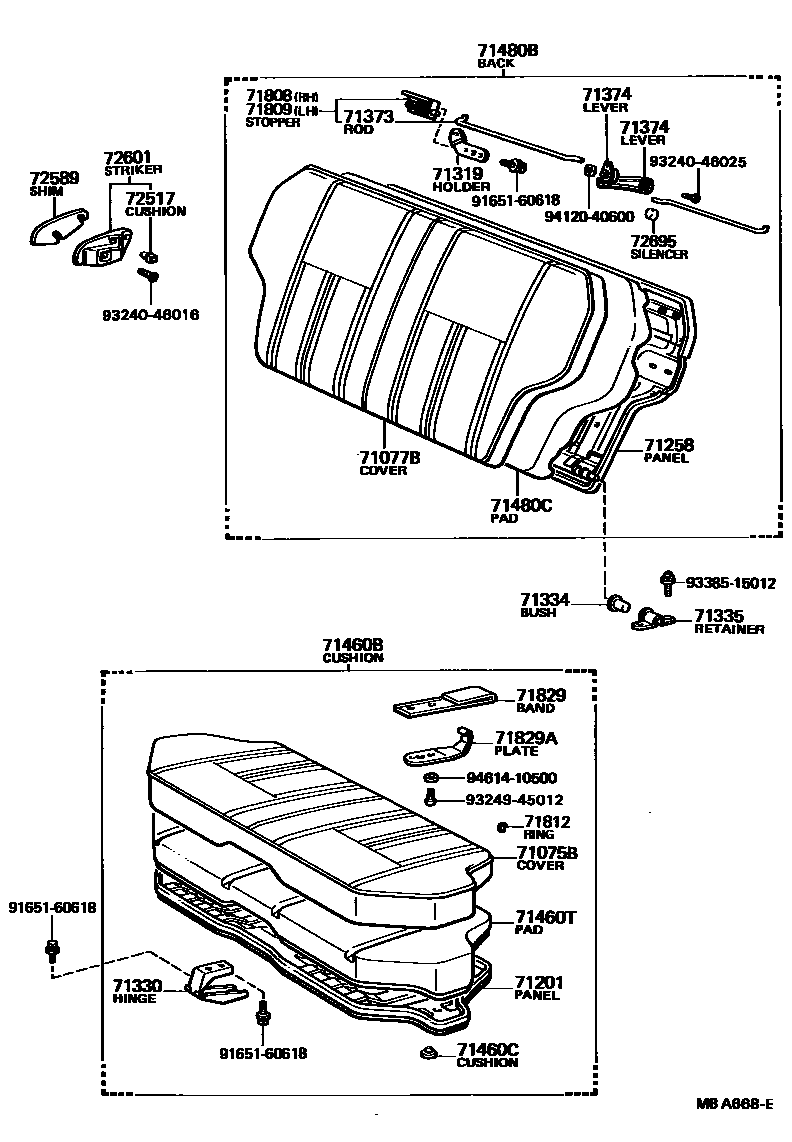

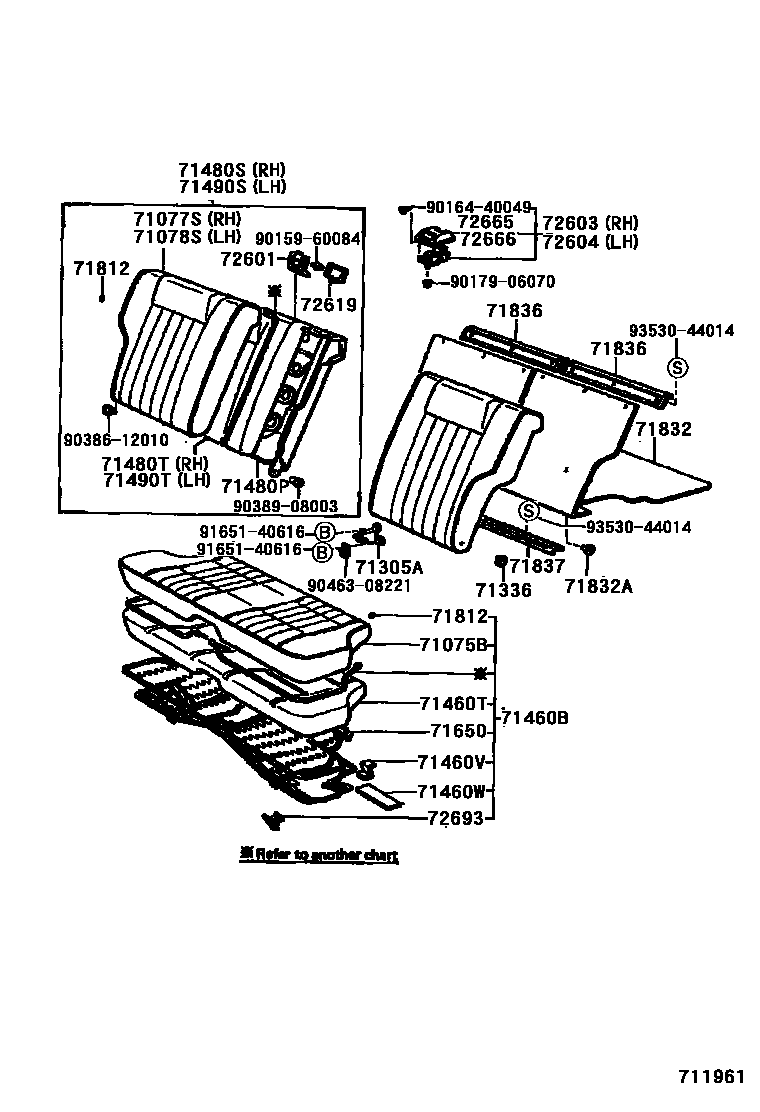

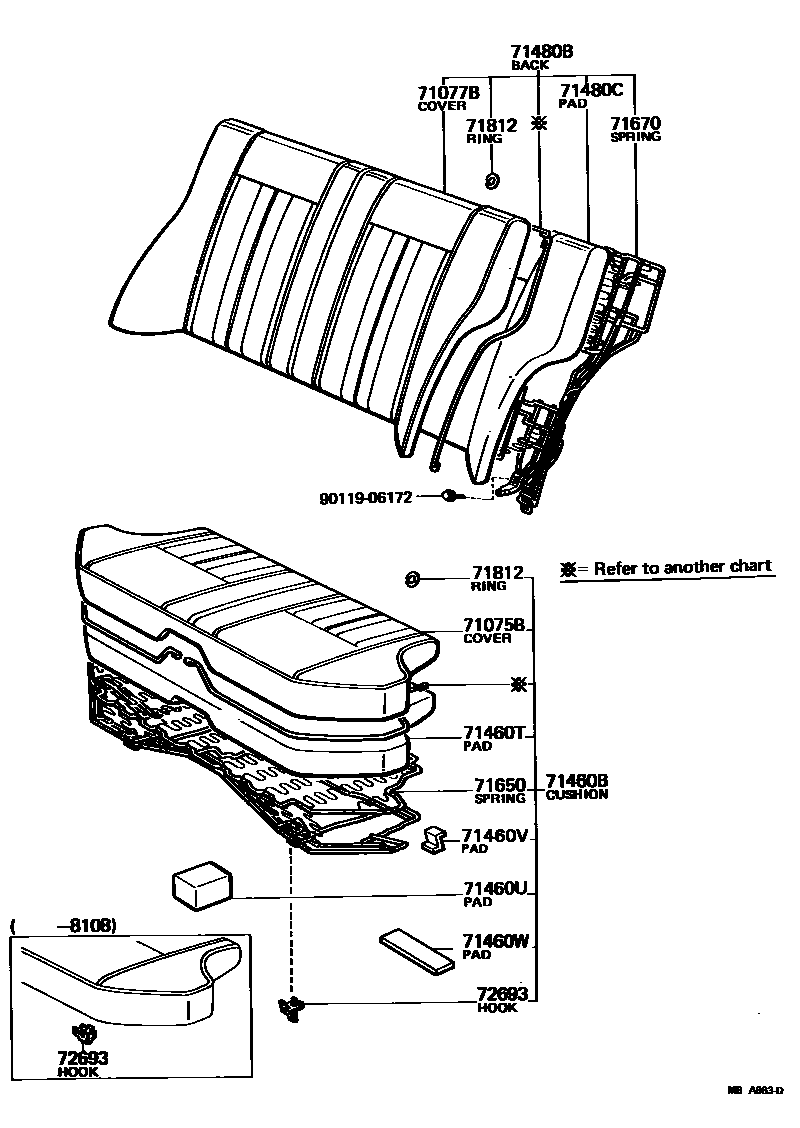

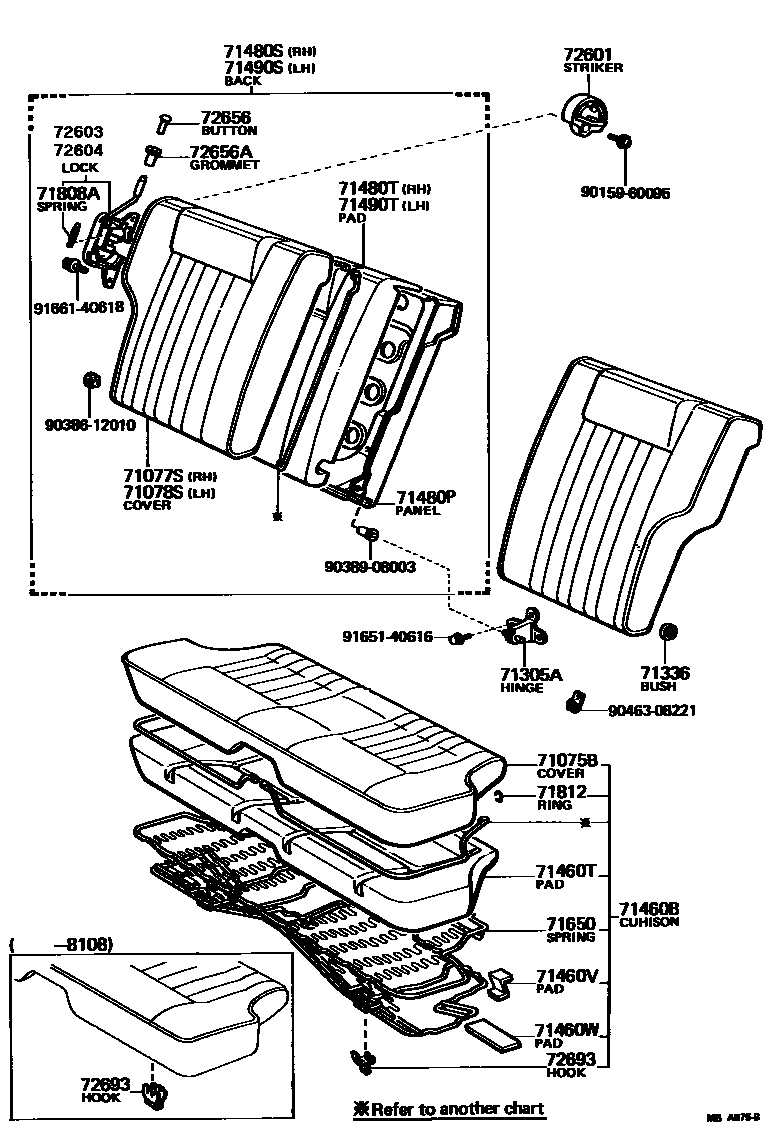

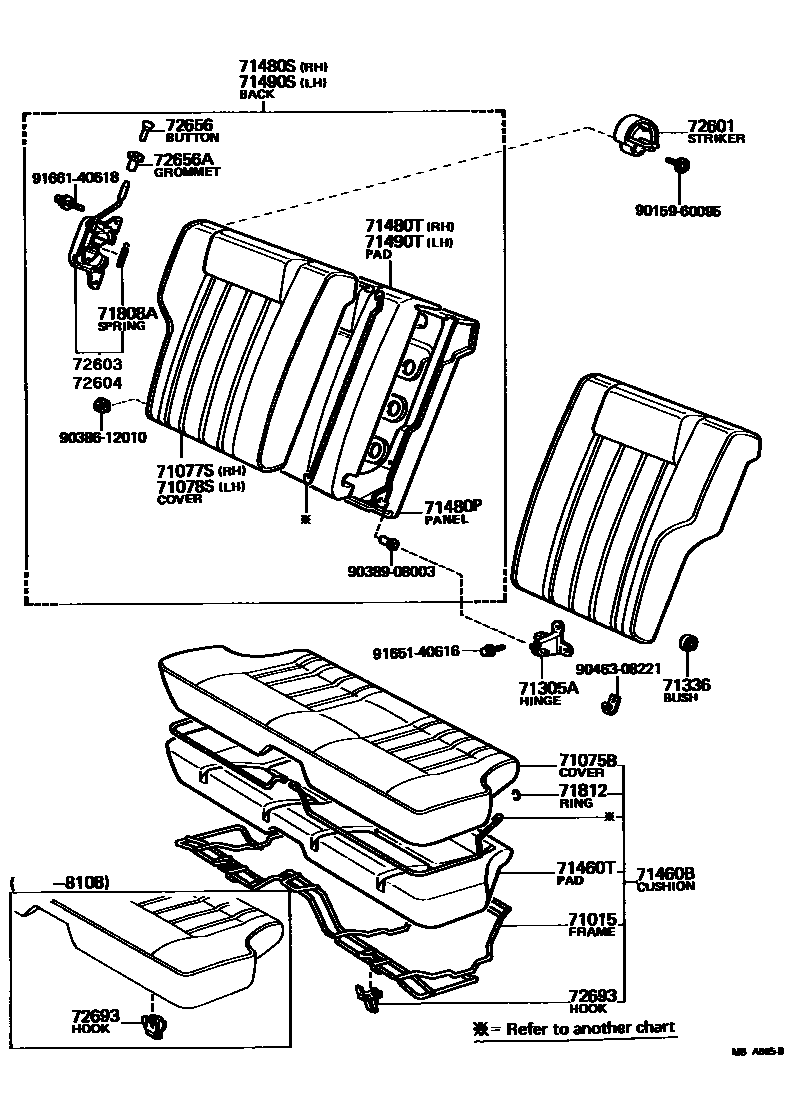

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 7 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-12220 |
| 71258 | Rear seat back panel sub-assembly | 71202-13080 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12020 |
| 71319 | Rear seat back retainer | 71398-13010 |
| 71330 | Rear seat cushion hinge assembly | 71301-13030 |
| 71334 | Rear seat cushion pivot bushing | 71331-13010 |
| 71335 | Rear seat backrest pivot upper seat ring | 71327-13010 |
| 71336 | Rear seat back hinge bushings or spacers | 71332-12010 |
| 71373 | Rear seat back lock lever | 72625-13010 · 72626-13010 |
| 71374 | Rear seat back lever control lever | 72637-13030 · 72661-13010 |
| 71460C | Seat cushion (for rear seat cushion) | 90541-09011 |
| 71460T | Rear No. 1 seat cushion cushion sub-assembly | 71503-12010 · 71503-12011 · 71503-12020 · 71503-12021 · 71611-12360 · 71611-12370 · 71611-12371 · 71611-13100 |
| 71460U | Rear No. 2 seat cushion cushion sub-assembly | 71614-12360 |
| 71460V | Rear seat No. 3 seat cushion muffler | 71621-12240 · 71621-12250 |
| 71460W | Seat cushion muffler for rear seat No. 4 | 71622-12070 |
| 71480C | Rear No. 1 seat back cushion sub-assembly (for bench seat) | 71407-12130 · 71407-12131 · 71407-12150 · 71407-12151 · 71651-13100 |
| 71480P | Rear seat back panel sub-assembly | 71202-12040 · 71202-12050 · 71203-12020 · 71203-12030 |
| 71480T | Rear right seat back cushion (for split seats) | 71651-12340 · 71651-12350 · 71651-12360 |
| 71490T | Rear left seat back cushion (for split seats) | 71652-12190 · 71652-12260 · 71652-12270 |
| 71650 | Rear seat cushion spring assembly | 71650-12170 · 71650-12171 · 71650-12180 · 71650-12181 · 71650-12210 |
| 71670 | Rear seat back spring assembly (for bench seat) | 71670-12140 · 71670-12141 · 71670-12160 · 71670-12161 |
| 71808 | Rear right seat backrest block sub-assembly | 72630-13050 |
| 71808A | Rear seat back limit spring | 90506-08003 |
| 71809 | Rear left seat backrest block sub-assembly | 72640-13050 |
| 71829A | Rear seat cushion strap support plate | 71897-13020 |
| 71837 | Rear seat backrest support plate | 58573-16010 |
| 72517 | Rear seat backrest stop cushion | 90541-06006 |
| 72589 | Rear seat back stop gasket | 72669-13020 |
| 72601 | Rear seat lock sub-assembly | 72601-12030 · 72601-12060 · 72602-12010 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12040 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12040 |
| 72693 | Rear seat cushion hook | 72693-12010 · 72693-22010 |
| 72695 | Rear seat back lock control lever silencer | 72695-13011 |
