Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

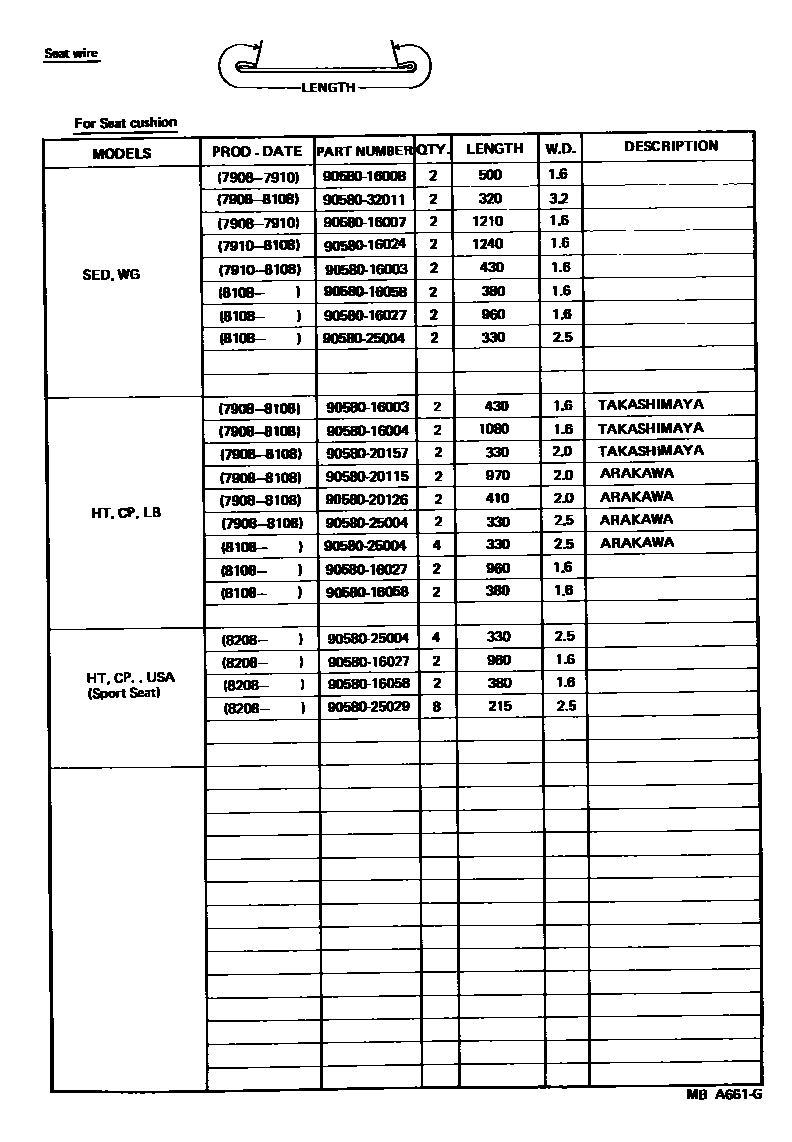

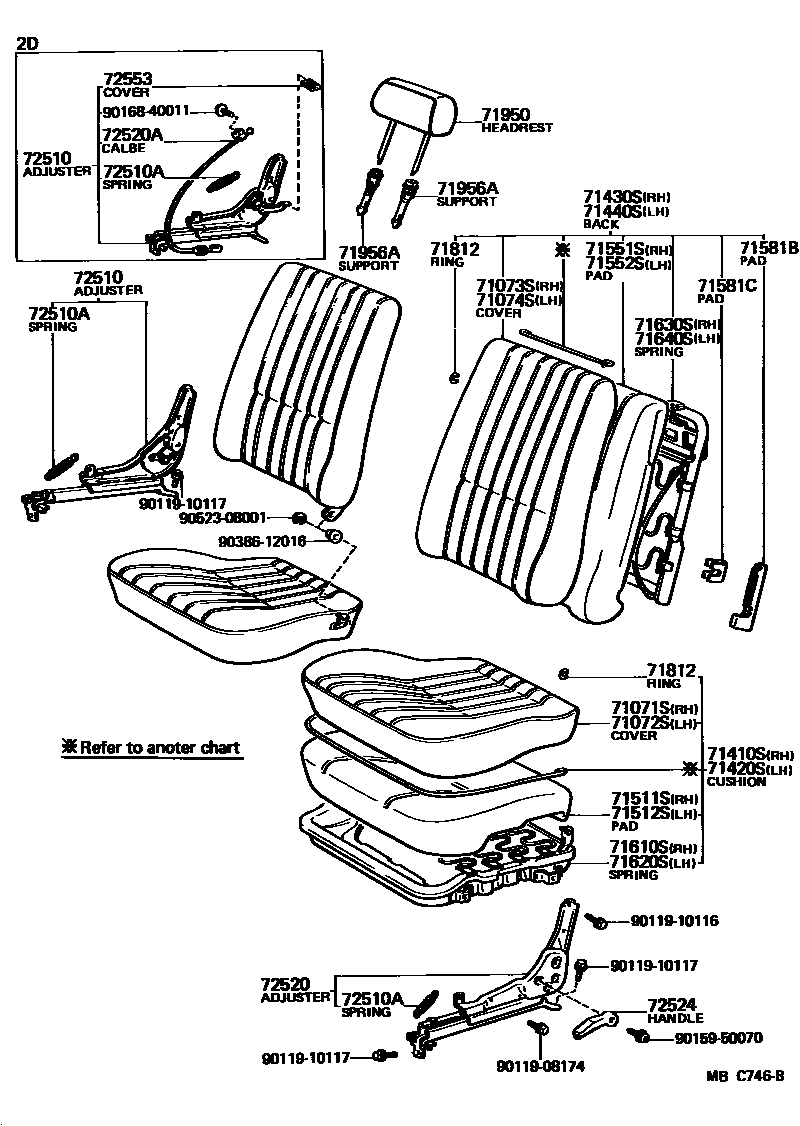

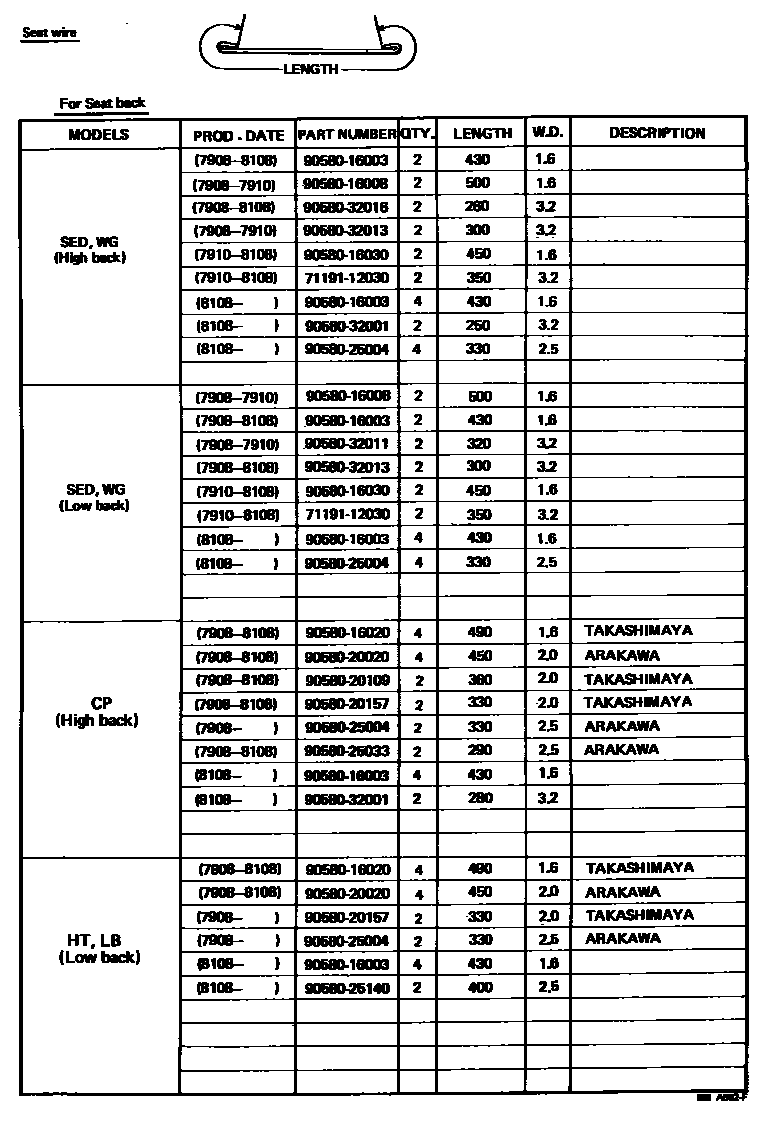

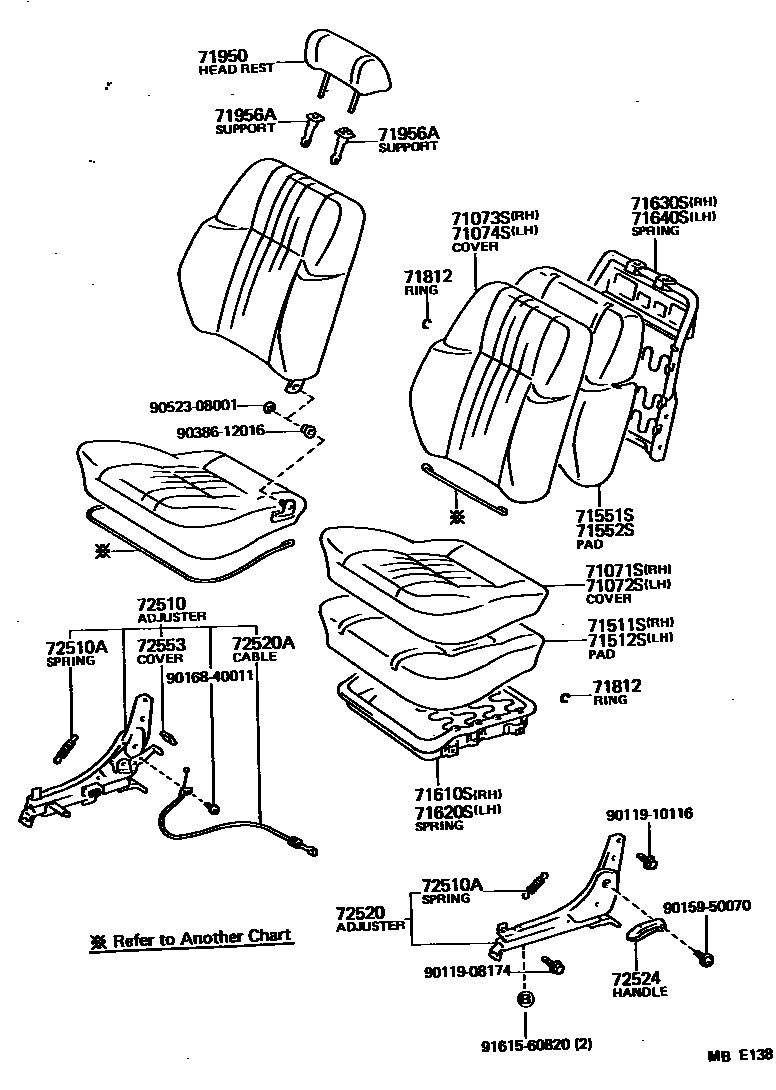

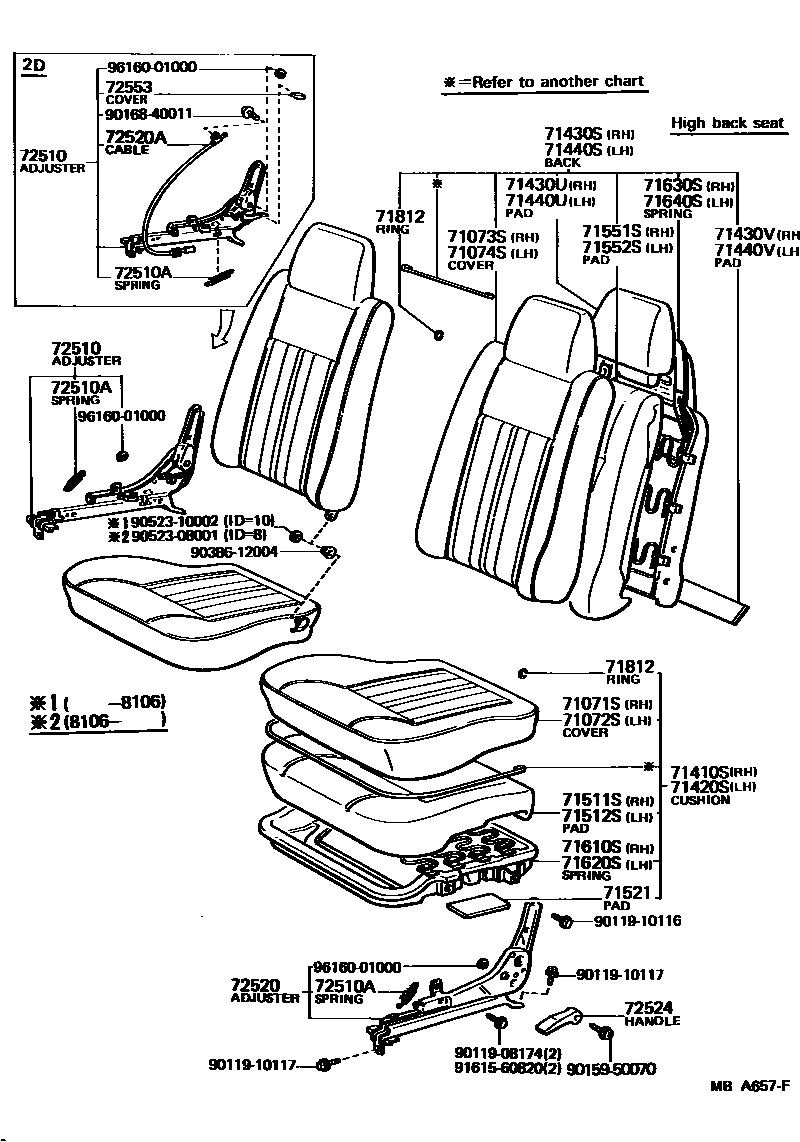

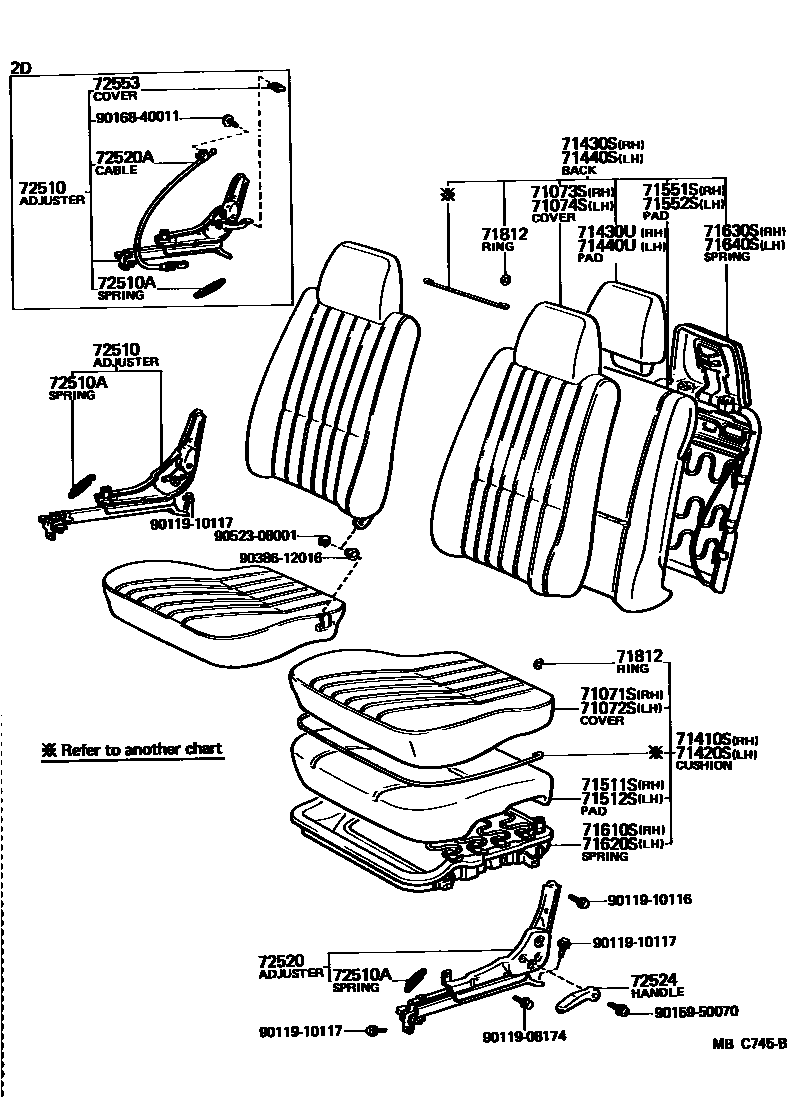

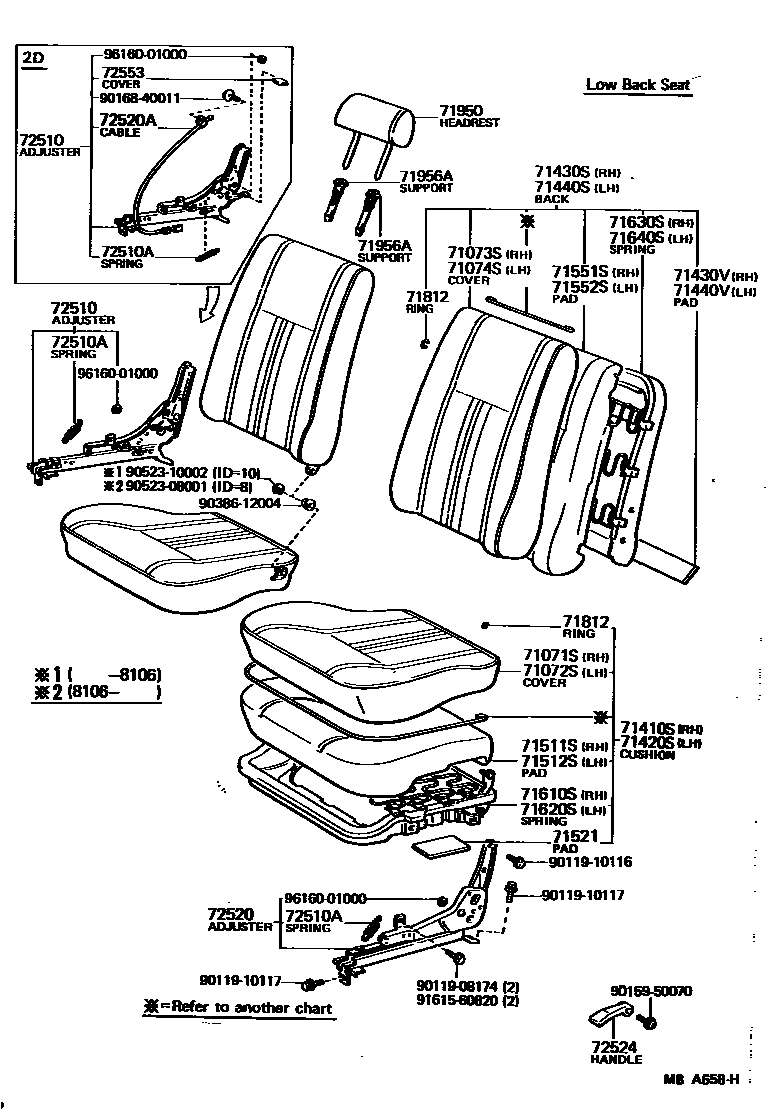

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 7 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71430U | Seat back cushion on the right side of the front row No. 2 (for split seats) | 71561-12141 · 71561-12150 · 71561-12160 · 71561-12170 |
| 71430V | No. 3 seat back cushion on the right side of the front row (for separate type) | 71581-12020 |
| 71440U | Front left seat No. 2 seat back cushion (for split seats) | 71561-12141 · 71561-12150 · 71561-12160 · 71561-12170 |
| 71440V | Front left seat No. 3 seat back cushion (for split seats) | 71581-12020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12340 · 71511-12341 · 71511-12350 · 71511-12370 · 71511-12371 · 71511-12380 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12340 · 71511-12341 · 71511-12350 · 71511-12370 · 71511-12371 · 71511-12380 |
| 71521 | Front A seat cushion muffler | 71521-12160 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12290 · 71551-12291 · 71551-12300 · 71551-12320 · 71551-12321 · 71551-12330 · 71551-12331 · 71551-12360 · 71551-12370 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12290 · 71551-12291 · 71551-12300 · 71551-12320 · 71551-12321 · 71551-12330 · 71551-12331 · 71551-12360 · 71551-12370 |
| 71581B | Front B seat back corner cushions | 71582-12080 |
| 71581C | Front C seat back corner cushions | 71583-12030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12110 · 71610-12111 · 71610-12130 · 71610-12131 · 71610-12150 · 71610-16010 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12110 · 71620-12111 · 71620-12120 · 71620-12130 · 71620-12131 · 71620-16010 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-10041 · 71630-10051 · 71630-10100 · 71630-12170 · 71630-12180 · 71630-12190 · 71630-12191 · 71630-12200 · 71630-12210 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-10041 · 71640-10051 · 71640-12160 · 71640-12170 · 71640-12180 · 71640-12181 · 71640-12190 · 71640-12200 · 71640-12210 |
| 71812 | Clip (for front seat cushion cover) | 90468-18071 |
| 71950 | Front seat headrest assembly | 71910-12200 · 71910-12250 · 71920-12050 · 71920-12060 |
| 72110E | No. 1 tensioning spring (for seat slide rail) | 90507-18001 · 90507-18003 |
| 72130 | Right seat inner slide rail assembly | 72130-12120 · 72130-12141 · 72130-12161 · 72130-12250 · 72130-12260 · 72130-12270 |
| 72140 | Left seat inner slide rail assembly | 72140-12100 · 72140-12130 · 72140-12230 · 72140-12240 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-12020 |
| 72510A | Tension spring No. 1 (for seat back recliner) | 90506-18015 |
| 72520A | Adjuster to seat rail cable | 72210-12060 · 72210-12070 |
| 72553 | Seat back tilt pedal cover | 72553-12020 · 72553-12030 |
